EN 62196-2:2017

Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories

IEC 62196-2:2016 applies to plugs, socket-outlets, vehicle connectors and vehicle inlets with pins and contact-tubes of standardized configurations, herein referred to as accessories. They have a nominal rated operating voltage not exceeding 480 V a.c., 50 Hz to 60 Hz, and a rated current not exceeding 63 A three-phase or 70 A single phase, for use in conductive charging of electric vehicles. This second edition cancels and replaces the first edition published in 2011 and constitutes a technical revision. This second edition includes the following significant technical changes with respect to the previous edition. a) Standard sheets for configurations type 2 and type 3 have been updated. b) Configuration type 2 is now available with optional shutter. This publication is to be read in conjunction with IEC 62196-1:2014.

Stecker, Steckdosen, Fahrzeugkupplungen und Fahrzeugstecker - Konduktives Laden von Elektrofahrzeugen - Teil 2: Anforderungen und Hauptmaße für die Kompatibilität und Austauschbarkeit von Stift- und Buchsensteckvorrichtungen für Wechselstrom

Fiches, socles de prise de courant, prises mobiles de véhicule et socles de connecteurs de véhicule - Charge conductive des véhicules électriques - Partie 2: Exigences dimensionnelles de compatibilité et d’interchangeabilité pour les appareils à broches et alvéoles pour courant alternatif

L'IEC 62196-2:2016 s'applique aux fiches, aux socles de prise de courant, aux prises mobiles et socles de connecteurs de véhicule, à broches et alvéoles, de configurations normalisées, ci-après dénommés appareils. Ces appareils ont une tension d'emploi assignée ne dépassant pas 480 V en courant alternatif, 50 Hz à 60 Hz, et un courant assigné ne dépassant pas 63 A en triphasé ou 70 A en monophasé, et sont destinés à la charge conductive des véhicules électriques. Cette deuxième édition annule et remplace la première édition parue en 2011 et constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) Mise à jour des feuilles de norme des configurations type 2 et type 3; b) Ajout d'obturateurs (en option) pour les appareils de type 2. Cette publication doit être lue conjointement avec la IEC 62196-1:2014.

Vtiči, vtičnice, konektorji in uvodnice na vozilih - Kabelsko napajanje električnih vozil - 2. del: Zahteve za dimenzijsko skladnost in zamenljivost pribora s trni in cevastimi kontakti za izmenični tok (a.c.) (IEC 62196-2:2016)

Ta del standarda IEC 62196 se uporablja za vtiče, vtičnice, konektorje in uvodnice na vozilih s trni in cevastimi kontakti standardiziranih oblik (v nadaljnjem besedilu: »priključki«).
Njihova nazivna naznačena obratovalna napetost je manjša od 480 V izmenične napetosti, 50 Hz do 60 Hz, naznačeni tok pa manjši od 63 A pri treh fazah ali 70 A pri eni fazi, za uporabo pri sistemih za polnjenje električnih vozil po kablu.
Ta del standarda IEC 62196 zajema osnovne vmesniške priključke za napajanje vozil, ki so opredeljeni v standardu IEC 62196-1 in namenjeni za uporabo v sistemih za polnjenje po kablu za tokokroge iz standarda IEC 61851-1:2010.
OPOMBA 1 Izraz »električna cestna vozila« (EV) se nanaša na vsa cestna vozila, vključno z hibridnimi cestnimi vozili z možnostjo polnjenja prek navadne vtičnice (PHEV), ki vso energijo ali njen del pridobijo iz RESS.
Ti priključki so namenjeni za uporabo pri tokokrogih, navedenih v standardu IEC 61851-1:2010, ki delujejo pri različnih napetostih in frekvencah in lahko vključujejo malo napetost (ELV) in komunikacijske signale.
Ti priključki se lahko uporabljajo za dvosmerni prenos moči (v obravnavi). Ta standard velja priključke za uporabo pri temperaturi okolice med –30 °C in +50 °C.
OPOMBA 2 V naslednji državi lahko veljajo druge zahteve glede nižje temperature: NO.
OPOMBA 3 V naslednji državi velja –35 °C: SE.
Ti priključki se lahko priključijo samo na kable z vodniki iz bakra ali bakrove zlitine.
Konektorji in uvodnice na vozilih iz tega standarda se lahko uporabljajo pri polnjenju v načinu 1, 2 in 3, primerov B in C. Vtičnice in vtiči iz tega standarda se lahko uporabljajo samo pri načinu polnjenja 3, primerov A in B.
Načini in dovoljeni priključki so določeni v standardu IEC 62196-1:2014.

General Information

• Status: Withdrawn
• Publication Date: 27-Apr-2017
• ICS: 29.120.30 - Plugs, socket-outlets, couplers
• ICS: 43.120 - Electric road vehicles
• Technical Committee: CLC/TC 23H - Plugs, Socket-outlets and Couplers for industrial and similar applications, and for Electric Vehicles
• Drafting Committee: IEC/SC 23H - IEC_SC_23H
• Current Stage: 9960 - Withdrawal effective - Withdrawal
• Start Date: 23-Nov-2025
• Completion Date: 23-Nov-2025
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Directive: 2014/94/EU - Directive 2014/94/EU of The European Parliament and of The Council of 22 October 2014 on the deployment of alternative fuels infrastructure
• Mandate: M/468 - Standardisation mandate addressed to CEN and CENELEC and ETSI concerning the charging of electric vehicles
• Mandate: M/511 - Mandate to CEN, CENELEC and ETSI relating to harmonised standards in the field of the Low Voltage Directive
• Mandate: M/533 - [C(2015)1330] Standardisation request addressed to CEN, CENELEC and ETSI in support of the implementation of the Directive 2014/94/EU on the deployment of alternative fuels infrastructure
• Ref Project: SIST EN 62196-2:2017 - Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories (IEC 62196-2:2016)

Relations

• Replaces: EN 62196-2:2012/A12:2014 - Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories
• Effective Date: 23-Jan-2023
• Replaces: EN 62196-2:2012/A12:2014/AC:2014 - Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories
• Effective Date: 07-Jun-2022
• Replaces: EN 62196-2:2012 - Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories
• Effective Date: 07-Jun-2022
• Replaces: EN 62196-2:2012/A11:2013 - Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories
• Effective Date: 07-Jun-2022
• Replaced By: EN IEC 62196-2:2022 - Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 2: Dimensional compatibility requirements for AC pin and contact-tube accessories
• Effective Date: 29-Nov-2022

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Stecker, Steckdosen, Fahrzeugkupplungen und Fahrzeugstecker - Konduktives Laden von Elektrofahrzeugen - Teil 2: Anforderungen und Hauptmaße für die Kompatibilität und Austauschbarkeit von Stift- und Buchsensteckvorrichtungen für Wechselstrom (IEC 62196-2:2016)Fiches, socles de prise de courant, prises mobiles de véhicule et socles de connecteurs de véhicule - Charge conductive des véhicules électriques - Partie 2: Exigences dimensionnelles de compatibilité et d'interchangeabilité pour les appareils à broches et alvéoles pour courant alternatif (IEC 62196-2:2016)Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories (IEC 62196-2:2016)43.120Electric road vehicles29.120.30Plugs, socket-outlets, couplersICS:Ta slovenski standard je istoveten z:EN 62196-2:2017SIST EN 62196-2:2017en,fr,de01-oktober-2017SIST EN 62196-2:2017SLOVENSKI
STANDARDSIST EN 62196-2:2012/A12:2014SIST EN 62196-2:2012/A12:2014/AC:2015SIST EN 62196-2:2012SIST EN 62196-2:2012/A11:20131DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 62196-2
April 2017 ICS 29.120.30; 43.120
Supersedes
EN 62196-2:2012
English Version
Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories (IEC 62196-2:2016)
Fiches, socles de prise de courant, prises mobiles de véhicule et socles de connecteurs de véhicule - Charge conductive des véhicules électriques - Partie 2: Exigences dimensionnelles de compatibilité et d'interchangeabilité pour les appareils à broches et alvéoles pour courant alternatif (IEC 62196-2:2016)
Stecker, Steckdosen, Fahrzeugkupplungen und Fahrzeugstecker - Konduktives Laden von Elektrofahrzeugen - Teil 2: Anforderungen und Hauptmaße für die Kompatibilität und Austauschbarkeit von Stift- und Buchsensteckvorrichtungen für Wechselstrom (IEC 62196-2:2016) This European Standard was approved by CENELEC on 2016-03-24. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions. CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung CEN-CENELEC Management Centre: Avenue Marnix 17,
B-1000 Brussels © 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62196-2:2017 E SIST EN 62196-2:2017

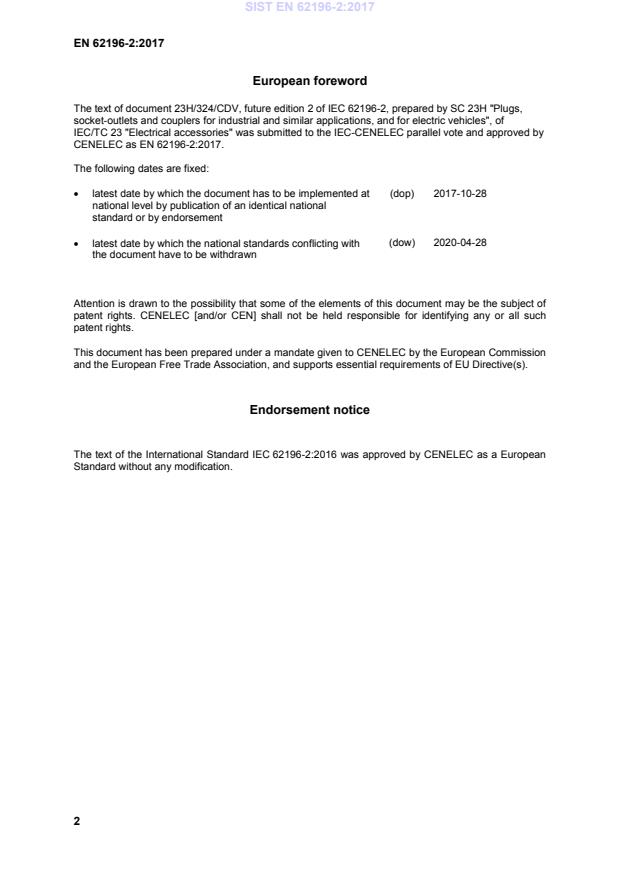

The text of document 23H/324/CDV, future edition 2 of IEC 62196-2, prepared by SC 23H "Plugs, socket-outlets and couplers for industrial and similar applications, and for electric vehicles", of IEC/TC 23 "Electrical accessories" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 62196-2:2017.
The following dates are fixed: • latest date by which the document has to be implemented at national level by publication of an identical national standard or by endorsement (dop) 2017-10-28 • latest date by which the national standards conflicting with the document have to be withdrawn (dow) 2020-04-28
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights. This document has been prepared under a mandate given to CENELEC by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). Endorsement notice The text of the International Standard IEC 62196-2:2016 was approved by CENELEC as a European Standard without any modification. SIST EN 62196-2:2017

Annex ZA (normative)
Normative references to international publications with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here: www.cenelec.eu.
Annex ZA of Part 1 applies. Addition Publication Year Title EN/HD Year IEC 62196-1 (mod) 2014
Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 1: General requirements EN 62196-1 2014
IEC 62196-2 Edition 2.0 2016-02 INTERNATIONAL STANDARD NORME INTERNATIONALE Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive charging of electric vehicles – Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories
Fiches, socles de prise de courant, prises mobiles de véhicule et socles de connecteurs de véhicule – Charge conductive des véhicules électriques – Partie 2: Exigences dimensionnelles de compatibilité et d’interchangeabilité pour les appareils à broches et alvéoles pour courant alternatif
INTERNATIONAL ELECTROTECHNICAL COMMISSION COMMISSION ELECTROTECHNIQUE INTERNATIONALE
ICS 29.120.30; 43.120
ISBN 978-2-8322-3154-8
– 2 – IEC 62196-2:2016 © IEC 2016 CONTENTS FOREWORD . 4 INTRODUCTION . 6 1 Scope . 7 2 Normative references. 7 3 Terms and definitions . 8 4 General . 8 5 Ratings . 8 6 Connection between the power supply and the electric vehicle . 8 7 Classification of accessories . 10 8 Marking . 11 9 Dimensions . 11 10 Protection against electric shock . 12 11 Size and colour of protective earthing conductors . 12 12 Provision for earthing . 12 13 Terminals . 12 14 Interlocks . 12 15 Resistance to ageing of rubber and thermoplastic material . 12 16 General construction . 12 17 Construction of socket-outlets . 12 18 Construction of plugs and vehicle connectors . 12 19 Construction of vehicle inlets . 12 20 Degrees of protection . 13 21 Insulation resistance and dielectric strength . 13 22 Breaking capacity . 13 23 Normal operation . 13 24 Temperature rise . 13 25 Flexible cables and their connection . 13 26 Mechanical strength . 13 27 Screws, current-carrying parts and connections . 13 28 Creepage distances, clearances and distances . 13 29 Resistance to heat, to fire and to tracking . 13 30 Corrosion and resistance to rusting . 13 31 Conditional short-circuit current withstand test . 14 32 Electromagnetic compatibility (EMC) . 14 33 Vehicle driveover . 14 201 Components . 14 202 Resistor coding . 15 STANDARD SHEETS . 16 CONFIGURATION TYPE 1 . 16 CONFIGURATION TYPE 2 . 28 CONFIGURATION TYPE 3 . 43 SIST EN 62196-2:2017

IEC 62196-2:2016 © IEC 2016 – 3 –
Table 201 – Overview of the basic vehicle interface,
configuration type 1, single phase . 9 Table 202 – Overview of the basic vehicle interface,
configuration types 2 and 3, three-phase or single phase . 10 Table 203 – Configuration types and standard sheets . 11 Table 204 – Interoperation of configuration type 2 accessories . 28
– 4 – IEC 62196-2:2016 © IEC 2016 INTERNATIONAL ELECTROTECHNICAL COMMISSION ____________
PLUGS, SOCKET-OUTLETS, VEHICLE CONNECTORS AND VEHICLE INLETS – CONDUCTIVE CHARGING OF ELECTRIC VEHICLES –
Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories
FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees. 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any services carried out by independent certification bodies. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications. 8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 62196-2 has been prepared by IEC subcommittee 23H: Plugs, socket-outlets and couplers for industrial and similar applications, and for electric vehicles, of IEC technical committee 23: Electrical accessories. This second edition cancels and replaces the first edition published in 2011 and constitutes a technical revision. This second edition includes the following significant technical changes with respect to the previous edition. a) Standard sheets for configurations type 2 and type 3 have been updated. b) Configuration type 2 is now available with optional shutter.
IEC 62196-2:2016 © IEC 2016 – 5 –
The text of this standard is based on the following documents: CDV Report on voting 23H/324/CDV 23H/342/RVC
Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. This publication has been drafted in accordance with the ISO/IEC Directives, Part 2. A list of all the parts in the IEC 62196 series, under the general title Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive charging of electric vehicles, can be found on the IEC website. This part of IEC 62196 is to be read in conjunction with IEC 62196-1:2014. The clauses of the particular requirements in Part 2 supplement or modify the corresponding clauses in Part 1. Where the text indicates "addition" to or "replacement" of the relevant requirement, test specification or explanation of Part 1, these changes are made to the relevant text of Part 1, which then becomes part of this standard. Where no change is necessary, the words "Clause X of IEC 62196-1:2014 is applicable" are used. In this standard, the following print types are used: – requirements proper: in roman type; – test specifications: in italic type; – notes: in smaller roman type. The committee has decided that the contents of this publication will remain unchanged until the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be • reconfirmed, • withdrawn, • replaced by a revised edition, or • amended.
– 6 – IEC 62196-2:2016 © IEC 2016 INTRODUCTION Responding to global challenges of CO2 reduction and energy security, the automobile industries have been accelerating the development and commercialization of electric vehicles and hybrid electric vehicles. In addition to the prevailing hybrid electric vehicles, battery electric vehicles including plug-in hybrid electric vehicles are going to be mass-marketed. To support the diffusion of such vehicles, this standard provides the standard interface configurations of a.c. vehicle couplers and accessories to be used in conductive charging of electric vehicles, taking the most frequent charging situations into consideration. IEC 62196 is divided into several parts: Part 1: General requirements Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories Part 3: Dimensional compatibility and interchangeability requirements for d.c. and a.c./d.c. pin and contact-tube vehicle couplers SIST EN 62196-2:2017

IEC 62196-2:2016 © IEC 2016 – 7 – PLUGS, SOCKET-OUTLETS, VEHICLE CONNECTORS AND VEHICLE INLETS – CONDUCTIVE CHARGING OF ELECTRIC VEHICLES –
Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories
1 Scope This part of IEC 62196 applies to plugs, socket-outlets, vehicle connectors and vehicle inlets with pins and contact-tubes of standardized configurations, herein referred to as accessories. They have a nominal rated operating voltage not exceeding 480 V a.c., 50 Hz to 60 Hz, and a rated current not exceeding 63 A three-phase or 70 A single phase, for use in conductive charging of electric vehicles. This part of IEC 62196 covers the basic interface accessories for vehicle supply as specified in IEC 62196-1, and intended for use in conductive charging systems for circuits specified in IEC 61851-1:2010. NOTE 1 Electric road vehicles (EV) implies all road vehicles, including plug-in hybrid road vehicles (PHEV), that derive all or part of their energy from RESS. These accessories are intended to be used for circuits specified in IEC 61851-1:2010 which operate at different voltages and frequencies and which may include extra-low voltage (ELV) and communication signals. These accessories may be used for bidirectional power transfer (under consideration). This standard applies to accessories to be used in an ambient temperature between –30 °C and +50 °C. NOTE 2 In the following country, other requirements regarding the lower temperature may apply: NO. NOTE 3 In the following country, –35 °C applies: SE. These accessories are intended to be connected only to cables with copper or copper-alloy conductors. Vehicle inlet and vehicle connector to this standard are intended to be used for charging in modes 1, 2 and 3, cases B and C. The socket-outlets and plugs covered by this standard are intended to be used for charging mode 3 only, case A and B. The modes and permissible connections are specified in IEC 62196-1:2014. 2 Normative references Clause 2 of IEC 62196-1:2014 applies except as follows: Addition: IEC 62196-1:2014, Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive charging of electric vehicles – Part 1: General requirements
– 8 – IEC 62196-2:2016 © IEC 2016 3 Terms and definitions Clause 3 of IEC 62196-1:2014 applies. 4 General Clause 4 of IEC 62196-1:2014 applies. 5 Ratings Clause 5 of IEC 62196-1:2014 applies except as follows: 5.1 Replacement: Rated operating voltages: 30 V (signal or control purposes only); 250 V a.c. 480 V a.c. 5.2 Replacement: The rated currents are: 2 A (signal or control purposes only) 13 A single phase 16 A single and three-phase 20 A single and three-phase 30 A or 32 A single and three-phase 60 A or 63 A single and three-phase 70 A single phase only NOTE 1 In the following countries, the branch circuit overcurrent protection device is based upon 125 % of the accessory rating: US. NOTE 2 Reference to "30 A or 32 A" and "60 A or 63 A" rating is made in accordance with National requirements. 6 Connection between the power supply and the electric vehicle Clause 6 of IEC 62196-1:2014 applies except as follows: 6.1 Replacement: This Clause provides a description of the physical conductive electrical interface requirements between the vehicle and the power supply, which allows the following design at the vehicle interface: – a basic interface that provides for current ratings up to 63 A a.c. three-phase and up to 70 A a.c. single phase. Different configuration types for the basic interface may allow different application of mode and current ratings. See introduction to relevant standard sheets for more details. SIST EN 62196-2:2017

IEC 62196-2:2016 © IEC 2016 – 9 – 6.2 Replacement: There is one type of vehicle inlet: – basic 6.3 Replacement: There is one type of vehicle connector: – basic 6.4 Not applicable. 6.5 Replacement: The basic interface may contain up to 7 power or signal contacts, with unique physical configurations of contact positions for single or three phases. The electrical ratings and their function are described in Tables 201 and 202. The electrical ratings and their function are described in the Standard Sheets. Each vehicle inlet shall only mate with the corresponding type of vehicle connector. Each plug shall only mate with the corresponding type of socket-outlet. The accessories, configuration types 1, 2 or 3 are rated as follows: – configuration type 1 vehicle coupler is rated 250 V, 32 A single phase; – configuration type 2 vehicle coupler, socket-outlet and plug are rated: • 250 V, 13 A or 20 A or 32 A or 63 A or 70 A single phase, • 480 V, 13 A or 20 A or 32 A or 63 A, three-phase. – configuration type 3 vehicle coupler, socket-outlet and plug are rated: • 250 V, 16 A or 32 A, single phase, • 480 V, 32 A or 63 A three-phase. Table 201 – Overview of the basic vehicle interface,
configuration type 1, single phase Position number a a.c. Functions c 1 250 V 32 Ab L1 (mains 1) 2 250 V 32 A L2 (mains 2) / N (neutral) 3 Rated for fault PE (ground/earth) 4 30 V 2 A CP (Control pilot) 5 30 V 2 A CS (Connection switch) a Position number does not refer to the location and/or identification of the contact in the accessory. b In the following countries, the branch circuit overcurrent protection is based upon 125 % of the device rating: US. c For contacts 4 and 5, environmental conditions may demand larger conductor cross-sections.
– 10 – IEC 62196-2:2016 © IEC 2016 Table 202 – Overview of the basic vehicle interface,
configuration types 2 and 3, three-phase or single phase Position number f Umax Three phase Single phase Functions Imaxa Imaxa V a.c. A A
Type 2 Type 3 Type 2b Type 3 1 480 63 70 63 L1 (mains 1)b 2 480 63 -c -c L2 (mains 2) 3 480 63 -c -c L3 (mains 3) 4 480 63 70 63 N (neutral)b, e 5
Rated for fault PE (ground/earth) 6 30 2 CP (Control pilot) 7 30 2 PP (Proximity) d or
CS (Connection switch) d a In the following countries, the branch circuit overcurrent protection is based upon 125 % of the device rating: US. b For single phase charging, contacts 1 and 4 shall be used. c Unused contacts need not to be installed. Not provided for standard sheets 2-IIIa and 2-IIIb. d Not provided for standard sheet 2-IIIa. e For single phase system supply phase to phase this contact can be used for L2 (mains 2). f Position number does not refer to the location and/or identification of the contact in the accessory.
6.6 Not applicable. 6.7 Not applicable. 6.201 Communication and control pilot function The control pilot and proximity detection or connection contacts are intended to be used in accordance with IEC 61851-1:2010. 7 Classification of accessories Clause 7 of IEC 62196-1:2014 applies except as follows: 7.4 According to electrical operation Replacement: – Suitable for making and breaking an electrical circuit under load for 32 A configurations types 1 and 3; – Not suitable for making and breaking an electrical circuit under load for configurations type 2; – Not suitable for making and breaking an electrical circuit under load for 63 A configuration type 3. NOTE Communication circuits according to this standard are deemed not to make or break load as a result of this clause. 7.5 According to interface Replacement: SIST EN 62196-2:2017

IEC 62196-2:2016 © IEC 2016 – 11 – Interface is specified in Clause 6. – Basic type. 7.201 According to the Standard Sheet used – Configuration type 1; – Configuration type 2; – Configuration type 3. 8 Marking Clause 8 of IEC 62196-1:2014 applies. 9 Dimensions Clause 9 of IEC 62196-1:2014 applies except as follows: 9.1 Replacement: Accessories shall comply with the relevant standard sheets as specified below and in Table 203: Configuration type 1 – 32 A, 250 V single-phase vehicle couplers: standard sheet 2-I. – Optional latching system: standard sheet 2-Ia. NOTE In the following countries, the standard sheets 2-I and 2-Ia may be applied to vehicle couplers with rated current up to 80 A: US. Configuration type 2 – 63 A, 480 V three-phase or 250 V, 70 A single-phase accessories: standard sheets 2-II, IIa, IIb, IIc, IId, IIe, IIf, IIg and IIh. Configuration type 3 – 16 A, 250 V single-phase accessories with one pilot: standard sheet 2-IIIa; – 32 A, 250 V single-phase accessories with two pilots: standard sheet 2-IIIb; – 63 A, 480 V three-phase accessories with two pilots: standard sheet 2-IIIc; – Latching means and packaging room: standard sheet 2-IIId. Table 203 – Configuration types and standard sheets Configuration type Standard Sheet Applicable accessories Rated voltage
V Rated current A Phase 1 2-I Vehicle couplers 250 32 Single-phase 2 2-II Accessories 250 70 Single-phase 480 63 Three-phase 3 2-III Accessories 250 16 Single-phase 250 32 Single-phase 480 63 Three-phase
– 12 – IEC 62196-2:2016 © IEC 2016 10 Protection against electric shock Clause 10 of IEC 62196-1:2014 applies. 11 Size and colour of protective earthing conductors Replacement: The core connected to the earthing terminal shall be identified by the colour combination green-and-yellow. The nominal cross/sectional area of the earthing conductor and of the neutral conductor, if any, shall be at least equal to that of the phase conductors. NOTE In the following countries, the colour green may be used to identify the earthing conductor: JP, US, CA. 12 Provision for earthing Clause 12 of IEC 62196-1:2014 applies. 13 Terminals Clause 13 of IEC 62196-1:2014 applies except as follows. Additional subclause: 13.201 Wire connection of components, for example coding resistors may be rewirable or non-rewirable. 14 Interlocks Clause 14 of IEC 62196-1:2014 applies. 15 Resistance to ageing of rubber and thermoplastic material Clause 15 of IEC 62196-1:2014 applies. 16 General construction Clause 16 of IEC 62196-1:2014 applies. 17 Construction of socket-outlets Clause 17 of IEC 62196-1:2014 applies. 18 Construction of plugs and vehicle connectors Clause 18 of IEC 62196-1:2014 applies. 19 Construction of vehicle inlets Clause 19 of IEC 62196-1:2014 applies. SIST EN 62196-2:2017

IEC 62196-2:2016 © IEC 2016 – 13 – 20 Degrees of protection Clause 20 of IEC 62196-1:2014 applies. 21 Insulation resistance and dielectric strength Clause 21 of IEC 62196-1:2014 applies. 22 Breaking capacity Clause 22 of IEC 62196-1:2014 applies. 23 Normal operation Clause 23 of IEC 62196-1:2014 applies. 24 Temperature rise Clause 24 of 62196-1:2014 applies excep
...
