ISO 31915-3:2026

Aircraft ground support equipment — General requirements — Part 3: Vibration measurement methods and reduction

This document is applicable to whole body vibration as a significant hazard. It also specifies the methods for determining the vibration emission transmitted to the whole body of drivers standing or seated on freely moveable ground support equipment (GSE) when driving, for purposes of type evaluation and declaration. This document also specifies methods for verifying vibration emission. This document is applicable to self-powered GSE only. The test results do not apply to the determination of whole body vibration exposure of persons. This document is intended to be used in conjunction with the different parts of the EN 1915 series and the EN 12312 series. This document does not apply to GSE manufactured before the date of its publication.

Matériel au sol pour aéronefs — Exigences générales — Partie 3: Vibrations, réduction et méthodes de mesure

General Information

• Status: Published
• Publication Date: 25-Jun-2026
• ICS: 13.160 - Vibration and shock with respect to human beings
• ICS: 49.100 - Ground service and maintenance equipment
• Technical Committee: ISO/TC 20/SC 9 - Air cargo and ground equipment
• Drafting Committee: ISO/TC 20/SC 9 - Air cargo and ground equipment
• Current Stage: 6060 - International Standard published
• Start Date: 26-Jun-2026
• Due Date: 06-Dec-2027
• Completion Date: 26-Jun-2026

Relations

• Consolidates: FprEN ISO 31915-3 - Aircraft ground support equipment - General requirements - Part 3: Vibration measurement methods and reduction (ISO/FDIS 31915-3:2026)
• Effective Date: 12-Feb-2026

Overview

ISO 31915-3: Aircraft ground support equipment - General requirements - Part 3: Vibration measurement methods and reduction is an international standard developed by ISO/TC 20/SC 9. This standard focuses on the measurement and reduction of whole-body vibration as a significant hazard for drivers of aircraft ground support equipment (GSE). The document establishes methods for determining and verifying the vibration emission transmitted to the whole body of drivers (standing or seated) on freely moveable, self-powered GSE, specifically for the purposes of type evaluation and declaration. Importantly, test results according to this standard are not intended to assess daily exposure of persons to vibration.

Key Topics

• Whole-body Vibration as a Hazard: Identification of vibration as a significant safety concern for operators of GSE, focusing on both health impacts and equipment-related risks.
• Vibration Measurement Methods: Detailed specifications for setting up tests, including measurement locations, test track requirements, environmental parameters, and proper instrumentation according to referenced standards.
• Vibration Reduction Measures: Guidance on technical measures such as use of pneumatic tyres, cab suspension, vibration-isolated cabins, suspension seats, and shock absorbers to reduce vibration at the source.
• Testing and Reporting Procedures: Standardized procedures for conducting vibration tests (including series of runs and driver profiles), data validity checks, and requirements for test reporting and emission value declaration.
• Risk Assessment and Verification: Alignment with ISO 12100 principles for hazard identification, risk reduction, and verification via repeatable and transparent measurement practices.
• Information for Users: Requirements for documentation and instructions to inform users about vibration emission values and further measures to reduce vibration exposure during operation.

Applications

ISO 31915-3 applies primarily to manufacturers and users of self-powered aircraft ground support equipment, including but not limited to:

• Equipment Manufacturers: Ensuring machinery design meets safety requirements for vibration emission, supporting CE marking, and market access in regulated jurisdictions.
• Airport Operators and Ground Handling Services: Assisting in procurement, operation, and maintenance of GSE with a focus on minimizing operator health risks.
• Health and Safety Regulators: Providing a harmonized basis for evaluating and enforcing vibration safety measures in line with international and European regulatory frameworks.
• Maintenance Providers: Using clearly defined vibration measurement methods to assess and maintain optimal equipment performance.
• Standardization and Conformity Assessment Bodies: Supporting consistent certification, declaration, and verification of vibration emissions for a range of GSE models and configurations.

Organizations implementing ISO 31915-3 benefit from:

• Improved operator comfort and reduced risk of vibration-related injury.
• Enhanced equipment durability and performance through optimized design.
• Streamlined regulatory compliance and simplified declaration of conformity.

Related Standards

For effective implementation, ISO 31915-3 should be used in conjunction with other relevant standards, including:

• EN 1032:2003+A1:2008: Mechanical vibration - Testing of mobile machinery to determine vibration emission value.
• EN 1915 Series: Aircraft ground support equipment - General requirements (e.g., Part 1 for basic safety).
• EN 12096:1997: Mechanical vibration - Declaration and verification of vibration emission values.
• ISO 12100:2010: Safety of machinery - General principles for design, risk assessment, and risk reduction.
• ISO 2041:2018 and ISO 5805:1997: Terminology standards for vibration, shock, and human exposure.
• EN 12312 Series: Aircraft ground support equipment - Specific requirements for particular machine categories.

International adopters should consult these documents to ensure full compliance with vibration safety requirements and to facilitate integration with broader machinery safety management systems.

---

By implementing ISO 31915-3, stakeholders ensure harmonized and reliable measurement of whole-body vibration in GSE, fostering safer working conditions and supporting compliance with both industry best practices and regulatory expectations.

Standards Content (Sample)

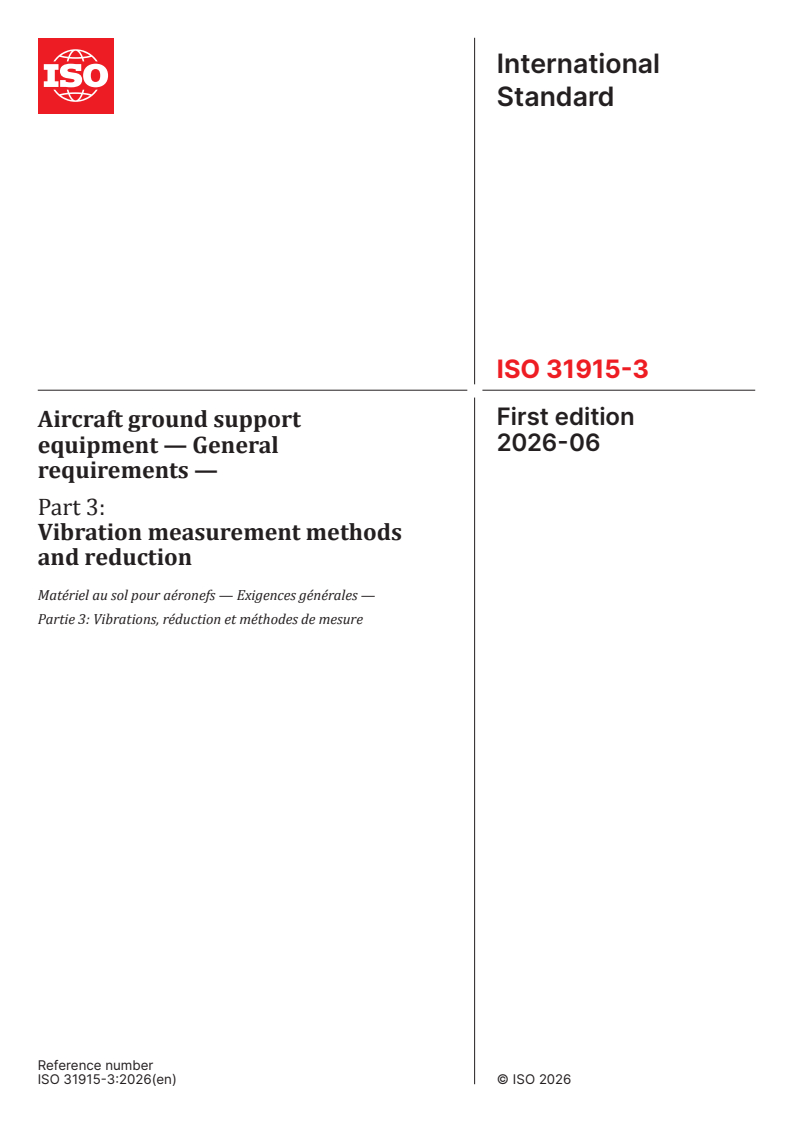

International
Standard
ISO 31915-3
First edition
Aircraft ground support
2026-06
equipment — General
requirements —
Part 3:
Vibration measurement methods
and reduction
Matériel au sol pour aéronefs — Exigences générales —
Partie 3: Vibrations, réduction et méthodes de mesure
Reference number
© ISO 2026
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii

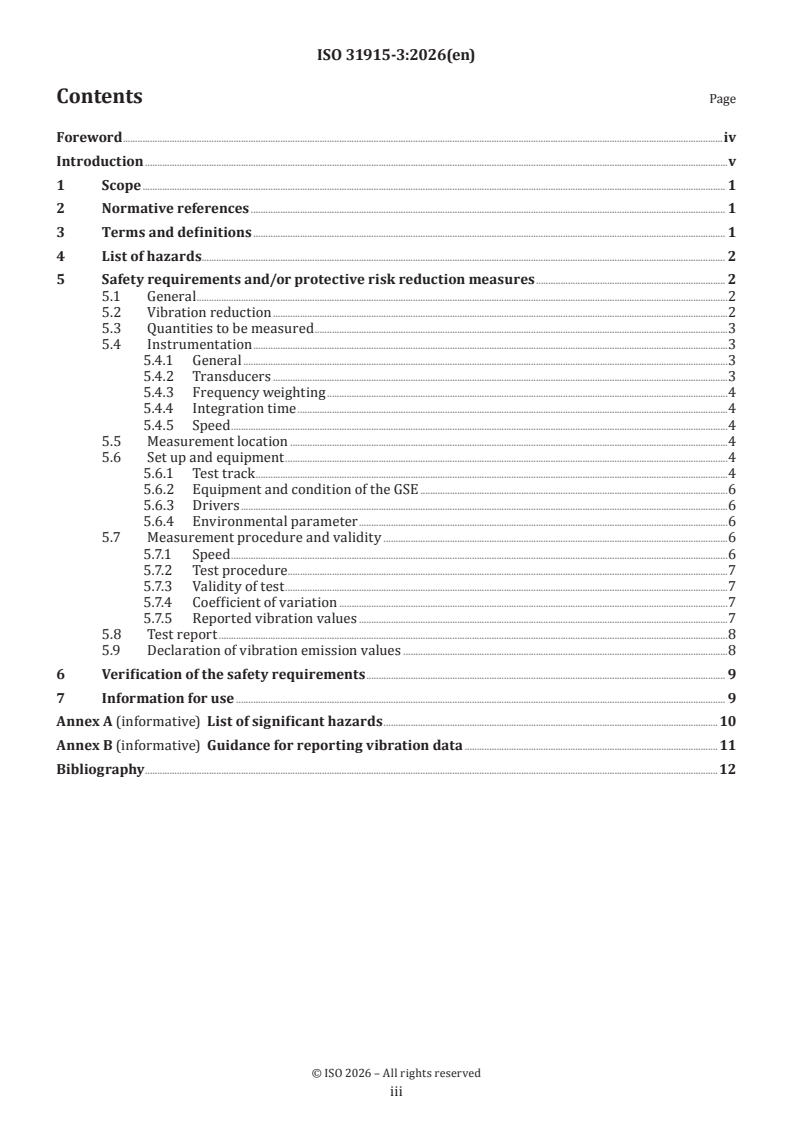

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 List of hazards. 2
5 Safety requirements and/or protective risk reduction measures . 2
5.1 General .2
5.2 Vibration reduction .2
5.3 Quantities to be measured .3
5.4 Instrumentation .3
5.4.1 General .3
5.4.2 Transducers .3
5.4.3 Frequency weighting .4
5.4.4 Integration time .4
5.4.5 Speed .4
5.5 Measurement location .4
5.6 Set up and equipment .4
5.6.1 Test track .4
5.6.2 Equipment and condition of the GSE .6
5.6.3 Drivers .6
5.6.4 Environmental parameter .6
5.7 Measurement procedure and validity .6
5.7.1 Speed .6
5.7.2 Test procedure.7
5.7.3 Validity of test .7
5.7.4 Coefficient of variation .7
5.7.5 Reported vibration values .7
5.8 Test report .8
5.9 Declaration of vibration emission values .8
6 Verification of the safety requirements . 9
7 Information for use . 9
Annex A (informative) List of significant hazards . 10
Annex B (informative) Guidance for reporting vibration data .11
Bibliography .12

iii

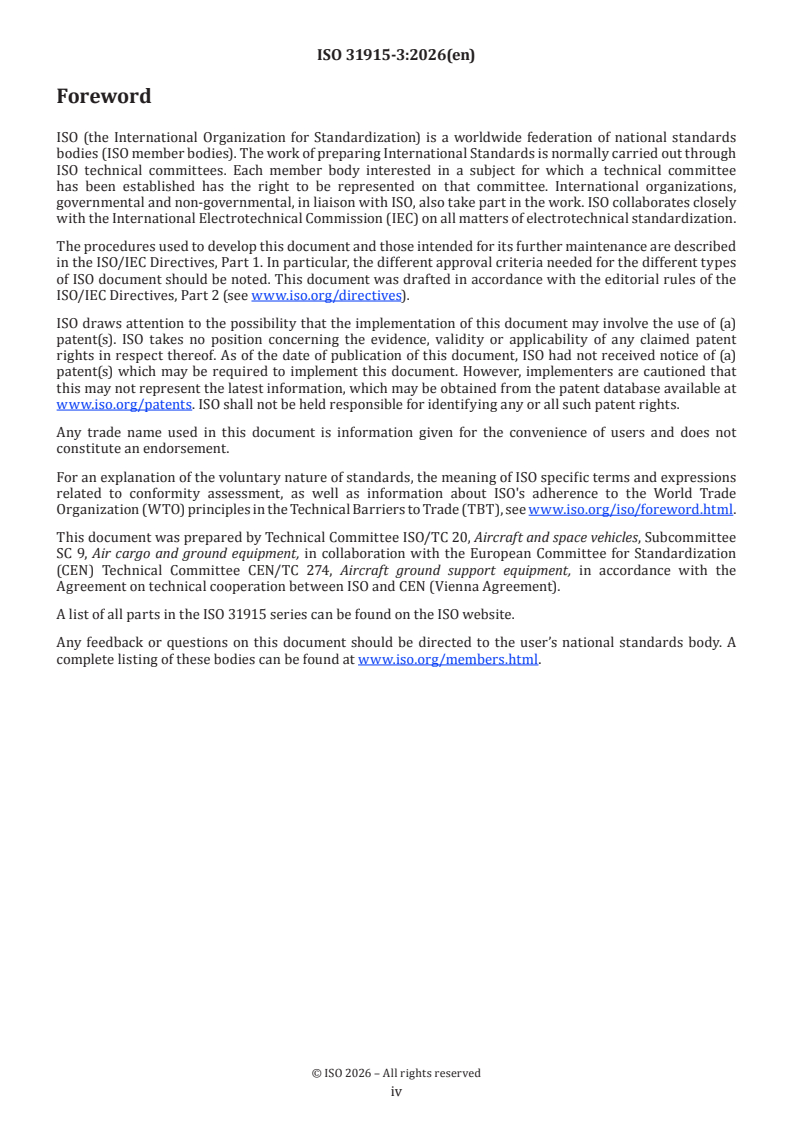

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 20, Aircraft and space vehicles, Subcommittee
SC 9, Air cargo and ground equipment, in collaboration with the European Committee for Standardization
(CEN) Technical Committee CEN/TC 274, Aircraft ground support equipment, in accordance with the
Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
A list of all parts in the ISO 31915 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
The aim of this document is to deal with vibration as a hazard and to provide methods for the measurement
and reduction of vibration emission transmitted to the whole body of drivers of ground support equipment
(GSE) when driving. See EN 1032:2003+A1:2008 for determining whole body vibrations under stationary
operating conditions and hand-arm vibrations.
The results obtained can also be used to compare GSE of the same category or a given GSE when equipped
with different seats or tyres, etc.
Fitting different seats, changing the tyre specification, etc. can lead to different vibration values. Due to
the specific operation of GSE, however, EN 1032:2003+A1:2008 cannot be applied directly for whole body
vibration under driving conditions, and therefore, the preparation of this document for GSE has become
necessary.
This document cannot be used for field measurements to determine the daily exposure of the driver to
vibration.
This document is a type-C standard as stated in ISO 12100.
This document is of relevance, in particular, for the following stakeholder groups representing the market
players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);
— health and safety bodies (regulators, accident prevention organisations, market surveillance etc.)
Others can be affected by the level of machinery safety achieved with the means of the document by the
above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);
— machine users/employees (e.g. trade unions, organizations for people with special needs);
— service providers, e.g. for maintenance (small, medium and large enterprises);
— consumers (in case of machinery intended for use by consumers).
The above-mentioned stakeholder groups have been given the possibility to participate at the drafting
process of this document.
When requirements of this type-C standard are different from those which are stated in type-A or type-B
standards, the requirements of this type-C standard take precedence over the requirements of the other
standards for machines that have been designed and built according to the requirements of this type-C
standard.
The machinery concerned and the extent to which hazards, hazardous situations and events are covered are
indicated in the scope of this document.

v
International Standard ISO 31915-3:2026(en)
Aircraft ground support equipment — General
requirements —
Part 3:
Vibration measurement methods and reduction
1 Scope
This document is applicable to whole body vibration as a significant hazard. It also specifies the methods for
determining the vibration emission transmitted to the whole body of drivers standing or seated on freely
moveable ground support equipment (GSE) when driving, for purposes of type evaluation and declaration.
This document also specifies methods for verifying vibration emission. This document is applicable to self-
powered GSE only.
The test results do not apply to the determination of whole body vibration exposure of persons.
This document is intended to be used in conjunction with the different parts of the EN 1915 series and the
EN 12312 series.
This document does not apply to GSE manufactured before the date of its publication.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies
ISO 2041:2018, Mechanical vibration, shock and condition monitoring — Vocabulary
ISO 5805:1997, Mechanical vibration and shock — Human exposure — Vocabulary
ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk reduction
EN 1032:2003+A1: 2008, Mechanical vibration — Testing of mobile machinery in order to determine the
vibration emission value
EN 1915-1:2023, Aircraft ground support equipment — General requirements — Part 1: Basic safety
requirements
EN 12096:1997, Mechanical vibration — Declaration and verification of vibration emission values
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 12100:2010, EN 1915-1:2023,
ISO 2041:2018 and ISO 5805:1997 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp/
— IEC Electropedia: available at https:// www .electropedia .org/

3.1
wheel mean diameter
arithmetic mean of each of the outside diameters of the load bearing wheels
EXAMPLE If the first wheel of the ground support equipment (GSE) (3.3) has the diameter D , the second wheel
diameter D etc., the wheel mean diameter equals
DDD
12 n
n
where n is the total number of wheels.
Note 1 to entry: The outside diameter D is the maximum in service diameter specified by the tyre's manufacturer.
3.2
seat pan
seat surface on which the driver is seated
3.3
ground support equipment
GSE
piece of moveable or stationary equipment, whether or not powered or self-propelled, purposed, designed,
built and used for ground handling, servicing or field maintenance of civil transport aircraft on the ramp
area of an airport
4 List of hazards
This list of risks and hazards (given in Annex A, Table A.1) is based on ISO 12100:2010 and contains the
hazards and hazardous situations, as far as they are dealt with in this document, identified by risk
assessment as significant for this type of machinery and which requir
...
