SIST EN 60322:2002

Railway applications - Electric equipment for rolling stock - Rules for power resistors of open construction

States the characteristics of the resistors; the service conditions with which the power resistors have to comply; the tests intended for confirming that these conditions have been met and the methods to be adopted for these tests; the information to be marked on, or given with, the resistors. The object of this standard is to adapt the general rules given in IEC 60077-1 to power resistors for rolling stock in order to obtain uniformity of requirements and tests throughout the corresponding range of components and to avoid the need for testing to two different standards.

Bahnanwendungen - Elektrische Ausrüstung für Bahnfahrzeuge - Regeln für Leistungswiderstände in offener Bauweise

Applications ferroviaires - Equipements électriques du matériel roulant - Règles relatives aux résistances de puissance de construction ouverte

La présente norme énonce les caractéristiques des résistances;les conditions de service auxquelles il faut que les résistances de puissance satisfassent; les essais destinés à confirmer que ces conditions ont été satisfaites et les méthodes d'essais à utiliser; les informations inscrites sur les résistances, ou à fournir. L'objet de cette norme est d'adapter les règles générales données dans la CEI 60077-1 aux résistances de puissance pour le matériel roulant afin d'obtenir des prescriptions et des essais uniformes pour toute la gamme correspondante de composants et d'éviter pour les essais d'avoir recours à deux normes différentes.

Železniške naprave – Električna oprema za vozna sredstva – Pravila za močnostne upore odprte konstrukcije (IEC 60322:2001)

General Information

• Status: Published
• Publication Date: 30-Jun-2002
• ICS: 31.040.01 - Resistors in general
• ICS: 45.060.01 - Railway rolling stock in general
• Technical Committee: ŽEN - Electrical applications for railways
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Jul-2002
• Due Date: 01-Jul-2002
• Completion Date: 01-Jul-2002
• Ref Project: EN 60322:2001 - Railway applications - Electric equipment for rolling stock - Rules for power resistors of open construction

Relations

• Replaces: SIST HD 91 S1:1999 - Rules for ohmic resistors used in the power circuits of electrically powered vehicles (IEC 60322:1970)
• Effective Date: 06-May-2014

Overview

EN 60322:2001 (CLC adoption of IEC 60322:2001) is a European standard for railway applications that defines rules for power resistors of open construction used on rolling stock. It adapts the general rules of IEC 60077‑1 specifically to resistors so manufacturers, operators and test houses have uniform requirements and avoid duplicate testing to different standards. The standard applies to braking, heating, snubber and filter resistors and other power/auxiliary circuit resistive components arranged as grids, plates, strips, ribbons or wires.

Key topics and technical requirements

• Scope and objective: Characteristics of power resistors; service conditions; required tests and test methods; required marking and product information.
• Resistor constructions covered: Open‑air resistor frames and cases, typically used in polluted environments; removable resistor elements and multi‑element assemblies.
• Performance and construction requirements: Mechanical layout, cooling (natural/forced), and insulation concepts including double insulation and multi‑stage insulation (definitions and arrangements are provided; Annex A is normative for double insulated resistors).
• Service conditions: Environmental and operational conditions specific to rolling stock (vibration, shock, pollution, humidity, temperature ranges) referenced to general rules in IEC 60077‑1.
• Tests required: Type, routine and investigatory tests covering:
  • Temperature‑rise and thermal behavior
  • Vibration and shock endurance
  • Dielectric and insulation tests
  • Hygroscopic and rain performance
  • Fault‑current and electrical measurements
• Marking and product information: Manufacturer data, resistor section identification, tolerances, and test evidence to be supplied with the product.
• Normative tables and annexes: Tolerances on resistance values, temperature‑rise limits for accessible parts, and detailed test lists and voltages.

Applications and users

• Who uses EN 60322: rolling stock manufacturers, component suppliers, electrical design engineers, maintenance teams, test laboratories and certification bodies involved with railway equipment.
• Practical uses:
  • Specifying and procuring power resistors for locomotives, EMUs, trams and other rail vehicles
  • Designing resistor assemblies to meet standardized insulation and thermal limits
  • Planning and conducting type and routine tests required for vehicle entry into service
  • Ensuring interoperability and compliance across CENELEC/CLC member countries

Related standards

• IEC 60322:2001 (original international text)
• IEC 60077‑1 - General service conditions and rules for rolling stock equipment
• IEC 61373 - Shock and vibration tests for rolling stock equipment
• IEC 60943 - Permissible temperature rise guidance
• IEC 61133, IEC 60364‑4‑41, IEC 60050 (electrotechnical vocabulary)

EN 60322 is essential for anyone specifying, manufacturing or testing power resistors for rolling stock, ensuring consistent safety, performance and compliance across European railway projects.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2002
1DGRPHãþD
SIST HD 91 S1:1999
äHOH]QLãNHQDSUDYH±(OHNWULþQDRSUHPD]DYR]QDVUHGVWYD±3UDYLOD]DPRþQRVWQH
XSRUHRGSUWHNRQVWUXNFLMH,(&
Railway applications - Electric equipment for rolling stock - Rules for power resistors of
open construction
Bahnanwendungen - Elektrische Ausrüstung für Bahnfahrzeuge - Regeln für
Leistungswiderstände in offener Bauweise
Applications ferroviaires - Equipements électriques du matériel roulant - Règles relatives
aux résistances de puissance de construction ouverte
Ta slovenski standard je istoveten z: EN 60322:2001
ICS:
31.040.01 Upori splošno Resistors in general
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 60322
NORME EUROPÉENNE
EUROPÄISCHE NORM July 2001
ICS 29.280 Supersedes HD 91 S1:1977
English version
Railway applications -
Electric equipment for rolling stock -
Rules for power resistors of open construction
(IEC 60322:2001)
Applications ferroviaires - Bahnanwendungen -
Equipements électriques du matériel Elektrische Ausrüstung für Bahnfahrzeuge -
roulant - Regeln für Leistungswiderstände in offener
Règles relatives aux résistances de Bauweise
puissance de construction ouverte (IEC 60322:2001)
(CEI 60322:2001)
This European Standard was approved by CENELEC on 2001-05-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway,
Portugal, Spain, Sweden, Switzerland and United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2001 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60322:2001 E

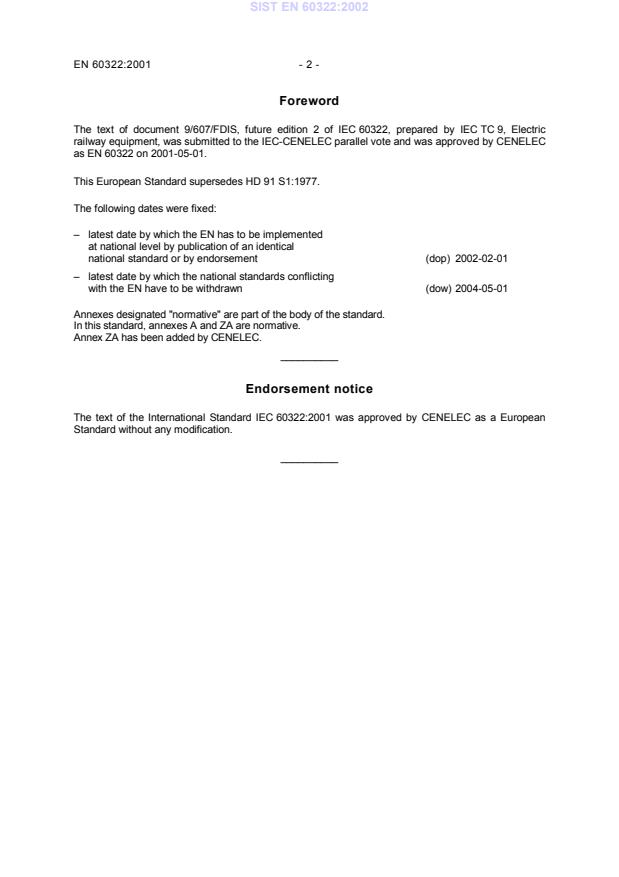

Foreword
The text of document 9/607/FDIS, future edition 2 of IEC 60322, prepared by IEC TC 9, Electric
railway equipment, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC
as EN 60322 on 2001-05-01.
This European Standard supersedes HD 91 S1:1977.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2002-02-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2004-05-01
Annexes designated "normative" are part of the body of the standard.
In this standard, annexes A and ZA are normative.
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60322:2001 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 60322:2001
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies (including
amendments).
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
IEC 60050-811 1991 International electrotechnical vocabulary--
- Chapter 811: Electric traction
IEC 60077-1 1999 Railway applications - Electric --
equipment for rolling stock
Part 1: General service conditions and
general rules
IEC 60364-4-41 1992 Electrical installations of buildings HD 384.4.41 S2 1996
(mod) Part 4: Protection for safety -- Chapter
41: Protection against electric shock
IEC 60943 1998 Guidance concerning the permissible--
temperature rise for parts of electrical
equipment, in particular for terminals
IEC 61133 1992 Railway applications - Testing of rolling--
stock after completion of construction
and before entry into service
IEC 61373 1999 Railway applications - Rolling stock EN 61373 1999
equipment - Shock and vibration tests

NORME CEI
INTERNATIONALE IEC
INTERNATIONAL
Deuxième édition
STANDARD
Second edition
2001-03
Applications ferroviaires –
Equipements électriques du matériel roulant –
Règles relatives aux résistances de puissance
de construction ouverte
Railway applications –
Electric equipment for rolling stock –
Rules for power resistors of open construction
 IEC 2001 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in
utilisée sous quelque forme que ce soit et par aucun procédé, any form or by any means, electronic or mechanical,
électronique ou mécanique, y compris la photocopie et les including photocopying and microfilm, without permission in
microfilms, sans l'accord écrit de l'éditeur. writing from the publisher.
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: [phone] e-mail: [e-mail] IEC web site http://www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale
R
PRICE CODE
International Electrotechnical Commission
Pour prix, voir catalogue en vigueur
For price, see current catalogue

60322 © IEC:2001 – 3 –
CONTENTS
Page
FOREWORD.5
Clause
1 Scope and object .9
2 Normative references.9
3 Definitions .11
4 Product information.15
4.1 General .15
4.2 Nature of information .15
4.3 Marking .17
5 Normal service conditions .17
6 Constructional and performance requirements .17
6.1 Constructional requirements .17
6.2 Performance requirements.25
7 Test categories.25
7.1 General .25
7.2 Type tests .27
7.3 Routine tests .27
7.4 Investigatory tests.27
7.5 General test conditions .27
8 Tests .27
8.1 General .27
8.2 Measurements.29
8.3 Temperature-rise tests.31
8.4 Tests for withstanding vibration and shock .31
8.5 Dielectric tests.31
8.6 Hygroscopic test .35
8.7 Fault current test .35
8.8 Test for performance in rain.35
Annex A (normative) Double insulated resistors.37
Figure A.1 – Typical arrangements of double insulated resistors .37
Table 1 − Tolerances on resistance values of resistor sections .19
Table 2 − Tolerances on resistance values of resistor elements.19
Table 3 − Temperature-rise limits for accessible parts .21
Table 4 − List of tests.29
Table 5 − Test voltages for basic insulation .33
Table 6 − Test voltages for functional insulation .33

60322 © IEC:2001 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RAILWAY APPLICATIONS –
ELECTRIC EQUIPMENT FOR ROLLING STOCK –
RULES FOR POWER RESISTORS OF OPEN CONSTRUCTION
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International Organization
for Standardization (ISO) in accordance with conditions determined by agreement between the two
organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60322 has been prepared by IEC technical committee 9: Electric
railway equipment.
This second edition cancels and replaces the first edition published in 1970, of which it
constitutes a technical revision.
The text of this standard is based on the following documents:
FDIS Report on voting
9/607/FDIS 9/611/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.
Annex A forms an integral part of this standard.

60322 © IEC:2001 – 7 –
The committee has decided that the contents of this publication will remain unchanged
until 2010. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
60322 © IEC:2001 – 9 –
RAILWAY APPLICATIONS –
ELECTRIC EQUIPMENT FOR ROLLING STOCK –
RULES FOR POWER RESISTORS OF OPEN CONSTRUCTION
1 Scope and object
This International Standard gives the rules for all power resistors (for example, braking,
heating, snubber and filter) used in the power and auxiliary circuits on board rolling stock
irrespective of the circuit and the type of vehicle where they are used.
These resistors are generally of open construction and are used in polluted areas. The
construction consists of resistor elements of grids, plates, strips, ribbons or wires.
NOTE Certain of these rules may, after agreement between user and manufacturer, be used for electrical
equipment installed on other vehicles such as mine locomotives, trolley buses, etc.
This standard states
– the characteristics of the resistors;
– the service conditions with which the power resistors have to comply;
– the tests intended for confirming that these conditions have been met and the methods to
be adopted for these tests;
– the information to be marked on, or given with, the resistors.
This standard does not give requirements relating to general service conditions and general
rules which are given in IEC 60077-1.
The object of this standard is to adapt the general rules given in IEC 60077-1 to power
resistors for rolling stock in order to obtain uniformity of requirements and tests throughout the
corresponding range of components and to avoid the need for testing to two different
standards.
2 Normative references
The following normative documents contain provisions which, through reference in this text,
constitute provisions of this International Standard. For dated references, subsequent
amendments to, or revisions of, any of these publications do not apply. However, parties to
agreements based on this International Standard are encouraged to investigate the possibility
of applying the most recent editions of the normative documents indicated below. For undated
references, the latest edition of the normative document referred to applies. Members of IEC
and ISO maintain registers of currently valid International Standards.
IEC 60050(811):1991, International Electrotechnical Vocabulary (IEV) – Chapter 811: Electric
traction
60322 © IEC:2001 – 11 –
IEC 60077-1:1999, Railway applications – Electric equipment for rolling stock – Part 1: General
service conditions and general rules
IEC 60364-4-41:1992, Electrical installations of buildings – Part 4: Protection for safety –
Chapter 41: Protection against electric shock
IEC 60943:1998, Guidance concerning the permissible temperature rise for parts of electrical
equipment, in particular for terminals
IEC 61133:1992, Electric traction – Rolling stock – Test methods for electric and
thermal/electric rolling stock on completion of construction and before entry into service
IEC 61373:1999, Railway applications – Rolling stock equipment – Shock and vibration tests
3 Definitions
For the purpose of this International Standard, the definitions of IEC 60050(811) and the
following definitions apply.
3.1
resistor element
resistive conductor forming part of a resistor case or frame, usually in the form of grids, plates,
strips, ribbons or wires and which may have intermediate tappings
[IEV 811-27-11]
NOTE A resistor element is usually a removable assembly.
3.2
resistor
general term used in this standard to designate any of the following forms of electrical
resistance
3.2.1
resistor case
resistor frame
set of resistor elements assembled into a single structure
[IEV 811-27-12]
NOTE 1 Resistor case is used for resistors having one or more resistor elements installed in an enclosure
intended to form part of a forced air cooling duct.
NOTE 2 Resistor frame is used for resistors having one or more resistor elements installed on a common frame
for natural cooling in open air.
3.2.2
resistor section
resistive circuit contained between two terminals, dedicated to an electrical function and
connected to external equipment
[IEV 811-27-14 modified.]
NOTE A resistor section may consist of a part or more than one resistor case or frame.

60322 © IEC:2001 – 13 –
3.3
double insulation
two-stage insulation, the first between the live conductors and an intermediate frame and the
second between the intermediate frame and the body of the vehicle
[IEV 811-27-15]
NOTE 1 The intermediate frame is metallic (see annex A).
NOTE 2 Double insulation in this context does not refer to double insulation used for protection against electric
shock (see IEC 60364-4-41).
3.4
multi-stage insulation
insulation system having more than one stage of insulation and an intermediate frame between
consecutive stages
NOTE 1 An insulation system having no more than one stage is termed "single insulation".
NOTE 2 For an insulation system having more than one stage, those stages other than the primary insulation are
commonly known as “secondary insulation”.
3.5
primary insulation
first stage of a multi-stage insulation between live conductors and the intermediate frame
3.6
functional insulation
insulation between conductive parts which is necessary only for the proper function
3.7
basic insulation
insulation applied to live parts to provide basic protection against electric shock (human safety)
3.8
maximum temperature (T )
m
temperature of the hottest point of the resistor element under the specified conditions (duty,
cooling, materials, etc.)
3.9
maximum permissible temperature
temperature of the resistor element that can be withstood without any resulting damage (for
example, permanent distortion) to any part of the resistor frame or case and its external
connections
3.10
rated operational current (I )
e
current value assigned by the manufacturer for a duty cycle under specified conditions
NOTE This may include a value of current capable of being carried continuously.

60322 © IEC:2001 – 15 –
3.11
rated operational voltage (U )
e
voltage value which determines the application of the resistor frame or case and to which the
tests are referred. The value is assigned generally by the manufacturer
3.12
working voltage (U )
w
the highest r.m.s. value of the a.c. voltage or the highest value of the d.c. voltage which may
occur (locally) across any insulation at rated operational voltage, transients being disregarded,
in open-circuit conditions or under normal operating conditions
NOTE For a resistor under fault conditions, the working voltage is that occurring under the fault conditions, if this
is greater than that occurring under normal conditions.
3.13
rated insulation voltage (U )
i
value of the voltage to which dielectric test voltages and creepage distances are referred.
It is at least equal to the highest r.m.s. value of the voltage existing between electrodes and
across the creepage distance for an extended period of time (i.e. neglecting non-repetitive
transient voltages)
3.14
manufacturer
organization which has the technical responsibility for the manufacture of the resistor
3.15
purchaser
organization which orders the resistor and has the responsibility for direct negotiations with the
manufacturer
4 Product information
4.1 General
An agreed specification should exist between the manufacturer and his purchaser containing
general performance and test requirements in accordance with this standard.
4.2 Nature of information
The following information shall be given in the manufacturer’s catalogue or manuals for each
resistor case or frame. It concerns the identification and the characteristics.
4.2.1 Identification
– manufacturer’s name or trademark;
– type designation or serial number;
– modification status;
– reference to the product standard (i.e. IEC 6
...
