Overview

EN 62219:2002 (CLC adoption of IEC 62219:2002) is a European standard for overhead electrical conductors constructed from formed wire, concentric lay, stranded conductors. The standard specifies the electrical and mechanical characteristics for conductors made from combinations of aluminium, aluminium alloys, steel and aluminium‑clad steel wires. It covers wires that may be shaped (formed) before, during or after stranding and defines material designations used for specification and procurement.

Key topics and requirements

  • Scope and conductor types: Concentric‑lay stranded conductors composed of formed wires (shaped or round) intended for overhead power transmission and distribution.
  • Material designations: Defines permitted wire materials and codes, including:
    • Hard aluminium per EN 60889 (designated A1, and A1F for shaped before stranding)
    • Hard aluminium alloys per EN 60104 (A2, A3, and A2F/A3F when shaped)
    • Regular, high and extra‑high strength steels (S1A/S1B, S2A/S2B, S3A) with zinc coating classes
    • Aluminium‑clad steel (SA)
  • Electrical and mechanical characteristics: Specifies the properties that conductors must meet (electrical conductivity, mechanical strength, elongation and related performance characteristics) - referenced to the appropriate material standards.
  • Construction and manufacturing: Addresses formed‑wire production methods (forming before/during/after stranding) and concentric lay stranding geometry.
  • Testing and conformity: Normative annexes and cross‑references include creep test procedures and other test methods (see related standards). Annexes A, B, C and ZA are normative; Annex D is informative.
  • Normative references: Links to EN/IEC documents such as EN 60889, IEC 60104, IEC 61089, EN 61232 and EN 61395 for detailed wire and test requirements.

Applications and users

EN 62219 is used to:

  • Prepare technical specifications and purchase documents for overhead conductors.
  • Guide conductor design choices for transmission and distribution lines.
  • Provide acceptance and testing criteria for manufacturers and testing laboratories. Primary users:
  • Power utilities and transmission system operators
  • Conductor and wire manufacturers
  • Consulting and design engineers for overhead lines
  • Procurement specialists and standards committees

Related standards

  • EN 60889 / IEC 60889 - Hard‑drawn aluminium wire
  • IEC 60104 - Aluminium‑magnesium‑silicon alloy wires
  • IEC 61089 - Round wire concentric lay stranded conductors
  • EN 61232 / IEC 61232 - Aluminium‑clad steel wires
  • EN 61395 / IEC 61395 - Creep test procedures for stranded conductors
  • IEC 60050‑466 - IEV terminology for overhead lines

EN 62219:2002 is the CENELEC/CENELEC‑adopted version of IEC 62219 and is intended for harmonised national implementation across member bodies. Keywords: EN 62219, overhead electrical conductors, formed wire, concentric lay, stranded conductors, aluminium conductors, steel core, aluminium‑clad steel.

Frequently Asked Questions

SIST EN 62219:2002 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Overhead electrical conductors - Formed wire, concentric lay, stranded conductors". This standard covers: Specifies the electrical and mechanical characteristics of concentric lay, overhead conductors of wires formed or shaped before, during or after stranding, made of combinations of any of the following metal wires: a) hard aluminium as per EN 60889 designated A1; b) hard aluminium as per EN 60889 designated A1F wire shaped before stranding; c) hard aluminium alloy as per EN 60104 designated A2 or A3; d) hard aluminium alloy as per EN 60104 designated A2F or A3F shaped before stranding; e) regular strength steel, designated S1A or S1B, where A and B are zinc coating classes, corresponding respectively to classes 1 and 2; f) high strength steel, designated S2A or S2B; g) extra high strength steel, designated S3A; h) aluminium clad steel, designated SA.

Specifies the electrical and mechanical characteristics of concentric lay, overhead conductors of wires formed or shaped before, during or after stranding, made of combinations of any of the following metal wires: a) hard aluminium as per EN 60889 designated A1; b) hard aluminium as per EN 60889 designated A1F wire shaped before stranding; c) hard aluminium alloy as per EN 60104 designated A2 or A3; d) hard aluminium alloy as per EN 60104 designated A2F or A3F shaped before stranding; e) regular strength steel, designated S1A or S1B, where A and B are zinc coating classes, corresponding respectively to classes 1 and 2; f) high strength steel, designated S2A or S2B; g) extra high strength steel, designated S3A; h) aluminium clad steel, designated SA.

SIST EN 62219:2002 is classified under the following ICS (International Classification for Standards) categories: 29.060.01 - Electrical wires and cables in general; 29.240.20 - Power transmission and distribution lines. The ICS classification helps identify the subject area and facilitates finding related standards.

You can purchase SIST EN 62219:2002 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.

Standards Content (Sample)


SLOVENSKI STANDARD
01-september-2002
9RGQLNL]DQDG]HPQHYRGH±2EOLNRYDQHåLFHNRQFHQWULþQDOHJDSOHWHQHYUYL
Overhead electrical conductors - Formed wire, concentric lay, stranded conductors
Leiter für elektrische Freileitungen - Leiter aus Formdrähten mit konzentrisch verseilten
Lagen
Conducteurs pour lignes électriques aériennes - Conducteurs à fils de forme, câblés en
couches concentriques
Ta slovenski standard je istoveten z: EN 62219:2002
ICS:
29.060.01 (OHNWULþQHåLFHLQNDEOLQD Electrical wires and cables in
VSORãQR general
29.240.20 Daljnovodi Power transmission and
distribution lines
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 62219
NORME EUROPÉENNE
EUROPÄISCHE NORM May 2002
ICS 29.060;29.240.20
English version
Overhead electrical conductors -
Formed wire, concentric lay, stranded conductors
(IEC 62219:2002)
Conducteurs pour lignes Leiter für elektrische Freileitungen -
électriques aériennes - Leiter aus Formdrähten
Conducteurs à fils de forme, mit konzentrisch verseilten Lagen
câblés en couches concentriques (IEC 62219:2002)
(CEI 62219:2002)
This European Standard was approved by CENELEC on 2002-05-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands,
Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2002 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62219:2002 E

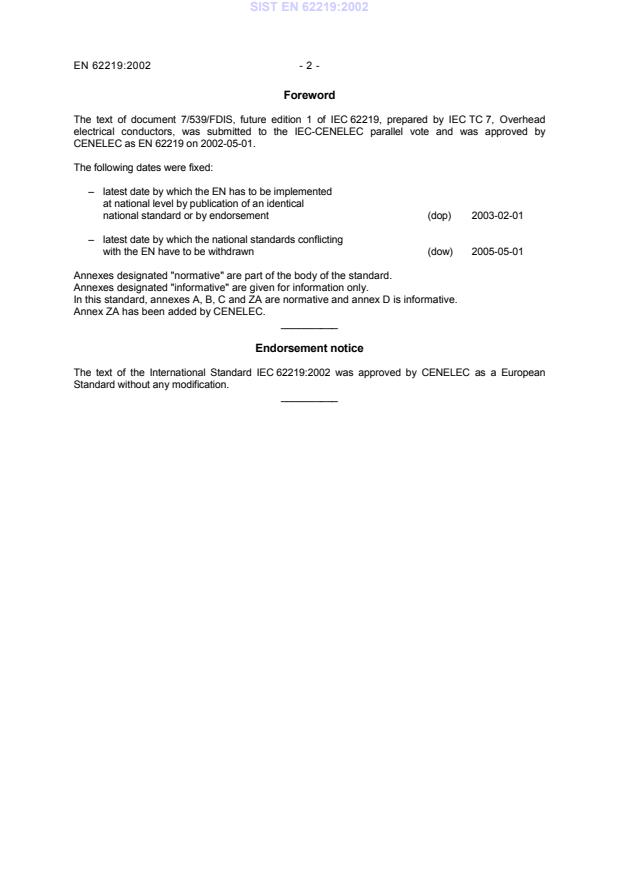

Foreword
The text of document 7/539/FDIS, future edition 1 of IEC 62219, prepared by IEC TC 7, Overhead
electrical conductors, was submitted to the IEC-CENELEC parallel vote and was approved by
CENELEC as EN 62219 on 2002-05-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2003-02-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2005-05-01
Annexes designated "normative" are part of the body of the standard.
Annexes designated "informative" are given for information only.
In this standard, annexes A, B, C and ZA are normative and annex D is informative.
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 62219:2002 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 62219:2002
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies (including
amendments).
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
IEC 60050-466 1990 International electrotechnical vocabulary--
(IEV) -
Chapter 466: Overhead lines
IEC 60104 1987 Aluminium-magnesium-silicon alloy--
wires for overhead line conductors
IEC 60888 1987 Zinc-coated steel wires for stranded--
conductors
IEC 60889 1987 Hard-drawn aluminium wire for EN 60889 1997
overhead line conductors
IEC 61089 1991 Round wire concentric lay overhead--
electrical stranded conductors
IEC 61232 (mod) 1993 Aluminium-clad steel wires for electrical EN 61232 1995
purposes + A11 2000
IEC 61395 1998 Overhead electrical conductors - Creep EN 61395 1998
test procedures for stranded conductors

�����
���
�������������� ���
�����
�������������
����������������
��������
�������������
�������
�����������������������������������
�����������
����������������������������
�������������� ����������������
!"�� ���������������������������
#������$������������������%�
�������������������
©���������������������������� ����������!����⎯�����"��#$����%&&���#$��������!��
������� ������� ��� ������ ������������ ��� ����� ����� ����������� �� ����������������������������������������������������������������
������������������������������������������������������������� ����� ��� ��� ���� ������� ����������� ��� ������������ ���������
������������� ��� ����������� �� �������� ��� ����������� ��� ��� ��������������������������������������������������������������
��������������������������������������������� ��������������
