SIST EN 1992-1-2:2005/AC:2008
(Corrigendum)Eurocode 2: Design of concrete structures - Part 1-2: General rules - Structural fire design
Eurocode 2: Design of concrete structures - Part 1-2: General rules - Structural fire design
TC - Improvement of wording, symbols, units, values, correction of cross references, changes of modal verbs at various places in the text and addition of NOTE in 5.4.2 (3)
Eurocode 2: Bemessung und Konstruktion von Stahlbeton- und Spannbetontragwerken - Teil 1-2: Allgemeine Regeln - Tragwerksbemessung für den Brandfall
Eurocode 2: Calcul des structures en béton - Partie 1-2: Règles générales - Calcul du comportement au feu
Evrokod 2: Projektiranje betonskih konstrukcij - 1-2. del: Splošna pravila - Projektiranje požarnovarnih konstrukcij
General Information
- Status
- Published
- Publication Date
- 05-Oct-2008
- Technical Committee
- KON - Structures
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 20-Aug-2008
- Due Date
- 25-Oct-2008
- Completion Date
- 06-Oct-2008
- Directive
- 89/106/EEC - Construction products
Relations
- Effective Date
- 29-Nov-2023
- Effective Date
- 22-Dec-2008
- Effective Date
- 01-Nov-2008
Frequently Asked Questions
SIST EN 1992-1-2:2005/AC:2008 is a corrigendum published by the Slovenian Institute for Standardization (SIST). Its full title is "Eurocode 2: Design of concrete structures - Part 1-2: General rules - Structural fire design". This standard covers: TC - Improvement of wording, symbols, units, values, correction of cross references, changes of modal verbs at various places in the text and addition of NOTE in 5.4.2 (3)
TC - Improvement of wording, symbols, units, values, correction of cross references, changes of modal verbs at various places in the text and addition of NOTE in 5.4.2 (3)
SIST EN 1992-1-2:2005/AC:2008 is classified under the following ICS (International Classification for Standards) categories: 13.220.50 - Fire-resistance of building materials and elements; 91.010.30 - Technical aspects; 91.080.40 - Concrete structures. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 1992-1-2:2005/AC:2008 has the following relationships with other standards: It is inter standard links to kSIST FprEN 1992-1-2:2023, SIST EN 1999-1-2:2007, SIST EN 1992-1-2:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 1992-1-2:2005/AC:2008 is associated with the following European legislation: EU Directives/Regulations: 2005-01-4408, 305/2011, 89/106/EEC; Standardization Mandates: M/265. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase SIST EN 1992-1-2:2005/AC:2008 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Evrokod 2: Projektiranje betonskih konstrukcij - 1-2. del: Splošna pravila - Projektiranje požarnovarnih konstrukcijEurocode 2: Bemessung und Konstruktion von Stahlbeton- und Spannbetontragwerken - Teil 1-2: Allgemeine Regeln - Tragwerksbemessung für den BrandfallEurocode 2: Calcul des structures en béton - Partie 1-2:
Règles générales - Calcul du comportement au feuEurocode 2: Design of concrete structures - Part 1-2: General rules - Structural fire design91.080.40Betonske konstrukcijeConcrete structures91.010.30Technical aspects13.220.50Požarna odpornost gradbenih materialov in elementovFire-resistance of building materials and elementsICS:Ta slovenski standard je istoveten z:EN 1992-1-2:2004/AC:2008SIST EN 1992-1-2:2005/AC:2008en,de01-november-2008SIST EN 1992-1-2:2005/AC:2008SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1992-1-2:2004/ACJuly 2008Juillet 2008Juli 2008ICS 91.010.30; 91.080.10English versionVersion FrançaiseDeutsche FassungEurocode 2: Design of concrete structures - Part 1-2: General rules -Structural fire designEurocode 2: Calcul des structures en béton- Partie 1-2:
Règles générales - Calcul ducomportement au feuEurocode 2: Bemessung und Konstruktionvon Stahlbeton- undSpannbetontragwerken - Teil 1-2:Allgemeine Regeln - Tragwerksbemessungfür den BrandfallThis corrigendum becomes effective on 30 July 2008 for incorporation in the three official languageversions of the EN.Ce corrigendum prendra effet le 30 juillet 2008 pour incorporation dans les trois versions linguistiquesofficielles de la EN.Die Berichtigung tritt am 30.Juli 2008 zur Einarbeitung in die drei offiziellen Sprachfassungen der ENin Kraft.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2008 CENAll rights of exploitation in any form and by any means reserved worldwide for CEN national Members.Tous droits d'exploitation sous quelque forme et de quelque manière que ce soit réservés dans le monde entier auxmembres nationaux du CEN.Alle Rechte der Verwertung, gleich in welcher Form und in welchem Verfahren, sind weltweit den nationalen Mitgliedernvon CEN vorbehalten.Ref. No.:EN 1992-1-2:2004/AC:2008 D/E/FSIST EN 1992-1-2:2005/AC:2008

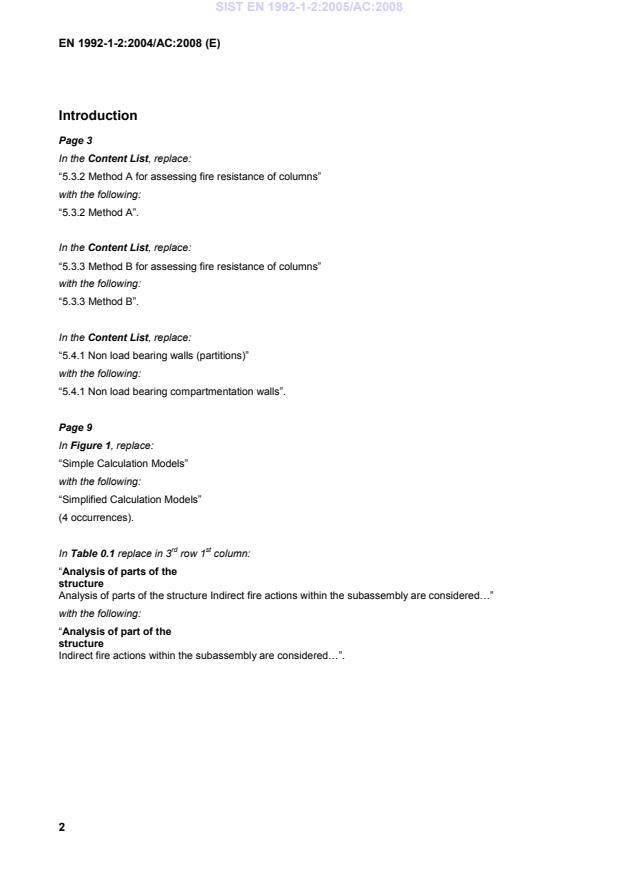

In the Content List, replace: “5.3.3 Method B for assessing fire resistance of columns” with the following: “5.3.3 Method B”.
In the Content List, replace: “5.4.1 Non load bearing walls (partitions)” with the following: “5.4.1 Non load bearing compartmentation walls”.
Page 9 In Figure 1, replace: “Simple Calculation Models” with the following: “Simplified Calculation Models” (4 occurrences).
In Table 0.1 replace in 3rd row 1st column: “Analysis of parts of the structure Analysis of parts of the structure Indirect fire actions within the subassembly are considered…” with the following: “Analysis of part of the structure Indirect fire actions within the subassembly are considered…”.
Page 11 In 1.3 replace: “The general assumptions given in EN 1990 and EN 1992-1-2 apply.” with the following: “The general assumptions given in EN 1990 and EN 1992-1-1 apply.”.
Page 12 In 1.5.6 replace: “…It is obtained from the residual cross section by removing parts of the…” with the following: “…It is obtained by removing parts of the…”.
Page 13 In 1.6.1 replace: “t
time of fire exposure (min)” with the following: “t
time in fire exposure (min)”.
SECTION 2 BASIS OF DESIGN Page 14 In 2.1.1 (1)P replace: “…during the relevant fire exposure.” with the following: “…during the required time of fire exposure.”.
In 2.1.1 (2)P replace: “…during the relevant fire exposure.” with the following: “…during the required time of fire exposure.”.
In 2.1.2(5) replace: “With the hydrocarbon fire exposure curve the same criteria (R, E, I) should apply, however the reference to this specific curve should be identified by the letters "HC", see EN 1991-1-2.” with the following: “With the hydrocarbon fire exposure curve (see EN 1991-1-2) the same criteria (R, E, I) should apply, however the reference to this specific curve should be identified by the letters "HC".”.
Page 15 Change 2.1.3 (1): “(1) The load bearing function should.” to a principle: “(1)P The load bearing function shall.”.
Page16 In 2.4.1 (2)P replace: “It shall be verified for the relevant duration of fire exposure t :” with the following: “It shall be verified for the specified duration of fire exposure t :”.
SECTION 3 MATERIAL PROPERTIES
Page 25 In 3.2.4 (1) replace: “…properties of prestressing steel at elevated temperatures may be obtained by the same…” with the following: “…properties of prestressing steel at elevated temperatures should be obtained by the same…”.
≤ 120°C” with the following: “for 860 °C <
≤ 1 200 °C”.
SECTION 4 DESIGN PROCEDURES
Page 31 In 4.2.3 (1) in the Note replace: “…The method described in Annex B.2 is based on the principle that the fire damaged cross-section is reduced by ignoring a damaged zone at the fire-exposed surfaces.” with the following: “…The method described in Annex B.2 is based on the principle that cross-section is reduced by ignoring an ineffective zone at the fire-exposed surfaces.”.
Page 34 In 4.3.1 (2)P replace: “…(e.g. insufficient rotational capacity,.” with the following: “…(e.g. insufficient rotation capacity,.”.
Page 35 In 4.3.3 (6) replace: “…sub-assemblies…” with the following: “…parts of the structure.”.
In 4.3.3 (9) replace: “…sub-assemblies…” with the following: “…parts of the structure.”.
Page 37 In 4.6 (4) replace: “…(see 4.2)…” with the following: “…(see 5)…”. SIST EN 1992-1-2:2005/AC:2008
Page 42 In 5.3.2 (2) in the Note 1 replace: “The value of emax, within limits 0,15h (or b) ≤ emax ≤ 0,4h (and b), …The recommended value is 0,15h (and b).” with the following: “The value of emax, within limits 0,15h (or b) ≤ emax ≤ 0,4h (or b), …The recommended value is 0,15h (or b).”.
Page 43 In 5.3.2 (3) replace: “A reduction factor for the design load level in the fire situation, µfi, has been introduced.” with the following: “Degree of utilization in the fire situation, µfi, has been introduced in Table 5.2a.”.
In 5.3.2 (3) in Table 5.2a in the last row replace: “For prestressed columns the increase of axis distance according to 4.2.2. (4) should be noted.” with the following: “For prestressed columns the increase of axis distance according to 5.2 (5) shou
...
