SIST EN 13252:2016
(Main)Geotextiles and geotextile-related products - Characteristics required for use in drainage systems
Geotextiles and geotextile-related products - Characteristics required for use in drainage systems
This European Standard specifies the relevant characteristics of geotextiles and geotextile-related products used in drainage systems and the appropriate test methods to determine these characteristics.
The intended use of these geotextiles or geotextile-related products is to fulfil one or more of the following functions: filtration, separation and drainage. The separation function is always used in conjunction with filtration or drainage. Accordingly, separation will never be specified alone.
This European Standard is not applicable to geosynthetic barriers, as defined in EN ISO 10318.
This European Standard provides for the assessment and verification of constancy of performance of the product to this European Standard and for factory production control procedures.
This European Standard defines requirements to be met by manufacturers and distributors with regard to the presentation of product properties.
NOTE Particular application cases may contain requirements regarding additional properties and – preferably standardised – test methods, if they are technically relevant.
This European Standard may be used to derive design values by taking into account factors within the context of the definitions given in EN 1997 1 (Eurocode 7), e.g. factors of safety. The design life of the product should be determined, since its function may be temporary, as a construction expediency, or permanent, for the lifetime of the structure.
Geotextilien und geotextilverwandte Produkte - Geforderte Eigenschaften für die Anwendung in Dränanlagen
Diese Europäische Norm legt die wichtigsten Eigenschaften von Geotextilien und geotextilverwandten Produkten, die in Dränanlagen verwendet werden, sowie die geeigneten Prüfverfahren zur Bestimmung dieser Eigenschaften fest.
Bei ihrer vorgesehenen Anwendung werden diese Geotextilien und geotextilverwandte Produkte eine oder mehrere der folgenden Funktionen erfüllen: Filtern, Trennen und Dränen. Die Trennfunktion wird immer in Verbindung mit Filtern oder Dränen genutzt, folglich ist Trennen nie allein vorgegeben.
Diese Europäische Norm ist nicht auf geosynthetische Dichtungsbahnen anwendbar, wie in EN ISO 10318-1 festgelegt.
Diese Europäische Norm behandelt die Bewertung und Überprüfung der Leistungsbeständigkeit des Produkts nach dieser Europäischen Norm und die Verfahren für die werkseigene Produktionskontrolle.
Diese Europäische Norm definiert Anforderungen, die von Herstellern und Händlern im Hinblick auf die Darstellung der Produkteigenschaften einzuhalten sind.
Besondere Anwendungen können Anforderungen hinsichtlich zusätzlicher Eigenschaften und vorzugsweise genormte Prüfverfahren enthalten, wenn diese technisch relevant sind.
Diese Europäische Norm darf zur Festlegung von Bemessungswerten herangezogen werden, in dem die im Zusammenhang mit den in EN 1997-1 (Eurocode 7) angegebenen Definitionen berücksichtigt werden, z. B. Sicherheitsbeiwerte. Für das Produkt sollte die Bemessungsdauer festgelegt werden, weil seine Funktion zeitlich befristet sein darf, als Einbauhilfe, oder dauerhaft, der Lebensdauer des Bauwerks entsprechend.
Géotextiles et produits apparentés - Caractéristiques requises pour l'utilisation dans les systèmes de drainage
La présente Norme européenne spécifie les caractéristiques pertinentes des géotextiles et produits apparentés utilisés dans les systèmes de drainage, ainsi que les méthodes d'essai appropriées pour déterminer ces caractéristiques.
L'utilisation prévue de ces géotextiles ou produits apparentés est de remplir au moins l'une des fonctions suivantes : filtration, séparation et drainage. La fonction séparation étant toujours utilisée conjointement avec une filtration ou un drainage, celle-ci n'est jamais spécifiée seule.
La présente Norme européenne ne s'applique pas aux géomembranes et géosynthétiques bentonitiques tels que définis dans l'EN ISO 10318 1.
La présente Norme européenne permet d'évaluer et de vérifier la constance des performances du produit à la présente Norme européenne et les procédures de contrôle de la production en usine.
La présente Norme européenne définit les exigences que les fabricants et distributeurs doivent satisfaire concernant la présentation des propriétés du produit.
Des cas d'application particuliers peuvent contenir des exigences sur des propriétés supplémentaires et méthodes d'essai – si possible normalisées – si elles sont techniquement pertinentes.
La présente Norme européenne peut être utilisée pour déduire les valeurs de calcul en prenant en compte les facteurs définis dans l'EN 1997 1 (Eurocode 7), par exemple les facteurs de sécurité. Il convient de déterminer la durée de vie prévue du produit, puisque sa fonction peut être provisoire, pour des besoins de construction, ou permanente, pour la durée de vie de la structure.
Geotekstilije in geotekstilijam sorodni izdelki - Značilnosti, ki se zahtevajo pri drenažnih sistemih
Ta evropski standard določa pomembne značilnosti geotekstilij in geotekstilijam sorodnih izdelkov, ki se uporabljajo pri drenažnih sistemih, ter ustrezne preskusne metode za določitev teh značilnosti.
Te geotekstilije in geotekstilijam sorodni izdelki naj bi imeli eno ali več naslednjih funkcij: filtriranje, ločevanje in drenaža. Funkcija ločevanja se vedno uporablja skupaj s filtriranjem ali drenažo. Zato ločevanje ne bo ločeno opredeljeno.
Ta evropski standard se ne uporablja za geosintetične zapore, kakor so opredeljene v standardu EN ISO 10318.
Ta evropski standard omogoča ocenjevanje in preverjanje stalnosti funkcionalnosti izdelka v skladu s tem evropskim standardom ter postopke kontrole proizvodnje v obratu.
Ta evropski standard določa zahteve, ki jih morajo izpolniti proizvajalci in distributerji glede predstavitve lastnosti izdelka.
OPOMBA: Posamezni primeri uporabe lahko vključujejo zahteve glede dodatnih lastnosti in – po možnosti standardiziranih – preskusnih metod, če so tehnično pomembni.
Ta evropski standard se lahko uporablja za izpeljavo projektnih vrednosti ob upoštevanju dejavnikov v okviru definicij iz standarda EN 1997 1 (Evrokod 7), npr. dejavnikov varnosti. Določila naj bi se projektna življenjska doba izdelka, saj je njegova funkcija začasna, kot zagotavljanje primernosti za gradnjo, ali stalna, tj. za življenjsko dobo konstrukcije.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Geotextilien und geotextilverwandte Produkte - Geforderte Eigenschaften für die Anwendung in DränanlagenGéotextiles et produits apparentés - Caractéristiques requises pour l'utilisation dans les systèmes de drainageGeotextiles and geotextile-related products - Characteristics required for use in drainage systems91.140.80Drenažni sistemiDrainage systems59.080.70GeotekstilijeGeotextilesICS:Ta slovenski standard je istoveten z:EN 13252:2016SIST EN 13252:2016en,fr,de01-december-2016SIST EN 13252:2016SLOVENSKI
STANDARDSIST EN 13252:2014+A1:20151DGRPHãþD
SIST EN 13252:2016
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13252
October
t r s x ICS
w {ä r z rä y r Supersedes EN
s u t w tã t r s v ªA sã t r s wEnglish Version
Geotextiles and geotextileærelated products æ Characteristics required for use in drainage systems Géotextiles et produits apparentés æ Caractéristiques requises pour l 5utilisation dans les systèmes de drainage
Geotextilien und geotextilverwandte Produkte æ Geforderte Eigenschaften für die Anwendung in Dränanlagen This European Standard was approved by CEN on
v June
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s u t w tã t r s x ESIST EN 13252:2016

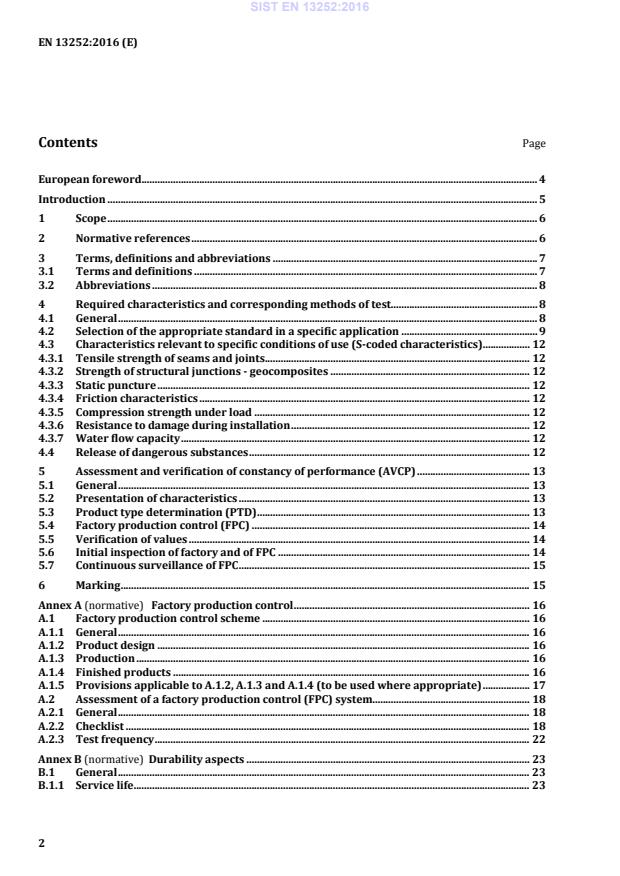

EN 13252:2016 (E) 2 Contents Page European foreword . 4 Introduction . 5 1 Scope . 6 2 Normative references . 6 3 Terms, definitions and abbreviations . 7 3.1 Terms and definitions . 7 3.2 Abbreviations . 8 4 Required characteristics and corresponding methods of test. 8 4.1 General . 8 4.2 Selection of the appropriate standard in a specific application . 9 4.3 Characteristics relevant to specific conditions of use (S-coded characteristics). 12 4.3.1 Tensile strength of seams and joints . 12 4.3.2 Strength of structural junctions - geocomposites . 12 4.3.3 Static puncture . 12 4.3.4 Friction characteristics . 12 4.3.5 Compression strength under load . 12 4.3.6 Resistance to damage during installation . 12 4.3.7 Water flow capacity . 12 4.4 Release of dangerous substances . 12 5 Assessment and verification of constancy of performance (AVCP) . 13 5.1 General . 13 5.2 Presentation of characteristics . 13 5.3 Product type determination (PTD) . 13 5.4 Factory production control (FPC) . 14 5.5 Verification of values . 14 5.6 Initial inspection of factory and of FPC . 14 5.7 Continuous surveillance of FPC . 15 6 Marking . 15 Annex A (normative)
