SIST EN 13950:2014

Gypsum board thermal/acoustic insulation composite panels - Definitions, requirements and test methods

This European Standard specifies the characteristics and performance of thermal/acoustic insulation composite panels made of an insulating material laminated to gypsum boards for which the main intended use is the internal insulation (thermal and/or acoustic) of walls. They are attached with adhesives or by mechanical fixings to vertical solid backgrounds and by mechanical fixings to wood or metal framing with the gypsum board face exposed. The method of fixing and jointing should ensure that the insulating material is not exposed in its normal application.
This European Standard covers the following performance characteristics: reaction to fire, fire resistance, water vapour permeability, flexural strength, impact resistance, direct airborne sound insulation and thermal resistance to be measured according to the corresponding European test methods.
It provides for the assessment and verification of constancy of performance of the products to this European Standard.
This European Standard covers also additional technical characteristics that are of importance for the use and acceptance of the product by the construction industry.

Gips-Verbundplatten zur Wärme- und Schalldämmung - Begriffe, Anforderungen und Prüfverfahren

Diese Europäische Norm legt die Eigenschaften und Leistungsmerkmale für Gips-Verbundplatten zur Wärme- und Schalldämmung fest, die aus Gipsplatten mit einem darauf befestigten Dämmstoff hergestellt sind und die hauptsächlich zur Wärme- und/oder Schalldämmung von Wänden in Gebäuden verwendet werden. Gips-Verbundplatten zur Wärme- und Schalldämmung werden mit der Sichtseite nach vorne mit einem Kleber oder mechanisch an vertikalen, festen Untergründen und mit mechanischen Verbindungsmitteln an Holz- oder Metall-Unterkonstruktionen befestigt. Das Befestigungs¬verfahren und die Verspachtelung sollen sicherstellen, dass der Dämmstoff bei normaler Anwendung nicht ungeschützt ist.
Diese Europäische Norm behandelt folgende Leistungsmerkmale: Brandverhalten, Feuerwiderstand, Wasserdampfdurchlässigkeit, Biegezugfestigkeit, Stoßwiderstand, Luftschalldämmung und Wärmedurchlass-widerstand. Diese Merkmale sind nach den einschlägigen europäischen Prüfverfahren zu bestimmen.
Ferner sind Festlegungen zur Überprüfung und Bewertung der Leistungsbeständigkeit der Produkte nach dieser Europäischen Norm angegeben.
Diese Europäische Norm behandelt auch zusätzliche technische Merkmale, die für die Anwendung und Akzeptanz des Produkts durch die Bauwirtschaft wichtig sind.

Complexes d'isolation thermique/acoustique en plaques de plâtre - Définitions, exigences et méthodes d'essai

La présente Norme européenne spécifie les caractéristiques et les performances des complexes d’isolation thermique/acoustique composés d’un matériau isolant contrecollé sur des plaques de plâtre, dont la principale application prévue est l’isolation intérieure (thermique et/ou acoustique) de murs. Ces complexes sont mis en oeuvre au moyen de colles ou par des fixations mécaniques sur des supports verticaux pleins et par des fixations mécaniques sur un bâti de bois ou une ossature métallique avec la surface de la plaque de plâtre exposée. Il convient que la méthode de fixation et de jointoiement garantisse que le matériau isolant n’est pas mis à nu pendant son application normale.
La présente Norme européenne couvre les caractéristiques de performance suivantes : la réaction au feu, la résistance au feu, la perméabilité à la vapeur d’eau, la résistance à la flexion, la résistance aux chocs, l’isolation aux bruits aériens directs et la résistance thermique qui doivent être mesurées conformément aux méthodes d’essai européennes correspondantes.
Elle permet l’évaluation et la vérification de la constance des performances des produits par rapport à la présente Norme européenne.
La présente Norme européenne couvre également les caractéristiques techniques supplémentaires qui revêtent une importance pour l’utilisation et la réception du produit par l’industrie du bâtiment.

Mavčne plošče za toplotno/zvočno izolacijo kompozitnih panelov - Definicije, zahteve in preskusne metode

Standard EN 13950 določa lastnosti in zmogljivosti toplotno/zvočno izolacijskih kompozitnih panelov, izdelanih iz izolacijskega materiala, lameliranega na mavčne plošče, katerih glavni namen uporabe je notranja izolacija (toplotna in/ali zvočna) sten. Mavčne plošče so pričvrščene z lepili ali mehansko na navpične trdne podlage in mehansko pričvrščene na lesen ali kovinski okvir z izpostavljeno sprednjo stranjo mavčne plošče. Metoda pričvrstitve in tesnjenja naj bi zagotovila, da izolacijski material pri običajni uporabi ni izpostavljen. Ta evropski standard zajema naslednje lastnosti delovanja, ki jih je treba meriti v skladu z ustreznimi evropskimi preskusnimi metodami: odziv na ogenj, požarna odpornost, prepustnost vodne pare, upogibna trdnost, odpornost proti udarcem, neposredna izolirnost pred zvokom v zraku in toplotna odpornost. Omogoča ocenjevanje in preverjanje nespremenljivosti zmogljivosti izdelkov v skladu s tem evropskim standardom. Ta evropski standard zajema tudi dodatne tehnične značilnosti, ki so pomembne pri uporabi in sprejemljivosti izdelka s strani gradbene industrije.

General Information

• Status: Published
• Public Enquiry End Date: 19-Feb-2012
• Publication Date: 12-Aug-2014
• ICS: 91.100.10 - Cement. Gypsum. Lime. Mortar
• ICS: 91.100.60 - Thermal and sound insulating materials
• Technical Committee: CAA - Mineral binders and masonry
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 05-Aug-2014
• Due Date: 10-Oct-2014
• Completion Date: 13-Aug-2014
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/106 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on gypsum products
• Ref Project: EN 13950:2014 - Gypsum board thermal/acoustic insulation composite panels - Definitions, requirements and test methods

Relations

• Replaces: SIST EN 13950:2006 - Gypsum plasterboard thermal/acoustic insulation composite panels - Definitions, requirements and test methods
• Effective Date: 01-Sep-2014

Overview

EN 13950:2014 - "Gypsum board thermal/acoustic insulation composite panels - Definitions, requirements and test methods" is a CEN European Standard that defines characteristics, performance and test methods for composite panels made by laminating an insulating material to gypsum boards for internal wall insulation. The standard covers panels fixed with adhesives or mechanical fixings (to solid backgrounds or timber/metal framing) with the gypsum board face exposed, and requires jointing/fixing methods that prevent exposure of the insulation in normal use. EN 13950:2014 also addresses assessment and verification of constancy of performance (AVCP) and links to the EU Construction Products Regulation (CPR / Regulation (EU) No. 305/2011).

Key topics and technical requirements

EN 13950:2014 specifies performance characteristics and associated test methods, including:

• Reaction to fire and fire resistance (references to EN 13823, EN 13501-1/2)
• Water vapour permeability (expressed as water vapour resistance factor)
• Thermal resistance and thermal performance (guarded hot plate / heat flow per EN 12667, EN 12939)
• Direct airborne sound insulation and acoustic absorption
• Flexural strength and impact resistance
• Adhesion/cohesion of the insulating material and flatness/offset/dimensions and tolerances
• Sampling, test procedures and expression of results for each characteristic
• Factory production control (FPC), type testing and AVCP procedures, CE marking and Declaration of Performance (DoP) requirements (see Annex ZA)

The standard references related product and method standards such as EN 520 (gypsum plasterboards), EN 825 (flatness), EN 13963 (jointing materials) and EN 14496 (gypsum-based adhesives).

Applications and who uses it

EN 13950:2014 is intended for:

• Manufacturers of gypsum-insulation composite panels - for product design, internal quality control and CE marking
• Test laboratories - for performing specified tests and producing test reports
• Specifiers, architects and consultants - to select panels that meet required fire, thermal and acoustic performance
• Contractors and installers - to ensure correct fixing, jointing and application practices that preserve product performance
• Certification bodies and regulators - for AVCP, DoP and enforcement under the CPR

Typical applications include internal wall insulation systems where both thermal insulation and acoustic performance are required, in residential, commercial and institutional buildings.

Related standards

Relevant standards cited within EN 13950:2014 include:

• EN 520, EN 825, EN 12667, EN 12939
• EN 13823, EN 13501-1 / EN 13501-2
• EN 13963, EN 14496, EN 15283-1 / EN 15283-2

For compliance and CE marking, consult Annex ZA of EN 13950:2014 and the Construction Products Regulation (EU) No. 305/2011.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.'HILQLFLMHGips-Verbundplatten zur Wärme- und Schalldämmung - Begriffe, Anforderungen und PrüfverfahrenComplexes d'isolation thermique/acoustique en plaques de plâtre - Définitions, exigences et méthodes d'essaiGypsum board thermal/acoustic insulation composite panels - Definitions, requirements and test methods91.100.60Thermal and sound insulating materials91.100.10Cement. Mavec. Apno. MaltaCement. Gypsum. Lime. MortarICS:Ta slovenski standard je istoveten z:EN 13950:2014SIST EN 13950:2014en,fr,de01-september-2014SIST EN 13950:2014SLOVENSKI
STANDARDSIST EN 13950:20061DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13950
July 2014 ICS 91.100.10; 91.100.60 Supersedes EN 13950:2005English Version
Gypsum board thermal/acoustic insulation composite panels - Definitions, requirements and test methods
Complexes d'isolation thermique/acoustique en plaques de plâtre et isolant - Définitions, spécifications et méthodes d'essai
Gips-Verbundplatten zur Wärme- und Schalldämmung - Begriffe, Anforderungen und Prüfverfahren This European Standard was approved by CEN on 22 May 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13950:2014 ESIST EN 13950:2014

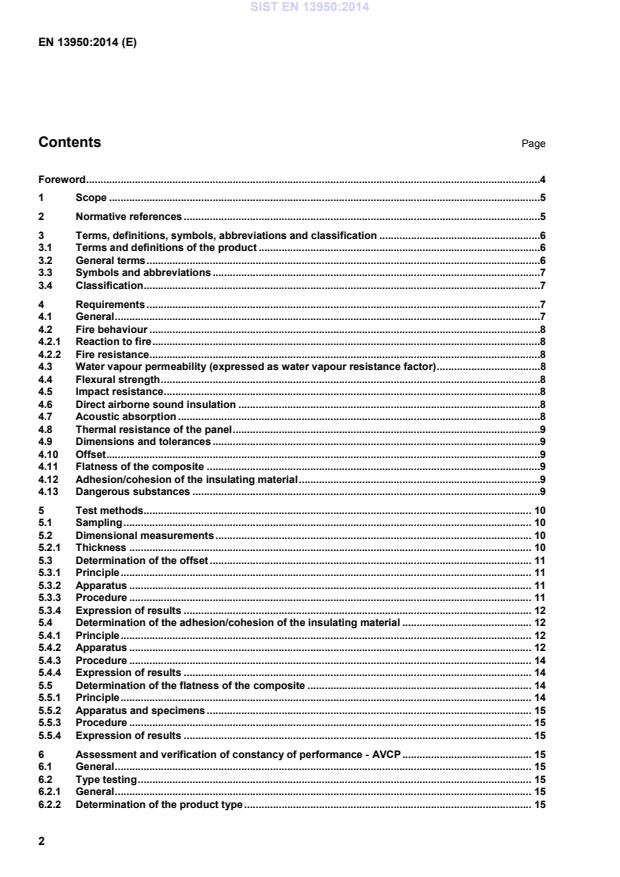

Sampling procedure for testing. 19 A.1 General . 19 A.2 Sampling procedure . 19 A.2.1 General . 19 A.2.2 Random sampling . 19 A.2.3 Representative sampling . 19 A.2.3.1 General . 19 A.2.3.2 Sampling from a stack . 19 A.2.3.3 Sampling from a consignment formed of banded or wrapped packs . 20 Annex B (normative)
Mounting and fixing in the test according to EN 13823 (SBI test) . 21 B.1 Mounting and fixing of the composite panels . 21 Annex ZA (informative)
Clauses of this European Standard addressing provisions of the EU Construction Products Regulation . 23 ZA.1 Scope and relevant characteristics . 23 ZA.2 Procedure for AVCP of gypsum board thermal/acoustic composite panels . 24 ZA.2.1 Systems of AVCP . 24 ZA.2.2 Declaration of performance (DoP) . 26 ZA.2.2.1 General . 26 ZA.2.2.2 Content . 27 ZA.2.2.3 Example of DoP . 28 ZA.3 CE marking and labelling . 29 Bibliography . 32
Flexural strength 4.4 F Thermal resistance 4.8 TR Impact resistance 4.5 :I Airborne sound insulation 4.6 R Acoustic absorption 4.7 . Dangerous substances 4.13 DS See manufacturer’s literature
www.manufacturers_internet_address.com 3.4 Classification Gypsum board thermal/acoustic insulation composite panels shall be classified depending on the kind of insulating materials as follows a) class 1 composites: — expanded polystyrene foam (EPS) (see EN 13163); — extruded polystyrene foam (XPS) (see EN 13164); — rigid polyurethane foam (polyisocyanate, polyisocyanurate) (PUR and PIR) (see EN 13165); — phenolic foam (PF) (see EN 13166); b) class 2 composites: — mineral wool (MW) (see EN 13162). Gypsum board thermal/acoustic insulation composite panels are for convenience referred to elsewhere in this European Standard as “composites” 4 Requirements 4.1 General The gypsum board and the insulating material shall comply with their respective European Standards. Further requirements of the insulating material are given below. Acoustic and thermal insulation performance vary according to the type of the insulating material, its thickness, its application and system. SIST EN 13950:2014

Figure 1 — Measurement of thickness SIST EN 13950:2014

a)
(type Negative offset)
b)
(type Positive offset) SIST EN 13950:2014

c) Key 1 to 8 measurement positions each at 100 mm from edge Figure 2 — Measurement of offset 5.3.4 Expression of results Compare the difference between each of the two measurements on the same side to the specification stated in 4.10. Calculate the average of the 2 measurements for each side expressed in millimetres. Compare each average to the tolerances given in 4.10. For sandwich panels there are three pairs of measurements on each side (top board/insulation – insulation/bottom board and top board/bottom board). Each pair shall be treated individually as above. 5.4 Determination of the adhesion/cohesion of the insulating material 5.4.1 Principle Adhesion/cohesion shall be determined by the tensile strength measured perpendicularly on 3 specimens. 5.4.2 Apparatus a) Metal or hardwood pieces with dimensions as that of the specimens: 200 mm × 200 mm or 300 mm × 300 mm for class 2 composites and 100 mm × 100 mm for class 1 composites; b) suitable double side adhesive tape or adhesive. The adhesion shall be greater than the threshold value defined in 4.12; c) tensile testing device allowing a loading rate of 0,3 kN/min. Figure 3 shows an example, any suitable device may be used. SIST EN 13950:2014

Key 1 operating device 2 spherical head screw 3 dynamometer 4 hardwood piece or metal piece 5 adhesive 6 insulating material 7 gypsum board Figure 3 — Example of adhesion test apparatus SIST EN 13950:2014
...
