SIST EN 16944:2017
(Main)Agricultural machinery and tractors - Standardized access to repair and maintenance information (RMI) - Requirements
Agricultural machinery and tractors - Standardized access to repair and maintenance information (RMI) - Requirements
This standard specifies the requirements to be fulfilled by manufacturers of tractors, interchangeable towed equipment and trailers used in agriculture and forestry in order to comply with the obligation to provide non-discriminatory access for independent operators to Repair and Maintenance Information (RMI) and to provide information on On-Board Diagnostic (OBD) systems.
This standard specifies all organisational and technical requirements and means of verification to comply with the EU Regulation 167/2013 and its Delegated Acts with the objectives to allow the fair competition between manufacturers and between operators and to improve the competitiveness and future viability of companies with special regard to Small and Medium sized Enterprises (SME).
This standard is applicable to agricultural and forestry vehicles approved (respectively to be approved) in accordance with the EU Regulation 167/2013.
This standard is not applicable to small series vehicles.
Landmaschinen und Traktoren - Genormter Zugang zu Reparatur- und Wartungsinformationen (RMI) - Anforderungen
Diese Norm legt die Anforderungen fest, die von den Herstellern von Traktoren, gezogenen auswechselbaren Geräten und Anhängern, die in der Land- und Forstwirtschaft eingesetzt werden, zu erfüllen sind, um der Verpflichtung, unabhängigen Wirtschaftsakteuren einen diskriminierungsfreien Zugang zu Reparatur- und Wartungsinformationen (RMI) und Informationen über On-Bord-Diagnose (OBD)-Systeme zur Verfügung zu stellen, zu entsprechen.
Dies Norm legt alle organisatorischen und technischen Anforderungen sowie Verfahren zur Überprüfung fest, um der EU-Verordnung 167/2013 und den dazugehörigen delegierten Rechtsakten mit der Zielsetzung, einen fairen Wettbewerb zwischen Herstellern und zwischen Wirtschaftakteuren zu ermöglichen und die Wettbewerbs- und Zukunftsfähigkeit von Unternehmen – mit besonderer Berücksichtigung von kleinen und mittleren Unternehmen (KMU) – zu stärken.
Diese Norm ist anwendbar auf land- und forstwirtschaftliche Fahrzeuge, die eine Genehmigung nach der EU-Verordnung 167/2013 erlangt haben bzw. erlangen sollen.
Diese Norm gilt nicht für Kleinserienfahrzeuge.
Matériel agricole et tracteurs - Accès normalisé aux informations de réparation et de maintenance - Élément complémentaire
La présente Norme européenne spécifie les exigences auxquelles doivent se conformer les fabricants de tracteurs, d'équipements interchangeables tractés et de remorques employés dans l'agriculture et la sylviculture afin de respecter l'obligation de fournir aux opérateurs indépendants un accès non-discriminatoire aux informations sur la réparation et l'entretien des véhicules et de fournir des informations sur les systèmes de diagnostic embarqués.
La présente Norme européenne précise l'ensemble des prescriptions organisationnelles et techniques et les moyens de vérification à mettre en place pour se conformer au Règlement 167/2013 et à ses règlements délégués avec pour double objectif de permettre une concurrence loyale entre les fabricants et entre les opérateurs et de renforcer la compétitivité et la viabilité future des entreprises, et en particulier des petites et moyennes entreprises (PME).
La présente Norme européenne s'applique aux véhicules agricoles et forestiers homologués (devant être respectivement réceptionnés) en application du Règlement UE 167/2013.
La présente Norme européenne ne s'applique pas aux véhicules de série limitée, pour lesquels la production annuelle mondiale d’un type de véhicule est inférieur à
— 200 véhicules pour les tracteurs à roues;
— 80 véhicules pour les tracteurs à chenilles;
— 400 véhicules pour les remorques;
— 200 véhicules pour les équipements tractés.
Kmetijski stroji in traktorji - Standardizirani dostop do informacij o popravilih in vzdrževanju (RMI) - Zahteve
Ta standard določa zahteve, ki jih morajo izpolnjevati proizvajalci traktorjev, zamenljive vlečne opreme in prikolic, ki se uporabljajo v kmetijstvu in gozdarstvu, da izpolnijo obveznost zagotavljanja nediskriminatornega dostopa neodvisnih upravljavcev do informacij o popravilih in vzdrževanju (RMI) ter da zagotovijo informacije o vgrajenih diagnostičnih sistemih (OBD).
Ta standard določa vse organizacijske in tehnične zahteve ter načine preverjanja skladnosti z Uredbo EU 167/2013 in njenimi delegiranimi akti s ciljem, da se omogoči poštena konkurenca med proizvajalci in med upravljavci ter da se izboljša konkurenčnost in prihodnost podjetja s posebnim poudarkom na malih in srednje velikih podjetjih (SME).
Ta standard se uporablja za kmetijska in gozdarska vozila, ki so odobrena (bodo odobrena) v skladu z Uredbo EU 167/2013.
Ta standard se ne uporablja za vozila, izdelana v majhnih serijah.
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kmetijski stroji in traktorji - Standardizirani dostop do informacij o popravilih in vzdrževanju (RMI) - ZahteveLandmaschinen und Traktoren - Genormter Zugang zu Reparatur- und Wartungsinformationen (RMI) - AnforderungenMatériel agricole et tracteurs - Accès normalisé aux informations de réparation et de maintenance - Élément complémentaireAgricultural machinery and tractors - Standardized access to repair and maintenance information (RMI) - Requirements65.060.01Kmetijski stroji in oprema na splošnoAgricultural machines and equipment in general43.040.15Car informatics. On board computer systemsICS:Ta slovenski standard je istoveten z:EN 16944:2017SIST EN 16944:2017en01-november-2017SIST EN 16944:2017SLOVENSKI
STANDARD
SIST EN 16944:2017
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16944
September
t r s y ICS
v uä r v rä s wâ
x wä r x rä s r English Version
Agricultural machinery and tractors æ Standardized access Requirements Tracteurs agricoles et pulvérisateurs automoteurs æ Accès normalisé aux informations de réparation et de maintenance æ Prescriptions
Landwirtschaftliche Traktoren und selbstfahrende Pflanzenschutzgeräte æ Genormter Zugang zu Reparaturæ und WartungsiAnforderungen This European Standard was approved by CEN on
{ July
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s x { v vã t r s y ESIST EN 16944:2017

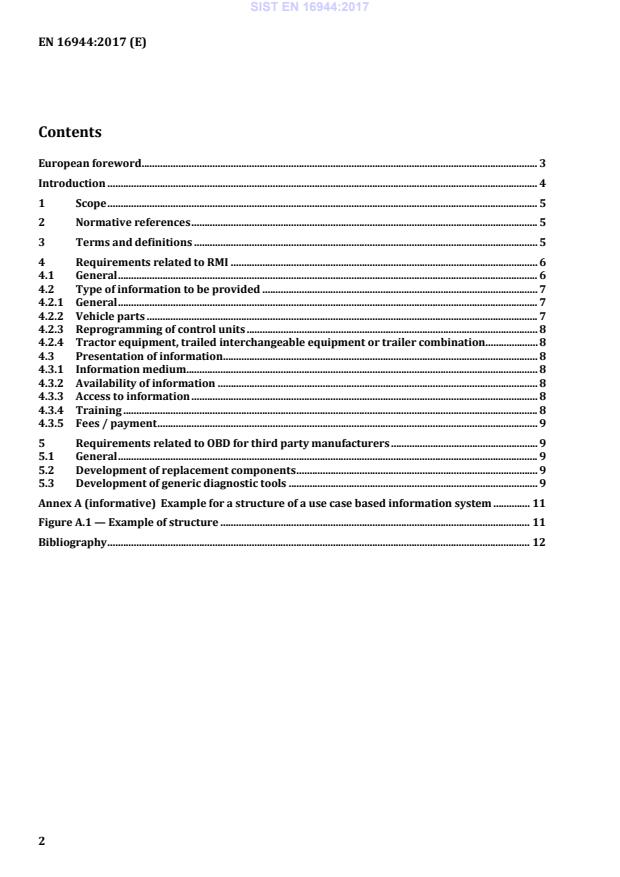

EN 16944:2017 (E) 2 Contents European foreword . 3 Introduction . 4 1 Scope . 5 2 Normative references . 5 3 Terms and definitions . 5 4 Requirements related to RMI . 6 4.1 General . 6 4.2 Type of information to be provided . 7 4.2.1 General . 7 4.2.2 Vehicle parts . 7 4.2.3 Reprogramming of control units . 8 4.2.4 Tractor equipment, trailed interchangeable equipment or trailer combination . 8 4.3 Presentation of information . 8 4.3.1 Information medium . 8 4.3.2 Availability of information . 8 4.3.3 Access to information . 8 4.3.4 Training . 8 4.3.5 Fees / payment . 9 5 Requirements related to OBD for third party manufacturers . 9 5.1 General . 9 5.2 Development of replacement components . 9 5.3 Development of generic diagnostic tools . 9 Annex A (informative)
Example for a structure of a use case based information system . 11 Figure A.1 — Example of structure . 11 Bibliography . 12
SIST EN 16944:2017
EN 16944:2017 (E) 3 European foreword This document (EN 16944:2017) has been prepared by Technical Committee CEN/TC 144 “Tractors and machinery for agriculture and forestry”, the secretariat of which is held by AFNOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by March 2018, and conflicting national standards shall be withdrawn at the latest by March 2018. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association. According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 16944:2017
EN 16944:2017 (E) 4 Introduction In order to provide additional information on the implementation of the legal requirements specified by the EU Regulation 167/2013 and its Delegated Acts and to consider the specific conditions in the sector of agricultural and forestry vehicles, the European Commission provided CEN with a mandate to develop a European Standard (EN). This standard includes the requirements to be fulfilled by Repair and Maintenance Information (RMI) systems as applied by the European Commission – Enterprise and Industry Directorate-general, Consumer goods - Automotive industry EC mandate M/421: “Mandate to the European Standardization Orgnanizations for standardization in the field of vehicle OBD, Repair and Maintenance Information” (dated Brussels, 21 January 2008). This mandate relates to the EC type-approval system for vehicles falling into the scopes of the Regulation 167/2013 and, in particular, to requirements for access to vehicle repair and maintenance information by independent operators. The purpose of the EC Mandate M/421 is to develop a standard or set of standards which specify the requirements to provide “standardized access to repair and maintenance information (RMI)” for independent operators. SIST EN 16944:2017
EN 16944:2017 (E) 5 1 Scope This European Standard specifies the requirements to be fulfilled by manufacturers of tractors, interchangeable towed equipment and trailers used in agriculture and forestry in order to comply with the obligation to provide non-discriminatory access for independent operators to Repair and Maintenance Information (RMI) and to provide information on On-Board Diagnostic (OBD) systems. This European Standard specifies all organisational and technical requirements and means of verification to comply with the EU Regulation 167/2013 and its Delegated Acts with the objectives to allow the fair competition between manufacturers and between operators and to improve the competitiveness and future viability of companies with special regard to Small and Medium-sized Enterprises (SME). This European Standard is applicable to agricultural and forestry vehicles approved (respectively to be approved) in accordance with the EU Regulation 167/2013. This European Standard is not applicable to small series vehicles, of which the annual worldwide production of a type of vehicle is less than — 200 vehicles in case of wheeled tractors; — 80 vehicles in case of track-laying tractors; — 400 vehicles in case of trailers; — 200 vehicles in case of interchangeable towed equipment. 2 Normative references Not applicable. 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 vehicle tractor, interchangeable towed equipment or trailer used in agriculture and forestry for which an approval in accordance with EU Regulation 167/2013 is available respectively applied for 3.2 non-discriminatory access providing access to RMI information to approved independent operators, third party manufacturers/suppliers, and authorized dealers (or repairers), which includes information that allows diagnosis and repair of agricultural and forestry vehicles Note 1 to entry: The volume of information, its level of detail and the way of presenting this information is dependent on the vehicle complexity and the structures. Note 2 to entry: Any differentiation compared to manufacturer's authorized dealers based on comprehensible and justifiable reasons does not constitute a discrimination. SIST EN 16944:2017
EN 16944:2017 (E) 6 3.3 independent operator company registered as a legal entity other than authorised d
...
SLOVENSKI STANDARD
oSIST prEN 16944:2016
01-januar-2016
Kmetijski stroji in traktorji - Standardizirani dostop do informacij popravil in
vzdrževanja (RMI) - Zahteve
Agricultural machinery and tractors - Standardized access to repair and maintenance
information (RMI) - Requirements
Landmaschinen und Traktoren - Genormter Zugang zu Reparatur- und
Wartungsinformationen (RMI) - Anforderungen
Matériel agricole et tracteurs - Accès normalisé aux informations de réparation et de
maintenance - Élément complémentaire
Ta slovenski standard je istoveten z: prEN 16944
ICS:
43.040.15 $YWRPRELOVNDLQIRUPDWLND Car informatics. On board
9JUDMHQLUDþXQDOQLãNLVLVWHPL computer systems
65.060.01 Kmetijski stroji in oprema na Agricultural machines and
splošno equipment in general
oSIST prEN 16944:2016 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 16944:2016
---------------------- Page: 2 ----------------------
oSIST prEN 16944:2016
DRAFT
EUROPEAN STANDARD
prEN 16944
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2015
ICS 65.060.01
English Version
Agricultural machinery and tractors - Standardized access
to repair and maintenance information (RMI) -
Requirements
Matériel agricole et tracteurs - Accès normalisé aux Landmaschinen und Traktoren - Genormter Zugang zu
informations de réparation et de maintenance - Reparatur- und Wartungsinformationen (RMI) -
Élément complémentaire Anforderungen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 144.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 16944:2015 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 16944:2016
prEN 16944:2015 (E)
Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements related to RMI . 6
4.1 General . 6
4.2 Type of information to be provided . 6
4.2.1 General . 6
4.2.2 Vehicle parts . 7
4.2.3 Reprogramming of control units . 7
4.2.4 Tractor equipment or trailer combination . 7
4.3 Presentation of information . 8
4.3.1 Information medium . 8
4.3.2 Availability of information . 8
4.3.3 Access to information . 8
4.3.4 Training . 8
4.3.5 Fees / payment . 8
5 Requirements related to OBD for third party manufacturers . 9
5.1 General . 9
5.2 Development of replacement components . 9
5.3 Development of generic diagnostic tools . 9
Annex A (informative) Example for a structure of a use case based information system . 11
Bibliography . 12
2
---------------------- Page: 4 ----------------------
oSIST prEN 16944:2016
prEN 16944:2015 (E)
European foreword
This document (prEN 16944:2015) has been prepared by Technical Committee CEN/TC 144 “Tractors
and machinery for agriculture and forestry”, the secretariat of which is held by AFNOR.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
3
---------------------- Page: 5 ----------------------
oSIST prEN 16944:2016
prEN 16944:2015 (E)
Introduction
In order to provide additional information on the implementation of the legal requirements specified by
the EU Regulation 167/2013 and its Delegated Acts and to consider the specific conditions in the sector
of agricultural and forestry vehicles, the European Commission provided CEN with a mandate to
develop a European Standard (EN).
This standard includes the requirements to be fulfilled by Repair and Maintenance Information (RMI)
systems as applied by the European Commission – Enterprise and Industry Directorate-general,
Consumer goods - Automotive industry EC mandate M/421:
“Mandate to the European Standardization Orgnanizations for standardization in the field of vehicle
OBD, Repair and Maintenance Information” (dated Brussels, 21 January 2008).
This mandate relates to the EC type-approval system for vehicles falling into the scopes of the
Regulation 167/2013 and, in particular, to requirements for access to vehicle repair and maintenance
information by independent operators.
The purpose of the EC Mandate M/421 is to develop a standard or set of standards which specify the
requirements to provide “standardized access to repair and maintenance information (RMI)” for
independent operators.
4
---------------------- Page: 6 ----------------------
oSIST prEN 16944:2016
prEN 16944:2015 (E)
1 Scope
This standard specifies the requirements to be fulfilled by manufacturers of tractors, interchangeable
towed equipment and trailers used in agriculture and forestry in order to comply with the obligation to
provide non-discriminatory access for independent operators to Repair and Maintenance Information
(RMI) and to provide information on On-Board Diagnostic (OBD) systems.
This standard specifies all organisational and technical requirements and means of verification to
comply with the EU Regulation 167/2013 and its Delegated Acts with the objectives to allow the fair
competition between manufacturers and between operators and to improve the competitiveness and
future viability of companies with special regard to Small and Medium-sized Enterprises (SME).
This standard is applicable to agricultural and forestry vehicles approved (respectively to be approved)
in accordance with the EU Regulation 167/2013.
This standard is not applicable to small series vehicles.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
Not applicable
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
vehicle
tractor
interchangeable towed equipment or trailer used in agriculture and forestry for which an approval in
accordance with EU Regulation 167/2013 is available respectively applied for
3.2
non-discriminatory access
providing access to RMI information to approved independent operators, third party
manufacturers/suppliers, and authorized dealers (or repairers), which includes information that allows
diagnosis and repair of agricultural and forestry vehicles
Note 1 to entry: Any differentiation compared to manufacturer's authorized dealers based on comprehensible
and justifiable reasons does not constitute a discrimination.
3.3
independent operator
company registered as a legal entity other than authorised dealers and repairers which are providing
repair and maintenance services as their main business and w
...
