CEN/TS 15989:2015
(Main)Firefighting and rescue service vehicles and equipment - Graphical symbols for control elements and displays and for markings
Firefighting and rescue service vehicles and equipment - Graphical symbols for control elements and displays and for markings
This Technical Specification is applicable to graphical symbols for control elements and displays and for markings for fire fighting and rescue service vehicles and equipment.
Feuerwehrfahrzeuge und -geräte - Graphische Symbole für Bedien- und Anzeigeelemente sowie für Kennzeichnungen
Diese Technische Spezifikation gilt für graphische Symbole für Bedien- und Anzeigeelemente sowie für Kennzeichnungen bei Feuerwehrfahrzeugen und -geräten.
Véhicules et équipements des services de secours et de lutte contre l'incendie - Symboles graphiques pour les éléments de commande et afficheurs et pour le marquage
La présente spécification technique s'applique aux symboles graphiques pour les éléments de commande et les afficheurs, ainsi que pour le marquage des véhicules et équipements des services de secours de lutte contre l’incendie.
Gasilska in reševalna vozila ter oprema - Grafični simboli za krmilne elemente in zaslone ter za označevanje
General Information
Relations
Standards Content (Sample)

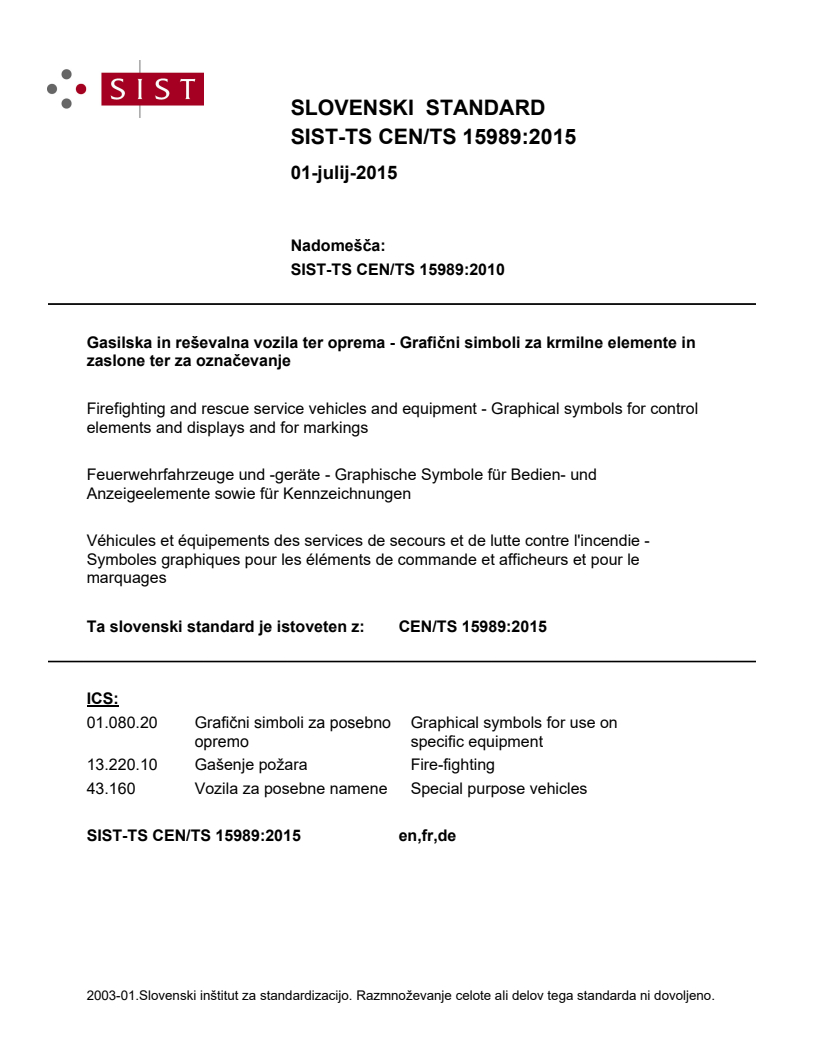

SLOVENSKI STANDARD
01-julij-2015
1DGRPHãþD
SIST-TS CEN/TS 15989:2010
*DVLOVNDLQUHãHYDOQDYR]LODWHURSUHPD*UDILþQLVLPEROL]DNUPLOQHHOHPHQWHLQ
]DVORQHWHU]DR]QDþHYDQMH
Firefighting and rescue service vehicles and equipment - Graphical symbols for control
elements and displays and for markings
Feuerwehrfahrzeuge und -geräte - Graphische Symbole für Bedien- und
Anzeigeelemente sowie für Kennzeichnungen
Véhicules et équipements des services de secours et de lutte contre l'incendie -
Symboles graphiques pour les éléments de commande et afficheurs et pour le
marquages
Ta slovenski standard je istoveten z: CEN/TS 15989:2015
ICS:
01.080.20 *UDILþQLVLPEROL]DSRVHEQR Graphical symbols for use on
RSUHPR specific equipment
13.220.10 Gašenje požara Fire-fighting
43.160 Vozila za posebne namene Special purpose vehicles
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

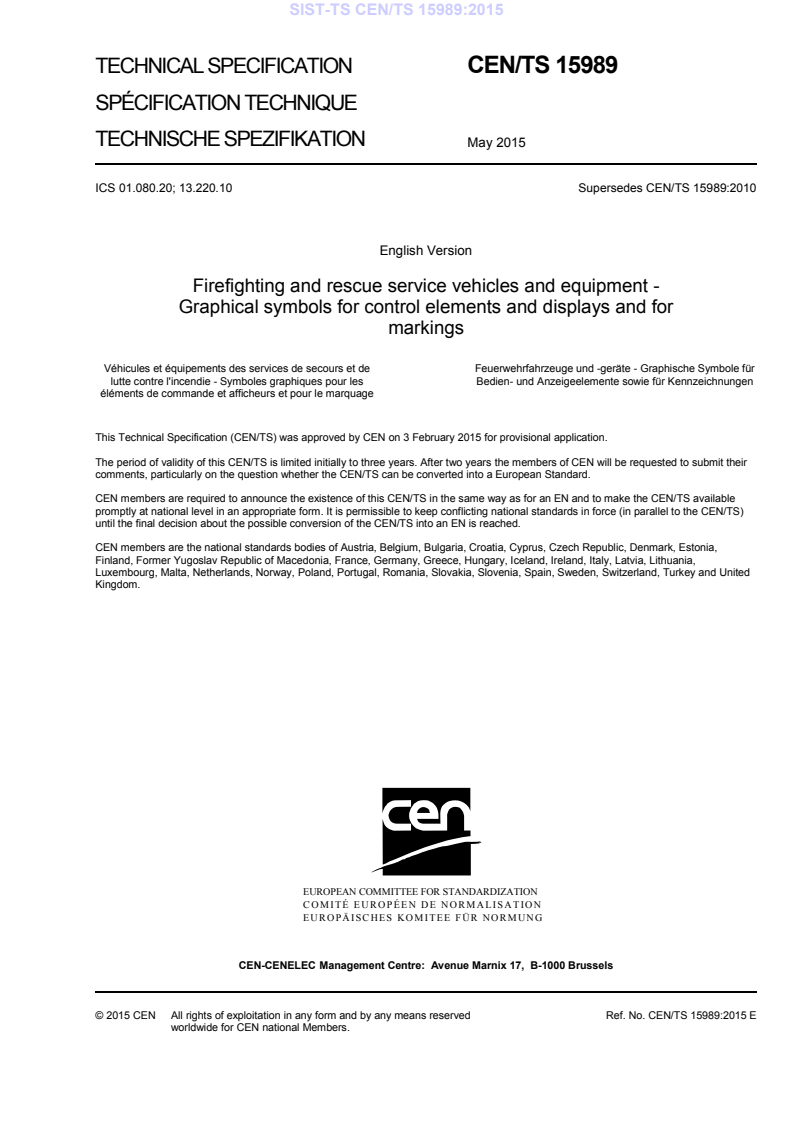

TECHNICAL SPECIFICATION
CEN/TS 15989
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
May 2015
ICS 01.080.20; 13.220.10 Supersedes CEN/TS 15989:2010
English Version
Firefighting and rescue service vehicles and equipment -
Graphical symbols for control elements and displays and for
markings
Véhicules et équipements des services de secours et de Feuerwehrfahrzeuge und -geräte - Graphische Symbole für
lutte contre l'incendie - Symboles graphiques pour les Bedien- und Anzeigeelemente sowie für Kennzeichnungen
éléments de commande et afficheurs et pour le marquage
This Technical Specification (CEN/TS) was approved by CEN on 3 February 2015 for provisional application.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their
comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available
promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in parallel to the CEN/TS)
until the final decision about the possible conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 15989:2015 E
worldwide for CEN national Members.

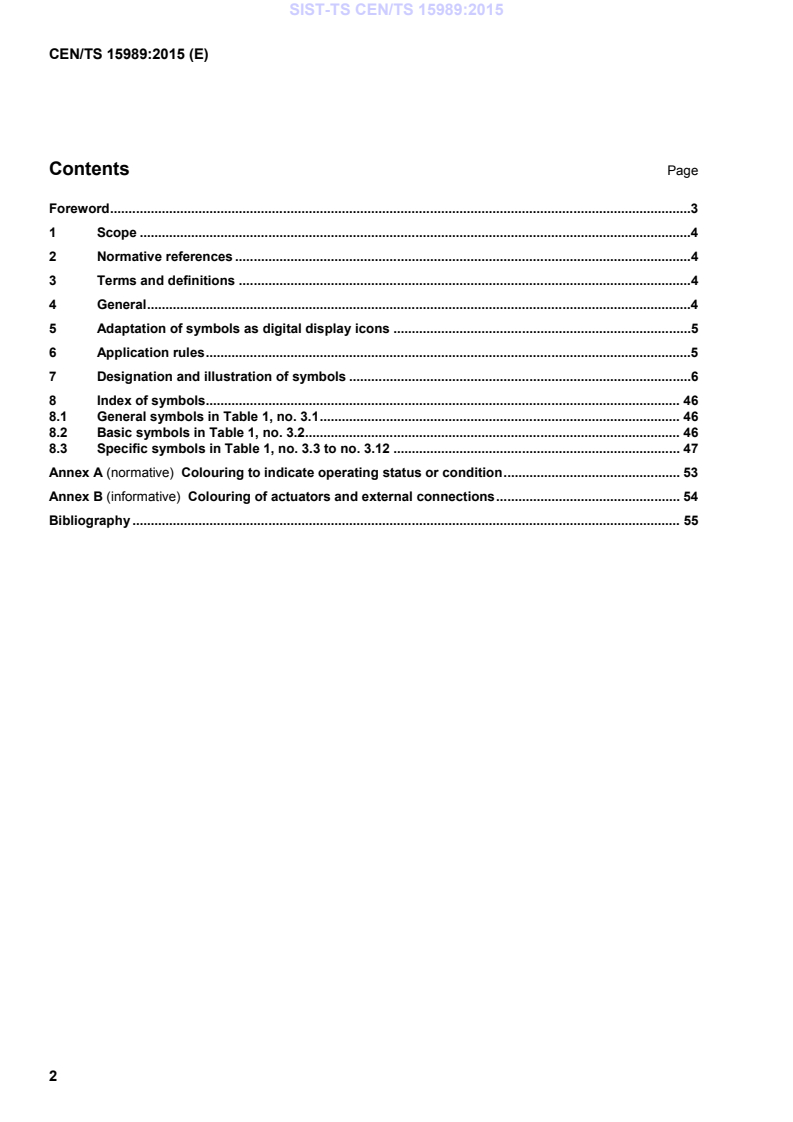

Contents Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Terms and definitions .4
4 General .4
5 Adaptation of symbols as digital display icons .5
6 Application rules .5
7 Designation and illustration of symbols .6
8 Index of symbols. 46
8.1 General symbols in Table 1, no. 3.1 . 46
8.2 Basic symbols in Table 1, no. 3.2 . 46
8.3 Specific symbols in Table 1, no. 3.3 to no. 3.12 . 47
Annex A (normative) Colouring to indicate operating status or condition . 53
Annex B (informative) Colouring of actuators and external connections . 54
Bibliography . 55
Foreword
This document (CEN/TS 15989:2015) has been prepared by Technical Committee CEN/TC 192 “Fire and
Rescue Service Equipment”, the secretariat of which is held by BSI.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes CEN/TS 15989:2010.
The significant changes with respect to the previous edition of CEN/TS 15989:2010 are listed below:
a) general requirements, adaptation of symbols as digital display icons and application rules added;
b) term and definition for graphical symbol added;
c) clause with requirements for designation, illustration and size of symbols added;
d) number of graphical symbols in Table 1 increased, some symbols revised in presentation and designation
and partly harmonized with FAMA White paper, Graphical Symbols for Automotive Fire Apparatus;
e) general (basic) symbols listed at first in Table 1, section no. 3.1 and section no. 3.2 and partly repeated in
the specific sections of Table 1 to keep the coherence of this document;
f) colouring of the symbol deleted in Table 1 and mentioned in new normative Annex A;
g) recommendation on colouring of actuators and external connections added in new informative Annex B;
h) normative references revised;
i) bibliography added.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria, Croatia, Cyprus,
Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
1 Scope
This Technical Specification is applicable to graphical symbols for control elements and displays and for
markings for fire fighting and rescue service vehicles and equipment.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for the application of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1147, Portable ladders for fire service use
EN 80416-1:2009, Basic principles for graphical symbols for use on equipment — Part 1: Creation of graphical
symbols for registration (IEC 80416-1:2008)
EN ISO 7010, Graphical symbols — Safety colours and safety signs — Registered safety signs (ISO 7010)
ISO 7000, Graphical symbols for use on equipment — Registered symbols
ISO 20381, Mobile elevating work platforms — Symbols for operator controls and other displays
IEC 60417, Graphical symbols for use on equipment
IEC 60617, Graphical symbols for diagrams
1)
FAMA White paper, Graphical Symbols for Automotive Fire Apparatus
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
graphical symbol
visually perceptible figure with a particular meaning used to transmit information independently of language
[SOURCE: EN 80416-1:2009, 3.4]
4 General
4.1 New symbol ideas for graphical symbols for control elements and displays and for markings for
fire fighting and rescue service vehicles and equipment should be forwarded to CEN/TC 192. The
CEN/TC 192 Graphical symbols group will consider new symbols at each CEN technical committee meeting
and add new symbols as appropriate.
4.2 Graphical symbols for control elements and displays and for markings for fire fighting and rescue
service vehicles and equipment should be conform to the symbols as shown in this document. However,
symbols which are shown in outline form may be filled in actual use for enhanced clarity of reproduction and
improved visual perception by the operator, unless otherwise noted for individual symbols.
NOTE Guidelines for the application of graphical symbols are given in EN 80416-3.
1) Published by Fire Apparatus Manufacturers’ Association (FAMA), available at Fire Apparatus Manufacturers'
Association (FAMA), 29 Stillman Road, Lynnfield MA, 01940, USA (www.fama.org).
4.3 Limitations inherent in some reproduction and display technologies may require increased line
thickness or other minor modifications of symbols. Such modifications are acceptable provided the symbol is
unchanged in its basic graphical elements and remains easily discernible by the operator.
4.4 To improve the appearance and perceptibility of a graphical symbol, or to coordinate with the design of
the equipment to which the symbol is applied, it may be necessary to change the line thickness or round the
corners of a symbol. The graphic designer is free to make such changes, provided that the essential
perceptual characteristics of the symbol are maintained.
4.5 For actual use, all symbols shall be reproduced large enough to be easily discernible by the operator.
See EN 80416-1 for guidelines on the proper sizing of symbols. Symbols grouped together in a display or on a
set of controls should be scaled to the same degree relative to the corner marks of the original symbol as
shown in this document in order to maintain the correct visual relationship among the symbols. Symbols shall
be used in the orientation shown unless otherwise noted for individual symbols.
4.6 Most symbols are constructed using a building block approach in which various symbols and symbol
elements are combined in a logical manner to produce new symbols.
4.7 Symbols are generally intended to replace a word or words with a graphical representation that has the
same meaning for all operators, regardless of their native language. However, the use of a graphical symbol
to identify a control or display does not preclude the use of words in conjunction with that control or display.
4.8 Symbols on controls and displays shall have good contrast to their background. Displays may use
either a light symbol on a dark background or a dark symbol on a light background, depending upon which
alternative provides the best visual perception. If a symbol image is reversed (for example from black-on-white
to white-on-black and vice versa), it shall be done for the entire symbol.
4.9 Symbols shall be located on or adjacent to the control or display that is being identified. Where more
than one symbol is required for a control, the symbols shall be located in relation to the control such that
movement of the control toward the symbol shall effect the function depicted by that symbol. Symbols shall be
visible by the operator from the operating position in all weather conditions.
4.10 Reference numbers and the standards they come from are provided for each symbol not unique to this
document. This list is not exhaustive. Certain symbols may be found in more than one standard, or in
standards not referenced in this document.
5 Adaptation of symbols as digital display icons
Symbols may be adapted for use as digital display icons on reconfigurable or other electronic displays. Such
adaptations should follow the principles of ISO 80416-4. Special care should be taken to ensure that digital
display icons preserve the visual impression of the symbol from which the icon is adapted.
If the display is in close proximity to the operator and clear identification and visibility is given from the
operators position, the symbols may be smaller than 15 mm × 15 mm, but still clearly visible from that
position. Close proximity is given if the operator is in a designated seat or stand, closer than 1 m to the display
and controls. Whenever the operator’s position is not defined by a seat or a stand, clear recognition and
visibility shall be given from a distance of at least 1 m. Distance shall be measured between the operator’s
head and the actual display or control.
The visual expression of displays shall remain visible under all weather- and light- conditions, including bright
sunlight. The display shall not disturb operator’s vision during night-time.
6 Application rules
6.1 If a control system or mechanism comprises a manual override, the function of the control shall be
explained with the general “Manual Control” symbol in Table 1, no. 3.1.4 with the adequate function-symbol.
EXAMPLE Symbol “Back-up or emergency pump, manually powered” in Table 1, no. 3.10.30.
6.2 If applicable, multiple symbols may be grouped together to explain controls with multiple use
(for example a joystick). The size of the symbol shall be chosen in such way, that clear recognition and
visibility is given from the operator’s position.
7 Designation and illustration of symbols
7.1 The designation and
...
