Adhesives for tiles - Part 2: Test methods

This part of EN 12004 describes methods for determining characteristics for adhesives used in the installation of ceramic tiles. The following test methods are described: Determination of slip, Concrete slabs for tests, Determination of shear adhesion strength of dispersion adhesives, Determination of open time, Determination of tensile adhesion strength of cementitious adhesives, Determination of transverse deformation, Determination of shear adhesion strength of reaction resin adhesives.

Mörtel und Klebstoffe für Fliesen und Platten - Teil 2: Prüfverfahren

Diese Europäische Norm legt die Verfahren zur Bestimmung der Eigenschaften von Mörteln und Klebstoffen für keramische Fliesen und Platten zur Verarbeitung im Innen- und Außenbereich fest.
In dieser Europäischen Norm sind keine Leistungsanforderungen oder Empfehlungen für die Ausführung und Verarbeitung von keramischen Fliesen und Platten enthalten.
Die folgenden Prüfverfahren werden beschrieben:
-   Bestimmung der offenen Zeit (8.1);
-   Bestimmung des Abrutschens (8.2);
-   Bestimmung der Haftzugfestigkeit zementhaltiger Mörtel (8.3);
-   Bestimmung der Haftscherfestigkeit von Dispersionsklebstoffen (8.4);
-   Bestimmung der Haftscherfestigkeit von Reaktionsharzklebstoffen (8.5);
-   Bestimmung der Verformung (8.6).
ANMERKUNG   Mörtel und Klebstoffe für keramische Fliesen und Platten können auch für andere Arten von Fliesen und Platten (Naturwerkstein, Betonwerkstein usw.) verwendet werden, wenn diese Materialien hierdurch nicht beeinträchtigt werden.
WARNUNG - Diese Europäische Norm kann gefährliche Stoffe und Handlungen beinhalten. Personen, die diese Norm anwenden, sollten mit der üblichen Laborpraxis vertraut sein. Diese Europäische Norm gibt nicht vor, alle Sicherheitsprobleme, die mit ihrer Anwendung in Verbindung stehen, zu behandeln. Es liegt in der Verantwortung des Anwenders, angemessene Sicherheits- und Gesundheitsschutzmaßnahmen zu treffen und sicherzustellen, dass etwaige europäische und nationale gesetzliche Bestimmungen eingehalten werden.

Colles à carrelage - Partie 2: Méthodes d'essai

La présente Norme européenne spécifie les méthodes permettant de déterminer les caractéristiques des colles utilisées pour la pose intérieure et extérieure de carreaux céramiques.
La présente Norme européenne ne contient pas d'exigences de performance, ni de recommandations pour la conception et la pose des carreaux céramiques.
Les méthodes d'essai suivantes sont décrites :
-   détermination du temps ouvert (8.1) ;
-   détermination du glissement (8.2) ;
-   détermination de l'adhérence par traction des mortiers-colles (8.3) ;
-   détermination de l'adhérence par cisaillement des adhésifs en dispersion (8.4) ;
-   détermination de l'adhérence par cisaillement des colles réactives (8.5) ;
-   détermination de la déformation transversale de mortiers-colles (8.6).
NOTE   Les colles pour carreaux céramiques peuvent également être utilisées pour d'autres types de carrelages (carreaux de pierres naturelles ou de pierres reconstituées, etc.) lorsqu’elles sont compatibles.
AVERTISSEMENT - La présente Norme européenne peut mettre en jeu des matériaux et des opérations dangereux. Il convient que les utilisateurs de la présente norme connaissent bien les pratiques courantes de laboratoire. La présente Norme européenne ne prétend pas aborder tous les problèmes de sécurité qui sont, le cas échéant, liés à son utilisation. Il incombe à l'utilisateur d'établir des pratiques appropriées en matière de sécurité et de santé, et de s'assurer de la conformité à toute réglementation nationale et européenne en vigueur.

Lepila in malte za ploščice - 2. del: Preskusne metode

Ta del standarda EN 12004 opisuje metode za določanje značilnosti za lepila, ki se uporabljajo pri polaganju keramičnih ploščic. Opisane so naslednje preskusne metode: ugotavljanje zdrsavanja, betonske plošče za preskušanje, ugotavljanje strižne sprijemljivosti disperzijskih lepil, določanje odprtega časa, ugotavljanje natezne sprijemljivosti cementnih lepil, ugotavljanje prečne deformacije, ugotavljanje strižne sprijemljivosti reakcijskih lepil na osnovi smole.

General Information

Status
Published
Public Enquiry End Date
30-Mar-2015
Publication Date
04-Apr-2017
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
14-Mar-2017
Due Date
19-May-2017
Completion Date
05-Apr-2017

Relations

Buy Standard

Standard
EN 12004-2:2017
English language
35 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Mörtel und Klebstoffe für Fliesen und Platten - Teil 2: PrüfverfahrenColles à carrelage - Partie 2: Méthodes d'essaiAdhesives for tiles - Part 2: Test methods91.100.23Ceramic tiles83.180LepilaAdhesivesICS:Ta slovenski standard je istoveten z:EN 12004-2:2017SIST EN 12004-2:2017en,fr,de01-maj-2017SIST EN 12004-2:2017SLOVENSKI
STANDARDSIST EN 1324:2007SIST EN 1323:2007SIST EN 1348:2007SIST EN 1346:2007SIST EN 12003:2009SIST EN 12002:2009SIST EN 1308:2007SIST EN 12003:2009/AC:20091DGRPHãþD



SIST EN 12004-2:2017



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12004-2
February
t r s y ICS
z uä s z râ
{ sä s r rä s râ
{ sä s r rä u r Supersedes EN
s t r r tã t r r zá EN
s t r r uã t r r zá EN
s u r zã t r r yá EN
s u t uã t r r yá EN
s u t vã t r r yá EN
s u v xã t r r yá EN
s u v zã t r r yEnglish Version
Adhesives for ceramic tiles æ Part
tã Test methods Colles à carrelage æ Partie
t ã Méthodes d 5essai
Mörtel und Klebstoffe für Fliesen und Platten æ Teil
tã Prüfverfahren This European Standard was approved by CEN on
s w July
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s t r r væ tã t r s y ESIST EN 12004-2:2017

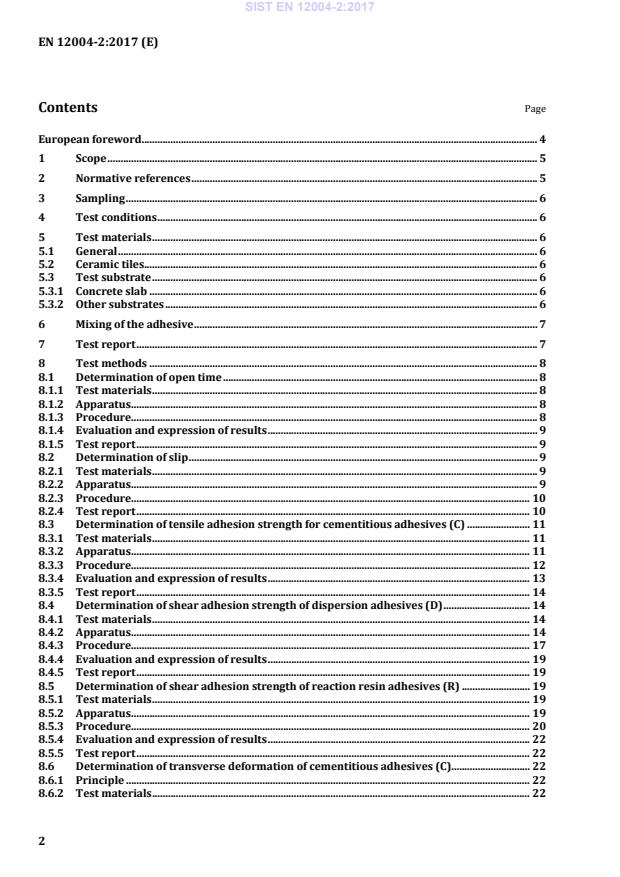

EN 12004-2:2017 (E) 2 Contents Page European foreword . 4 1 Scope . 5 2 Normative references . 5 3 Sampling . 6 4 Test conditions . 6 5 Test materials . 6 5.1 General . 6 5.2 Ceramic tiles . 6 5.3 Test substrate . 6 5.3.1 Concrete slab . 6 5.3.2 Other substrates . 6 6 Mixing of the adhesive . 7 7 Test report . 7 8 Test methods . 8 8.1 Determination of open time . 8 8.1.1 Test materials . 8 8.1.2 Apparatus . 8 8.1.3 Procedure. 8 8.1.4 Evaluation and expression of results . 9 8.1.5 Test report . 9 8.2 Determination of slip . 9 8.2.1 Test materials . 9 8.2.2 Apparatus . 9 8.2.3 Procedure. 10 8.2.4 Test report . 10 8.3 Determination of tensile adhesion strength for cementitious adhesives (C) . 11 8.3.1 Test materials . 11 8.3.2 Apparatus . 11 8.3.3 Procedure. 12 8.3.4 Evaluation and expression of results . 13 8.3.5 Test report . 14 8.4 Determination of shear adhesion strength of dispersion adhesives (D) . 14 8.4.1 Test materials . 14 8.4.2 Apparatus . 14 8.4.3 Procedure. 17 8.4.4 Evaluation and expression of results . 19 8.4.5 Test report . 19 8.5 Determination of shear adhesion strength of reaction resin adhesives (R) . 19 8.5.1 Test materials . 19 8.5.2 Apparatus . 19 8.5.3 Procedure. 20 8.5.4 Evaluation and expression of results . 22 8.5.5 Test report . 22 8.6 Determination of transverse deformation of cementitious adhesives (C) . 22 8.6.1 Principle . 22 8.6.2 Test materials . 22 SIST EN 12004-2:2017



EN 12004-2:2017 (E) 3 8.6.3 Apparatus . 23 8.6.4 Procedure . 25 8.6.5 Test report . 26 Annex A (normative)
Concrete slab for test . 27 A.1 General information . 27 A.2 Test conditions . 27 A.3 Apparatus . 27 A.4 Concrete slab . 27 A.4.1 Manufacture of the concrete slab. 27 A.4.2 Conditioning of the concrete slab . 28 A.4.3 Water absorption at the surface. 28 A.4.4 Tensile adhesion strength . 28 A.4.5 Data recorded . 28 Annex B (normative)
Failure patterns . 31 B.1 Adhesion failure (AF-S or AF-T) . 31 B.2 Cohesive failure within the adhesive (CF-A) . 32 B.3 Cohesive failure in the substrate or in the tile (CF-S or CF-T) . 33 Bibliography . 35
SIST EN 12004-2:2017



EN 12004-2:2017 (E) 4 European foreword This document (EN 12004-2:2017) has been prepared by Technical Committee CEN/TC 67 “Ceramic tiles”, the secretariat of which is held by UNI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by August 2017, and conflicting national standards shall be withdrawn at the latest by August 2017. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 1308:2007, EN 1323:2007, EN 1324:2007, EN 1346:2007, EN 1348:2007, EN 12002:2008, EN 12003:2008. EN 12004, Adhesives for tiles, is composed with the following parts: — Part 1: Requirements, evaluation of conformity, classification and designation; — Part 2: Test methods. According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 12004-2:2017



EN 12004-2:2017 (E) 5 1 Scope This European Standard specifies the methods for determining characteristics for adhesives used in internal and external installation of ceramic tiles. This European Standard does not contain performance requirements or recommendations for the design and installation of ceramic tiles. The following test methods are described: — determination of open time (8.1); — determination of slip (8.2); — determination of tensile adhesion strength for cementitious adhesives (8.3); — determination of shear adhesion strength of dispersion adhesives (8.4); — determination of shear adhesion strength of reaction resin adhesives (8.5); — determination of transverse deformation of cementitious adhesives (8.6). NOTE Ceramic tile adhesives can be used also for other kinds of tiles (natural and agglomerated stones, etc.), if they do not adversely affect the stones. WARNING — This European Standard can involve hazardous materials and operations. Persons using this standard should be familiar with normal laboratory practice. This European Standard does not purport to address all the safety problems, if any, associated with its use. It is the responsibility of the user to establish appropriate safety and health practices and to ensure compliance with any European and national regulatory conditions. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 196-1:2016, Methods of testing cement — Part 1: Determination of strength EN 459-2, Building lime - Part 2: Test methods EN 1067, Adhesives - Examination and preparation of samples for testing EN 12004-1, Adhesives for ceramic tiles - Part 1: Requirements, assessment and verification of constancy of performance, classification and marking EN 14411, Ceramic tiles - Definition, classification, characteristics, assessment and verification of constancy of performance and marking EN ISO 15605, Adhesives - Sampling (ISO 15605) SIST EN 12004-2:2017



EN 12004-2:2017 (E) 6 3 Sampling Take at least 2 kg sample of the adhesive in accordance with EN ISO 15605 and EN 1067. 4 Test conditions Standard conditions shall be (23 ± 2) °C and (50 ± 5) % relative humidity and the speed of air in the testing area less than 0,2 m/s. The tolerance in the time of conditioning for all test specimens shall be as shown in Table 1 below: Table 1 — Allowed tolerance in testing time for all samples requiring conditioning Sample Conditioning Time Allowed tolerance for testing 6 h ±15 min 7 d ±3 h 14 d ±6 h 21 d ±9 h 28 d ±12 h Testing shall be performed within the specified time window. 5 Test materials 5.1 General Condition all test materials for at least 24 h under standard conditions. The adhesive to be tested shall be within its shelf life, where this is specified. 5.2 Ceramic tiles The tiles shall be checked prior to conditioning to ensure that they are unused, clean and dry. The type of tile shall be as specified under the specific test procedures found in Clause 8. 5.3 Test substrate 5.3.1 Concrete slab The concrete slab shall be at least 35 mm thick, have a moisture content of less than 3 % by mass (carbide method) and have a water absorption at the surface after 4 h in the range of 0,5 cm3 to 1,5 cm3. The tensile adhesion strength shall be at least 1,5 N/mm2. The test surface shall have a finish similar to that obtained by using a wooden float and be clean and dust-free at the time of the test. A method for manufacturing a suitable concrete test slab and the procedures for measuring the performances are given in Annex A. 5.3.2 Other substrates Other substrates may be used upon agreement if the substrate is recommended for ceramic tile application by the adhesive manufacturer. To demonstrate compatibility with other optional substrates, the adhesive shall be applied to the selected substrate in accordance with the open time test method (8.1). When the result of > 0,5 N/mm2 is achieved or cohesive failure occurs in the substrate, the requirement is considered satisfied. SIST EN 12004-2:2017



EN 12004-2:2017 (E) 7 6 Mixing of the adhesive The amount of water and/or liquid admix required for preparing the cementitious adhesive shall be as stated by the manufacturer in parts by mass, i.e. liquid to dry powder (in the case where a range of values is given, the average shall be used). Prepare a minimum quantity of 2 kg of the adhesive in a mixer of the type described in EN 196-1:2016, 4.4, using the slow speed settings (140 ± 5) rotations per min and (62 ± 5) revolution planetary movement. Carry out the following procedure: — pour the liquid into the pan; — scatter the dry powder over the liquid; — mix for 30 s; — take out the mixing paddle; — scrape down the paddle and pan within 1 min; — replace the paddle and mix for 1 min. Let the adhesive mature as specified in the manufacturer's instructions, and then mix for a further 15 s. Where ready-to-use dispersion adhesives or reaction resin adhesives are to be used, the manufacturer's instructions shall be followed. 7 Test report The test report shall provide the following information: a) the number and year of issue of this European Standard, i.e. EN 12004-2, and date of issue; b) the place, date and time of sampling; c) type of adhesive, commercial designation and manufacturer; d) identification of test sample; e) handling and storage of samples before testing; f) test conditions; g) date of test; h) amount of water or liquid used for preparing the adhesive (for cementitious adhesives); i) any other factor that could have influenced the result; j) test results (individual and mean values and mode of failure where required): 1) open time; 2) slip; SIST EN 12004-2:2017



EN 12004-2:2017 (E) 8 3) tensile adhesion strength; 4) shear adhesion strength; 5) transverse deformation. 8 Test methods 8.1 Determination of open time 8.1.1 Test materials 8.1.1.1 Ceramic tiles The tiles used for this method shall be glazed porous body tile complying with EN 14411, group BIII, of water absorption (15 ± 3) % by mass, with a thickness in the range 7 mm to 10 mm and a profile back pattern less than 0,25 mm deep, cut to facial dimensions of (50 ± 1) mm x (50 ± 1) mm. 8.1.1.2 Test substrate The concrete slab shall comply with the requirements given in 5.3.1. 8.1.2 Apparatus 8.1.2.1 Notched trowel. A notched trowel having 6 mm x 6 mm notches at 12 mm centres. 8.1.2.2 Weight (Mass). A mass capable of exerting a force of (20 ± 0,05) N, with a cross-sectional area of less than 50 mm x 50 mm. 8.1.2.3 Pull-head plates. Square metallic plates, with dimensions of (50 ± 1) mm x (50 ± 1) mm and a minimum thickness of 10 mm with a suitable fitting for connection to the test machine. 8.1.2.4 Test machine. A test machine for direct pull tensile force test and with suitable capacity and sensitivity for the test. The machine shall be capable of applying the load to the pull-head plate at the rate of (250 ± 50) N/s through a suitable fitting that does not exert any bending force. 8.1.3 Procedure Apply a thin layer of the adhesive, mixed in accordance with Clause 6, to the concrete slab with a straight edge trowel. Then apply a thicker layer and comb with the notched trowel (8.1.2.1). The trowel shall be held at an angle of approximately 60° to the substrate at a right angle to one edge of the slab and drawn across the slab parallel to that edge (in a straight line). After 5 min, 10 min, 20 min and 30 min place at least 10 test tiles (8.1.1.1) 50 mm apart, on the adhesive within 30 s. The tiles are placed on no more than four ribs for all adhesives. Load each tile with (20 ± 0,05) N for 30 s (8.1.2.2). After 27 d storage under standard conditions, bond the pull-head plates (8.1.2.3) to the tiles with a suitable high strength adhesive (e.g. epoxide adhesive). After a further 24 h storage under standard conditions determine the tensile adhesion strength of the adhesive by applying a force increasing at a constant rate of (250 ± 50) N/s. SIST EN 12004-2:2017



EN 12004-2:2017 (E) 9 8.1.4 Evaluation and expression of results The individual tensile adhesion strengths are quoted to the nearest 0,1 N/mm2 using the following formula: =sALA (1) where As is the individual tensile adhesion strength in Newton per square millimetre; L is the total tensile load in Newton; A is the bonding area in square millimetre (2 500 mm2). The tensile adhesion strength for each time interval is determined as follows: — determine the mean of the 10 values; — discard the values falling outside the range of ± 20 % of the mean value; — if five or more values remain, determine the new mean; — if less than five values remain repeat the test; — determine the mode of failure of the test units according to Annex B as the predominant mode. The open time in minutes, is the maximum time interval at which the adhesive meets the tensile adhesion strength requirement defined in EN 12004-1. 8.1.5 Test report The information listed in Clause 7, items a) to i) shall be provided plus item j) 1: open time in minutes. 8.2 Determination of slip 8.2.1 Test materials 8.2.1.1 Ceramic tiles The tiles used for this method shall be dry pressed ceramic tile in accordance with EN 14411, group BIa, with a water absorption
¶ 0,5 % by mass, unglazed, with plane adhering surface and with facial dimensions of (100 ± 1) mm x (100 ± 1) mm, a mass of (200 ± 10) g and a thickness in the range of 8 mm to 10 mm. 8.2.1.2 Test substrate The concrete slab shall comply with the requirements given in 5.3.1. 8.2.2 Apparatus 8.2.2.1 Steel straight edge. 8.2.2.2 Clamps. SIST EN 12004-2:2017



EN 12004-2:2017 (E) 10 8.2.2.3 Masking tape. A 25 mm wide masking tape. 8.2.2.4 Notched trowel. A notched trowel having 6 mm x 6 mm notches at 12 mm centres. 8.2.2.5 Spacers. Two (25 ± 0,5) mm x (25 ± 0,5) mm x (10 ± 0,5) mm thick spacers made from stainless steel. 8.2.2.6 Weight (Mass). A mass capable of exerting a force of (50 ± 0,1) N with a cross-sectional area of less than (100 ± 1) mm x (100 ± 1) mm. 8.2.2.7 Vernier caliper. A Vernier caliper accurate to 0,01 mm. 8.2.3 Procedure Secure the steel straight edge (8.2.2.1), with the clamps (8.2.2.2), at the top of the concrete slab so that its bottom edge is horizontal when the slab is raised to its vertical position. Position 25 mm wide masking tape (8.2.2.3) immediately below the steel straight edge and apply a thin layer of the adhesive mixed in accordance with Clause 6 to the concrete slab with a straight edge trowel. Then apply a thicker layer of adhesive to the surface of the concrete slab so that it just overlaps the bottom edge of the masking tape. Comb the adhesive at right angles to the straight-edge with the notched trowel (8.2.2.4). The trowel shall be held at an angle of approximately 60° to the substrate and parallel to the straight edge. Immediately remove the masking tape, position 25 mm spacers (8.2.2.5) against the straight edge and after two minutes place the tile (8.2.1.1) against the spacers, as shown in Figure 1, and load with the mass of (50 ± 0,1) N (8.2.2.6). Measure the gap between the straight edge and the tile, in three points, with the Vernier caliper (8.2.2.7) to within ± 0,1 mm. After (30 ± 5) s remove the weight and the spacers and immediately and carefully lift the slab into a vertical position. After (20 ± 2) min re-measure the gap, as before, in the same three points. The maximum slip of the tile under its own mass is the difference between the two readings. Carry out the test for each of 3 tiles, for each adhesive. Report the results in millimetres and the mean value. 8.2.4 Test report The information listed in Clause 7, items a) to i) shall be provided plus item j) 2: Slip in millimetre (individual and mean values). SIST EN 12004-2:2017



EN 12004-2:2017 (E) 11
Key 1 steel straight edge 2 masking tape 25 mm wide 3 25 mm x 25 mm x 10 mm thick spacers 4 tile: 100 mm x 100 mm 5 adhesive 6 concrete slab Figure 1 — Slip test 8.3 Determination of tensile adhesion strength for cementitious adhesives (C) 8.3.1 Test materials 8.3.1.1 Ceramic tiles The tiles used for this test shall be dry pressed ceramic tile in accordance with EN 14411, Group BIa, fully vitrified, with a water absorption of
¶ 0,5 % by mass, unglazed and with a plain, matt, adhering surface, with facial dimensions of (50 ± 1) mm x (50 ± 1) mm. 8.3.1.2 Test substrate The concrete test substrate shall conform to requirements given in 5.3.1. 8.3.2 Apparatus 8.3.2.1 Weight (Mass). SIST EN 12004-2:2017



EN 12004-2:2017 (E) 12 A mass capable of exerting a force of (20 ± 0,05) N, with a cross sectional area of less than 50 mm x 50 mm. 8.3.2.2 Pull head plate. Square metallic plates, with dimensions of (50 ± 1) mm x (50 ± 1) mm and a minimum thickness of 10 mm with a suitable fitting for connection to the test machine. 8.3.2.3 Tensile testing apparatus. A test machine for direct pull tensile force test and with suitable capacity and sensitivity for the test. The machine shall be capable of applying the load to the pull-head plate at the rate of (250 ± 50) N/s through a suitable fitting that does not exert any bending force. 8.3.2.4 Air circulating oven. An air-circulating oven capable of controlling the temperature to within ± 3 °C. 8.3.2.5 Notched trowel. A notched trowel having 6 mm x 6 mm notches at 12 mm centres. 8.3.3 Procedure 8.3.3.1 Preparation of test units Apply a thin layer of the adhesive, mixed in accordance with Clause 6, to the concrete slab with a straight edge trowel. Then apply a thicker layer and comb with a notched trowel (8.3.2.5). The trowel shall be held at an angle of approximately 60° to the substrate at a right angle to one edge of the slab and drawn across the slab parallel to that edge (in a straight line). After 5 min place 10 tiles (8.3.1.1) on the adhesive at a distance apart of 50 mm and load each tile with (20 ± 0,05) N for 30 s. 8.3.3.2 Initial tensile adhesion strength Prepare the test units in accordance with 8.3.3.1. After 27 d storage under standard conditions bond the pull-head plates (8.3.2.2) to the tiles with a suitable high strength adhesive (e.g. epoxide). After a further 24 h storage under standard conditions determine the tensile adhesion strength of the adhesive by applying a force at a constant rate of (250 ± 50) N/s. If fast-setting properties of adhesives are to be tested, determine the tensile adhesion strength after six hours under standard conditions; the pull head plates shall be bonded a minimum of two hours before determining the tensile adhesion strength. Report the results in Newton. 8.3.3.3 Tensile adhesion strength after water immersion Prepare the test units in accordance with 8.3.3.1. Condition the test units under standard conditions for 7 d, and immerse in water at the standard temperature. After 20 d remove the test units from the water, wipe with a cloth and bond the pull-head plates (8.3.2.2) to the tiles. After a further 7 h in standard conditions immerse the test units in water at the standard temperature. The following day remove the test units from water and immediately carry out the tensile adhesion test in accordance with 8.3.3.2. SIST EN 12004-2:2017



EN 12004-2:2017 (E) 13 Report the results in Newton. 8.3.3.4 Tensile adhesion strength after heat ageing Prepare the test units in accordance with 8.3.3.1. Condition the test units under standard conditions for 14 d and then place the units in an air-circulating oven at (70 ± 3) °C for a further 14 d. Remove from the oven and bond
...
