SLOVENSKI STANDARD
SIST EN 60730-2-7:2010
01-december-2010
1DGRPHãþD
SIST EN 60730-2-7:1995
SIST EN 60730-2-7:1995/A1:1998
SIST EN 60730-2-7:1995/A11:1998
SIST EN 60730-2-7:1995/A12:1998
SIST EN 60730-2-7:1995/A13:2003
SIST EN 60730-2-7:1995/A14:2003
$YWRPDWVNHHOHNWULþQHNUPLOQHQDSUDYH]DJRVSRGLQMVWYDLQSRGREQRXSRUDER
GHO3RVHEQH]DKWHYH]DVWLNDOQHXUHLQþDVRYQDVWLNDOD ,(&
VSUHPHQMHQ

Automatic electrical controls for household and similar use - Part 2-7: Particular

requirements for timers and time switches (IEC 60730-2-7:2008, modified)

Automatische elektrische Regel- und Steuergeräte für den Hausgebrauch und ähnliche

Anwendungen - Teil 2-7: Besondere Anforderungen an Zeitsteuergeräte und Schaltuhren

(IEC 60730-2-7:2008, modifiziert)
Dispositifs de commande électrique automatiques à usage domestique et analogue -

Partie 2-7: Règles particulières pour les minuteries et les minuteries cycliques (CEI

60730-2-7:2008, modifiée)
Ta slovenski standard je istoveten z: EN 60730-2-7:2010
ICS:
97.120 Avtomatske krmilne naprave Automatic controls for
za dom household use
SIST EN 60730-2-7:2010 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 60730-2-7:2010
---------------------- Page: 2 ----------------------
SIST EN 60730-2-7:2010
EUROPEAN STANDARD
EN 60730-2-7
NORME EUROPÉENNE
October 2010
EUROPÄISCHE NORM

ICS 97.120 Supersedes EN 60730-2-7:1991 + corr. Mar.2001 + A1:1997 + corr. Mar.2001 + A11:1994 +

corr. Mar.2001 + A12:1993 + corr. Mar.2001 + A13:2003 + A14:2003
English version
Automatic electrical controls for household and similar use -
Part 2-7: Particular requirements for timers and time switches
(IEC 60730-2-7:2008, modified)
Dispositifs de commande électrique Automatische elektrische Regel- und
automatiques à usage domestique et Steuergeräte für den Hausgebrauch und
analogue - ähnliche Anwendungen -
Partie 2-7: Règles particulières pour les Teil 2-7: Besondere Anforderungen an
minuteries et les minuteries cycliques Zeitsteuergeräte und Schaltuhren
(CEI 60730-2-7:2008, modifiée) (IEC 60730-2-7:2008, modifiziert)

This European Standard was approved by CENELEC on 2010-10-01. CENELEC members are bound to comply

with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard

the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on

application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CENELEC member into its own language and notified

to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,

the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,

Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,

Spain, Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 60730-2-7:2010 E
---------------------- Page: 3 ----------------------
SIST EN 60730-2-7:2010
EN 60730-2-7:2010 – 2 –

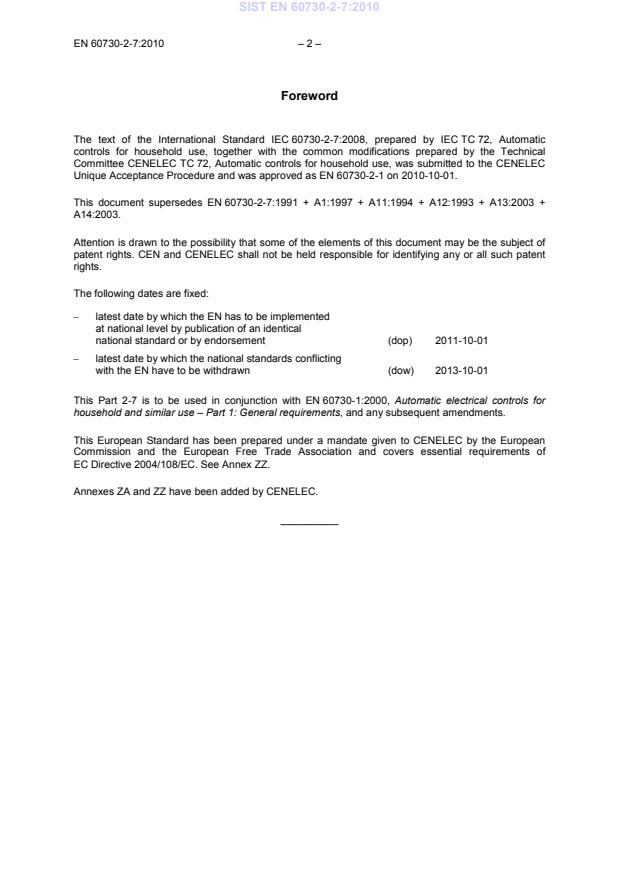

Foreword

The text of the International Standard IEC 60730-2-7:2008, prepared by IEC TC 72, Automatic

controls for household use, together with the common modifications prepared by the Technical

Committee CENELEC TC 72, Automatic controls for household use, was submitted to the CENELEC

Unique Acceptance Procedure and was approved as EN 60730-2-1 on 2010-10-01.

This document supersedes EN 60730-2-7:1991 + A1:1997 + A11:1994 + A12:1993 + A13:2003 +

A14:2003.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent

rights.
The following dates are fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2011-10-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2013-10-01

This Part 2-7 is to be used in conjunction with EN 60730-1:2000, Automatic electrical controls for

household and similar use – Part 1: General requirements, and any subsequent amendments.

This European Standard has been prepared under a mandate given to CENELEC by the European

Commission and the European Free Trade Association and covers essential requirements of

EC Directive 2004/108/EC. See Annex ZZ.
Annexes ZA and ZZ have been added by CENELEC.
__________
---------------------- Page: 4 ----------------------
SIST EN 60730-2-7:2010
– 3 – EN 60730-2-7:2010
Endorsement notice

The text of the International Standard IEC 60730-2-7:2008 was approved by CENELEC as a

European Standard with agreed common modifications as given below.
COMMON MODIFICATIONS
4 General notes on test
4.1.4 Delete the addition relating to the USA.
4.3.2.1 Delete the addition relating to Canada and the USA.
6 Classification
6.3.6 According to their purpose
6.3.6.101 – TV timer;
Delete the text relating to Canada and the USA.
7 Information
Table 7.2
- item 102 column “Method” Delete “D” and replace with “C"
- Delete the additional notes to Table 7.2.
7.2.9
Delete “In Germany…” and replace with “Where symbols are used …”
11 Constructional requirements
11.4.103 Type 1.S or 2.S action
In the note delete “In Germany”
11.4.104 Type 1.T or 2.T action
In the notes delete “In Germany”
14 Heating
14.101 Temperature stress test
Delete this additional subclause.
---------------------- Page: 5 ----------------------
SIST EN 60730-2-7:2010
EN 60730-2-7:2010 – 4 –
17 Endurance
17.16 Test for particular purpose controls
17.16.101 Tungsten-filament lamp loads
17.16.101.3 Delete the text of this subclause.
17.16.103 TV timers

Delete the subordinate subclauses 17.16.103.1 to 17.16.103.1.5 inclusive and Table 17.16.103.1.2.

21 Fire hazard testing
21.101 Delete this additional subclause.
Annex D Heat, fire and tracking
Delete Annex D.
Annex H Requirements for electronic controls
H.26.11 Electrostatic discharge test
Delete the last sentence relating to Canada and the USA.
---------------------- Page: 6 ----------------------
SIST EN 60730-2-7:2010
– 5 – EN 60730-2-7:2010
Add the following Annexes.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

NOTE Where an International Publication has been modified by common modifications, indicated by (mod), the relevant

EN/HD applies.
Publication Year Title EN/HD Year
IEC 60669-1 (mod) 1998 Switches for household and similar fixed- EN 60669-1 1999
+ A1 (mod) 1999 electrical installations - + A1 2002
+ A2 (mod) 2006 Part 1: General requirements + A2 2008
IEC 61010-1 - Safety requirements for electrical equipment EN 61010-1 -
for measurement, control, and laboratory
use -
Part 1: General requirements
---------------------- Page: 7 ----------------------
SIST EN 60730-2-7:2010
EN 60730-2-7:2010 – 6 –
Annex ZZ
(informative)
Coverage of Essential Requirements of EC Directives

This European Standard has been prepared under a mandate given to CENELEC by the European

Commission and the European Free Trade Association and within its scope the standard covers all

relevant essential requirements as given in Article 1 of Annex I of the EC Directive EMC (2004/108/EC).

Compliance with this standard provides one means of conformity with the specified essential

requirements of the Directive concerned.

WARNING: Other requirements and other EC Directives may be applicable to the products falling

within the scope of this standard.
---------------------- Page: 8 ----------------------
SIST EN 60730-2-7:2010
IEC 60730-2-7
Edition 2.0 2008-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Automatic electrical controls for household and similar use –
Part 2-7: Particular requirements for timers and time switches
Dispositifs de commande électrique automatiques à usage domestique et
analogue –
Partie 2-7: Règles particulières pour les minuteries et les minuteries cycliques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX
ICS 97.120 ISBN 2-8318-9708-4
---------------------- Page: 9 ----------------------
SIST EN 60730-2-7:2010
– 2 – 60730-2-7 © IEC:2008
CONTENTS

FOREWORD...........................................................................................................................3

1 Scope and normative references ......................................................................................6

2 Definitions ........................................................................................................................7

3 General requirements .......................................................................................................8

4 General notes on tests .....................................................................................................8

5 Rating ..............................................................................................................................8

6 Classification....................................................................................................................9

7 Information .....................................................................................................................10

8 Protection against electric shock ....................................................................................11

9 Provision for protective earthing .....................................................................................11

10 Terminals and terminations ............................................................................................11

11 Constructional requirements ...........................................................................................11

12 Moisture and dust resistance ..........................................................................................12

13 Electric strength and insulation resistance......................................................................12

14 Heating ..........................................................................................................................12

15 Manufacturing deviation and drift....................................................................................13

16 Environmental stress ......................................................................................................13

17 Endurance......................................................................................................................13

18 Mechanical strength .......................................................................................................18

19 Threaded parts and connections.....................................................................................18

20 Creepage distances, clearances and distances through solid insulation .........................18

21 Fire hazard testing .........................................................................................................18

22 Resistance to corrosion ..................................................................................................19

23 Electromagnetic compatibility (EMC) requirements – emission .......................................19

24 Components ...................................................................................................................19

25 Normal operation............................................................................................................19

26 Electromagnetic compatibility (EMC) requirements – immunity .......................................19

27 Abnormal operation ........................................................................................................19

28 Guidance on the use of electronic disconnection ............................................................19

Annex D (normative) Heat, fire and tracking (applicable in Canada and the USA) ................20

Annex H (normative) Requirements for electronic controls ...................................................24

Annex AA (normative) Number of cycles, automatic and manual action................................26

Figure D.101 – Positioning of electrodes...............................................................................22

Figure D.102 – Arc resistance test circuit..............................................................................23

Table 17.16.103.1.2 – Electrical conditions for overload and endurance testing ....................17

Table D.101 – Sequence of 1-min current steps....................................................................22

Table AA.1 – Values for free standing, independently mounted and in-line cord timers

and time switches ...............................................................................................................26

---------------------- Page: 10 ----------------------
SIST EN 60730-2-7:2010
60730-2-7 © IEC:2008 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
AUTOMATIC ELECTRICAL CONTROLS
FOR HOUSEHOLD AND SIMILAR USE –
Part 2-7: Particular requirements for timers and time switches
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any

equipment declared to be in conformity with an IEC Publication.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60730-2-7 has been prepared by IEC technical committee 72:

Automatic controls for household use.

This second edition cancels and replaces the first edition published in 1990 and its

Amendment 1 (1994). This second edition constitutes a technical revision. This new edition

incorporates requirements for tungsten filament lamp loadings as well as updates the

standard to IEC 60730-1:1999, Amendment 2 (2007).
The text of this standard is based on the following documents:
FDIS Report on voting
72/760/FDIS 72/764/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.
---------------------- Page: 11 ----------------------
SIST EN 60730-2-7:2010
– 4 – 60730-2-7 © IEC:2008

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

This Part 2-7 is to be used in conjunction with IEC 60730-1. It was established on the basis of

the third edition of that standard (1999) and its Amendment 1 (2003) and Amendment 2

(2007). Consideration may be given to future editions of, or amendments to, IEC 60730-1.

This Part 2-7 supplements or modifies the corresponding clauses in IEC 60730-1 so as to

convert that publication into the IEC standard: Particular requirements for timers and time

switches.

Where this Part 2-7 states "addition", "modification" or "replacement", the relevant require-

ment, test specification or explanatory matter in Part 1 should be adapted accordingly.

Where no change is necessary, this Part 2-7 indicates that the relevant clause or subclause

applies.

In the development of a fully international standard, it has been necessary to take into

consideration the differing requirements resulting from practical experience in various parts of

the world and to recognize the variation in national electrical systems and wiring rules.

The “in some countries” notes regarding differing national practice are contained in the following clauses and

subclauses:
– 4.1.4
– 4.3.2
– 6.3.6.101
– Table 7.2, Notes 101 and 103
– 7.2.9
– 11.4.103
– 11.4.104
– 14.101
– 17.16.101.3
– 17.16.103.1
– Table 17.2-2, Notes 101 and 102
– Table 17.2-3, Notes 101 and 102
– 21.101
– Annex D
– H.26.11
In this publication:
1) The following print types are used:
– Requirements proper: in roman type.
– Test specifications: in italic type.
– Explanatory matter: in smaller roman type

2) Subclauses, notes, tables or figures which are additional to those in Part 1 are numbered

starting from 101, additional annexes are lettered AA, BB, etc.

A list of all parts of the IEC 60730 series, under the general title: Automatic electrical controls

for household and similar use, can be found on the IEC website.
---------------------- Page: 12 ----------------------
SIST EN 60730-2-7:2010
60730-2-7 © IEC:2008 – 5 –

The committee has decided that the contents of this publication will remain unchanged until

the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in

the data related to the specific publication. At this date, the publication will be

• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 13 ----------------------
SIST EN 60730-2-7:2010
– 6 – 60730-2-7 © IEC:2008
AUTOMATIC ELECTRICAL CONTROLS
FOR HOUSEHOLD AND SIMILAR USE –
Part 2-7: Particular requirements for timers and time switches
1 Scope and normative references
This clause of Part 1 is applicable except as follows:
1.1 Replacement:

In general, this part of IEC 60730 applies to timers and time switches for household and

similar use that may use electricity, gas, oil, solid fuel, solar thermal energy, etc. or a

combination thereof, including heating, air conditioning and similar applications.

This standard is also applicable to individual timers utilized as part of a control system or

timers which are mechanically integral with multifunctional controls having non-electrical

outlets. This standard does not apply to time-delay switches (TDS) within the scope of

IEC 60669-2-3 .

Throughout this standard, the word “timers” means timers and time switches, unless the type is specifically

mentioned.
Devices which only indicate time or passage of time are not included.

This standard does not apply to multi-functional controls having an integrated timing function which is not capable

of being tested as a separate timing device.

1.1.1 This standard applies to the inherent safety, to the operating characteristics where

such are associated with equipment protection and to the testing of automatic electrical

control devices used in appliances and other apparatus, electrical and non-electrical, for

household and similar purposes, but also extended to industrial purposes when no dedicated

product standards exist, such as that for central heating, air conditioning, process heating,

etc.

Timers for equipment not intended for normal household use, but which nevertheless may be

used by the public, such as equipment intended to be used by laymen in shops, in light

industry and on farms, are within the scope of this standard.

This standard is also applicable to timers for appliances within the scope of IEC 60335-1.

This standard does not apply to timers designed exclusively for industrial applications.

Throughout this standard, the word "equipment" means "appliance and equipment".

1.1.2 This standard applies to automatic electrical control devices, mechanically,

electromechanically, electrically or electronically operated, responsive to or controlling

parameters such as temperature, pressure, passage or time, humidity, light, electrostatic

effect, flow or liquid level.
___________

IEC 60669-2-3:2006, Switches for household and similar fixed electrical installations – Part 2-3: Particular

requirements – Time-delay switches (TDS)
---------------------- Page: 14 ----------------------
SIST EN 60730-2-7:2010
60730-2-7 © IEC:2008 – 7 –

1.1.3 This standard applies to automatic electrical control devices serving the starting of

small motors that are used principally in appliances and apparatus for household and similar

purposes. Such control devices may be built into or be separate from the motor.

1.1.4 This standard applies to non-automatic control devices when such are associated with

automatic control devices.
1.2 Replacement:

This standard applies to controls with a rated voltage not exceeding 690 V and a rated current

not exceeding 63 A.
1.3 Replacement:

This standard does not take into account the response value of an automatic action of a

control, if such a response value is dependent upon the method of mounting the control in the

equipment. If a response value is of significant purpose for the safety of the user or

surroundings, the value defined in the appropriate household equipment standard or as

determined by the manufacturer shall apply.
1.4 Replacement:

This standard applies also to timers incorporating electronic devices, requirements for which

are contained in Annex H.
1.5 Normative references
This subclause of Part 1 applies except as follows:
Addition:

IEC 60669-1:1998, Switches for household and similar fixed-electrical installations – Part 1:

General requirements
Amendment 1 (1999)
Amendment 2 (2006)

IEC 61010-1, Safety requirements for electrical equipment for measurement, control, and

laboratory use – Part 1: General requirements
2 Definitions
This clause of Part 1 is applicable except as follows:
2.3 Definitions relating to the function of controls
Additional definition:
2.3.101
timing cycle

program including all the switching activities involved in a start-to-finish operation of a

controlled appliance
___________

There exists a consolidated edition 3.2 (2007) that includes edition 3 and its Amendments 1 and 2.

---------------------- Page: 15 ----------------------
SIST EN 60730-2-7:2010
– 8 – 60730-2-7 © IEC:2008
2.5 Definitions of types of control according to construction
Additional definitions:
2.5.101
plug-in timer
timer or time switch designed for direct plug-in to a socket-outlet

NOTE The plug-in timer is equipped with conductor blades, pins or other means, protruding from the enclosure of

the control or the control body itself, to match the dimensional parameters of the socket-outlet to which the control

will be connected.
2.5.102
TV timer

control for television equipment that can be set by the user, switching very high inrush

currents of a very short duration generated by electrical power supply components and

associated electronic component parts with various electrical characteristics

NOTE Examples are power transformers, electronic tube filaments, large electric capacitors and others in

television receivers, radio and video products.
2.5.103
synchronous timer

timer or a time switch in which the transmission is effected by a device that is time-based on

the frequency of the power supply for the prime mover or the load
2.5.104
hand-wound timer
timer or time switch in which the transmission is provided by actuation
3 General requirements
This clause of Part 1 is applicable.
4 General notes on tests
This clause of Part 1 is applicable except as follows:
4.1.4 Addition:

In the USA, the test in 14.101 is conducted first and the remaining tests are carried out in the order of the clauses

of this standard.
4.3.2.1 Addition:

In Canada and the USA, to reduce testing, a timer that is classified for use with motor loads at more than one rated

voltage is to be tested at the current and voltage in Table 17.2-2 corresponding to the highest rated voltage. If the

current in Table 17.2-2 corresponding to a lower rated voltage is greater than 135 % of the current corresponding

to the highest rated voltage, then the timer is also to be tested at the lower rated voltage. The greater current

involved at a lower rated voltage may necessitate a separate heating test under Clause 14. If more than one test is

conducted, one sample is to be used for each test.
5 Rating
This clause of Part 1 is applicable.
---------------------- Page: 16 ----------------------
SIST EN 60730-2-7:2010
60730-2-7 © IEC:2008 – 9 –
6 Classification
This clause of Part 1 is applicable except as follows:
6.3 According to their purpose
6.3.6 Additional subclause:
6.3.6.101 – TV timer;

In Canada and the USA, timers for use on televisions have to be declared and tested as indicated in this standard.

6.4 According to features of automatic action
6.4.3 Additional subclauses:

6.4.3.101 – a timing action which automatically resets upon loss of the electrical supply

(Type 1.Q or 2.Q);

6.4.3.102 – a timing action which is interrupted upon loss of the electrical supply and

resumes at the point of interruption upon restoration of the electrical supply (Type 1.R or 2.R);

6.4.3.103 – a timing action of a time switch which, after interruption of the electrical supply

for any interval up to the declared period of power reserve, resumes its intended operating

sequence as if no interruption of the supply has occurred (Type 1.S or 2.S);

6.4.3.104 – a timing action with a declared running accuracy in an ambient temperature of

20 °C to 25 °C (Type 1.T or 2.T);

6.4.3.105 – a timing action in which the difference between set time and actual switching

time does not exceed the declared amount (Type 1.U or 2.U).
6.5 According to the degree of protection and control pollution degree
Additional subclause:

6.5.101 According to declared industrial environmental conditions (see IEC 61010-1):

6.10 According to number of cycles of actuation (M) for each manual actuation
Additional subclauses:
6.10.101 – 500 cycles;
6.10.102 – 2 500 cycles;
6.10.103 – 5 000 cycles.
6.15 According to construction
Additional subclause:
6.15.101 – plug-in timer.
---------------------- Page: 17 ----------------------
SIST EN 60730-2-7:2010
– 10 – 60730-2-7 © IEC:2008
7 Information
This clause of Part 1 is applicable except as follows:
7.2 Methods of providing information
7.2.9 Addition:

In Germany, for Type 1.S or 2.S actions, the power reserve is to be marked on the timer by the letter "R", followed

by the duration of the power reserve
...
