SIST EN 62192:2009
---------------------- Page: 2 ----------------------
SIST EN 62192:2009
EUROPEAN STANDARD
EN 62192
NORME EUROPÉENNE
June 2009
EUROPÄISCHE NORM
ICS 13.260; 29.240.20; 29.260.99
English version
Live working -
Insulating ropes
(IEC 62192:2009)
Travaux sous tension - Arbeiten unter Spannung -
Cordes isolantes Isolierende Seile
(CEI 62192:2009) (IEC 62192:2009)
This European Standard was approved by CENELEC on 2009-05-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: Avenue Marnix 17, B - 1000 Brussels
© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62192:2009 E
---------------------- Page: 3 ----------------------
SIST EN 62192:2009

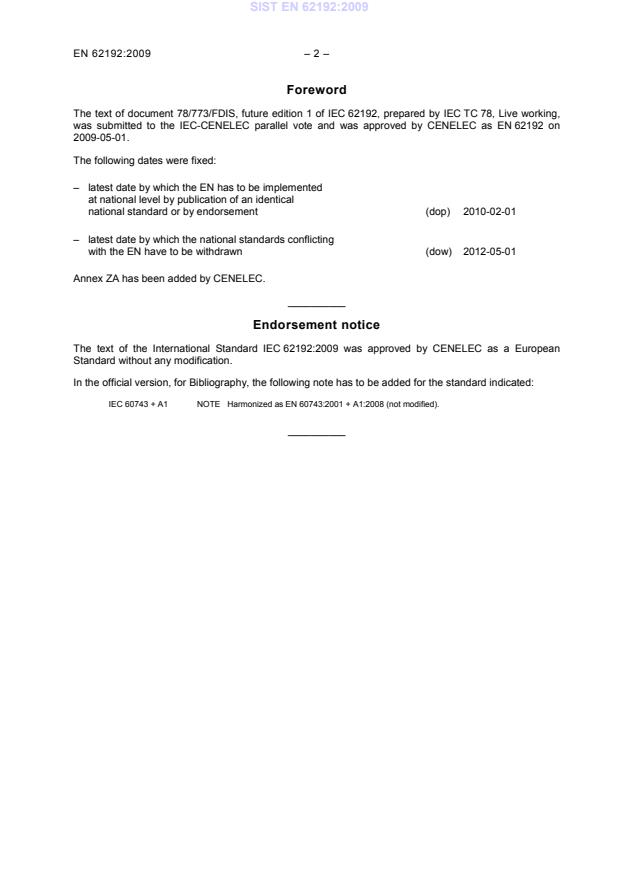

EN 62192:2009 – 2 –
Foreword
The text of document 78/773/FDIS, future edition 1 of IEC 62192, prepared by IEC TC 78, Live working,
was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 62192 on
2009-05-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2010-02-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2012-05-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 62192:2009 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 60743 + A1 NOTE Harmonized as EN 60743:2001 + A1:2008 (not modified).
__________
---------------------- Page: 4 ----------------------
SIST EN 62192:2009
– 3 – EN 62192:2009
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year
1) 2)
IEC 60060-1 - High-voltage test techniques - HD 588.1 S1 1991
Part 1: General definitions and test
requirements
IEC 60212 1971 Standard conditions for use prior to and HD 437 S1 1984
during the testing of solid electrical insulating
materials
IEC 60417 Data- Graphical symbols for use on equipment - -
base
IEC 61318 2007 Live working - Conformity assessment EN 61318 2008
applicable to tools, devices and equipment
1) 2)
IEC 61477 - Live working - Minimum requirements for the EN 61477 2009
utilization of tools, devices and equipment
1) 2)
ISO 2307 - Fibre ropes - Determination of certain EN ISO 2307 2005
physical and mechanical properties
1)
Undated reference.
2)
Valid edition at date of issue.
---------------------- Page: 5 ----------------------
SIST EN 62192:2009
---------------------- Page: 6 ----------------------
SIST EN 62192:2009
IEC 62192
®
Edition 1.0 2009-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Live working – Insulating ropes
Travaux sous tension – Cordes isolantes
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
S
CODE PRIX
ICS 13.260; 29.240.20; 29.260.99 ISBN 2-8318-1030-2
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN 62192:2009
– 2 – 62192 © IEC:2009
CONTENTS
FOREWORD.3
INTRODUCTION.5
1 Scope.6
2 Normative references .6
3 Terms and definitions .6
4 Requirements .7
4.1 Physical and dimensional .7
4.1.1 Physical.7
4.1.2 Dimensional .7
4.2 Electrical .7
4.3 Mechanical.7
4.4 Marking .8
4.5 Instructions for use and care .8
5 Tests .9
5.1 General .9
5.2 Atmospheric conditions .9
5.3 Visual verification and dimensional checking .9
5.3.1 Visual verification .9
5.3.2 Dimensional check .9
5.4 Electrical tests.9
5.4.1 Leakage current under dry conditions .9
5.4.2 Tests after water conditioning.13
5.5 Mechanical tests .14
5.5.1 Water absorption .14
5.5.2 Capillary.14
5.5.3 Elongation and creep.14
5.6 Durability of marking .15
5.7 Verification of the required instructions for use.15
6 Conformity assessment of insulating ropes having completed the production phase .15
7 Modifications .15
Annex A (normative) Suitable for live working; double triangle (IEC 60417-5216
(2002-10)).16
Annex B (normative) Chronology of type tests .17
Annex C (normative) Classification of defects .18
Annex D (informative) Recommendations for in-service care and periodic testing .19
Bibliography.21
Figure 1 – Example of test set up to measure leakage current .10
Figure 2 – Electrode arrangement on rope test piece .12
17
Table B.1 – Chronology of type tests .
Table C.1 – Classification of defects and associated requirements and tests .18
---------------------- Page: 8 ----------------------
SIST EN 62192:2009
62192 © IEC:2009 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LIVE WORKING –
INSULATING ROPES
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62192 has been prepared by technical committee 78: Live
working.
The text of this standard is based on the following documents:
FDIS Report on voting
78/773/FDIS 78/787/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
---------------------- Page: 9 ----------------------
SIST EN 62192:2009
– 4 – 62192 © IEC:2009
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 10 ----------------------
SIST EN 62192:2009
62192 © IEC:2009 – 5 –
INTRODUCTION
Insulating ropes designed and manufactured according to this standard contribute to the
safety of the users, provided they are used by skilled persons, in accordance with safe
methods of work and the instructions for use.
This International Standard defines the required electrical properties of insulating ropes which
already meet other specifications relating to mechanical strength, physical and construction
properties, for use in live working at the power frequency system voltages up to and including
800 kV r.m.s.
This standard does not propose to address all the safety factors associated with the use of
the insulating rope. It is the responsibility of the user to establish appropriate safety practices.
Ropes which meet this standard can bridge two or more live phase conductors, or one phase
conductor and earth as required during live working. Effects of the use of insulating ropes on
the dielectric strength of the installation have to be evaluated. Depending on the configuration
of an installation, the use of insulating ropes will have different effects on its dielectric
strength.
Cotton, sisal and hemp ropes are unsuitable for this application, as are any other ropes that
exhibit electrical conductivity. Examples of ropes which are able to meet the requirements of
this standard are formed from fibres that have been treated with a wax or other chemical
which causes the surface of the rope to become hydrophobic.
This document has been prepared according to the requirements of IEC 61477 where
applicable.
The product covered by this standard may have an impact on the environment during some or
all stages of its life cycle. These impacts can range from slight to significant, be of short-term
or long-term, and occur at the global, regional or local level.
Except for a requirement for the selection of a testing dye and the disposal statement in the
instructions for use, this standard does not include requirements and test provisions for the
manufacturers of the product, or recommendations to the users of the product for
environmental improvement. However, all parties intervening in its design, manufacture,
packaging, distribution, use, maintenance, repair, reuse, recovery and disposal are invited to
take account of environmental considerations.
---------------------- Page: 11 ----------------------
SIST EN 62192:2009
– 6 – 62192 © IEC:2009
LIVE WORKING –
INSULATING ROPES
1 Scope
This International Standard covers insulating ropes that are utilized during live working
procedures in contact with parts of installations operating at voltages up to and including
800 kV r.m.s.
Insulating ropes for live working procedure under rain and/or d.c. conditions are not covered
by this standard.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60060-1, High-voltage test techniques – Part 1: General definitions and test requirements
IEC 60212:1971, Standard conditions for use prior to and during the testing of solid electrical
insulating materials
IEC 60417, Graphical symbols for use on equipment
IEC 61318:2007, Live working – Conformity assessment applicable to tools, devices and
equipment
IEC 61477, Live working – Minimum requirements for the utilization of tools, devices and
equipment
ISO 2307, Ropes – Determination of certain physical and mechanical properties
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61318 and the
following apply.
3.1
creep
dimensional change with time in a test section of the rope when subjected to continued
working load
3.2
elongation
initial dimensional change in a test section of the rope subjected to rated working load for a
short period of time
---------------------- Page: 12 ----------------------
SIST EN 62192:2009
62192 © IEC:2009 – 7 –
3.3
insulating rope
rope with electrical insulating properties suitable for use in contact with live parts
[IEV 651-09-01, modified]
3.4
rope
stout cord made from woven or twisted insulating or non-insulating material used for various
handling operations
NOTE Ropes, which may come into contact with live conductors, should be insulating. Ropes used to move tools
and other equipment into place, which are clear of live parts, may be non-insulating.
[IEC 60743, definition 10.1.1, modified]
4 Requirements
4.1 Physical and dimensional
4.1.1 Physical
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
