SIST EN IEC 60204-32:2025

Safety of machinery - Electrical equipment of machines - Part 32: Requirements for hoisting machines (IEC 60204-32:2023)

This part of IEC 60204 applies to electrical, electronic, programmable electronic equipment and systems to hoisting machines and related equipment, including a group of hoisting machines working together in a co-ordinated manner
NOTE 1 In this part of IEC 60204, the term "electrical" includes both electrical and electronic matters (i.e. "electrical equipment" means both the electrical, electronic and programmable electronic equipment).
NOTE 2 In the context of this part of IEC 60204, the term “person” refers to any individual and includes those persons who are assigned and instructed by the user or user’s agent(s) in the use and care of the hoisting machine in question.
The equipment covered by this part of IEC 60204 commences at the point of connection of the supply to the electrical equipment of the hoisting machine (crane-supply-switch) and includes systems for power supply and control feeders situated outside of the hoisting machine, for example, flexible cables or conductor wires or conductor bars (see Figure 3).
NOTE 3 The requirements for the electrical supply installation of electrical equipment of a hoisting machine are given in IEC 60364.
This standard is applicable to equipment or parts of equipment not exceeding 1 000 V AC or 1 500 V DC between lines and with nominal frequencies not exceeding 200 Hz.
NOTE 4 Special requirements for electrical equipment of hoisting machines intended to be operated at higher voltages, see IEC 60204-11 (Annex D)
This part of IEC60204 does not cover all the requirements (for example guarding, interlocking, or control) that are needed or required by other standards or regulations in order to protect persons from hazards other than electrical hazards. Each type of hoisting machine has unique requirements to be accommodated to provide adequate safety. This part of 60204 doesn´t cover noise risks and vibration risks.
Additional and special requirements can apply to the electrical equipment of hoisting machines including those that
- handle or transport potentially explosive material (e.g. paint or sawdust);
- are intended for use in potentially explosive and/or flammable atmospheres;
- have special risks when transporting or moving certain materials
- are intended for use in mines.
For the purposes of this standard, hoisting machines include cranes of all types, winches of all types and storage and retrieval machines. The following product groups are included:
- overhead travelling cranes;
- mobile cranes;
- tower cranes;
- slewing luffing cranes;
- gantry cranes;
- offshore cranes;
- floating cranes;
- winches of all types;
- hoists and accessories;
- loader cranes;
- cable cranes;
- load holding devices;
- storage and retrieval machines;
- monorail hoists;
- straddle carriers;
- rubber tyred gantry cranes (RTGs).
NOTE 5 Definition of the different crane types see ISO 4306-1
This standard does not cover individual items of electrical equipment other than their selection for use and their erection.

Sicherheit von Maschinen - Elektrische Ausrüstung von Maschinen - Teil 32: Anforderungen für Hebezeuge (IEC 60204-32:2023)

Sécurité des machines - Équipement électrique des machines - Partie 32: Exigences pour les appareils de levage (IEC 60204-32:2023)

L'IEC 60204-32:2023 s’applique aux équipements et systèmes électriques, électroniques et électroniques programmables des appareils de levage et à leurs équipements associés, y compris un groupe d’appareils de levage travaillant ensemble de manière coordonnée. L'équipement traité dans le présent document a pour origine le point de connexion de l'alimentation à l'équipement électrique de l'appareil de levage (sectionneur d'alimentation de l'appareil de levage), y compris l'alimentation de puissance et les alimentations de commande situées à l'extérieur de l'appareil de levage, par exemple, les câbles souples, les câbles conducteurs ou les barres conductrices. Le présent document s’applique aux équipements ou parties d'équipements dont la tension n'excède pas 1 000 V en courant alternatif et 1 500 V en courant continu entre phases, et dont la fréquence nominale n'excède pas 200 Hz.. Le présent document ne couvre pas toutes les exigences (par exemple, la protection, le verrouillage ou la commande) qui sont nécessaires ou exigées par d'autres normes ou règlements afin de protéger les personnes contre les dangers autres que les dangers électriques. Chaque type d'appareil de levage a des exigences uniques auxquelles il faut répondre pour assurer une sécurité adéquate. Le présent document ne couvre pas les risques liés au bruit. Des exigences complémentaires et particulières peuvent s’appliquer aux équipements électriques des appareils de levage, y compris ceux qui:
– manipulent ou transportent des matériaux potentiellement explosifs (par exemple, de la peinture ou de la sciure);
– sont destinés à être utilisés dans des atmosphères potentiellement explosives et/ou inflammables;
– présentent des risques particuliers lors du transport ou du déplacement de certains matériaux;
– sont destinés à être utilisés dans des mines.
Pour les besoins du présent document, les appareils de levage comprennent les grues de tous types, les treuils de tous types et les machines de stockage et d'extraction. Les familles de produits suivantes sont incluses:
– ponts roulants;
– grues mobiles;
– grues à tour;
– grues pivotantes à flèche relevable;
– portiques;
– grues offshore;
– grues flottantes;
– treuils de tous types;
– palans et accessoires;
– grues de chargement;
– grues à câble (blondins);
– accessoires de suspension de charge;
– machines de stockage et d'extraction;
– treuils suspendus avec rail de translation fixe;
– enjambeurs;
– portiques sur pneus.
Le présent document ne traite pas les éléments particuliers de l'équipement électrique, sauf pour leur choix et leur mise en œuvre.
L'IEC 60204-32:2023 annule et remplace la deuxième édition parue en 2008. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
a) L'alignement sur la sixième édition de l’IEC 60204-1 (2016) notamment pour:
– les exigences relatives à la mise à la terre et à la liaison;
– les exigences en matière de protection des circuits;
– l'examen de l'utilisation des entraînements électriques de puissance (PDS);
– les exigences et la terminologie relatives aux liaisons de protection;
– les exigences relatives au couple de sécurité pour les PDS, l'arrêt d'urgence et la protection des cir

Varnost strojev - Električna oprema strojev - 32. del: Posebne zahteve za dvigalne stroje (IEC 60204-32:2023)

General Information

• Status: Published
• Public Enquiry End Date: 25-Jul-2021
• Publication Date: 24-Aug-2025
• ICS: 13.110 - Safety of machinery
• ICS: 29.020 - Electrical engineering in general
• ICS: 53.020.01 - Lifting appliances in general
• Technical Committee: MOV - Measuring equipment for electromagnetic quantities
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 03-Jun-2025
• Due Date: 08-Aug-2025
• Completion Date: 25-Aug-2025
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Mandate: M/511 - Mandate to CEN, CENELEC and ETSI relating to harmonised standards in the field of the Low Voltage Directive
• Ref Project: EN IEC 60204-32:2025 - Safety of machinery - Electrical equipment of machines - Part 32: Requirements for hoisting machines

Relations

• Revised: SIST EN 60204-32:2009 - Safety of machinery - Electrical equipment of machines -- Part 32: Requirements for hoisting machines
• Effective Date: 26-Nov-2019

Standards Content (Sample)

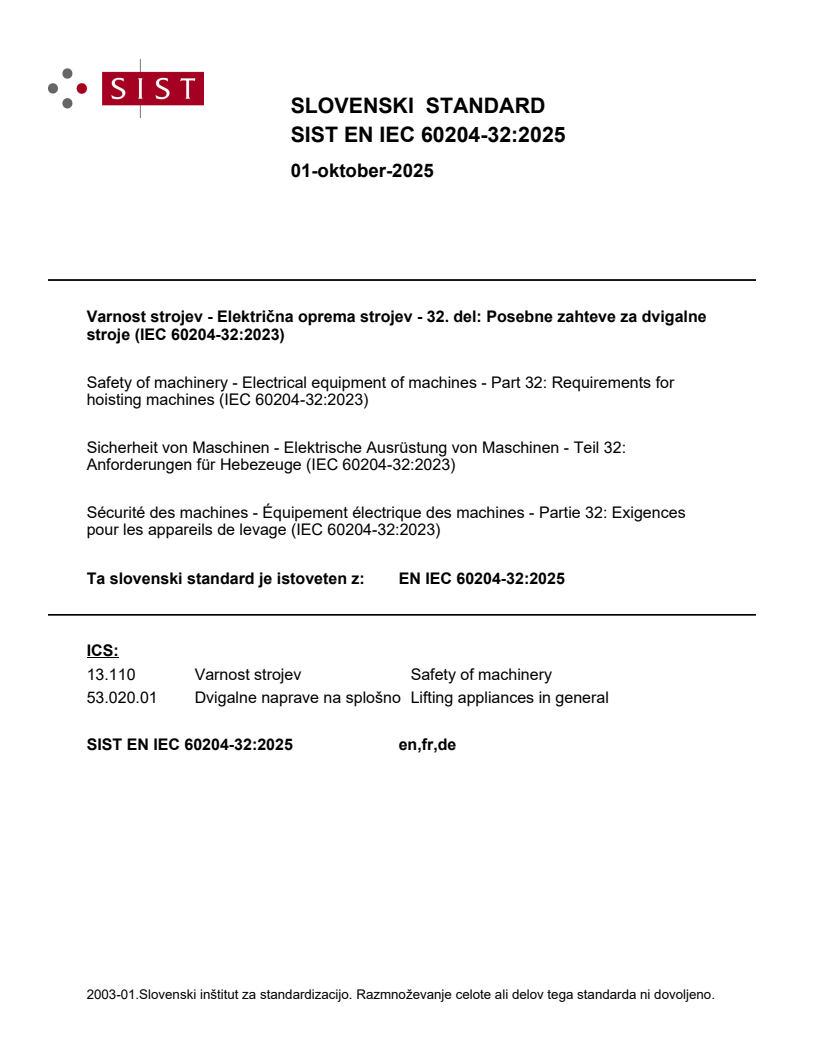

SLOVENSKI STANDARD
01-oktober-2025
Varnost strojev - Električna oprema strojev - 32. del: Posebne zahteve za dvigalne
stroje (IEC 60204-32:2023)
Safety of machinery - Electrical equipment of machines - Part 32: Requirements for
hoisting machines (IEC 60204-32:2023)
Sicherheit von Maschinen - Elektrische Ausrüstung von Maschinen - Teil 32:
Anforderungen für Hebezeuge (IEC 60204-32:2023)
Sécurité des machines - Équipement électrique des machines - Partie 32: Exigences
pour les appareils de levage (IEC 60204-32:2023)
Ta slovenski standard je istoveten z: EN IEC 60204-32:2025
ICS:
13.110 Varnost strojev Safety of machinery
53.020.01 Dvigalne naprave na splošno Lifting appliances in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

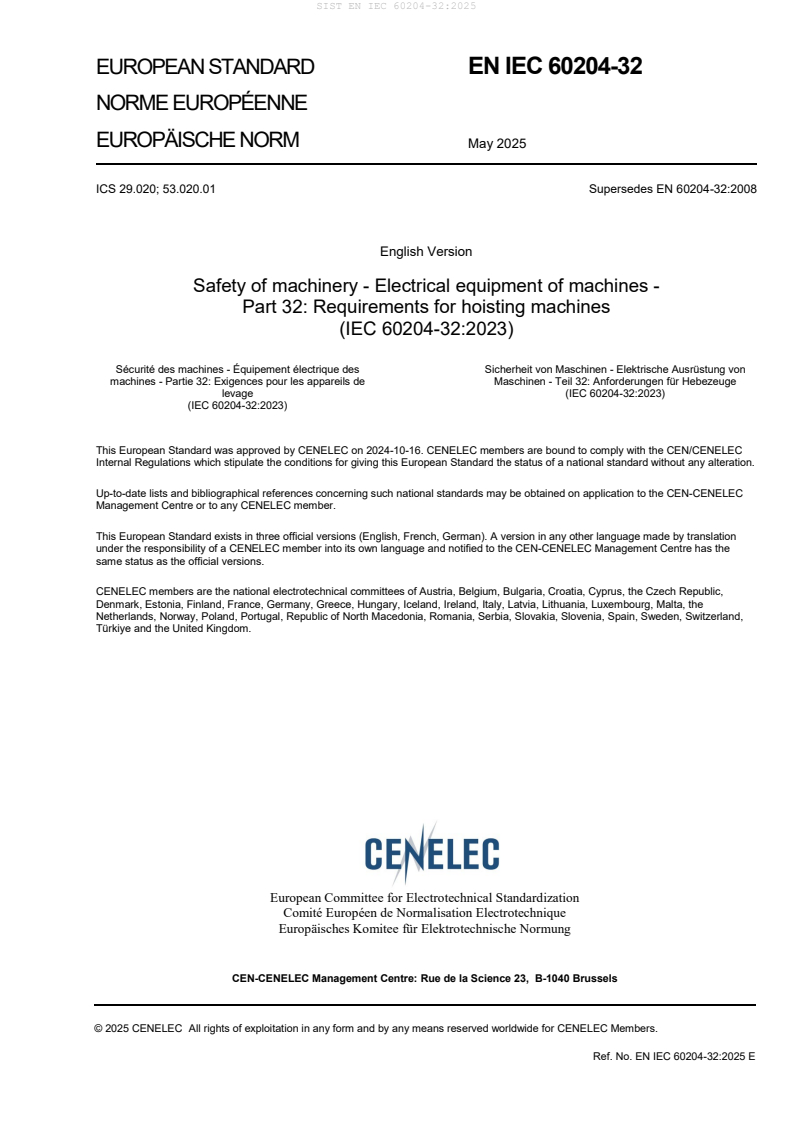

EUROPEAN STANDARD EN IEC 60204-32

NORME EUROPÉENNE
EUROPÄISCHE NORM May 2025
ICS 29.020; 53.020.01 Supersedes EN 60204-32:2008
English Version
Safety of machinery - Electrical equipment of machines -
Part 32: Requirements for hoisting machines
(IEC 60204-32:2023)
Sécurité des machines - Équipement électrique des Sicherheit von Maschinen - Elektrische Ausrüstung von
machines - Partie 32: Exigences pour les appareils de Maschinen - Teil 32: Anforderungen für Hebezeuge
levage (IEC 60204-32:2023)
(IEC 60204-32:2023)
This European Standard was approved by CENELEC on 2024-10-16. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60204-32:2025 E

European foreword
The text of document 44/1000/FDIS, future edition 3 of IEC 60204-32, prepared by TC 44 "Safety of
machinery - Electrotechnical aspects" was submitted to the IEC-CENELEC parallel vote and approved
by CENELEC as EN IEC 60204-32:2025.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2026-05-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2028-05-31
document have to be withdrawn
This document supersedes EN 60204-32:2008 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60204-32:2023 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60034 (series) NOTE Approved as EN IEC 60034 (series)
IEC 60038 NOTE Approved as EN 60038
IEC 60085 NOTE Approved as EN 60085
IEC 60204-11 NOTE Approved as EN IEC 60204-11
IEC 60216 (series) NOTE Approved as EN 60216 (series)
IEC 60228 NOTE Approved as EN IEC 60228
IEC 60269-1 NOTE Approved as EN 60269-1
IEC 60320-1 NOTE Approved as EN IEC 60320-1
IEC 60332 (series) NOTE Approved as EN IEC 60332 (series)
IEC 60364-4-44 NOTE Approved as HD 60364-4-442
IEC 60364-7-729 NOTE Approved as HD 60364-7-729
IEC 60447 NOTE Approved as EN 60447
IEC 60757 NOTE Approved as EN IEC 60757
IEC 60898 (series) NOTE Approved as EN IEC 60898 (series)
IEC 60909 (series) NOTE Approved as EN 60909 (series)
IEC 60947-5-8 NOTE Approved as EN IEC 60947-5-8
IEC 61000-6-1 NOTE Approved as EN IEC 61000-6-1
IEC 61000-6-2 NOTE Approved as EN IEC 61000-6-2
IEC 61000-6-3 NOTE Approved as EN IEC 61000-6-3
IEC 61000-6-4 NOTE Approved as EN IEC 61000-6-4
IEC 61000-6-8 NOTE Approved as EN IEC 61000-6-8
IEC 61084 (series) NOTE Approved as EN IEC 61084 (series)
IEC 61180 NOTE Approved as EN 61180
IEC 61557-8 NOTE Approved as EN 61557-8
IEC 61557-9 NOTE Approved as EN 61557-9
IEC 61557-14 NOTE Approved as EN IEC 61557-14
IEC 61643-12 NOTE Approved as CLC/TS 61643-12
IEC 61666 NOTE Approved as EN 61666
IEC 61800 (series) NOTE Approved as EN 61800 (series)
IEC 62020-1 NOTE Approved as EN IEC 62020-1
IEC 62305 (series) NOTE Approved as EN IEC 62305 (series)
IEC 62491 NOTE Approved as EN 62491
ISO 13732-1 NOTE Approved as EN ISO 13732-1
ISO 13851 NOTE Approved as EN ISO 13851
ISO 14118 NOTE Approved as EN ISO 14118
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60034-1 2017 Rotating electrical machines - Part 1: Rating - -
and performance
IEC 60034-5 - Rotating electrical machines - Part 5: Degrees EN IEC 60034-5 -
of protection provided by the integral design of
rotating electrical machines (IP code) -
Classification
IEC 60034-11 - Rotating electrical machines - Part 11: EN IEC 60034-11 -
Thermal protection
IEC 60068-2-27 2008 Environmental testing - Part 2-27: Tests - Test EN 60068-2-27 2009
Ea and guidance: Shock
IEC 60068-2-31 2008 Environmental testing - Part 2-31: Tests - Test EN 60068-2-31 2008
Ec: Rough handling shocks, primarily for
equipment-type specimens
IEC 60072-1 - Rotating electrical machines - Dimensions EN IEC 60072-1 -
and output series - Part 1: Frame numbers 56
to 400 and flange numbers 55 to 1080
IEC 60072-2 - Dimensions and output series for rotating - -
electrical machines - Part 2: Frame numbers
355 to 1000 and flange numbers 1180 to 2360
IEC 60072-3 - Dimensions and output series for rotating - -
electrical machines - Part 3: Small built-in
motors - Flange numbers BF10 to BF50
IEC 60073 2002 Basic and safety principles for man-machine EN 60073 2002
interface, marking and identification - Coding
principles for indicators and actuators
IEC 60309-1 - Plugs, fixed or portable socket-outlets and EN IEC 60309-1 -
appliance inlets for industrial purposes - Part
1: General requirements
IEC 60364-1 2005 Low-voltage electrical installations - Part 1: HD 60364-1 2008
(mod) Fundamental principles, assessment of
general characteristics, definitions
- - + A11 2017
Publication Year Title EN/HD Year

IEC 60364-4-41 2005 Low-voltage electrical installations - Part 4-41: HD 60364-4-41 2017
(mod) Protection for safety - Protection against
electric shock
+ A1 2017 - -
- - + A11 2017
- - + A12 2019
IEC 60364-4-43 2008 Low-voltage electrical installations - Part 4-43: HD 60364-4-43 2010
(mod) Protection for safety - Protection against
overcurrent
IEC 60364-5-52 2009 Low-voltage electrical installations - Part 5-52: HD 60364-5-52 2011
(mod) Selection and erection of electrical equipment
- Wiring systems
- - + A11 2017
- - + A12 2022
IEC 60364-5-53 2019 Low-voltage electrical installations -- Part 5- - -
53: Selection and erection of electrical
equipment - Protection, isolation, switching,
control and monitoring
IEC 60364-5-54 2011 Low-voltage electrical installations - Part 5-54: HD 60364-5-54 2011
Selection and erection of electrical equipment
- Earthing arrangements and protective
conductors
- - + A11 2017
IEC 60364-6 2016 Low voltage electrical installations - Part 6: HD 60364-6 2016
Verification
- - + A11 2017
- - + A12 2017
IEC 60417 - Graphical symbols for use on equipment. - -
Index, survey and compilation of the single
sheets.
IEC 60445 2021 Basic and safety principles for man-machine EN IEC 60445 2021
interface, marking and identification -
Identification of equipment terminals,
conductor terminations and conductors
IEC 60529 - Degrees of protection provided by enclosures - -
(IP Code)
IEC 60664-1 - Insulation coordination for equipment within EN IEC 60664-1 -
low-voltage supply systems - Part 1:
Principles, requirements and tests
IEC 60947-1 - Low-voltage switchgear and controlgear - Part EN IEC 60947-1 -
1: General rules
IEC 60947-2 2016 Low-voltage switchgear and controlgear - Part EN 60947-2 2017
2: Circuit-breakers
IEC 60947-3 - Low-voltage switchgear and controlgear - Part EN IEC 60947-3 -
3: Switches, disconnectors, switch-
disconnectors and fuse-combination units
Publication Year Title EN/HD Year
IEC 60947-4-1 2018 Low-voltage switchgear and controlgear - Part EN IEC 60947-4-1 2019
4-1: Contactors and motor-starters -
Electromechanical contactors and motor-
starters
IEC 60947-5-1 2016 Low-voltage switchgear and controlgear - Part EN 60947-5-1 2017
5-1: Control circuit devices and switching
elements - Electromechanical control circuit
devices
IEC 60947-5-5 - Low-voltage switchgear and controlgear - Part EN 60947-5-5 -
5-5: Control circuit devices and switching
elements - Electrical emergency stop device
with mechanical latching function
IEC 60947-6-2 - Low-voltage switchgear and controlgear - Part EN IEC 60947-6-2 -
6-2: Multiple function equipment - Control and
protective switching devices (or equipment)
(CPS)
IEC 61140 - Protection against electric shock - Common EN 61140 -
aspects for installation and equipment
IEC 61204-7 - Low-voltage switch mode power supplies - EN IEC 61204-7 -
Part 7: Safety requirements
IEC 61310 series Safety of machinery - Indication, marking and EN 61310 series
actuation
IEC 61439-1 - Low-voltage switchgear and controlgear EN IEC 61439-1 -
assemblies - Part 1: General rules
IEC 61557-3 - Electrical safety in low voltage distribution EN IEC 61557-3 -
systems up to 1 000 V AC and 1 500 V DC -
Equipment for testing, measuring or
monitoring of protective measures - Part 3:
Loop impedance
IEC 61558-1 - Safety of transformers, reactors, power supply EN IEC 61558-1 -
units and combinations thereof - Part 1:
General requirements and tests
IEC 61558-2-2 - Safety of transformers, reactors, power supply EN IEC 61558-2-2 -
units and combinations thereof - Part 2-2:
Particular requirements and tests for control
transformers and power supply units
incorporating control transformers
IEC 61558-2-6 - Safety of transformers, reactors, power supply EN IEC 61558-2-6 -
units and combinations thereof - Part 2-6:
Particular requirements and tests for safety
isolating transformers and power supply units
incorporating safety isolating transformers for
general applications
IEC 61558-2-16 - Safety of transformers, reactors, power supply EN IEC 61558-2-16 -
units and combinations thereof - Part 2-16:
Particular requirements and tests for switch
mode power supply units and transformers for
switch mode power supply units for general
applications
Publication Year Title EN/HD Year
IEC 61800-3 - Adjustable speed electrical power drive EN IEC 61800-3 -
systems - Part 3: EMC requirements and
specific test methods for PDS and machine
tools
IEC 61800-5-1 - Adjustable speed electrical power drive EN IEC 61800-5-1 -
systems - Part 5-1: Safety requirements -
Electrical, thermal and energy
IEC 61800-5-2 - Adjustable speed electrical power drive EN 61800-5-2 -
systems - Part 5-2: Safety requirements -
Functional
IEC 61984 - Connectors - Safety requirements and tests EN 61984 -
IEC 62023 - Structuring of technical information and EN 62023 -
documentation
IEC 62061 - Safety of machinery - Functional safety of EN IEC 62061 -
safety-related control systems
IEC 62745 2017 Safety of machinery - Requirements for EN 62745 2017
cableless control systems of machinery
- - + A11 2020
ISO 7010 - Graphical symbols_- Safety colours and - -
safety signs_- Registered safety signs
ISO 12100 2010 Safety of machinery - General principles for EN ISO 12100 2010
design - Risk assessment and risk reduction
ISO 13849-1 - Safety of machinery - Safety-related parts of EN ISO 13849-1 -
control systems - Part 1: General principles
for design
ISO 13849-2 - Safety of machinery - Safety-related parts of EN ISO 13849-2 -
control systems - Part 2: Validation
ISO 13850 2015 Safety of machinery - Emergency stop EN ISO 13850 2015
function - Principles for design
ISO 13857 - Safety of machinery - Safety distances to EN ISO 13857 -
prevent hazard zones being reached by upper
and lower
...
