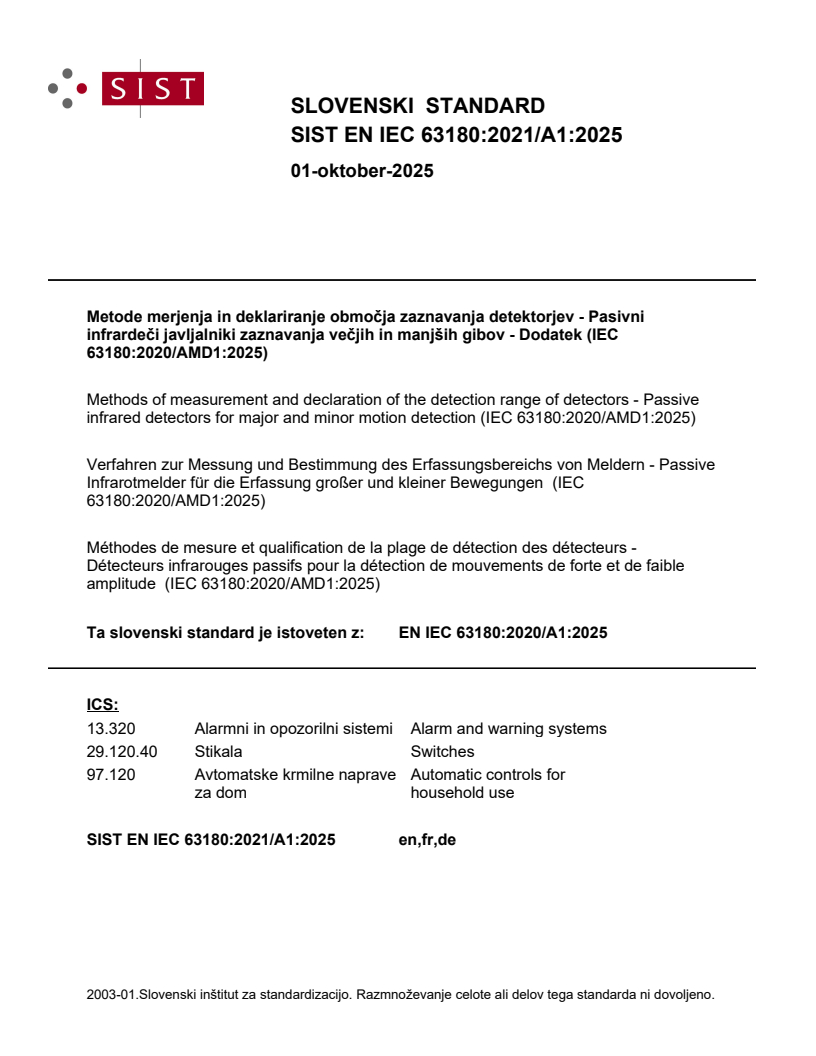

SLOVENSKI STANDARD
01-oktober-2025
Metode merjenja in deklariranje območja zaznavanja detektorjev - Pasivni
infrardeči javljalniki zaznavanja večjih in manjših gibov - Dodatek (IEC
63180:2020/AMD1:2025)
Methods of measurement and declaration of the detection range of detectors - Passive
infrared detectors for major and minor motion detection (IEC 63180:2020/AMD1:2025)
Verfahren zur Messung und Bestimmung des Erfassungsbereichs von Meldern - Passive
Infrarotmelder für die Erfassung großer und kleiner Bewegungen (IEC
63180:2020/AMD1:2025)
Méthodes de mesure et qualification de la plage de détection des détecteurs -
Détecteurs infrarouges passifs pour la détection de mouvements de forte et de faible
amplitude (IEC 63180:2020/AMD1:2025)
Ta slovenski standard je istoveten z: EN IEC 63180:2020/A1:2025
ICS:
13.320 Alarmni in opozorilni sistemi Alarm and warning systems
29.120.40 Stikala Switches
97.120 Avtomatske krmilne naprave Automatic controls for
za dom household use
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

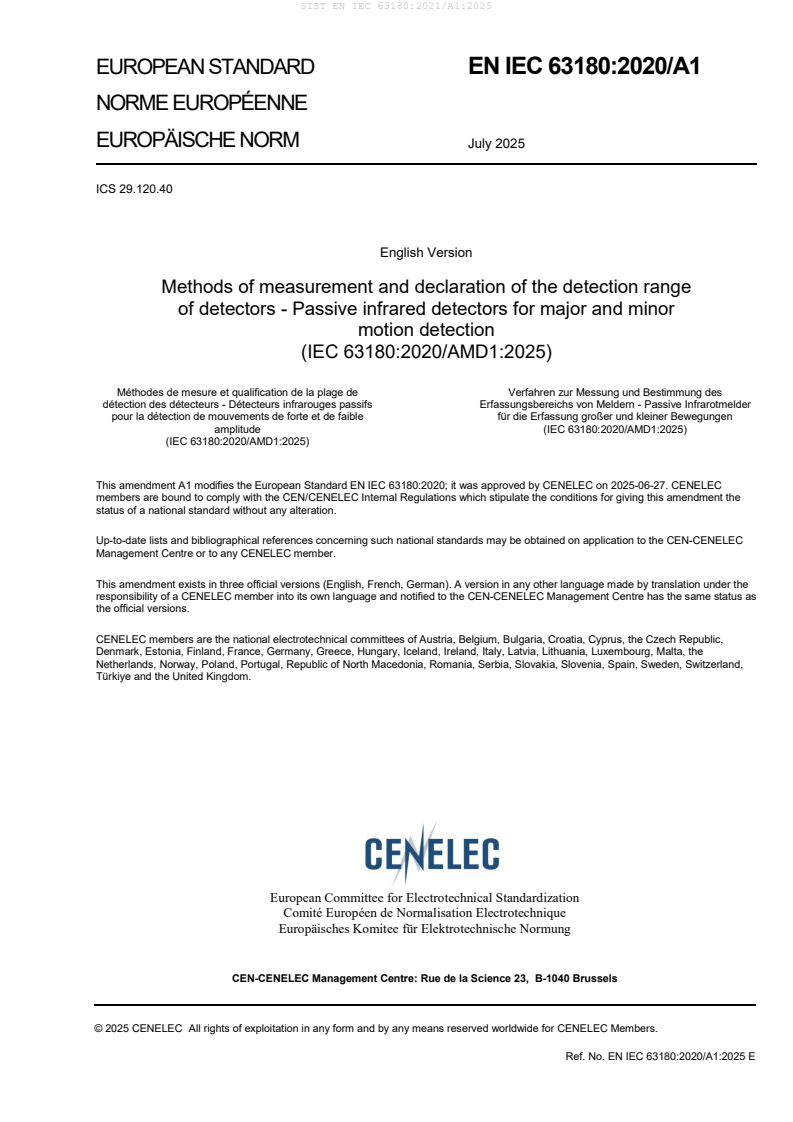

EUROPEAN STANDARD EN IEC 63180:2020/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM July 2025
ICS 29.120.40
English Version
Methods of measurement and declaration of the detection range
of detectors - Passive infrared detectors for major and minor
motion detection
(IEC 63180:2020/AMD1:2025)
Méthodes de mesure et qualification de la plage de Verfahren zur Messung und Bestimmung des
détection des détecteurs - Détecteurs infrarouges passifs Erfassungsbereichs von Meldern - Passive Infrarotmelder
pour la détection de mouvements de forte et de faible für die Erfassung großer und kleiner Bewegungen
amplitude (IEC 63180:2020/AMD1:2025)
(IEC 63180:2020/AMD1:2025)
This amendment A1 modifies the European Standard EN IEC 63180:2020; it was approved by CENELEC on 2025-06-27. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 63180:2020/A1:2025 E

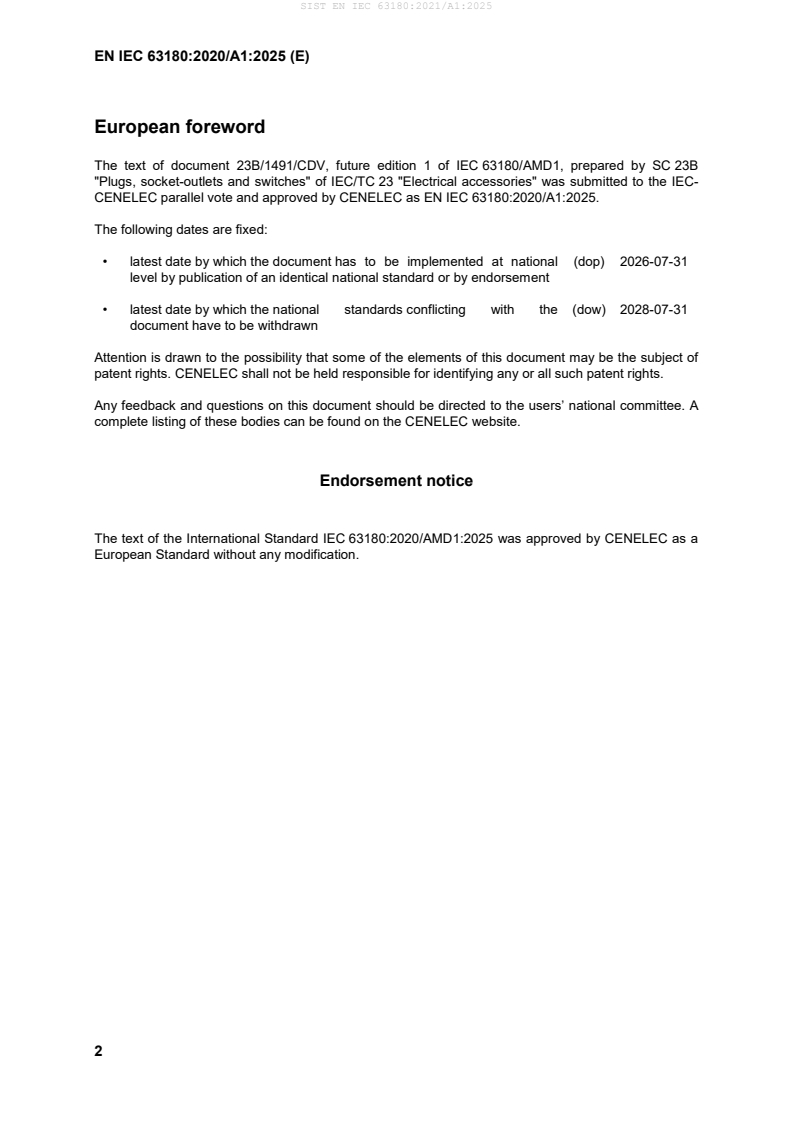

European foreword
The text of document 23B/1491/CDV, future edition 1 of IEC 63180/AMD1, prepared by SC 23B
"Plugs, socket-outlets and switches" of IEC/TC 23 "Electrical accessories" was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN IEC 63180:2020/A1:2025.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2026-07-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2028-07-31
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 63180:2020/AMD1:2025 was approved by CENELEC as a
European Standard without any modification.
IEC 63180 ®
Edition 1.0 2025-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Methods of measurement and declaration of the detection range of detectors –
Passive infrared detectors for major and minor motion detection
Méthodes de mesure et qualification de la plage de détection des détecteurs –
Détecteurs infrarouges passifs pour la détection de mouvements de forte et de
faible amplitude
ICS 29.120.40 ISBN 978-2-8327-0433-2
IEC 63180:2020-06/AMD1:2025-05(en-fr)
– 2 – IEC 63180:2020/AMD1:2025
© IEC 2025
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
METHODS OF MEASUREMENT AND DECLARATION
OF THE DETECTION RANGE OF DETECTORS –
Passive infrared detectors for major and minor motion detection
AMENDMENT 1
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch [and/or]
www.iso.org/patents. IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to IEC 63180:2020 has been prepared by subcommittee 23B: Plugs,
socket-outlets and switches, of IEC technical committee 23: Electrical accessories.
The text of this Amendment is based on the following documents:
Draft Report on voting
23B/1491/CDV 23B/1509A/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
IEC 63180:2020/AMD1:2025 – 3 –
© IEC 2025
The language used for the development of this Amendment is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
___________
INTRODUCTION to Amendment 1
This amendment includes the following significant technical changes with respect to the base
edition:
a) improvement of general tolerances of the test environment and test equipment;
b) definition of the rotating point of the test arm;
c) addition of the recommended mounting heights for performing the tests;
d) addition of acceleration and deceleration speeds for scaled dummies;
e) modification of the pre-conditioning test at minimum and maximum declared ambient
temperature with new performance criteria;
f) addition of an alternative test procedure for large tangential major motion detection areas.
3 Terms and definitions
3.8
detection area
Replace the title of Figure 3 with:
Figure 3 – Example of detection area
4 General requirements on tests
Add "1" to the first note in Clause 4, as follows:
NOTE 1 A modification of the detector software with a minimum value of 5 s for the delay-time can be necessary to
shorten the test time in total.
Add "2" to the second note in Clause 4, as follows:
NOTE 2 Type tests are defined in IEC 60050-581:2008, 581-21-08.
– 4 – IEC 63180:2020/AMD1:2025
© IEC 2025
Add the following at the end of the last paragraph:
For more repeatable measurements it is recommended to use the automated test procedure.
5 Test environment
Replace the tenth paragraph (excluding the notes) with the following:
The test room temperature and the temperature of the walls, ceiling and floor shall be stable
during the tests within a tolerance of:
– ±2 K for manual tests;
– ±1,5 K for automated tests.
Add "1" to the first note in Clause 5, as follows:
NOTE 1 This can be achieved by covering the detection area of the detector towards the wall or by covering the
wall with a coating or a curtain.
Add "2" to the second note in Clause 5, as follows:
NOTE 2 Artificial light without an IR component can be achieved using LED technology.
Add "3" to the third note in Clause 5, as follows:
NOTE 3 It can be required to set the test room temperature several hours prior to testing.
6 Test equipment
6.2 Test dummies for major motion detection when using automated test systems
Replace Figure 4 with the following new Figure 4:
Figure 4 – Test dummy perspective view
Replace the fifth paragraph, the sixth paragraph, seventh paragraph, eighth paragraph and the
note with the following:
The body and legs are heated to a temperature of (7 ± 1) K above the ambient temperature of
the test room.
IEC 63180:2020/AMD1:2025 – 5 –
© IEC 2025
NOTE The shoulders are part of the body.
All test sides of the dummies shall be heated except the bottom side which is not relevant for
the test.
The temperature of the surface for each zone of the dummy shall be homogeneous and the
spread shall be ≤ 5 K.
The dummy can be made of aluminium, painted black and heated by heating plates placed
inside the dummy.
The temperature of the dummy shall be stable within 1 K for a minimum of 10 min prior to testing
and for the duration of the tests.
Stability can be verified by measuring the temperature during the test at one reference point at
each zone.
Replace the title of Table 1 with the following:
Table 1 – Relation between the declared mounting height, the mounting height of the
device under test (DUT) and test dummy used
6.3 Test arm for minor motion detection
Replace the whole subclause with the following:
The test arm to be used for the minor motion detection test shall be a robotic arm with
dimensions (76 mm × 76 mm × 380 mm) ±2 mm, mounted at a height of 750 mm ± 20 mm
above the reference level.
For manual tests the reference level is the floor.
For automated tests the reference level is the mounting surface of the test dummy as given in
Figure 4.
The test arm can be made of aluminium, painted black and heated by heating plates placed
inside the test arm.
The height is measured from the centre of the horizontal axis.
The test arm shall be able to move at a velocity of 90°/s.
The test arm shall be able to rotate in the horizontal x-
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
