EN 17877
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2023
EUROPÄISCHE NORM
ICS 01.040.23; 23.100.99
English Version
Dynamic mixers and agitators - Definitions and hydraulic
characterizations
Mélangeurs et agitateurs dynamiques - Définitions et Dynamische Mischer und Rührwerke - Definition und
caractéristiques hydrauliques hydraulische Charakteristik
This European Standard was approved by CEN on 8 October 2023.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17877:2023 E
worldwide for CEN national Members.

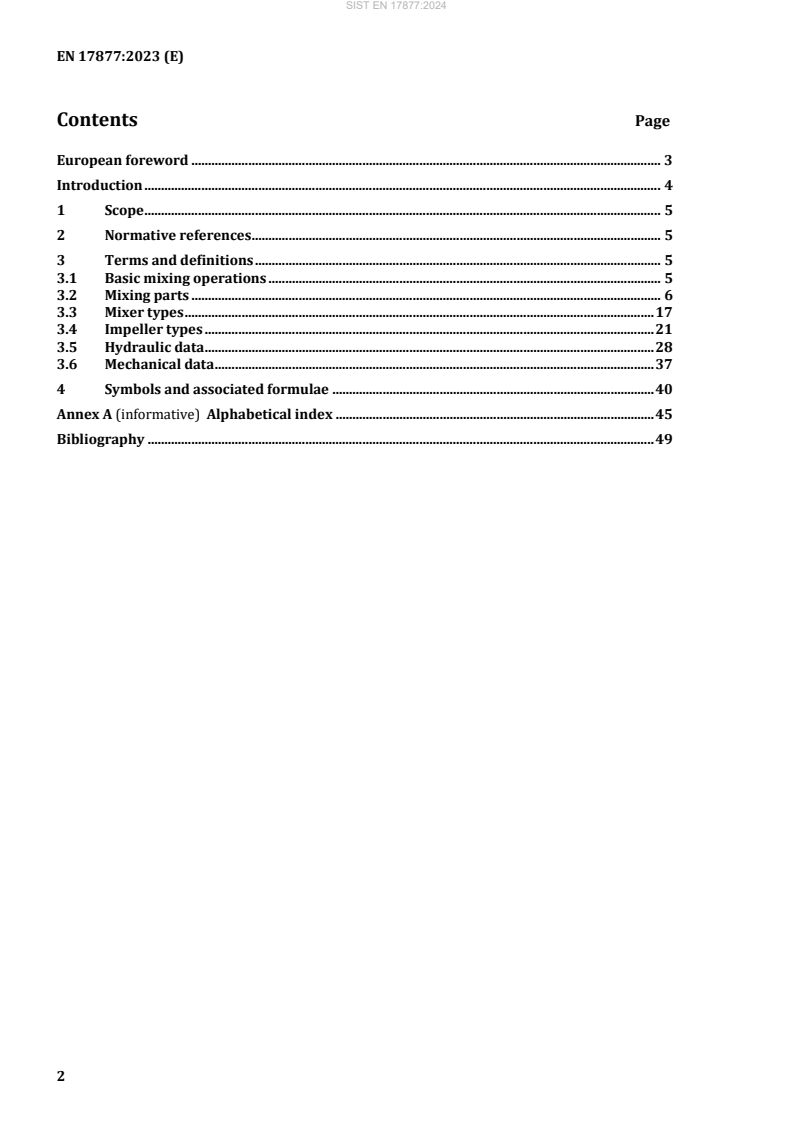

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
3.1 Basic mixing operations . 5
3.2 Mixing parts . 6
3.3 Mixer types . 17
3.4 Impeller types . 21
3.5 Hydraulic data . 28
3.6 Mechanical data . 37
4 Symbols and associated formulae . 40
Annex A (informative) Alphabetical index . 45
Bibliography . 49

European foreword
This document (EN 17877:2023) has been prepared by Technical Committee CEN/TC 458 “Industrial
rotating mixing systems”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2024, and conflicting national standards shall be
withdrawn at the latest by May 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
Dynamic mixers and agitators are used mainly to set in motion one or more phases including at least one
liquid and maintain mixture conditions and/or to promote mass transfer and/or heat transfer.

1 Scope
This document defines the terms and definitions relating to the field of dynamic mixing and agitation. It
covers the hydraulic characteristics of mixers and agitators. It is intended to contribute to mutual
understanding of the various stakeholders in a mixing or agitation project: manufacturers, users,
integrators, inspection agencies, etc.
This document is applicable to mixing and agitation systems where there is at least one dominant liquid
phase.
It does not apply to:
— static mixers;
— kneaders;
— submersible mixers covered by ISO 21630;
— aerators;
— pumps.
Annex A lists the definitions in alphabetical order.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1 Basic mixing operations
3.1.1
agitation
motion of one liquid using a rotational device in a tank
3.1.2
mixing
motion of one substance or more through a liquid using a rotational device in a tank
3.1.3
homogenization
blending miscible liquids
mixing two or more miscible liquids to generate one liquid phase using a mixing unit
3.1.4
dissolving
solute a soluble solid into a liquid using a mixing unit
3.1.5
solid suspension
solid particles suspended in a liquid using a mixing unit
EXAMPLE Flocculation, process drinking yoghurt, food and chemical applications.
3.1.6
solid dispersion
small solid particles (powder) blended in a dominant liquid phase using a mixing unit
EXAMPLE Dye in ink or cocoa in chocolate milk.
3.1.7
emulsion
mixing of two or more immiscible liquids into each other using a mixing unit
Note 1 to entry: To prevent the liquids from separating out, a third liquid called a surfactant is added.
3.1.8
gas dispersion
shearing of larger gas bubbles to smaller ones using a mixing unit
Note to entry 1: Smaller bubbles have larger relative surface area and thereby enhancing mass transfer between the
gas and liquid phases.
3.1.9
heat transfer
circulation of fluids in tank to promote faster heating or cooling transmission to fluids using a mixing unit
3.1.10
fermentation
process where microorganisms are used to digest organic matter using a mixing unit which ameliorate
the contact between all the components
EXAMPLE Yoghurt, cheese culture and sour cream in dairy applications.
3.2 Mixing parts
3.2.1
mixing unit
mixing system
unit consisting of a mixer and a tank including all necessary accessories to provide the mixing of gas,
liquid, paste or powder into the liquid continuous phase
Note 1 to entry: See Figure 1.
Key
1 mixer
2 tank
3 baffle
Figure 1 — Principle of a mixing unit
3.2.2
mixer
agitator
equipment inducing liquid motion by mechanical rotation in a delimited tank
Note 1 to entry: See Figure 2.
Key
1 drive head
2 shaft
3 impeller
Figure 2 — Example of a mixer
3.2.3
drive head
unit consisting of all parts outside of the vessel including at least a drive unit (3.2.4)
Note 1 to entry: If no coupling (Figure 3, key 6) the drive shaft is used as the mixer shaft.
Note 2 to entry: See Figure 3.
a) 2D view b) 3D view
Key
1 drive unit
2 lantern
3 drive shaft
4 mixer seal
5 base flange (or mounting flange)
6 coupling between the drive shaft and the mixer shaft
Figure 3 — Example of a drive head
3.2.4
drive unit
component(s) which rotate(s) mixer shaft
3.2.5
lantern
housing(s) between drive unit and base flange which contain(s) mixer seal and/or a guiding system
and/or shaft connecting parts
3.2.6
drive shaft
part of shaft located in drive head and designed to transfer the torque from drive unit to mixer shaft
3.2.7
mixer seal
seal device that separates inside tank from outside tank and/or prevents substance entering and/or
leaving the tank
Note 1 to entry: A shaft seal can be e.g. a lip seal, a labyrinth seal, a mechanical seal, a stuffing box, an hermetic
seal (e.g. magnetic coupling).
Note 2 to entry: See Figures 4 to 6.

Key
1 mixer shaft
2 seal
3 base flange
4 seal, base flange
Figure 4 — Lip seal
Key
1 mixer shaft
2 seal, rotating part
3 seal, stationary part
4 spring
5 base flange
6 seal, base flange
Figure 5 — Single mechanical seal
Key
1 mixer shaft
2 seal
3 base flange
Figure 6 — Labyrinth seal
3.2.8
base flange
mounting flange
mixer flange
connecting plate between the mixer and the tank which holds the drive head
Note 1 to entry: See Figure 7.
3.2.9
shaft restraint system
device that allows an easily maintaining of mixer seal and which is preventing mixer shaft from sliding
down when drive head and/or axial lock is released
Note 1 to entry: See Figure 7.
Key
1 drive shaft
2 base flange
3 shaft restraint system
4 mixer shaft
Figure 7 — shaft restraint system
3.2.10
mixer shaft
part of the shaft located in the tank and designed to support the impeller(s)
Note 1 to entry: With only one single shaft, the mixer shaft is used as drive shaft (see Figure 3, key 3).
Note 2 to entry: Mixer shaft can consist of several shaft steps. Some shaft steps may have no impeller installed on.
Note 3 to entry: See Figure 8.
a) 2D view b) 3D view
Key
1 impeller
2 mixer shaft
Figure 8 — Example of a mixer shaft with impellers
3.2.11
impeller
mixer element that moves the mixed media
Note 1 to entry: There are different types of impellers such as propellers, anchors, ribbons, turbines. Most
frequently, impellers are fitted with blades (from 2 to 6).
3.2.12
in tank bearing
in tank device that guides the mixer shaft, can be bushing or bearing
Note 1 to entry: When an in tank bearing is located at least above the lowest impeller, it is called an intermediate
bearing (see Figure 9).
Note 2 to entry: When an in tank bearing is located at the bottom of the tank, it is called a bottom bearing (see
Figures 10, 11 and 12).
Note 3 to entry: All mixers designed with in tank bearings cannot be run without them.
Key
1 mixer shaft
2 wearing sleeve
3 bushing
4 support structure
Figure 9 — Example of intermediate bearing
Key
1 mixer shaft
2 wearing sleeve
3 support structure
4 support structure
5 bushing
Figure 10 — Example 1 of a bottom bearing schematic drawing

Key
1 screw
2 O-rings
3 bushing
4 support structure
5 mixer shaft
Figure 11 — Example 2 of a bottom bearing schematic drawing

a) 2D view b) 3D view
Figure 12 — Example of bottom bearing
3.2.13
deflection limiter ring
guide ring
safety device, immersed in the liquid, located at the end or along of mixer shaft and intended to limit the
shaft deflection without any contact with the mixer shaft under normal operating conditions and avoid
overstress
Note 1 to entry: See Figure 13.

Key
1 mixer shaft
...
