EN 12385-10:2003+A1:2008

Steel wire ropes - Safety - Part 10: Spiral ropes for general structural applications

This Part of this European Standard specifies the additional materials, manufacturing and testing requirements to those
given in Part 1 for spiral ropes incorporating zinc or zinc alloy coated wires for general structural applications.
This standard deals with all significant hazards, hazardous situations and events relevant to spiral ropes for general
structural applications, when they are used as intended and under conditions of misuse which are reasonably
foreseeable by the manufacturer (see clause 4 of EN 12385-1:2002).
This standard applies to spiral ropes for general structural applications which are manufactured after the date of its
publication.
NOTE For information only, typical breaking forces for both full-locked coil rope and spiral strand rope are given in annexes
B and C for some of the more common sizes.

Drahtseile aus Stahldraht - Sicherheit - Teil 10: Spiralseile für den allgemeinen Baubereich

Dieser Teil dieser Europäischen Norm legt zusätzlich zu Teil 1 weitere Anforderungen an Werkstoffe, Herstellung und Prüfung für Spiralseile einschließlich der mit Zink oder Zinklegierung überzogenen Drähte für allgemeine
Anwendungen im Baubereich fest.
Diese Norm behandelt alle bedeutsamen Gefährdungen, gefährlichen Situationen und Ereignisse, die für Spiralseile für den allgemeinen Baubereich wichtig sind, wenn sie unter den vorgesehenen Bedingungen und unter falschen Bedingungen, wie sie vom Hersteller vernünftigerweise vorhersehbar sind, angewendet werden (siehe Abschnitt 4 von EN 12385-1:2002).
Diese Norm gilt für Spiralseile für den allgemeinen Baubereich, die nach dem Datum der Veröffentlichung hergestellt wurden.
ANMERKUNG   Typische Bruchkräfte für vollverschlossene Spiralseile und Spirallitzenseile sind für einige der gebräuch¬licheren Größen in den Anhängen B und C nur zur Information angegeben.

Câbles en acier - Sécurité - Partie 10: Câbles spiraloïdaux pour applications générales de structures

La présente partie de la Norme européenne spécifie des prescriptions additionnelles à celles de la Partie 1
concernant les matériaux et les prescriptions de fabrication et d’essai pour les câbles à torons spiraloïdaux
comportant des fils galvanisés ou revêtus d’alliages de zinc pour applications générales de structures.
La présente norme traite de tous les phénomènes dangereux, situations et évènements dangereux relatifs aux câbles
spiraloïdaux pour applications générales de structures, lorsque ceux-ci sont utilisés pour l’usage prévu et dans de
mauvaises conditions raisonnablement prévisibles par le fabricant (voir l’Article 4 de l’EN 12385-1:2002).
La présente norme s’applique aux câbles spiraloïdaux pour applications générales de structures qui ont été fabriqués
après la publication de la présente norme.
NOTE Les charges de rupture types des câbles clos et des câbles à torons spiraloïdaux sont données pour information dans
les Annexes B et C pour quelques unes des dimensions les plus courantes uniquement.

Jeklene žične vrvi - Varnost - 10. del: Špiralne vrvi za splošne gradbene namene

General Information

• Status: Published
• Publication Date: 18-Mar-2008
• Withdrawal Date: 27-Dec-2009
• ICS: 77.140.65 - Steel wire, wire ropes and link chains
• Technical Committee: CEN/TC 168 - Chains, ropes, webbing, slings and accessories - safaty
• Drafting Committee: CEN/TC 168/WG 2 - Steel wire ropes, their terminations and wire rope slings
• Current Stage: 9020 - Submission to 2 Year Review Enquiry - Review Enquiry
• Start Date: 15-Jan-2024
• Completion Date: 15-Jan-2024
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Directive: 98/37/EC - Machinery
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Mandate: M/BC/CEN/91/1 - Standardization request to CEN/CENELEC concerning machines presenting hazards due to mobility or load lifting
• Ref Project: SIST EN 12385-10:2004+A1:2008 - Steel wire ropes - Safety - Part 10: Spiral ropes for general structural applications

Relations

• Merged From: EN 12385-10:2003 - Steel wire ropes - Safety - Part 10: Spiral ropes for general structural applications
• Effective Date: 18-Jan-2023

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Steel wire ropes - Safety - Part 10: Spiral ropes for general structural applicationsCâbles en acier - Sécurité - Partie 10: Câbles spiraloïdaux pour applications générales de structuresDrahtseile aus Stahldraht - Sicherheit - Teil 10: Spiralseile für den allgemeinen BaubereichTa slovenski standard je istoveten z:EN 12385-10:2003+A1:2008SIST EN 12385-10:2004+A1:2008en,fr77.140.65ICS:SLOVENSKI
STANDARDSIST EN 12385-10:2004+A1:200801-junij-2008







EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12385-10:2003+A1
March 2008 ICS 77.140.65 Supersedes EN 12385-10:2003English Version
Steel wire ropes - Safety - Part 10: Spiral ropes for general structural applications
Câbles en acier - Sécurité - Partie 10: Câbles spiraloïdaux pour applications générales de structures
Drahtseile aus Stahldraht - Sicherheit - Teil 10: Spiralseile für den allgemeinen Baubereich This European Standard was approved by CEN on 3 November 2003 and includes Amendment 1 approved by CEN on 14 February 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2008 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12385-10:2003+A1:2008: E

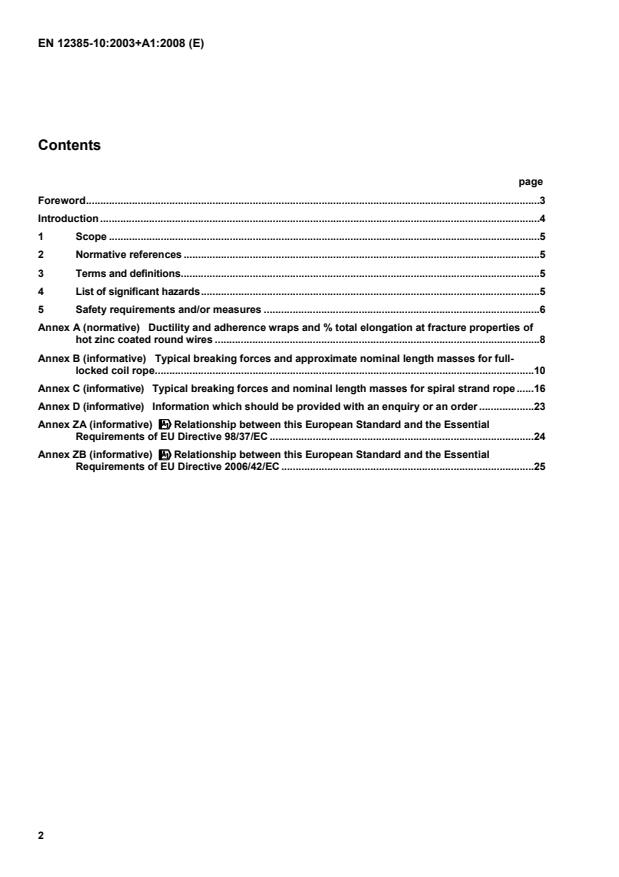

EN 12385-10:2003+A1:2008 (E) 2 Contents page Foreword.3 Introduction.4 1 Scope.5 2 Normative references.5 3 Terms and definitions.5 4 List of significant hazards.5 5 Safety requirements and/or measures.6 Annex A (normative)
Ductility and adherence wraps and % total elongation at fracture properties of hot zinc coated round wires.8 Annex B (informative)
Typical breaking forces and approximate nominal length masses for full-locked coil rope.10 Annex C (informative)
Typical breaking forces and nominal length masses for spiral strand rope.16 Annex D (informative)
Information which should be provided with an enquiry or an order.23 Annex ZA (informative)
!!!!Relationship between this European Standard and the Essential Requirements of EU Directive 98/37/EC.24 Annex ZB (informative)
!!!!Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC.25



EN 12385-10:2003+A1:2008 (E) 3 Foreword This document (EN 12385-10:2003+A1:2008) has been prepared by Technical Committee CEN/TC 168 “Chains, ropes, webbing, slings and accessories - Safety”, the secretariat of which is held by BSI. This European Standard shall be given the status of a national standard, either by publication of an
...
