EN 16507:2014
(Main)Railway applications - Ground based service - Diesel refuelling equipment
Railway applications - Ground based service - Diesel refuelling equipment
This European Standard specifies interface requirements on vehicles and at designated fuelling points for diesel refuelling equipment for any railway vehicle fitted with a diesel power unit(s).
This European Standard is written for refuelling railway vehicles with fuels that are compliant with Directive 2009/30/EC.
This European Standard is not applicable to mobile or temporary refuelling points.
Bahnanwendungen - Versorgungsdienste - Dieselbetankungseinrichtungen
Diese Europäische Norm legt die Schnittstellen für Dieselbetankungsausrüstung von vorgesehenen Betankungs-stellen und jeden Schienenfahrzeugen fest, welche mit Dieselmotoren ausgestattet sind.
Diese Europäische Norm gilt für das Betanken von Schienenfahrzeugen mit Kraftstoffen, welche die Richtlinie 2009/30/EG erfüllen.
Diese Europäische Norm gilt nicht für mobile oder provisorische Betankungsstellen.
Applications ferroviaires - Services au sol - Dispositifs de remplissage en carburants
La présente Norme européenne spécifie les exigences concernant l'interface sur les véhicules et au niveau de sites de remplissage désignés, pour les dispositifs de remplissage en carburants des véhicules équipés de moteurs Diesel.
La présente norme traite du remplissage des véhicules ferroviaires en carburants conformes à la Directive 2009/30/CE.
Elle n'est pas applicable aux sites mobiles ou temporaires de remplissage en carburants.
Železniške naprave - Talna oskrba - Oprema za točenje dizelskega goriva
Ta evropski standard določa zahteve glede vmesnika za opremo za točenje dizelskega goriva za železniška vozila, opremljena z dizelskimi pogonskimi enotami na določenih servisnih mestih.
Ta evropski standard je napisan za točenje goriv, ki so skladna z dodatkom II direktive 2009/30/ES, v železniška vozila.
Ne uporablja se za mobilna ali začasna mesta za točenje goriv.
General Information
- Status
- Published
- Publication Date
- 30-Sep-2014
- Technical Committee
- CEN/TC 256 - Railway applications
- Drafting Committee
- CEN/TC 256/WG 43 - Ground based services
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 03-Dec-2025
- Completion Date
- 17-Dec-2025
Overview - EN 16507:2014 (CEN)
EN 16507:2014, published by CEN, specifies interface and safety requirements for ground-based diesel refuelling equipment for railway vehicles. The standard covers vehicle fittings and fixed fuelling points intended to refuel locomotives, multiple units and other rolling stock fitted with diesel power units using fuels compliant with Directive 2009/30/EC. It does not apply to mobile or temporary refuelling points.
Key topics and technical requirements
- Vehicle interface: Each vehicle must have at least one circular refuelling opening (maximum height 1 500 mm above rail, minimum diameter 70 mm), sealing cover operable by hand, fuel level indicators on both sides (sight glasses not permitted) and clear marking per EN 15877-2.
- Tank and ventilation: Tanks and pipework must resist chemical attack by fuels in Directive 2009/30/EC, prevent surge/overflow and provide independent ventilation so filling can continue up to 90% tank level without premature shut-off.
- Fixed fuelling equipment:
- Nozzle: Flexible supply hose fitted with a Type II nozzle compliant with EN 13012; spout dimensions specified (170–280 mm length, 30–45 mm outer diameter).
- Breakaway coupling: Supply hose must include a breakaway coupling meeting EN 13617-2 to avoid spillage if movement occurs during refuelling.
- Flow rate: Each supply device shall deliver between 80 and 200 L/min.
- Refuelling apron: Impermeable apron with containment of 110% of potential spillage and drainage via an appropriate oil interceptor. Cleaning instructions and restrictions (e.g., avoid emulsifying chemicals; water <60 °C and <60 bar) are required.
- Information & maintenance: Operating and maintenance instructions are mandatory for vehicles and fixed installations to prevent leaks and ensure safe operation.
- National variants: Annex A records special national conditions (e.g., Great Britain BS 3818 compatibility; France aprons per Arrêté n°1435).
Practical applications and users
EN 16507:2014 is intended for:
- Railway infrastructure owners and depot designers specifying fixed refuelling points
- Rolling stock manufacturers and OEMs designing fuel tank openings, ventilation and refuelling interfaces
- Depot operators, maintenance teams and safety managers implementing refuelling procedures and site layouts
- Regulators and procurement teams ensuring interoperability across European networks and compliance with Directive 2008/57/EC
Practical benefits include harmonized vehicle-to-infrastructure interfaces, reduced fuel-spill risk, safer refuelling operations, and simplified cross-border compatibility.
Related standards
- EN 13012:2012 (fuel nozzles)
- EN 13617-2:2012 (breakaway couplings)
- EN 15877-2:2013 (external markings)
- EN 45545-7:2013 (fire safety for flammable liquid installations)
Keywords: EN 16507:2014, diesel refuelling equipment, railway refuelling, ground-based service, diesel fuelling, CEN standard, refuelling apron, breakaway coupling, fuel flow rate.
Frequently Asked Questions
EN 16507:2014 is a standard published by the European Committee for Standardization (CEN). Its full title is "Railway applications - Ground based service - Diesel refuelling equipment". This standard covers: This European Standard specifies interface requirements on vehicles and at designated fuelling points for diesel refuelling equipment for any railway vehicle fitted with a diesel power unit(s). This European Standard is written for refuelling railway vehicles with fuels that are compliant with Directive 2009/30/EC. This European Standard is not applicable to mobile or temporary refuelling points.
This European Standard specifies interface requirements on vehicles and at designated fuelling points for diesel refuelling equipment for any railway vehicle fitted with a diesel power unit(s). This European Standard is written for refuelling railway vehicles with fuels that are compliant with Directive 2009/30/EC. This European Standard is not applicable to mobile or temporary refuelling points.
EN 16507:2014 is classified under the following ICS (International Classification for Standards) categories: 45.060.10 - Tractive stock; 75.200 - Petroleum products and natural gas handling equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 16507:2014 is associated with the following European legislation: EU Directives/Regulations: 2008/57/EC; Standardization Mandates: M/334, M/483. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 16507:2014 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.JRULYDBahnanwendungen - Versorgungsdienste - DieselbetankungseinrichtungenApplications ferroviaires - Services au sol - Dispositifs de remplissage en carburantsRailway applications - Ground based service - Diesel refuelling equipment75.200Petroleum products and natural gas handling equipment45.060.10Tractive stockICS:Ta slovenski standard je istoveten z:EN 16507:2014SIST EN 16507:2014en,fr,de01-december-2014SIST EN 16507:2014SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16507
October 2014 ICS 45.060.10; 75.200 English Version
Railway applications - Ground based service - Diesel refuelling equipment
Applications ferroviaires - Services au sol - Dispositifs de remplissage en carburants
Bahnanwendungen - Versorgungsdienste - Dieselbetankungseinrichtungen This European Standard was approved by CEN on 9 August 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16507:2014 ESIST EN 16507:2014

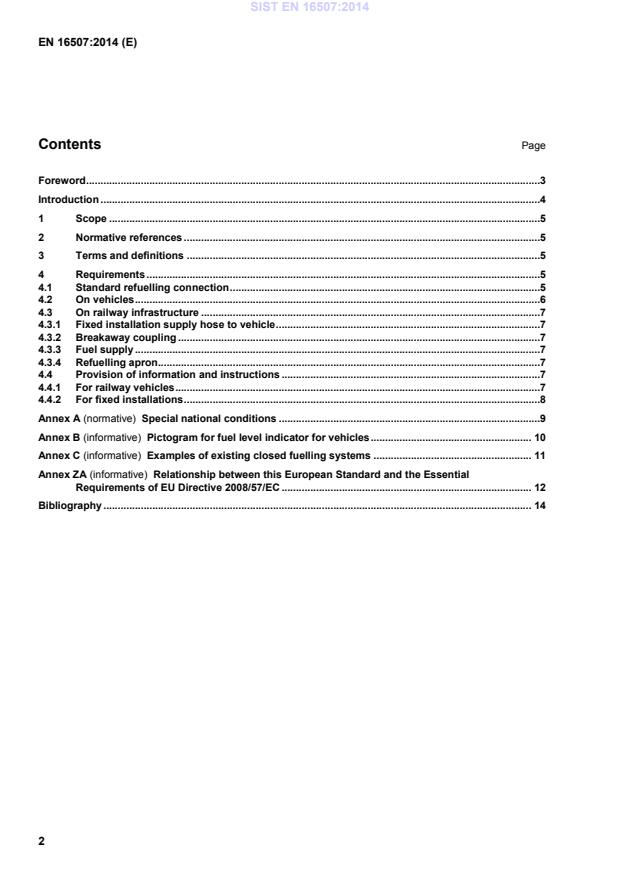

Special national conditions .9 Annex B (informative)
Pictogram for fuel level indicator for vehicles . 10 Annex C (informative)
Examples of existing closed fuelling systems . 11 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 2008/57/EC . 12 Bibliography . 14
2009/30/EC, Annex II shall be fitted with at least one nozzle compliant with 4.3.1. It is permitted to also fit additional alternative filling couplings to suit local conditions at the fuelling point where the vehicle is used. Railway vehicles fitted with a diesel engine that does not run on fuel compliant with Directive 2009/30/EC, Annex II shall have a foolproof opening and fuel tank to prevent inadvertent refuelling with the wrong fuel. Designated fuelling points on railway infrastructure that store and dispense fuel that is not compliant with Directive 2009/30/EC, Annex II shall be fitted with a foolproof end coupling compatible with the railway vehicle it is to refuel. Fixed installations for all fuels shall comply with 4.3.2, 4.3.3 and 4.3.4. 4.2 On vehicles There shall be an opening on each side of the vehicle, at a maximum height of 1 500 mm above rail level. The opening shall be circular with a minimum diameter of 70 mm. The opening shall either be directly on top of the fuel tank, or lead directly to the fuel tank by pipework, in all cases the opening shall be higher than the top of the fuel tank. NOTE
Where additional closed systems are used, examples are shown in Annex C, it is possible that the coupling height for the closed system could be lower than the top of the fuel level. There shall be a marking located beside each opening compliant with EN 15877-2:2013, 4.5.31 (Engine fuel filling point). The opening shall have a cover which seals it against fuel spillage. The cover shall be openable by hand without any tools, to allow the unobstructed access by the nozzle. There shall be sufficient
...
La norme SIST EN 16507:2014, intitulée « Applications ferroviaires - Service au sol - Équipement de ravitaillement en diesel », est un document essentiel qui définit les exigences d'interface pour les véhicules et les points de ravitaillement désignés concernant l'équipement de ravitaillement en diesel pour les véhicules ferroviaires équipés d'unités de puissance diesel. L'étendue de cette norme est clairement délimitée, ce qui lui confère une grande pertinence dans le secteur ferroviaire. En spécifiant des exigences pour le ravitaillement en diesel de manière conforme à la Directive 2009/30/EC, elle assure que les pratiques de ravitaillement respectent les normes environnementales européennes, contribuant ainsi à des opérations ferroviaires plus durables. Les points forts de cette norme réside dans sa capacité à établir une interface claire entre les véhicules ferroviaires et les infrastructures de ravitaillement. Cela facilite non seulement le processus de ravitaillement, mais assure également la sécurité et l'efficacité des opérations. De plus, l'exclusion des points de ravitaillement mobiles ou temporaires permet de concentrer la norme sur des installations pérennes, renforçant la confiance dans la mise en œuvre de pratiques de ravitaillement standards. La norme SIST EN 16507:2014 s'avère donc d'une grande importance pour les acteurs du secteur ferroviaire, car elle permet d'intégrer des solutions de ravitaillement diesel tout en respectant les réglementations en vigueur. Les exigences définies garantissent une uniformité dans les procédures de ravitaillement, ce qui est crucial pour l'interopérabilité et la fluidité des opérations ferroviaires à l'échelle européenne.
Die Norm EN 16507:2014, die sich mit der Dieselbetankung von Schienenfahrzeugen befasst, bietet eine umfassende reglementarische Grundlage für die Schnittstellenanforderungen an Fahrzeugen sowie an den dafür vorgesehenen Betankungsstellen. Die Relevanz dieser Norm liegt in ihrem klaren Fokus auf die Sicherheit und Effizienz beim Betanken von Schienenfahrzeugen, die mit einem Dieselantrieb ausgestattet sind. Ein wesentliches Merkmal dieser Norm ist die Konformität mit der Richtlinie 2009/30/EG, was sicherstellt, dass ausschließlich kraftstofftechnische Standards verwendet werden, die umweltfreundlich und nachhaltig sind. Dies fördert die Sicherheit und die Minimierung von Umweltrisiken bei der Betankung von Diesel auf Schienenfahrzeugen. Die Norm grenzt sich deutlich von temporären oder mobilen Betankungsstellen ab, was ihre Anwendbarkeit auf fixes Betanken hervorhebt. Dies erhöht die Planungssicherheit für Betreiber von Bahnanlagen und ermöglicht eine effiziente Integration in bestehende Infrastrukturen. Die klare Definition der Zulassungsanforderungen stellt sicher, dass alle beteiligten Parteien – von den Fahrzeugherstellern bis zu den Betriebsgesellschaften – über die notwendigen Spezifikationen für die Durchführung sicherer Betankungsprozesse informiert sind. Zusammenfassend lässt sich sagen, dass die EN 16507:2014 eine bedeutende Rolle bei der Standardisierung von Dieselbetankungssystemen im Schienenverkehr spielt, indem sie ein einheitliches Rahmenwerk für die Schnittstellenanforderungen bereitstellt und so zur Verbesserung der Betriebssicherheit und des Umweltschutzes beiträgt.
SIST EN 16507:2014は、鉄道アプリケーションにおける地上サービスに関連する標準であり、特にディーゼル燃料供給装置に対するインターフェース要件を明確に定義しています。この標準は、ディーゼル発電ユニットを搭載した鉄道車両に対しての燃料供給を対象としており、その適用範囲は非常に広いと言えます。 この標準の強みは、2009/30/EC指令に準拠した燃料を使用する鉄道車両に対して、設計された給油ポイントでの具体的なインターフェース要件を策定している点です。これにより、鉄道業界における燃料供給の安全性や効率性を向上させることができ、無駄を省き、環境への配慮も促進されています。 また、この文書は、モバイルまたは一時的な給油ポイントには適用されないことを明記しており、特定の条件下での使用に関する明確なガイドラインを提供しています。このように、SIST EN 16507:2014は、鉄道業界におけるディーゼル燃料供給に関する標準の必要性を十分に反映した、実践的で関連性の高い文書です。
EN 16507:2014 표준은 기차 응용 프로그램에 대한 중요한 가이드를 제공하는 문서로, 특히 디젤 연료 공급 장비와 관련된 인터페이스 요구 사항을 잘 규정하고 있습니다. 이 표준은 디젤 동력 장치가 장착된 모든 기차 차량에 대한 연료 공급 지점에서의 요구 사항을 명확히 하여, 기차의 안전하고 효율적인 연료 주입을 가능하게 합니다. EN 16507:2014의 가장 큰 강점은 유럽 연합의 연료 관련 법규인 지침 2009/30/EC에 부합하는 연료를 사용하는 기차 차량에 적용된다는 것입니다. 이는 연료 공급 과정을 규제하고, 환경적 측면에서도 신뢰성을 높여줍니다. 또한, 디젤 연료 공급 장비와 관련된 다양한 차량 및 주유소 간의 호환성을 보장하고, 시스템 간의 원활한 상호작용을 도와줍니다. 이 표준의 범위는 명확하고 포괄적이며, 디젤 연료 주입이 이루어지는 모든 고정된 주유소에 적용됩니다. 그러나, 모바일이나 임시 주유소에 대한 적용 제외는 실질적이며, 사용자가 표준의 적용 가능성을 쉽게 이해할 수 있도록 돕습니다. 결론적으로, EN 16507:2014 표준은 철도 차량의 디젤 연료 공급 시스템의 효율성과 안전성을 높이는 데 중추적인 역할을 합니다. 이러한 표준은 철도 운송 분야에서 더욱 안전하고 환경 친화적인 서비스를 제공하는 데 기여할 것으로 기대됩니다.
The standard EN 16507:2014 serves as a vital framework for the railway industry, specifically addressing the interface requirements between diesel refuelling equipment and railway vehicles equipped with diesel power units. Its scope is designed to enhance operational safety and efficiency at designated fuelling points. By providing clear specifications that ensure compatibility and safety, this standard is essential for facilitating effective refuelling processes in railway applications. One of the key strengths of EN 16507:2014 is its comprehensive approach to standardizing requirements for diesel refuelling equipment, including the necessary specifications for vehicle interfaces. This attention to detail not only promotes uniformity across the railway sector but also supports compliance with the European Directive 2009/30/EC regarding fuel quality. This alignment ensures that the refuelling processes adhere to stringent environmental standards, which is critical in today’s efforts toward reducing the ecological impact of transportation. Moreover, the document prudently excludes mobile or temporary refuelling points, thus concentrating on fixed installations where safety and compatibility can be most effectively monitored and managed. This specification is particularly relevant for railway operators looking to enhance their infrastructure reliability and operational integrity, as it delineates clear boundaries and guidelines for refuelling setups. The relevance of EN 16507:2014 is underscored in the context of increased safety measures within the railway industry. By standardizing the refuelling process, the document minimizes risks associated with fuel handling, which is paramount for both personnel safety and environmental protection. Furthermore, as the railway industry continues to evolve toward more sustainable practices, the specifications outlined in this standard play a crucial role in encouraging the use of compliant fuels, thus promoting an overall reduction in carbon footprints associated with railway operations. In summary, EN 16507:2014 stands out as a significant standard within the railway applications sector by providing focused and detailed guidelines for diesel refuelling equipment, enhancing compatibility, safety, and sustainability across railway vehicles. Its thoughtful scope and alignment with European environmental directives reinforce its importance within contemporary railway operations.
