Fasteners - Quality assurance system (ISO 16426:2002)

ISO 16426 specifies requirements for a fastener quality assurance system to be met by the fastener manufacturers and distributors. These requirements are intended to reduce or prevent the production of non-conforming fasteners with the objective of approaching zero defects for the characteristics specified.
This International Standard outlines the requirements from receipt of raw material through the manufacturing process to delivery at the distributor or the user, who is the installer.

Verbindungselemente - Qualitätssicherungssystem (ISO 16426:2002)

Diese Internationale Norm legt Anforderungen an ein Qualitätssicherungssystem fest, die von den Herstellern und Vertreibern von Verbindungselementen erfüllt werden müssen. Diese Anforderungen sind dazu vorgesehen, die Fertigung von fehlerhaften Verbindungselementen zu verringern oder zu verhindern, mit dem Ziel, sich dem Zustand "Null-Mängel" für festgelegte Eigenschaften anzunähern.
Diese Internationale Norm legt die Anforderungen von der Übernahme des Ausgangswerkstoffes über den Herstellungsprozess bis zur Lieferung an den Vertreiber oder den Verbraucher, der die Verbindungselemente montiert, fest.

Eléments de fixation - Systeme d'assurance qualité (ISO 16426:2002)

L'ISO 16426:2002 spécifie les exigences auxquelles doivent répondre le fabricant d'éléments de fixation mécaniques et les distributeurs. Ces exigences en système d'assurance qualité visent à réduire ou à empêcher la production d'éléments de fixation non conformes, et ont pour objectif de s'approcher du zéro défaut en ce qui a trait aux caractéristiques spécifiées.
L'ISO 16426:2002 fixe les exigences à partir de la réception de la matière première en passant par le processus de fabrication jusqu'à la livraison au distributeur ou à l'utilisateur, qui est l'installateur.

Mehanski vezni elementi - Sistem zagotavljanja kakovosti (ISO 16426:2002)

General Information

Status
Published
Publication Date
30-Jun-2003
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Jul-2003
Due Date
01-Jul-2003
Completion Date
01-Jul-2003

Buy Standard

Standard
SIST EN ISO 16426:2003
English language
15 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN ISO 16426:2003
01-julij-2003
Mehanski vezni elementi - Sistem zagotavljanja kakovosti (ISO 16426:2002)
Fasteners - Quality assurance system (ISO 16426:2002)
Verbindungselemente - Qualitätssicherungssystem (ISO 16426:2002)
Eléments de fixation - Systeme d'assurance qualité (ISO 16426:2002)
Ta slovenski standard je istoveten z: EN ISO 16426:2002
ICS:
03.120.99 Drugi standardi v zvezi s Other standards related to
kakovostjo quality
21.060.01 Vezni elementi na splošno Fasteners in general
SIST EN ISO 16426:2003 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN ISO 16426:2003
---------------------- Page: 2 ----------------------
SIST EN ISO 16426:2003
EUROPEAN STANDARD
EN ISO 16426
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2002
ICS 21.060.01
English version
Fasteners - Quality assurance system (ISO 16426:2002)

Eléments de fixation - Système d'assurance qualité (ISO Verbindungselemente - Qualitätssicherungssystem (ISO

16426:2002) 16426:2002)
This European Standard was approved by CEN on 15 October 2002.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European

Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national

standards may be obtained on application to the Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official

versions.

CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,

Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels

© 2002 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 16426:2002 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN ISO 16426:2003
EN ISO 16426:2002 (E)
CORRECTED 2003-02-05

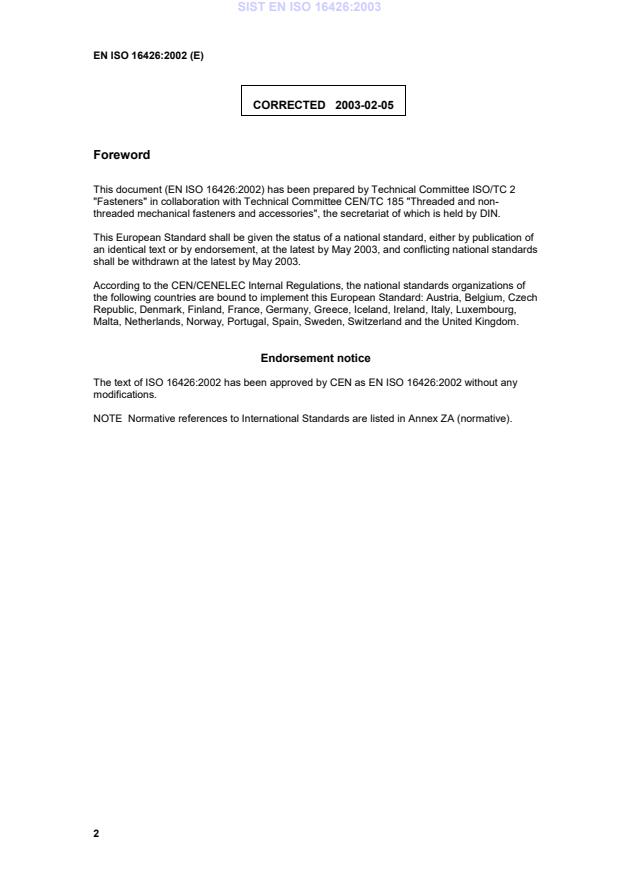

Foreword

This document (EN ISO 16426:2002) has been prepared by Technical Committee ISO/TC 2

"Fasteners" in collaboration with Technical Committee CEN/TC 185 "Threaded and non-

threaded mechanical fasteners and accessories", the secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of

an identical text or by endorsement, at the latest by May 2003, and conflicting national standards

shall be withdrawn at the latest by May 2003.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of

the following countries are bound to implement this European Standard: Austria, Belgium, Czech

Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg,

Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and the United Kingdom.

Endorsement notice

The text of ISO 16426:2002 has been approved by CEN as EN ISO 16426:2002 without any

modifications.

NOTE Normative references to International Standards are listed in Annex ZA (normative).

---------------------- Page: 4 ----------------------
SIST EN ISO 16426:2003
EN ISO 16426:2002 (E)
Annex ZA
(normative)
Normative references to international publications
with their relevant European publications

This European Standard incorporates by dated or undated reference, provisions from other

publications. These normative references are cited at the appropriate places in the text and the

publications are listed hereafter. For dated references, subsequent amendments to or revisions of

any of these publications apply to this European Standard only when incorporated in it by

amendment or revision. For undated references the latest edition of the publication referred to

applies (including amendments).

NOTE Where an International Publication has been modified by common modifications, indicated

by (mod.), the relevant EN/HD applies.
Publication Year Title EN Year
ISO 3269 2000 Fasteners - Acceptance inspection EN ISO 3269 2000
ISO 9000 2000 Quality management systems - EN ISO 9000 2000
Fundamentals and vocabulary
ISO 15330 1999 Fasteners - Preloading test for the EN ISO 15330 1999
detection of hydrogen
embrittlement - Parallel bearing
surface method
---------------------- Page: 5 ----------------------
SIST EN ISO 16426:2003
---------------------- Page: 6 ----------------------
SIST EN ISO 16426:2003
INTERNATIONAL ISO
STANDARD 16426
First edition
2002-11-15
Fasteners — Quality assurance system
Éléments de fixation — Système d'assurance qualité
Reference number
ISO 16426:2002(E)
© ISO 2002
---------------------- Page: 7 ----------------------
SIST EN ISO 16426:2003
ISO 16426:2002(E)
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not be

edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this file,

parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this area.

Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters

were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event

that a problem relating to it is found, please inform the Central Secretariat at the address given below.

© ISO 2002

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,

electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's

member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii ISO 2002 – All rights reserved
---------------------- Page: 8 ----------------------
SIST EN ISO 16426:2003
ISO 16426:2002(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO

member bodies). The work of preparing International Standards is normally carried out through ISO technical

committees. Each member body interested in a subject for which a technical committee has been established has

the right to be represented on that committee. International organizations, governmental and non-governmental, in

liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical

Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.

Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.

Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights.

International Standard ISO 16426 was prepared by Technical Committee ISO/TC 2, Fasteners.

Annex A of this International Standard is for information only.
ISO 2002 – All rights reserved iii
---------------------- Page: 9 ----------------------
SIST EN ISO 16426:2003
ISO 16426:2002(E)
Introduction

This International Standard is the second in a series of two standards for mechanical fastener quality using a

detection system and a prevention system respectively.

— ISO 3269 deals with acceptance inspection based on statistical sampling of fasteners at a given AQL level at the

time of receiving and constitutes a detection system intended primarily for use by the customer.

— ISO 16426 deals with fully traceable mechanical fasteners which have been produced under a verifiable quality

assurance system and constitutes a prevention system intended primarily for use by the fastener manufacturer.

iv ISO 2002 – All rights reserved
---------------------- Page: 10 ----------------------
SIST EN ISO 16426:2003
INTERNATIONAL STANDARD ISO 16426:2002(E)
Fasteners — Quality assurance system
1 Scope

This International Standard specifies requirements for a fastener quality assurance system to be met by the fastener

manufacturers and distributors. These requirements are intended to reduce or prevent the production of non-

conforming fasteners with the objective of approaching zero defects for the characteristics specified.

This International Standard outlines the requirements from receipt of raw material through the manufacturing process

to delivery at the distributor or the user, who is the installer.
2 Normative references

The following normative documents contain provisions which, through reference in this text, constitute provisions of

this International Standard. For dated references, subsequent amendments to, or revisions of, any of these

publications do not apply. However, parties to agreements based on this International Standard are encouraged to

investigate the possibility of applying the most recent editions of the normative documents indicated below. For

undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC

maintain registers of currently valid International Standards.
ISO 3269:2000, Fasteners — Acceptance inspection
ISO 9000:2000, Quality management systems — Fundamentals and vocabulary

ISO 15330:1999, Fasteners — Preloading test for the detection of hydrogen embrittlement — Parallel bearing

surface method
3 Terms and definitions

For the purposes of this International Standard, the following terms and definitions apply.

3.1
advanced quality planning

process that facilitates an interpretation of design objectives into design requirements that are an integral part of the

fastener quality plan, including process failure mode and effects analysis and control plans

3.2
alter

to perform any step after original manufacture which changes the geometry, mechanical properties or the

performance characteristics of a mechanical fastener
3.3
C value

measure of the capability of the process in relation to the process average based on the distance in units of standard

deviation between the process average and the closest specification limit for characteristics that have a normal

distribution pattern
ISO 2002 – All rights reserved 1
---------------------- Page: 11 ----------------------
SIST EN ISO 16426:2003
ISO 16426:2002(E)
3.4
customer
organization or person that receives a product
NOTE The customer may be the user or a distributor.
[ISO 9000]
3.5
commingling

mixing of identical fasteners from different manufacturing lots in the same container or bin

3.6
control plan

outline of the fastener manufacturing process which identifies control points that provide procedures for controlling

and minimizing process and product variation
3.7
defect
non-fulfilment of a requirement related to an intended or specified use

NOTE In the presence of a defect, the fastener will not function in its expected or intended use.

[ISO 9000]
3.8
distributor (stockist)

organization or person that purchases finished fasteners for resale to others and of which there are three types:

3.8.1
alteration distributor
distributor who alters fasteners prior to delivery
3.8.2
pass-through distributor

distributor who resells original manufacturer's containers of fasteners without repackaging or alteration of the

fasteners
3.8.3
repackaging distributor
distributor who only repackages fasteners prior to delivery
3.9
fastener characteristic
dimensional, mechanical or performance feature of the fastener
3.10
fastener quality assurance system

fastener manufacturing system that generally incorporates such elements as a written control plan, which includes

provisions for prototype development, initial production and full production, including advanced quality planning

(3.1), continual improvement, defect prevention, and in-process controls of dimensional, mechanical and

performance characteristics of the fastener
3.11
lot contamination

introduction of dissimilar fasteners or foreign substances or products into a manufacturing lot of fasteners

3.12
manufacturer

organization which purchases raw material and converts the material into a finished mechanical fastener

2 ISO 2002 – All rights reserved
---------------------- Page: 12 ----------------------
SIST EN ISO 16426:2003
ISO 16426:2002(E)
3.13
manufacturing lot

quantity of fasteners of a single designation including product grade, property class and size, manufactured from bar,

wire, rod or flat product from a single cast, processed through the same or similar steps at the same time or over a

continuous time period through the same heat treatment and/or coating process, if any

NOTE 1 Same heat treatment or coating process means:

— for a continuous process, the same treatment cycle without any setting modification;

— for a discontinuous process, the same treatment cycle for identical consecutive loads (batches).

NOTE 2 The manufacturing lot may be split into a number of manufacturing batches for processing purposes and then

reassembled into the same manufacturing lot.
[ISO 15330]
3.14
manufacturing lot number

unique number assigned by the manufacturer and which allows full traceability from the finished product back

through all previous manufacturing operations to a given heat or cast number of the raw material of manufacture

3.15
non-conformity
non-fulfilment of a requirement
[ISO 9000]
3.16
non-conforming fastener
fastener with one or more non-conformities
3.17
non-conforming parts per million (ppm)

number of non-conforming parts in a finished manufacturing lot of fasteners related to 1 million pieces

3.18
product continual improvement

orderly process intended to reduce variation, waste and testing frequencies while improving productivity, quality and

customer satisfaction
3.19
selected product characteristic

characteristic which is critical for assembling and/or for the function of the fastener and is designated by the customer

3.20
supplier
organization or person that provides a product
NOTE The supplier may be the manufacturer or a distributor.
[ISO 9000]
3.21
trace number

alphanumeric code assigned by a distributor, which identifies the original manufacturer and manufacturing lot

number
ISO 2002 – All rights reserved 3
---------------------- Page: 13 ----------------------
SIST EN ISO 16426:2003
ISO 16426:2002(E)
3.22
traceability of fasteners

ability to determine or verify the history of a finished fastener through records of its identification, to establish its

shipment, manufacturing process and the specific heat number of raw material from which it was manufactured

3.23
user

organization or person that purchases or otherwise acquires fasteners and installs them for purposes of assembly or

overhaul and maintenance
3.24
zero defect conception

conception that establishes an objective that no fasteners with defects are present, within a given mechanical

fastener lot, which impair their expected or intended use
4 Information to be provided by the customer
The customer shall specify this International Standard at the time of the order.

The order shall designate the selected product characteristics, if any, considering the intended application, or a

reasonably foreseeable application and its consequence.
5 Requirements
5.1 General

The selected product characteristics as designated by the customer shall be included in the written control plan. This

control plan is part of the quality assurance system to be used by the manufacturer.

The manufacturer and the customer shall agree on appropriate ppm and/or C values and a method for evaluation

for each respective selected characteristic.

For all other characteristics, the manufacturer may use the quality plan of his choice and the customer

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
