SIST HD 60364-7-753:2014

Low-voltage electrical installations - Part 7-753: Requirements for special installations or locations - Heating cables and embedded heating systems

This part of IEC 60364 applies to embedded electric heating systems for surface heating. It also applies to electric heating systems for de-icing or frost prevention or similar applications. Both indoor and outdoor systems are covered. Heating systems for industrial and commercial applications complying with relevant parts of IEC 60519, IEC 62395 and IEC 60079 are not covered. NOTE Examples of heating systems covered by this standard are heating systems for walls, ceilings, floors, roofs, drainpipes, gutters, pipes, stairs, roadways, non-hardened compacted areas (e.g. football fields, lawns).

Errichten von Niederspannungsanlagen - Teil 7-753: Anforderungen für Betriebsstätten, Räume und Anlagen besonderer Art - Heizleitungen und umschlossene Heizsysteme

Installations électriques à basse tension - Partie 7-753: Exigences pour les installations ou emplacements spéciaux - Câbles chauffants et systèmes de chauffage intégrés

L'IEC 60364-7-753:2014 s'applique aux systèmes de chauffage électriques intégrés pour le chauffage de surface. Elle s'applique aussi aux systèmes de chauffage électriques pour le dégivrage ou la prévention du gel ou pour des applications analogues. Les systèmes tant intérieurs qu'extérieurs sont couverts. Les systèmes de chauffage pour les applications industrielles et commerciales conformes aux parties applicables des normes IEC 60519, IEC 62395 et IEC 60079 ne sont pas couverts. Cette deuxième édition annule et remplace la première édition parue en 2005 et constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- le titre a été modifié de "Systèmes de chauffage par sol ou plafond" en "Câbles chauffants et systèmes de chauffage intégrés" pour être en cohérence avec le nouveau domaine d'application;
- le domaine d'application a été étendu et couvre maintenant les systèmes de chauffage électrique intégrés pour le chauffage de surfaces, les systèmes de chauffage électrique pour le dégivrage ou la prévention du gel ou des applications similaires, et couvre à la fois les systèmes intérieurs et extérieurs. Ceci inclut les systèmes pour: murs, plafonds, sols, toits, tuyaux d'évacuation, gouttières, tuyaux, escaliers, chaussées, zones compactées meubles (par exemple terrains de football, pelouses);
- pour les systèmes de chauffage installés dans les murs, la présente norme contient des exigences supplémentaires (par exemple gaine/enveloppe/grillage métallique) pour la protection contre les échauffements dus à un court-circuit entre conducteurs actifs pénétrant dans l'unité de chauffage intégré;
- pour les unités de chauffage fournies par le constructeur sans masse, la présente norme exige un recouvrement par un grillage métallique. Celui-ci a été réduit à 3 mm pour les systèmes de chauffage installés dans les murs;
- la présente norme exige maintenant que les systèmes de chauffage électrique soient choisis et mis en oeuvre de manière à éviter toute influence dommageable entre le système de chauffage et toute installation électrique ou non-électrique prévue;
- et la présente norme traite des températures de surface et renvoie maintenant le lecteur au guide approprié de l'IEC.

Nizkonapetostne električne inštalacije - 7-753. del: Zahteve za posebne inštalacije ali lokacije - Ogrevalni kabli in z njimi povezani sistemi ogrevanja (IEC 60364-7-753:2014)

Ta del standarda IEC 60364 velja za vgrajene električne sisteme ogrevanja za površinsko ogrevanje. Prav tako velja za električne sisteme ogrevanja, namenjene tajanju ali preprečevanju zamrzovanja ali podobni uporabi. Zajema tako sisteme v zaprtih prostorih kot tudi sisteme na prostem. Sistemi ogrevanja za industrijsko in komercialno uporabo, ki so v skladu z ustreznimi deli standardov IEC 60519, IEC 62395 in IEC 60079, niso zajeti. OPOMBA Primeri sistemov ogrevanja, zajetih v tem standardu, so sistemi ogrevanja za stene, strope, tla, strehe, odtočne cevi, žlebove, cevi, stopnišča, cestišča in neutrjena zbita območja (npr. nogometna igrišča, trate).

General Information

• Status: Published
• Publication Date: 21-Oct-2014
• ICS: 29.060.01 - Electrical wires and cables in general
• ICS: 91.140.10 - Central heating systems
• ICS: 91.140.50 - Electricity supply systems
• Technical Committee: ELI - Electrical and communication installations
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 30-Sep-2014
• Due Date: 05-Dec-2014
• Completion Date: 22-Oct-2014
• Ref Project: HD 60364-7-753:2014 - Low-voltage electrical installations - Part 7-753: Requirements for special installations or locations - Heating cables and embedded heating systems

Relations

• Replaces: SIST HD 384.7.753 S1:2003 - Electrical installations of buildings -- Part 7: Requirements for special installations or locations -- Section 753: Floor and ceiling heating systems
• Effective Date: 01-Nov-2014
• Corrected By: SIST HD 60364-7-753:2014/AC:2014 - Low-voltage electrical installations - Part 7-753: Requirements for special installations or locations - Heating cables and embedded heating systems
• Effective Date: 01-Dec-2014
• Replaces: SIST HD 384.7.753 S1:2003 - Electrical installations of buildings -- Part 7: Requirements for special installations or locations -- Section 753: Floor and ceiling heating systems
• Effective Date: 29-Jan-2023
• Replaces: SIST HD 384.7.753 S1:2003 - Electrical installations of buildings -- Part 7: Requirements for special installations or locations -- Section 753: Floor and ceiling heating systems
• Effective Date: 07-Jun-2022

Standards Content (Sample)

SLOVENSKI STANDARD
SIST HD 60364-7-753:2014
01-november-2014
1L]NRQDSHWRVWQHHOHNWULþQHLQãWDODFLMHGHO=DKWHYH]DSRVHEQHLQãWDODFLMH
DOLORNDFLMH2JUHYDOQLNDEOLLQ]QMLPLSRYH]DQLVLVWHPLRJUHYDQMD,(&

Low-voltage electrical installations - Part 7-753: Requirements for special installations or
locations - Heating cables and embedded heating systems
Ta slovenski standard je istoveten z: HD 60364-7-753:2014
ICS:
29.060.01 (OHNWULþQHåLFHLQNDEOLQD Electrical wires and cables in
VSORãQR general
91.140.10 Sistemi centralnega Central heating systems
ogrevanja
91.140.50 Sistemi za oskrbo z elektriko Electricity supply systems
SIST HD 60364-7-753:2014 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST HD 60364-7-753:2014

---------------------- Page: 2 ----------------------

SIST HD 60364-7-753:2014


HARMONIZATION DOCUMENT HD 60364-7-753

DOCUMENT D'HARMONISATION

HARMONISIERUNGSDOKUMENT
August 2014
ICS 91.140.50

English Version
Low-voltage electrical installations - Part 7-753: Requirements
for special installations or locations - Heating cables and
embedded heating systems
(IEC 60364-7-753:2014)
Installations électriques à basse tension - Partie 7-753: Errichten von Niederspannungsanlagen - Teil 7-753:
Exigences pour les installations ou emplacements spéciaux Anforderungen für Betriebsstätten, Räume und Anlagen
- Câbles chauffants et systèmes de chauffage intégrés besonderer Art - Heizleitungen und umschlossene
(CEI 60364-7-753:2014) Heizsysteme
(IEC 60364-7-753:2014)
This Harmonization Document was approved by CENELEC on 2014-06-11. CENELEC members are bound to comply with the
CEN/CENELEC Internal Regulations which stipulate the conditions for implementation of this Harmonization Document at national level.
Up-to-date lists and bibliographical references concerning such national implementations may be obtained on application to the CEN-
CENELEC Management Centre or to any CENELEC member.
This Harmonization Document exists in three official versions (English, French, German).
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. HD 60364-7-753:2014 E

---------------------- Page: 3 ----------------------

SIST HD 60364-7-753:2014
HD 60364-7-753:2014 - 2 -

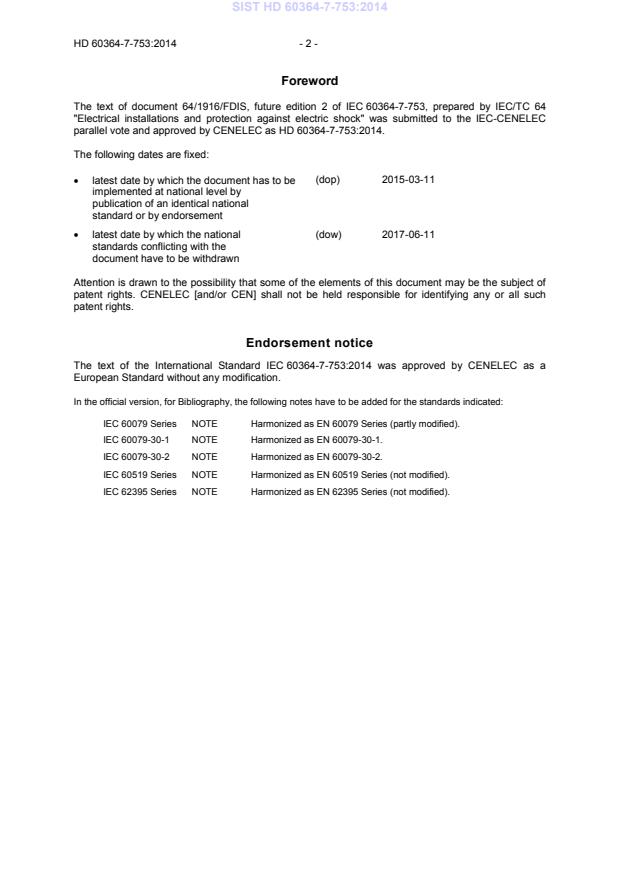

Foreword
