kSIST FprEN IEC 61547:2020/oprAA:2022

Equipment for general lighting purposes - EMC immunity requirements

electromagnetic immunity requirements for lighting equipment

Einrichtungen für allgemeine Beleuchtungszwecke - EMV-Störfestigkeitsanforderungen

Equipements pour l'éclairage à usage général - Exigences concernant l'immunité CEM

Oprema za splošno razsvetljavo - Zahteve za odpornost proti EMC - Dopolnilo AA

General Information

• Status: Not Published
• Public Enquiry End Date: 31-Mar-2022
• ICS: 29.140.01 - Lamps in general
• ICS: 33.100.20 - Immunity
• Technical Committee: IESV - Lamps and related equipment
• Current Stage: 98 - Abandoned project (Adopted Project)
• Start Date: 12-Apr-2023
• Due Date: 17-Apr-2023
• Completion Date: 12-Apr-2023
• Directive: 2014/30/EU - Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast)
• Mandate: M/552 - [C(2016) 7641 final] Standardisation request as regards harmonised standards in support of Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility
• Ref Project: FprEN IEC 61547:2020/prAA - Equipment for general lighting purposes - EMC immunity requirements

Relations

• Amends: SIST EN IEC 61547:2023 - Equipment for general lighting purposes - EMC immunity requirements (IEC 61547:2020)
• Effective Date: 08-Jun-2021

Overview

FprEN IEC 61547:2020/prAA is a CLC draft amendment to the European standard EN/IEC 61547 governing electromagnetic compatibility (EMC) immunity requirements for equipment for general lighting purposes. The amendment updates scope language, performance criteria and assessment notes, and provides alignment with related EN standards. It is intended to support conformity with EU Directive 2014/30/EU when adopted as a harmonised standard.

Key topics and technical requirements

• Scope: Covers EMC immunity of luminaires, lighting equipment and associated control functions used for general lighting purposes (including on/off switching, light-level setting and colour adjustment). A specific paragraph on lighting equipment with wireless control is removed in this amendment.
• Performance criteria: Clarifications and additional notes for performance criteria B and C:
  • Note: High-pressure discharge lamps may require up to 30 minutes to restore previous luminous flux.
  • Safety-critical applications (e.g., emergency escape lighting) may require much shorter restoration times per applicable standards.
  • For circuit protection, recovery times up to 30 minutes can be required.
• Luminous intensity assessment: Title revised to “Assessment of luminous intensity performance” and includes a perceptibility note: a 15% change in luminous flux is at the threshold of human perception.
• Modular compliance: Lighting equipment that incorporates modules already demonstrated compliant with this document (and used per the module manufacturer’s instructions) is deemed compliant without further testing.
• Applicability adjustments: Footnotes and references updated, e.g., certain tests covered by EN 60598-2-22:2014 and road/street lighting applying Criterion C in specified clauses.
• Referenced immunity tests: Normative references include IEC/EN immunity test standards such as IEC/EN 61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11 and IEC CISPR 15 / EN IEC 55015 for disturbance limits.

Applications and users

This standard is essential for:

• Manufacturers of luminaires, LED modules and lighting control gear seeking EMC immunity compliance.
• Product designers and compliance engineers planning immunity testing strategies and module integration.
• Test laboratories performing EMC immunity tests to IEC/EN 61000 series methods.
• Specifiers, procurement and regulatory bodies verifying conformance to harmonised standards under Directive 2014/30/EU.
• Operators of safety-critical installations (emergency lighting, road/street lighting) who need to consider specific restoration and performance criteria.

Related standards

• EN/IEC 60598-1 (luminaires)
• EN 60598-2-22:2014 (special luminaire types)
• IEC/EN 61000-4-x series (EMC immunity test methods)
• IEC CISPR 15 / EN IEC 55015 (radiated and conducted disturbance limits)

This amendment refines test applicability, recovery expectations and assessment guidance for lighting EMC immunity, helping manufacturers and testers align products with European regulatory and performance expectations.

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2022
Oprema za splošno razsvetljavo - Zahteve za odpornost proti EMC - Dopolnilo AA
Equipment for general lighting purposes - EMC immunity requirements
Einrichtungen für allgemeine Beleuchtungszwecke - EMV-Störfestigkeitsanforderungen
Equipements pour l'éclairage à usage général - Exigences concernant l'immunité CEM
Ta slovenski standard je istoveten z: FprEN IEC 61547:2020/prAA
ICS:
29.140.01 Žarnice na splošno Lamps in general
33.100.20 Imunost Immunity
kSIST FprEN IEC en
61547:2020/oprAA:2022
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD DRAFT
FprEN IEC 61547:2020
NORME EUROPÉENNE
EUROPÄISCHE NORM
prAA
January 2022
ICS 29.020; 29.140; 33.100.10
English Version
Equipment for general lighting purposes - EMC immunity
requirements
Equipements pour l'éclairage à usage général - Exigences Einrichtungen für allgemeine Beleuchtungszwecke - EMV-
concernant l'immunité CEM Störfestigkeitsanforderungen
This draft amendment prAA, if approved, will modify the European Standard FprEN IEC 61547:2020; it is submitted to CENELEC members
for enquiry.
Deadline for CENELEC: 2022-04-01.

It has been drawn up by CLC/TC 34.

If this draft becomes an amendment, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

This draft amendment was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to
the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 74068 Ref. No. FprEN IEC 61547:2020/prAA E

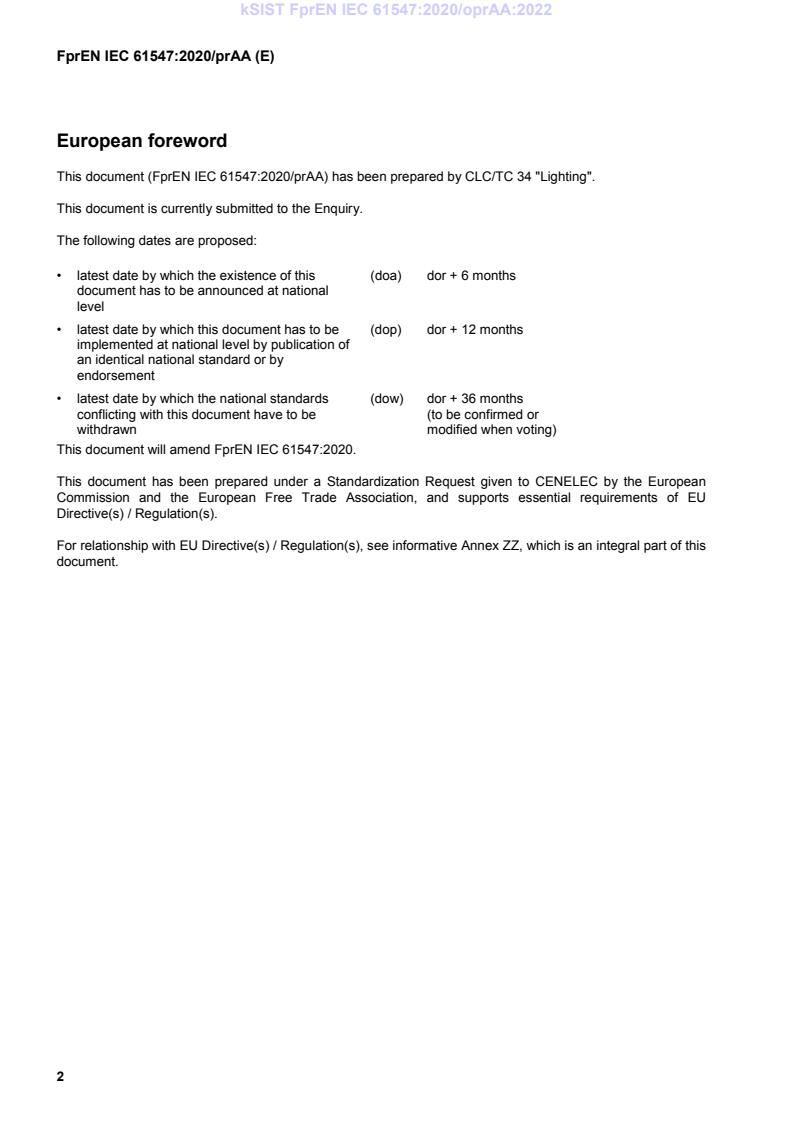

European foreword
This document (FprEN IEC 61547:2020/prAA) has been prepared by CLC/TC 34 "Lighting".
This document is currently submitted to the Enquiry.
The following dates are proposed:
• latest date by which the existence of this (doa) dor + 6 months
document has to be announced at national
level
• latest date by which this document has to be (dop) dor + 12 months
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) dor + 36 months
conflicting with this document have to be (to be confirmed or
withdrawn modified when voting)
This document will amend FprEN IEC 61547:2020.
This document has been prepared under a Standardization Request given to CENELEC by the European
Commission and the European Free Trade Association, and supports essential requirements of EU
Directive(s) / Regulation(s).
For relationship with EU Directive(s) / Regulation(s), see informative Annex ZZ, which is an integral part of this
document.
1 Modification to "Scope"
Delete paragraph 4, starting with “Lighting equipment with a wireless control …”.
2 Modification to subclause 4.1, "General"
Replace the second dashed item as follows:
"
— the control function, for example on/off switching, light level setting, colour adjustment."
3 Modification to subclause 4.2, "Categorization of performance criteria"
Add the following notes at the end of “b) performance criterion B”:
"
NOTE 1 High pressure discharge lamps by their technical nature require up to 30 min to fully restore the previous
luminous flux.
NOTE 2 In safety critical applications, for example emergency escape lighting, according to the applicable standards
typically much shorter restoration times are required."
Add the following note at the end of ”c) performance criterion C”:
"
NOTE For circuit protections recovery up to 30 min can be required."
4 Modification to subclause 4.3, "Objective assessment of luminous intensity
performance"
Replace the title with “Assessment of luminous intensity performance”.
Add the following note after the 2nd paragraph:
"
NOTE A difference of 15% in luminous flux is at the threshold of perception and therefore only either barely
perceived or even not perceived at all by most humans"
5 Modification to subclause 5.1, "General"
Delete paragraph 3, starting with “It may be determined…”.
6 Modification to subclause 6.2, "Applicability of tests and associated performance
criterion"
Replace the 2nd paragraph as follows:
"Lighting equipment applying only modules for which compliance with the requirements of this document has
already been demonstrated and which are installed and are used in accordance with the module
manufacturer’s instructions, is deemed compliant with this document without further testin
...
