Outdoor hydrogen refuelling points dispensing gaseous hydrogen and incorporating filling protocols

This document defines the minimum requirements to ensure the interoperability of hydrogen refuelling points, including refuelling protocols that dispense gaseous hydrogen to road vehicles (e.g. Fuel Cell Electric Vehicles) that comply with legislation applicable to such vehicles.
The safety and performance requirements for the entire hydrogen fuelling station, addressed in accordance with existing relevant European and national legislation, are not included in this document.
NOTE Guidance on considerations for hydrogen fuelling stations is provided in ISO 19880-1:2020.

Wasserstofftankstellen im Außenbereich zur Abgabe gasförmigen Wasserstoffs und Betankungsprotokolle umfassend

Points de ravitaillement en hydrogène en extérieur distribuant de l'hydrogène gazeux et intégrant des protocoles de remplissage

Le présent document définit les exigences minimales permettant de garantir l'interopérabilité des points de ravitaillement en hydrogène intégrant les protocoles de remplissage qui distribuent de l'hydrogène gazeux pour les véhicules routiers (par exemple, les véhicules électriques à pile à combustible) qui sont conformes à la législation applicable à ces véhicules.
Les exigences de sécurité et de performances relatives à toute la station de remplissage d'hydrogène, traitées conformément à la législation européenne et nationale, ne sont pas incluses dans le présent document.
NOTE Les recommandations relatives aux considérations concernant les stations de remplissage d'hydrogène sont fournies dans l'ISO 19880-1:2020.

Zunanje polnilne postaje za plinasti vodik in postopki polnjenja

General Information

Status
Withdrawn
Publication Date
17-Nov-2020
Withdrawal Date
13-Feb-2024
Current Stage

Relations

Buy Standard

Standard
EN 17127:2021 - BARVE
English language
19 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-februar-2021
Nadomešča:
SIST EN 17127:2019
Zunanje polnilne postaje za plinasti vodik in postopki polnjenja
Outdoor hydrogen refuelling points dispensing gaseous hydrogen and incorporating
filling protocols
Gasförmiger Wasserstoff - Betankungsanlagen - Teil 1: Allgemeine Anforderungen
Points de ravitaillement en hydrogène en extérieur distribuant de l'hydrogène gazeux et
intégrant des protocoles de remplissage
Ta slovenski standard je istoveten z: EN 17127:2020
ICS:
27.075 Tehnologija vodika Hydrogen technologies
71.100.20 Industrijski plini Gases for industrial
application
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 17127
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2020
EUROPÄISCHE NORM
ICS 27.075; 71.100.20; 75.200 Supersedes EN 17127:2018
English Version
Outdoor hydrogen refuelling points dispensing gaseous
hydrogen and incorporating filling protocols
Points de ravitaillement en hydrogène en extérieur Gasförmiger Wasserstoff - Betankungsanlagen - Teil 1:
distribuant de l'hydrogène gazeux et intégrant des Allgemeine Anforderungen
protocoles de remplissage
This European Standard was approved by CEN on 18 October 2020.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17127:2020 E
worldwide for CEN national Members.

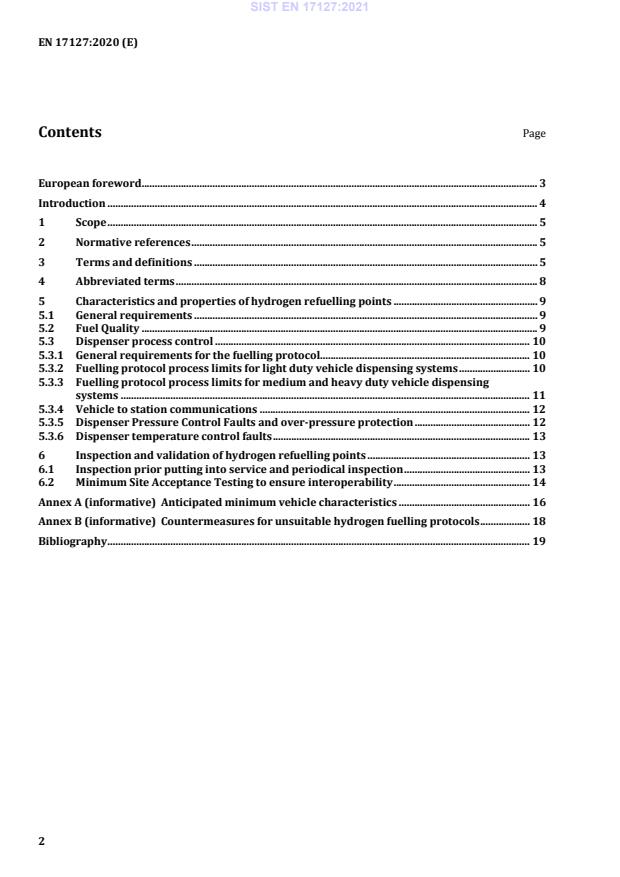

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Abbreviated terms . 8
5 Characteristics and properties of hydrogen refuelling points . 9
5.1 General requirements . 9
5.2 Fuel Quality . 9
5.3 Dispenser process control . 10
5.3.1 General requirements for the fuelling protocol. 10
5.3.2 Fuelling protocol process limits for light duty vehicle dispensing systems . 10
5.3.3 Fuelling protocol process limits for medium and heavy duty vehicle dispensing
systems . 11
5.3.4 Vehicle to station communications . 12
5.3.5 Dispenser Pressure Control Faults and over-pressure protection . 12
5.3.6 Dispenser temperature control faults . 13
6 Inspection and validation of hydrogen refuelling points . 13
6.1 Inspection prior putting into service and periodical inspection . 13
6.2 Minimum Site Acceptance Testing to ensure interoperability . 14
Annex A (informative) Anticipated minimum vehicle characteristics . 16
Annex B (informative) Countermeasures for unsuitable hydrogen fuelling protocols . 18
Bibliography . 19

European foreword
This document (EN 17127:2020) has been prepared by Technical Committee CEN/TC 268 “Cryogenic
vessels and specific hydrogen technologies applications”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2021, and conflicting national standards shall be
withdrawn at the latest by May 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 17127:2018.
Compared to the previous version, the following changes apply:
— Improvement of the definitions;
— The general requirements of the characteristics and properties of hydrogen refuelling points have
been completed to provide more information;
— Clarification of the fuelling protocols;
— Revision of the acceptable test for the minimum SAT to ensure interoperability;
— Correction of Figure A.1.
This document has been prepared under Mandate M/533 given to CEN by the European Commission and
the European Free Trade Association.
It applies to hydrogen refuelling points dispensing gaseous hydrogen to vehicles compliant with GTR13,
UNECE R134 or Regulation (EC) No 79/2009.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom
Introduction
The European Commission in its standardization request M/533 of March 12th, 2015, aims to ensure that
technical specifications for interoperability of refuelling points are specified in European Standards
compatible with the relevant International Standards. These specifications aim to meet the European
needs, be compatible and aligned as much as possible with relevant International Standards and as far as
possible with existing refuelling infrastructure already in place and leave room to accommodate the
adopted standard to local technical, analytical and regulatory needs. The requested European Standards
aim to be technologically and commercially neutral and based on the know-how currently in possession
of the EU industry and of the public sector on a fair, reasonable and non-discriminatory basis.
According to the legal requirements given in the Alternative Fuels Infrastructure Directive (AFID) and
M/533, European Standards specifying only the required specifications for ensuring the interoperability
of refuelling points have to be provided. European standards and common requirements with respect to
“interoperability” mean the capacity of an infrastructure to supply energy (in this document hydrogen)
that is compatible with all vehicle technologies and allows seamless EU-wide mobility and a clear
definition of fuel pressure and temperature levels and connector designs.
The European Standardization Organizations (ESOs) should adopt European Standards in accordance
with Article 10 of Regulation (EU) No 1025/2012 of the European Parliament and of the Council, and
those standards should be based on current International Standards or ongoing international
standardization work, where applicable.
Direction from the standardization request M/533 for European Standards for hydrogen supply are to
develop European Standards containing technical solutions for interoperability with technical specifications
in regard to Article 5 and point 2 of Annex II, in particular for:
a) outdoor hydrogen refuelling points dispensing gaseous hydrogen;
b) hydrogen purity dispensed by hydrogen refuelling points;
c) fuelling algorithms and equipment of hydrogen refuelling points;
d) connectors for vehicles for the refuelling of gaseous hydrogen.
This document specifies Items a) and c).
Item b) is covered by EN 17124 and Item d) by EN ISO 17268.
1 Scope
This document defines the minimum requirements to ensure the interoperability of hydrogen refuelling
points, including refuelling protocols that dispense gaseous hydrogen to road vehicles (e.g. Fuel Cell
Electric Vehicles) that comply with legislation applicable to such vehicles.
The safety and performance requirements for the entire hydrogen fuelling station, addressed in
accordance with existing relevant European and national legislation, are not included in this document.
NOTE Guidance on considerations for hydrogen fuelling stations is provided in ISO 19880-1:2020.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 17124, Hydrogen fuel — Product specification and quality assurance — Proton exchange membrane
(PEM) fuel cell applications for road vehicles
EN ISO 17268, Gaseous hydrogen land vehicle refuelling connection devices (ISO17268)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
NOTE Units used in this document follow SI (International System of Units).
3.1
compressed hydrogen storage system
CHSS
hydrogen storage on-board vehicle, as defined in the GTR#13 and UNECE R134
3.2
dispenser
equipment in the dispensing system, including the dispenser cabinet(s) and support structure, that is
physically located in the fuelling area
Note 1 to entry: The hydrogen dispenser typically includes, as a minimum, the fuelling assembly, required
temperature and pressure instrumentation, filters, and the user interface to conduct vehicle fuelling.
Note 2 to entry: The manufacturer of the hydrogen dispenser can elect to include additional equipment in the
dispenser, including the possibility of all equipment in the dispensing system.
3.3
dispenser cabinet
protective housing that encloses process piping and can also enclose measurement, control and ancillary
dispenser equipment
3.4
dispenser fuel pressure
pressure of the hydrogen gas supplied to the vehicle by the refuelling point
Note 1 to entry: See Annex A for discussion of pressure terminology and its application to dispensing systems.
3.5
dispenser fuel temperature
temperature of the hydrogen gas supplied to the vehicle by the refuelling point
3.6
dispensing system
system downstream of the hydrogen supply system comprising all equipment necessary to carry out the
vehicle refuelling operation, through which the compressed hydrogen is supplied to the vehicle
3.7
hydrogen fuelling station
facility for the dispensing of compressed hydrogen vehicle fuel, often referred to as a hydrogen refuelling
station (HRS) or hydrogen filling station, including the supply of hydrogen compression, storage and
dispensing systems
3.8
hydrogen service level
HSL
pressure level in MPa used to characterize the hydrogen service of the dispenser based on the NWP rating
of the vehicle
Note 1 to entry: The numerical value of HSL also matches the number after the “H” in Pressure Class.
Note 2 to entry: See Annex A for application of pressure terminology to hydrogen dispenser systems and vehicles.
3.9
interoperability
capability of a hydrogen dispensing point to supply hydrogen at the fuelling station/vehicle interface that
is compatible with road vehicles and allows seamless EU-wide mobility through applying clear definitions
of connector designs, fuel quality, pressure levels, temperatures and other applicable considerations
3.10
maximum allowable working pressure
MAWP
maximum press
...
