IEC 60626-2:2009

Combined flexible materials for electrical insulation - Part 2: Methods of test

IEC 60626-2:2009 provides the test methods for combined flexible materials for electrical insulation. Some properties and relevant test methods, according to the perfomance requirements of IEC 60626-3, were confirmed. Other test methods are described as a supplement of guidance for further specification that could be agreed between customer and supplier to meet specific needs of the end use. The main changes from the previous edition are as follows: some tests such as for edge tearing and stiffness, actually not used and not listed in the requirements of Part 3, were deleted.

Matériaux combinés souples destinés à l'isolement électrique - Partie 2: Méthodes d'essai

La CEI 60626-2:2009 fournit les méthodes d'essai pour les matériaux combinés souples destinés à l'isolement électrique. Certaines propriétés et méthodes d'essai correspondantes ont été confirmées, conformément aux exigences de performance de la CEI 60626-3. D'autres méthodes d'essais sont décrites en tant que suppléments de guide pour des spécifications complémentaires susceptibles d'être convenues entre le client et le fournisseur pour répondre aux besoins spécifiques de l'utilisation finale. Les changements principaux par rapport à l'édition précédente sont les suivants: certains essais tels que le déchirement des bords et la rigidité mécanique, en réalité non utilisés et non énoncés dans les exigences de la partie 3, ont été supprimés.

General Information

• Status: Published
• Publication Date: 28-Sep-2009
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 17.220.99 - Other standards related to electricity and magnetism
• ICS: 29.035.01 - Insulating materials in general
• ICS: 33.100.01 - Electromagnetic compatibility in general
• Technical Committee: TC 15 - Solid electrical insulating materials
• Drafting Committee: MT 10 - TC 15/MT 10
• Current Stage: PPUB - Publication issued
• Start Date: 15-Dec-2009
• Completion Date: 29-Sep-2009

Standards Content (Sample)

IEC 60626-2 ®
Edition 3.0 2009-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Combined flexible materials for electrical insulation –
Part 2: Methods of test
Matériaux combinés souples destinés à l'isolement électrique –
Partie 2: Méthodes d'essai
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 60626-2 ®
Edition 3.0 2009-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Combined flexible materials for electrical insulation –
Part 2: Methods of test
Matériaux combinés souples destinés à l'isolement électrique –
Partie 2: Méthodes d'essai
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
K
CODE PRIX
ICS 17.220.99; 29.035.01 ISBN 978-2-88910-237-2

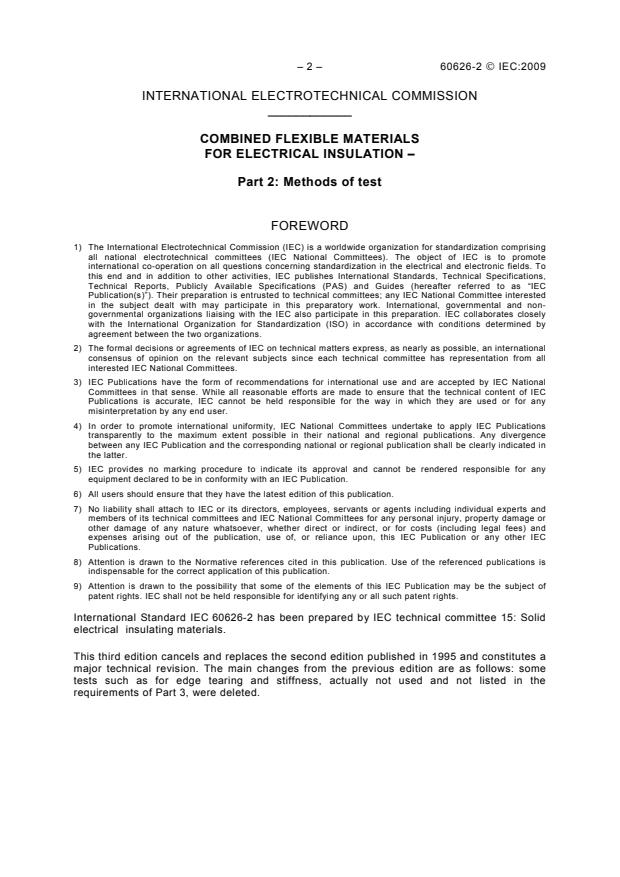

– 2 – 60626-2 © IEC:2009
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COMBINED FLEXIBLE MATERIALS
FOR ELECTRICAL INSULATION –
Part 2: Methods of test
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60626-2 has been prepared by IEC technical committee 15: Solid
electrical insulating materials.
This third edition cancels and replaces the second edition published in 1995 and constitutes a
major technical revision. The main changes from the previous edition are as follows: some
tests such as for edge tearing and stiffness, actually not used and not listed in the
requirements of Part 3, were deleted.

60626-2 © IEC:2009 – 3 –
The text of this standard is based on the following documents:
CDV Report on voting
15/470/CDV 15/512/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 60626 series, under the general title Combined flexible
materials for electrical insulation, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 4 – 60626-2 © IEC:2009
INTRODUCTION
This International standard deals with test methods of combined flexible materials consisting
of two or more different insulating materials laminated together as described in IEC 60626-1.
The components of flexible combined materials are polymer film and fibrous sheet material.
This standard does not include materials based on mica paper, as primary component,
covered by IEC 60371, but mica paper may be used as complementary material.
The series has three parts describing:
Part 1: Definitions and general requirements (IEC 60626-1)
Part 2: Methods of test (IEC 60626-2)
Part 3: Specifications for individual materials (IEC 60626-3)

60626-2 © IEC:2009 – 5 –
COMBINED FLEXIBLE MATERIALS
FOR ELECTRICAL INSULATION –
Part 2: Methods of test
1 Scope
This International Standard provides the test methods for combined flexible materials for
electrical insulation. Some properties and relevant test methods, according to the perfomance
requirements of IEC 60626-3, were confirmed. Other test methods are described as a
supplement of guidance for further specification that could be agreed between customer and
supplier to meet specific needs of the end use.
Materials which conform to this specification meet established levels of performance.
However, the selection of material by a user for a specific application should be based on the
actual requirements necessary for adequate performance in that application and not based on
this specification alone.
SAFETY WARNING
It is the responsibility of the user of the methods contained or referred to in this document to
ensure that they are used in a safe manner.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60216-4-1:2006, Electrical insulating materials – Thermal endurance properties – Part 4:
Ageing ovens – Section 1: Single-chamber ovens
IEC 60243-1:1998, Electrical strength of insulating materials – Test methods – Part 1: Tests
at power frequencies
IEC 60626-3:2008, Combined flexible materials for electrical insulation –
Part 3: Specifications for individual materials
ISO 536: 1995, Paper and board – Determination of grammage
3 General requirements on tests
Unless otherwise specified, the test specimens, after being cut, shall be conditioned for 24 h
at (23 ± 2) °C and (50 ± 5) % relative humidity. If the test is not conducted in this standard
atmosphere, the test shall be made within 5 min after removal from the standard atmosphere.

– 6 – 60626-2 © IEC:2009
4 Thickness
4.1 Test apparatus
4.1.1 An external screw type micrometer having measuring faces of 6 mm to 8 mm diameter.
The measuring faces shall be flat to within 0,001 mm and parallel to within 0,003 mm. The
pitch of the screw shall be 0,5 mm and the graduations shall be 50 divisions of 0,01 mm,
enabling readings to be estimated to 0,002 mm.
The pressure exerted on the specimens shall be 100 kPa as described in 4.1.2.
4.1.2 A dead-weight dial type micrometer having two ground and lapped concentric circular
surfaces flat to within 0,001 mm and parallel to within 0,003 mm. The upper surface shall be 6
mm to 8 mm in diameter. The lower surface shall be larger than the upper one. The upper
surface shall move on the axis perpendicular to the surfaces. The dial shall be graduated to
read directly to 0,002 mm. The frame of the micrometer shall be of such rigidity that a force of
15 N applied to dial housing, out of contact with either the weight or the presser foot spindle,
will produce a deflection of the frame not greater than 0,002 mm as indicated on the
micrometer dial. The pressure exerted on the specimen shall be 100 kPa.
4.1.3 The setting gauge used to check the instruments shall be accurate to within
±0,001 mm of the nominal size. The indicated thickness by the instruments shall not differ
by more than 0,005 mm from the gauge block.
NOTE For materials with high compressibility and special structure, other values for the area and the pressure of
the measuring faces may be specified.
4.2 Test specimens
4.2.1 General
In the "as received" condition.
4.2.2 Full width and sheet material
Full width material delivered on rolls or sheet material cut to length. One specimen 25 mm
wide and whose length is equal to the width of the roll or sheet shall be cut across the entire
width of the material.
4.2.3 Slit material (tape)
One specimen 1 m long shall be cut from the roll.
4.3 Procedure
Measu
...
