SIST EN IEC 60669-2-1:2023
(Main)Switches for household and similar fixed electrical installations - Part 2-1: Particular requirements - Electronic control devices (IEC 60669-2-1:2021)
Switches for household and similar fixed electrical installations - Part 2-1: Particular requirements - Electronic control devices (IEC 60669-2-1:2021)
This clause of Part 1 is completely replaced by the following:
This part of IEC 60669 applies to electronic control devices, a general term to cover electronic switches, home and building electronic systems (HBES) / building automation and control systems (BACS) switches and electronic extension units.
It applies to electronic switches and to HBES/BACS switches, for alternating current (AC) only with a rated switching voltage not exceeding 250 V and a rated current not exceeding 16 A, intended for household and similar fixed electrical installations, either indoors or outdoors.
It also applies to electronic extension units with a rated supply voltage not exceeding 250 V AC and 120 V DC, such as sensors and push buttons.
This document also applies to electronic remote control switches (RCS) and electronic time delay switches (TDS). Particular requirements are given in Annex FF.
Switches including only passive components such as resistors, capacitors, inductors, positive temperature coefficient (PTC) and negative temperature coefficient (NTC) components, varistors, printed wiring boards and connectors are not considered as electronic control devices.
This document also applies to electronic switches and HBES/BACS switches for the operation of lighting equipment circuits and the control of the brightness of lighting equipment (dimmers) as well as the control of the speed of motors (for example, those used in ventilating fans) and for other purposes (for example, heating controls).
The operation and/or control as mentioned above can be transmitted by an electronic signal via several media, for example, powerline (mains), twisted pair, optical fibre, radio frequency, infrared, etc. and are performed:
- intentionally by a person via an actuating member, a key, a card, etc., via a sensing
surface or a sensing unit, by means of touch, proximity, turn, optical, acoustic, thermal;
- by physical means, for example, light, temperature, humidity, time, wind velocity, presence
of people;
- by any other influence.
This document also applies to electronic control devices which include integrated radio receivers and transmitters.
This document covers only those requirements for mounting boxes which are necessary for the tests on the electronic control devices.
Requirements for general purpose mounting boxes are given in the relevant part, if any, of IEC 60670.
This document is not intended to cover devices falling within the scope of IEC 60730 (all parts).
Electronic control devices complying with this document are suitable for use at ambient temperature not normally exceeding 25 °C but occasionally reaching 35 °C with a lower limit of the ambient air temperature of −5 °C.
NOTE 1 For lower temperatures, see Annex E.
Functional safety aspects are not covered by this document. Functional safety requirements are covered by the standards of the controlled devices.
In locations where special conditions prevail, such as in ships, vehicles and the like and in hazardous locations, for example where explosions are liable to occur, special construction and/or additional requirements may be required.
This document is not intended to cover devices which are designed to be incorporated in appliances or are intended to be delivered together with a specific appliance and which are within the scope of IEC 60730 (all parts) or IEC 61058-1.
Examples of designs of electronic switches and HBES/BACS switches and functions are shown in Annex AA.
Additional requirements for electronic control devices using DLT-technology in accordance with IEC 62756-1 are given in Annex CC.
Electrical interface specification for phase-cut dimmer used in phase-cut dimmed lighting systems are given for information only in Annex EE.
NOTE 2 Electronic switches and HBES/BACS switches without a mechanical switch in the main circuit do not provide a "full off-state". Therefore, the circuit on the load side are to be considered to be live.
Schalter für Haushalt und ähnliche ortsfeste elektrische Installationen - Teil 2-1: Besondere Anforderungen - Elektronische Schalter (IEC 60669-2-1:2021)
Interrupteurs pour installations électriques fixes domestiques et analogues - Partie 2-1: Exigences particulières - Dispositifs de commande électronique (IEC 60669-2-1:2021)
l’IEC 60669-2-1:2021 s’applique aux dispositifs de commande électronique, c’est-à-dire un terme général qui englobe les interrupteurs électroniques, les interrupteurs des systèmes électroniques pour les foyers domestiques et les bâtiments (HBES) / systèmes de gestion technique des bâtiments (SGTB) et les éléments électroniques périphériques.
Elle s’applique aux interrupteurs électroniques et aux interrupteurs HBES/SGTB, pour courant alternatif seulement, de tension de coupure assignée ne dépassant pas 250 V et de courant assigné ne dépassant pas 16 A, prévus pour des installations électriques fixes domestiques et analogues, intérieures ou extérieures.
Elle s’applique également aux éléments électroniques périphériques dont la tension d’alimentation assignée ne dépasse pas 250 V en courant alternatif et 120 V en courant continu, comme les capteurs et les boutons-poussoirs.
Le présent document s’applique également aux télérupteurs électroniques et aux minuteries électroniques. Des exigences particulières sont données dans l’Annexe FF.
Cette cinquième édition annule et remplace la quatrième édition parue en 2002,
l'Amendement 1:2008 et l'Amendement 2:2015. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) intégration des exigences relatives aux interrupteurs HBES, précédemment incluses dans la norme IEC 60669-2-5;
b) modification de 19.106, essais et exigences pour les interrupteurs pour LED;
c) indications générales pour couvrir les dispositifs de commande électronique;
d) essai de boucle.
Stikala za gospodinjstva in podobne nepremične električne inštalacije - 2-1. del: Posebne zahteve - Elektronske kontrolne naprave (IEC 60669-2-1:2021)
To točko 1. dela v celoti nadomesti naslednje besedilo:
Ta del standarda IEC 60669 se uporablja za elektronske krmilne naprave, ki je splošni izraz za elektronska stikala, stikala stanovanjskih in stavbnih elektronskih sistemov (HBES)/sistemov za avtomatizacijo in nadzor stavb (BACS) in elektronske razširitvene enote.
Uporablja se za elektronska stikala in stikala stanovanjskih in stavbnih elektronskih sistemov/sistemov za avtomatizacijo in nadzor stavb za uporabo v gospodinjstvih in podobnih notranjih ali zunanjih nepremičnih električnih inštalacijah, pri čemer njihova nazivna preklopna napetost ne presega 250 V in nazivni tok ne presega 16 A.
Ta standard se uporablja tudi za elektronske razširitvene enote z nazivno napajalno napetostjo manjšo od 250 V izmenično in 120 V enosmerno, kot so senzorji in stikala na gumb.
Ta dokument se uporablja tudi za daljinska vodena elektronska stikala (RCS) in elektronska časovno zakasnilna stikala (TDS). Posebne zahteve so navedene v dodatku FF.
Stikala, ki vključujejo samo pasivne komponente, kot so upori, kondenzatorji, induktorji, komponente s pozitivnim temperaturnim koeficientom (PTC) in negativnim temperaturnim koeficientom (NTC), varistorji, tiskana vezja in konektorji, se ne štejejo za elektronske krmilne naprave.
Ta dokument se uporablja tudi za elektronska stikala in stikala stanovanjskih in stavbnih elektronskih sistemov (HBES)/sistemov za avtomatizacijo in nadzor stavb (BACS) za upravljanje tokokrogov opreme za razsvetljavo in nadzor svetlosti opreme za razsvetljavo (temnilna stikala), nadzor hitrosti motorjev (npr. motorjev, ki se uporabljajo za ventilatorje) ter druge namene (npr. krmilne elemente ogrevanja).
Kot je navedeno zgoraj, se lahko upravljanje in/ali krmiljenje prenaša z elektronskim signalom prek različnih medijev, npr. napajalnih vodov, sukanih paric, optičnih vlaken, radijskih frekvenc, infrardečih žarkov itd., in se ju izvaja:
– namensko, pri čemer ju izvaja oseba prek sprožilnega elementa, ključa, kartice itd. oziroma prek
površine ali enote za zaznavanje dotika, bližine, obrata ali optičnih, akustičnih ali termičnih površin ali enot za zaznavanje;
– s fizikalnimi sredstvi, npr. svetlobo, temperaturo, vlažnostjo, časom, hitrostjo vetra, prisotnostjo
oseb;
– z drugimi sredstvi.
Ta dokument se uporablja tudi za elektronske krmilne naprave z vgrajenimi radijskimi sprejemniki in oddajniki.
Ta dokument zajema samo tiste zahteve za montažne doze, ki so potrebne za preskuse na elektronskih krmilnih napravah.
Zahteve za montažne doze za splošno uporabo so podane v ustreznem delu, če obstaja, standarda IEC 60670.
Ta dokument ne obravnava naprav, ki so zajete v standardu IEC 60730 (vsi deli).
Elektronske krmilne naprave, ki so v skladu s tem dokumentom, so primerne za uporabo pri temperaturah okolja, ki običajno ne presegajo 25 °C, vseeno pa občasno dosežejo 35 °C, pri čemer je spodnja meja temperature okolja –5 °C.
OPOMBA 1: Za nižje temperature glej dodatek E.
Ta dokument ne zajema funkcionalne varnosti. Zahteve za funkcionalno varnost so zajete v standardih za krmiljene naprave.
Na območjih, kjer prevladujejo posebne razmere, npr. na ladjah, v vozilih in podobno ter v nevarnih območjih, npr. kjer so možne eksplozije, so morda potrebne posebne konstrukcije in/ali dodatne zahteve.
Ta dokument ne obravnava naprav, ki so zasnovane za vgradnjo v aparate ali se jih dobavi skupaj s posebnim aparatom in ki spadajo na področje uporabe standarda IEC 60730 (vsi deli) ali standarda IEC 61058-1.
Primeri zasnov in funkcij elektronskih stikal in stikal stanovanjskih in stavbnih elektronskih sistemov/sistemov za avtomatizacijo in nadzor stavb so prikazani v dodatku AA.
Dodatne zahteve za elektronske krmilne naprave, ki uporabljajo tehnologijo DLT v skladu s standardom IEC 62756-1, so podane v dodatku CC.
Specifikacije električnega vmesnika za fazno regulirani zatemnilnik v sistemih za razsvetljavo s fazno regulirano zatemnitvijo so podani samo informativno v do
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN IEC 60669-2-1:2023
01-maj-2023
Nadomešča:
SIST EN 50428:2006
SIST EN 50428:2006/A1:2007
SIST EN 50428:2006/A2:2009
SIST EN 60669-2-1:2005
SIST EN 60669-2-1:2005/A1:2009
SIST EN 60669-2-1:2005/A12:2010
Stikala za gospodinjstva in podobne nepremične električne inštalacije - 2-1. del:
Posebne zahteve - Elektronske kontrolne naprave (IEC 60669-2-1:2021)
Switches for household and similar fixed electrical installations - Part 2-1: Particular
requirements - Electronic control devices (IEC 60669-2-1:2021)
Schalter für Haushalt und ähnliche ortsfeste elektrische Installationen - Teil 2-1:
Besondere Anforderungen - Elektronische Schalter (IEC 60669-2-1:2021)
Interrupteurs pour installations électriques fixes domestiques et analogues - Partie 2-1:
Exigences particulières - Dispositifs de commande électronique (IEC 60669-2-1:2021)
Ta slovenski standard je istoveten z: EN IEC 60669-2-1:2022
ICS:
29.120.40 Stikala Switches
97.120 Avtomatske krmilne naprave Automatic controls for
za dom household use
SIST EN IEC 60669-2-1:2023 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 60669-2-1:2023
---------------------- Page: 2 ----------------------
SIST EN IEC 60669-2-1:2023
EUROPEAN STANDARD EN IEC 60669-2-1
NORME EUROPÉENNE
EUROPÄISCHE NORM September 2022
ICS 29.120.40 Supersedes EN 60669-2-1:2004; EN 50428:2005;
EN 60669-2-1:2004/corrigendum Dec. 2007;
EN 50428:2005/A1:2007; EN 60669-2-1:2004/A1:2009;
EN 50428:2005/A2:2009; EN 60669-2-1:2004/A12:2010
English Version
Switches for household and similar fixed electrical installations -
Part 2-1: Particular requirements - Electronic control devices
(IEC 60669-2-1:2021)
Interrupteurs pour installations électriques fixes Schalter für Haushalt und ähnliche ortsfeste elektrische
domestiques et analogues - Partie 2-1: Exigences Installationen - Teil 2-1: Besondere Anforderungen -
particulières - Dispositifs de commande électronique Elektronische Schalter
(IEC 60669-2-1:2021) (IEC 60669-2-1:2021)
This European Standard was approved by CENELEC on 2021-03-12. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60669-2-1:2022 E
---------------------- Page: 3 ----------------------
SIST EN IEC 60669-2-1:2023
EN IEC 60669-2-1:2022 (E)

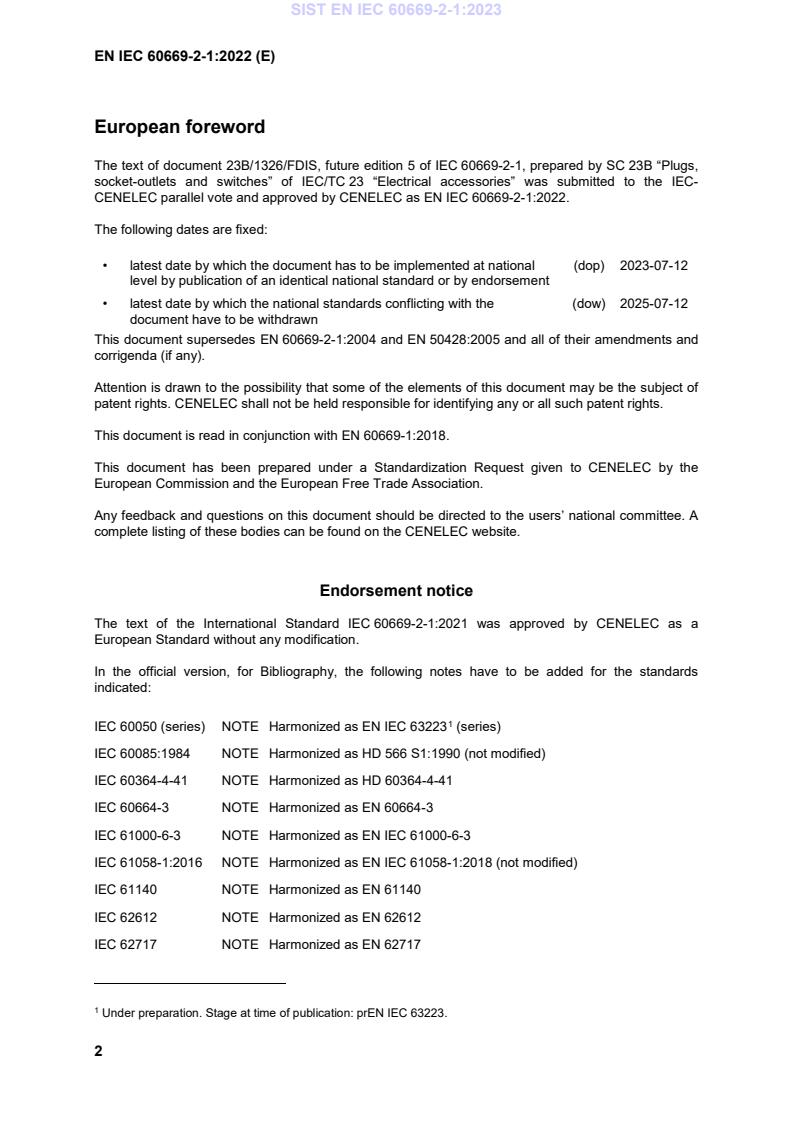

European foreword
The text of document 23B/1326/FDIS, future edition 5 of IEC 60669-2-1, prepared by SC 23B “Plugs,
socket-outlets and switches” of IEC/TC 23 “Electrical accessories” was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN IEC 60669-2-1:2022.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2023-07-12
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2025-07-12
document have to be withdrawn
This document supersedes EN 60669-2-1:2004 and EN 50428:2005 and all of their amendments and
corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document is read in conjunction with EN 60669-1:2018.
This document has been prepared under a Standardization Request given to CENELEC by the
European Commission and the European Free Trade Association.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60669-2-1:2021 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
1
IEC 60050 (series) NOTE Harmonized as EN IEC 63223 (series)
IEC 60085:1984 NOTE Harmonized as HD 566 S1:1990 (not modified)
IEC 60364-4-41 NOTE Harmonized as HD 60364-4-41
IEC 60664-3 NOTE Harmonized as EN 60664-3
IEC 61000-6-3 NOTE Harmonized as EN IEC 61000-6-3
IEC 61058-1:2016 NOTE Harmonized as EN IEC 61058-1:2018 (not modified)
IEC 61140 NOTE Harmonized as EN 61140
IEC 62612 NOTE Harmonized as EN 62612
IEC 62717 NOTE Harmonized as EN 62717
1
Under preparation. Stage at time of publication: prEN IEC 63223.
2
---------------------- Page: 4 ----------------------
SIST EN IEC 60669-2-1:2023
IEC 60669-2-1
®
Edition 5.0 2021-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Switches for household and similar fixed electrical installations –
Part 2-1: Particular requirements – Electronic control devices
Interrupteurs pour installations électriques fixes domestiques et analogues –
Partie 2-1: Exigences particulières – Dispositifs de commande électronique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.40 ISBN 978-2-8322-9179-5
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 5 ----------------------
SIST EN IEC 60669-2-1:2023
– 2 – IEC 60669-2-1:2021 © IEC 2021
CONTENTS
FOREWORD . 6
1 Scope . 8
2 Normative references . 9
3 Terms and definitions . 11
4 General requirements . 15
5 General remarks on tests . 15
6 Ratings . 18
7 Classification . 18
8 Marking . 20
9 Checking of dimensions . 23
10 Protection against electrical shock . 23
11 Provision for earthing . 26
12 Terminals . 26
13 Constructional requirements . 27
14 Mechanism . 29
15 Resistance to ageing, protection provided by enclosures of switches and
resistance to humidity . 29
16 Insulation resistance and electric strength . 29
17 Temperature rise . 31
18 Making and breaking capacity . 35
19 Normal operation . 37
20 Mechanical strength . 44
21 Resistance to heat . 45
22 Screws, current-carrying parts and connections . 45
23 Creepage distances, clearances and distances through sealing compound . 45
24 Resistance of insulating material to abnormal heat, to fire and to tracking . 52
25 Resistance to rusting . 52
26 EMC requirements . 52
101 Abnormal conditions . 62
102 Components . 67
103 Electromagnetic fields (EMF) . 71
Annex A (normative) Replacement of title to Annex A as follows: Additional
requirements for electronic control devices having facilities for the outlet and retention
of flexible cables . 76
Annex B (informative) Changes planned for the future in order to align IEC 60669-1
with the requirements of IEC 60998 (all parts), IEC 60999 (all parts) and IEC 60228 . 77
Annex C (informative) Circuit development (19.3) . 78
Annex D (informative) Additional requirements for insulation-piercing terminals . 79
Annex E (informative) Additional requirements and tests for switches intended to be
used at a temperature lower than −5 °C . 80
Annex AA (informative) Examples of types of electronic switches or HBES/BACS
switches and their functions . 85
Annex BB (informative) Circuit development: 19.106 explained . 86
---------------------- Page: 6 ----------------------
SIST EN IEC 60669-2-1:2023
IEC 60669-2-1:2021 © IEC 2021 – 3 –
Annex CC (normative) Additional requirements for electronic control devices using
DLT-technology in accordance with IEC 62756-1 . 91
Annex DD (informative) Test set-ups . 93
Annex EE (informative) Electrical interface specification for phase-cut dimmer in
phase-cut dimmed lighting systems . 100
Annex FF (normative) Requirements for electronic RCS and electronic TDS that
provide the function, markings and connection configuration in accordance with
IEC 60669-2-2 and IEC 60669-2-3 . 131
Bibliography . 136
Figure 101 – Protective separation between circuits . 47
Figure 102 – Current path tested in the looping through circuit . 72
Figure 103 – Circuit diagram for testing electronic switches and HBES/BACS switches
according to 17.101 and 101.4 . 72
Figure 104 – Minimum creepage and clearances on printed circuit boards . 73
Figure 105 – Surge test . 74
Figure BB.1 – 120 V 15 W (LT spice model) . 87
Figure BB.2 – 230 V 15 W (LT spice model) . 88
Figure BB.3 – Model for multiple lamp loads . 89
2
Figure BB.4 – I and I t for multiple lamp loads . 90
peak
Figure DD.1 – Test setup for AC mains connection according to IEC 61000-4-4. 93
Figure DD.2 – Test setup for bus and DC mains connection according to
IEC 61000-4-4 . 94
Figure DD.3 – Test setup for AC mains connection according to IEC 61000-4-5. 95
Figure DD.4 – Test setup for bus and DC mains connection according to
IEC 61000-4-5 . 96
Figure DD.5 – Test setup for the ESD according to IEC 61000-4-2 . 97
Figure DD.6 – Test setup for AC mains connection according to IEC 61000-4-6. 98
Figure DD.7 – Test setup for bus and DC mains connection according to
IEC 61000-4-6 . 99
Figure EE.1 – Example of wiring diagram . 103
Figure EE.2 – Timing leading edge dimming method . 106
Figure EE.3 – Timing trailing edge dimming method . 111
Figure EE.4 – Circuit to test the properties of the phase-cut dimmer during the non-
conducting phase (Method 1) . 117
Figure EE.5 – Circuit to test the properties of the phase-cut dimmer during the non-
conducting phase (Method 2) . 118
Figure EE.6 – Circuit to test the properties of the phase-cut dimmer during the
transition from the non-conducting to the conducting phase . 119
Figure EE.7 – Circuit to test the properties of the phase-cut dimmer during the
electronic off-state . 121
Figure EE.8 – Waveform of AC voltage source – Leading edge . 122
Figure EE.9 – Waveform of AC voltage source – Trailing edge . 122
Figure EE.10 – Equivalent circuit for controlgear in the on state to be used during
dimmer tests . 123
Figure EE.11 – Equivalent circuit for controlgear being in off state . 124
Figure EE.12 – Test enclosure . 127
---------------------- Page: 7 ----------------------
SIST EN IEC 60669-2-1:2023
– 4 – IEC 60669-2-1:2021 © IEC 2021
Figure EE.13 – Geometry of microphone placement in regard to device under test . 127
Figure EE.14 – Test circuit to test stability of phase angle . 128
Figure EE.15 – Possibilities for proper triggering . 129
Figure EE.16 – Equivalent circuit EC_CG2 . 130
Table 1 – Number of specimens needed for the tests . 16
Table 15 – Test voltage, points of application and minimum values of insulating
resistance for the verification of electric strength . 29
Table 101 – Permissible temperature rise values . 33
Table 102 – Application of tests for making and breaking capacity and normal
operation for electronic switches and HBES/BACS switches according to 7.102.2 . 36
Table 103 – Relationship between rated current and capacitance . 40
2
Table 104 – Values for I and I t depending on the type of distribution system . 42
peak
Table 105 – Calculated circuit parameters . 43
Table 106 – Test loads for HBES/BACS switches for heating installations . 44
Table 23 – Creepage distances, clearances and distances through insulating sealing
compound . 45
Table 107 – Relation between the rated voltage of the HBES/BACS switch, the rated
insulation voltage and the rated impulse voltage . 48
Table 108 – Minimum clearances without verification test . 49
Table 109 – Test voltages and corresponding altitudes . 50
Table 110 – Minimum clearances with verification test . 50
Table 111 – Minimum creepage distances of basic, supplementary and reinforced
insulation without verification test for clearances . 51
Table 112 – Minimum creepage distances of basic, supplementary and reinforced
insulation with verification test for clearances . 51
Table 113 – Immunity tests (overview) . 54
Table 114 – Voltage dip and short-interruption test values . 55
Table 115 – Surge immunity test voltages . 56
Table 116 – Fast transient test values . 57
a
Table 117 – Values for radiated electromagnetic field test of IEC 61000-4-3 . 59
Table 118 – Measurement methods . 62
Table 119 – Protection methods and test conditions . 64
Table 120 – Capacitors . 68
Table A.101 – Maximum current and minimum cross-sectional area . 76
Table E.101 – Energy for impact tests . 83
Table AA.1 – Functions overview . 85
Table BB.1 – Lamp . 86
Table EE.1 – Nominal mains voltage 100 V – Frequency 50 Hz or 60 Hz . 107
Table EE.2 – Nominal mains voltage 120 V – Frequency 50 Hz or 60 Hz . 107
Table EE.3 – Nominal mains voltage 200 V – Frequency 50 Hz or 60 Hz . 107
Table EE.4 – Nominal mains voltage 230 V – Frequency 50 Hz or 60 Hz . 107
Table EE.5 – Nominal mains voltage 277 V – Frequency 50 Hz or 60 Hz . 107
Table EE.6 – Slew rate for voltage decrease across the phase-cut dimmer . 108
---------------------- Page: 8 ----------------------
SIST EN IEC 60669-2-1:2023
IEC 60669-2-1:2021 © IEC 2021 – 5 –
Table EE.7 – Nominal mains voltage 100 V – Frequency 50 Hz or 60 Hz . 109
Table EE.8 – Nominal mains voltage 120 V – Frequency 50 Hz or 60 Hz . 109
Table EE.9 – Nominal mains voltage 200 V – Frequency 50 Hz or 60 Hz . 109
Table EE.10 – Nominal mains voltage 230 V – Frequency 50 Hz or 60 Hz . 109
Table EE.11 – Nominal mains voltage 277 V – Frequency 50 Hz or 60 Hz . 110
Table EE.12 – Nominal mains voltage from 100 V to 277 V – Frequency 50 Hz or
60 Hz . 112
Table EE.13 – Nominal mains moltage 100 V – Frequency 50 Hz or 60 Hz . 113
Table EE.14 – Nominal mains voltage 120 V – Frequency 50 Hz or 60 Hz . 113
Table EE.15 – Nominal mains voltage 200 V – Frequency 50 Hz or 60 Hz . 113
Table EE.16 – Nominal mains voltage 230 V – Frequency 50 Hz or 60 Hz . 114
Table EE.17 – Nominal mains voltage 277 V – Frequency 50 Hz or 60 Hz . 114
Table EE.18 – Currents and voltages for controlgear during the electronic off state . 115
Table EE.19 – Parameters for testing purposes . 116
Table EE.20 – Parameters for testing purposes . 125
---------------------- Page: 9 ----------------------
SIST EN IEC 60669-2-1:2023
– 6 – IEC 60669-2-1:2021 © IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SWITCHES FOR HOUSEHOLD AND
SIMILAR FIXED ELECTRICAL INSTALLATIONS –
Part 2-1: Particular requirements – Electronic control devices
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60669-2-1 has been prepared by subcommittee 23B: Plugs,
socket-outlets and switches, of IEC technical committee 23: Electrical accessories.
This fifth edition cancels and replaces the fourth edition published in 2002, Amendment 1:2008
and Amendment 2:2015. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) incorporation of the requirements for HBES switches, previously included in
IEC 60669-2-5;
b) modification of 19.106, test and requirements for switches for LEDs;
c) general indication to cover electronic control devices;
d) test for looping through.
---------------------- Page: 10 ----------------------
SIST EN IEC 60669-2-1:2023
IEC 60669-2-1:2021 © IEC 2021 – 7 –
The text of this International Standard is based on the following documents:
FDIS Report on voting
23B/1326/FDIS 23B/1342/RVD
Full information on the voting for the approval of this International Standard can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part of IEC 60669 is to be used in conjunction with IEC 60669-1:2017, hereinafter referred
to as Part 1. It lists the changes necessary to convert that standard into a specific standard for
electronic control devices.
In this document, the following print types are used:
– requirements proper: in roman type;
– test specifications: in italic type;
– notes: in smaller roman type.
Subclauses, figures, tables or notes which are additional to those in Part 1 are numbered
starting from 101.
A list of all the parts in the IEC 60669 series, published under the general title Switches for
household and similar fixed electrical installations, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates that it
contains colours which are considered to be useful for the correct u
...
SLOVENSKI STANDARD
oSIST prEN IEC 60669-2-1:2019
01-april-2019
6WLNDOD]DJRVSRGLQMVWYDLQSRGREQHQHSUHPLþQHHOHNWULþQHLQãWDODFLMHGHO
3RVHEQH]DKWHYH(OHNWURQVNDVWLNDOD
Switches for household and similar fixed electrical installations - Part 2-1: Particular
requirements - Electronic switches
Schalter für Haushalt und ähnliche ortsfeste elektrische Installationen - Teil 2-1:
Besondere Anforderungen - Elektronische Schalter
Interrupteurs pour installations électriques fixes domestiques et analogues - Partie 2-1:
Prescriptions particulières - Interrupteurs électroniques
Ta slovenski standard je istoveten z: prEN IEC 60669-2-1:2019
ICS:
29.120.40 Stikala Switches
oSIST prEN IEC 60669-2-1:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN IEC 60669-2-1:2019
---------------------- Page: 2 ----------------------
oSIST prEN IEC 60669-2-1:2019
23B/1280/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 60669-2-1 ED5
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2019-02-08 2019-05-03
SUPERSEDES DOCUMENTS:
23B/1262/CD,23B/1272A/CC
IEC SC 23B : PLUGS, SOCKET-OUTLETS AND SWITCHES
SECRETARIAT: SECRETARY:
Italy Mr Cristiano Masini
OF INTEREST TO THE FOLLOWING COMMITTEES: PROPOSED HORIZONTAL STANDARD:
TC 34
Other TC/SCs are requested to indicate their interest, if
any, in this CDV to the secretary.
FUNCTIONS CONCERNED:
EMC ENVIRONMENT QUALITY ASSURANCE SAFETY
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
TITLE:
Switches for household and similar fixed electrical installations - Part 2-1: Particular requirements -
Electronic switches
PROPOSED STABILITY DATE: 2023
NOTE FROM TC/SC OFFICERS:
This document includes the following main changes:
- Complete proposal for merging IEC 60669-2-1 ed.4.2 and IEC 60669-2-5 ed.1.0
- All modifications approved by MT 6 as indicated in document 23B/1272A/CC
- Inputs from SC3C
Copyright © 2019 International Electrotechnical Commission, IEC. All rights reserved. It is permitted to download
this electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee
positions. You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other
purpose without permission in writing from IEC.
---------------------- Page: 3 ----------------------
oSIST prEN IEC 60669-2-1:2019
60669-2-1/Ed.5/CDV © IEC(E) 2 23B/1280/CDV
1 CONTENTS
2 1 Scope . 5
3 2 Normative references . 6
4 3 Terms and definitions . 7
5 4 General requirements . 10
6 5 General remarks on tests . 11
7 6 Ratings . 12
8 7 Classification . 12
9 8 Marking . 13
10 9 Checking of dimensions . 17
11 10 Protection against electrical shock . 17
12 11 Provision for earthing . 18
13 12 Terminals . 19
14 13 Constructional requirements . 19
15 14 Mechanism . 21
16 15 Resistance to ageing, protection provided by enclosures of switches, and resistance
17 to humidity . 21
18 16 Insulation resistance and electric strength . 21
19 17 Temperature rise . 23
20 18 Making and breaking capacity. 26
21 19 Normal operation . 29
22 20 Mechanical strength . 34
23 21 Resistance to heat . 35
24 22 Screws, current-carrying parts and connections . 35
25 23 Creepage distances, clearances and distances through sealing compound . 35
26 24 Resistance of insulating material to abnormal heat, to fire and to tracking . 42
27 25 Resistance to rusting . 43
28 26 EMC requirements . 43
29 101 Abnormal conditions . 51
30 102 Components . 56
31 103 Electromagnetic fields (EMF) . 59
32 Annex A (normative) Additional requirements for electronic control devices having
33 facilities for the outlet and retention of flexible cables . 63
34 Annex B (informative) Changes planned for the future in order to align IEC 60669-1 with
35 the requirements of IEC 60998, IEC 60999 and IEC 60228 . 64
36 Annex C (Informative) Circuit development (19.3) . 65
37 Annex D (informative) Additional requirements for insulation-piercing terminals . 66
38 Annex E (informative) Additional requirements and tests for switches intended to be used
39 at a temperature lower than -5 °C . 67
40 Annex AA (informative) Examples of types of electronic switches or HBES/BACS
41 switches and their functions . 72
42 Annex BB (informative) Circuit development: subclause 19.109 explained . 73
43 Annex CC (normative) Additional requirements for electronic control devices using DLT-
44 technology according to IEC 62756-1 . 77
45 Annex DD (informative) Test set-ups . 79
---------------------- Page: 4 ----------------------
oSIST prEN IEC 60669-2-1:2019
60669-2-1/Ed.5/CDV © IEC(E) 3 23B/1280/CDV
46 Annex EE (normative) Electrical interface specification for phase-cut dimmer in phase-cut
47 dimmed lighting systems . 86
48 Annex FF (normative) . 116
49 Bibliography . 120
50
51 Table 15 – Test voltage, points of application and minimum values of insulating resistance
52 for the verification of electric strength . 22
53 Table 102 – Permissible temperature rise values . 25
54 Table 103 – Application of tests for making and breaking capacity and normal operation
55 for electronic switches and HBES/BACS switches according to 7.102.2 . 28
56 Table 104 – Relationship between rated current and capacitance . 31
2
57 Table 105 – Values for I and I t depending on the type of distribution system . 33
peak
58 Table 106 – Calculated circuit parameters . 34
59 Table 107 – Test loads for HBES/BACS switches for heating installations . 34
60 Table 23 – Creepage distances, clearances and distances through insulating sealing
61 compound . 36
62 Table 108 – Relation between the rated voltage of the HBES/BACS switch, the rated
63 insulation voltage and the rated impulse voltage . 38
64 Table 109 – Minimum clearances without verification test . 39
65 Table 110 – Test voltages and corresponding altitudes . 40
66 Table 111 – Minimum clearances with verification test . 40
67 Table 112 – Minimum creepage distances of basic, supplementary and reinforced
68 insulation without verification test for clearances . 41
69 Table 113 – Minimum creepage distances of basic, supplementary and reinforced
70 insulation with verification test for clearances . 42
71 Table 114 – Immunity tests (overview) . 44
72 Table 115 – Voltage dip and short-interruption test values . 45
73 Table 116 – Surge immunity test voltages . 46
74 Table 117 – Fast transient test values . 46
a
75 Table 118 – Values for radiated electromagnetic field test of IEC 61000-4-3 . 48
76 Table 119 Measurement methods . 50
77 Table 120 – Protection methods and test conditions . 53
78 Table 121 – Capacitors . 57
79 Table A.101 – Maximum current and minimum cross-sectional area. 63
80 Table E.101 – Energy for impact tests . 70
81 Table BB.1 – Lamp . 73
82 Table EE.1 – Nominal mains voltage 100 V – Frequency 50 Hz or 60 Hz . 93
83 Table EE.2 – Nominal mains voltage 120 V – Frequency 50 Hz or 60 Hz . 93
84 Table EE.3 – Nominal mains voltage 200 V – Frequency 50 Hz or 60 Hz . 93
85 Table EE.4 – Nominal mains voltage 230 V – Frequency 50 Hz or 60 Hz . 93
86 Table EE.5 – Nominal mains voltage 277 V – Frequency 50 Hz or 60 Hz . 93
87 Table EE.6 – Slew rate for voltage decrease across the phase-cut dimmer . 94
88 Table EE.7 – Nominal mains voltage 100 V – Frequency 50 Hz or 60 Hz . 95
89 Table EE.8 – Nominal mains voltage 120 V – Frequency 50 Hz or 60 Hz . 95
90 Table EE.9 – Nominal mains voltage 200 V – Frequency 50 Hz or 60 Hz . 95
91 Table EE.10 – Nominal mains voltage 230 V – Frequency 50 Hz or 60 Hz . 95
---------------------- Page: 5 ----------------------
oSIST prEN IEC 60669-2-1:2019
60669-2-1/Ed.5/CDV © IEC(E) 4 23B/1280/CDV
92 Table EE.11 – Nominal mains voltage 277 V – Frequency 50 Hz or 60 Hz . 95
93 Table EE.12 – Nominal mains voltage from100 to 277 V – Frequency 50 Hz or 60 Hz . 98
94 Table EE.13 – Nominal mains moltage 100 V – Frequency 50 Hz or 60 Hz . 99
95 Table EE.14 – Nominal mains voltage 120 V – Frequency 50 Hz or 60 Hz . 99
96 Table EE.15 – Nominal mains voltage 200 V – Frequency 50 Hz or 60 Hz . 99
97 Table EE.16 – Nominal mains voltage 230 V – Frequency 50 Hz or 60 Hz . 100
98 Table EE.17 – Nominal mains voltage 277 V – Frequency 50 Hz or 60 Hz . 100
99 Table EE.18 – Currents and Voltages for controlgear during the electronic off state . 101
100 Table EE.19 – Parameters for testing purposes . 102
101 Table EE.20 – Parameters for testing purposes . 110
102
103
---------------------- Page: 6 ----------------------
oSIST prEN IEC 60669-2-1:2019
60669-2-1/Ed.5/CDV © IEC(E) 5 23B/1280/CDV
104 Switches for household and similar fixed electrical installations –
105 Part 2-1: Particular requirements – Electronic control devices
106 1 Scope
107 This Clause of Part 1 is completely replaced by:
108 This Part of IEC 60669 applies to electronic control devices which is used as a general term to
109 cover electronic switches, HBES/BACS switches and electronic extension units.
110 It applies to electronic switches and to HBES/BACS switches, for alternating current (AC) only
111 with a rated switching voltage not exceeding 250 V and a rated current not exceeding 16 A,
112 intended for household and similar fixed electrical installations, either indoors or outdoors.
113 It also applies to electronic extension units with a rated supply voltage not exceeding 250 V AC
114 and 120 V DC, such as sensors and push buttons controlling the electronic switches, or the
115 HBES/BACS switches or similar control devices used in lighting systems in the building
116 environment.
117 NOTE 1 An example of lighting systems is DALI.
118 This Part of IEC 60669 also applies to electronic RCS and electronic TDS. Particular
119 requirements are given in Annex FF.
120 Switches including only passive components such as resistors, capacitors, inductors, PTC and
121 NTC components, varistors, printed wiring boards and connectors are not considered as
122 electronic control devices.
123 This Part of IEC 60669 also applies to electronic switches and HBES/BACS switches for the
124 operation of lighting equipment circuits and the control of the brightness of lighting equipment
125 (dimmers) as well as the control of the speed of motors (for example, those used in ventilating
126 fans) and for other purposes (for example, heating controls).
127 The operation and/or control as mentioned above may be transmitted by an electronic signal via
128 several media, e.g. powerline (mains), twisted pair, optical fibre, radio frequency, infra-red, etc.
129 and are performed:
130 - intentionally by a person via an actuating member, a key, a card, etc., via a sensing surface
131 or a sensing unit, by means of touch, proximity, turn, optical, acoustic, thermal;
132 - by physical means, e.g. light, temperature, humidity, time, wind velocity, presence of people;
133 - by any other influence.
134 This standard covers only those requirements for mounting boxes which are necessary for the
135 tests on the electronic control devices.
136 Requirements for general purpose mounting boxes are given in IEC 60670.
137 This standard is not intended to cover devices falling within the scope of IEC 60730.
138 Electronic control devices complying with this standard are suitable for use at ambient
139 temperature not normally exceeding 25 °C but occasionally reaching 35 °C with a lower limit of
140 the ambient air temperature of –5 °C.
141 NOTE 2 For lower temperatures see ANNEX E.
142 Functional safety aspects are not covered by this standard. Functional safety requirements are
143 covered by the standards of the controlled devices.
144 In locations where special conditions prevail, such as in ships, vehicles and the like and in
145 hazardous locations, for example where explosions are liable to occur, special construction
146 and/or additional requirements may be required.
147 NOTE 3 This standard is not intended to cover devices which are designed to be incorporated in appliances or are
148 intended to be delivered together with a specific appliance and which are within the scope of IEC 60730 or
149 IEC 61058-1.
150 Examples of designs of electronic switches and functions are shown in annex AA.
---------------------- Page: 7 ----------------------
oSIST prEN IEC 60669-2-1:2019
60669-2-1/Ed.5/CDV © IEC(E) 6 23B/1280/CDV
151 NOTE 4 Electronic switches and HBES/BACS switches without a mechanical switch in the main circuit do not provide a
152 “full off-state”. Therefore, the circuit on the load side should be considered to be live.
153 2 Normative references
154 This Clause of Part 1 applies except as follows.
155 Addition:
156 IEC 60050 (all parts) International Electrotechnical Vocabulary, available at:
157
158 IEC 60127 (all parts) Miniature fuses
159 IEC 60317 (all parts) Specifications for particular types of winding wires
160 IEC 60317-0-1:2013 Specifications for particular types of winding wires – Part 0: General
161 requirements – Section 1: Enamelled round copper wire1)
162 IEC 60364-4-41 Low-voltage electrical installations– Part 4-41: Protection for safety - Protection
163 against electric shock
164 IEC 60384-14 Fixed capacitors for use in electronic equipment – Part 14: Sectional specification:
165 Fixed capacitors for electromagnetic interference suppression and connection to the supply
166 mains
167 IEC 60664-1:2007 Insulation coordination for equipment within low-voltage systems – Part 1:
168 Principles, requirements and tests
169 IEC 60664-3 Insulation coordination for equipment within low-voltage systems – Part 3: Use of
170 coating, potting or moulding for protection against pollution
171 IEC 60669-1:2017 Switches for household and similar fixed-electrical installations – Part 1:
172 General requirements
173 IEC 60669-2-2:2006 Switches for household and similar fixed electrical installations – Part 2-2:
174 Particular requirements - Electromagnetic remote-control switches (RCS)
175 IEC 60669-2-3:2006 Switches for household and similar fixed electrical installations – Part 2-3:
176 Particular requirements - Time-delay switches (TDS)
177 IEC 60670 (All parts) Boxes and enclosures for electrical accessories for household and similar
178 fixed electrical installations – Part 1: General requirements
179 IEC 60715 Dimensions of low-voltage switchgear and controlgear – Standardized mounting on
180 rails for mechanical support of electrical devices in switchgear and controlgear installations
181 IEC 60730 (all parts) Automatic electrical controls for household and similar use
182 IEC 60990 Methods of measurement of touch current and protective conductor current
183 IEC 60999-1 Connecting devices - Electrical copper conductors - Safety requirements for screw-
184 type and screwless-type clamping units - Part 1: General requirements and particular
2 2
185 requirements for clamping units for conductors from 0,2 mm up to 35 mm
186 IEC 61000-2-2 Electromagnetic compatibility (EMC) – Part 2-2: Environment – Compatibility
187 levels for low-frequency conducted disturbances and signaling in public low-voltage power
188 supply systems
189 IEC 61000-3-2:2018 Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for harmonic
190 current emissions (equipment input current ≤ 16A per phase) 1)
191 IEC 61000-3-3:2017 Electromagnetic compatibility (EMC) – Part 3-3: Limits - Limitation of
192 voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for
193 equipment with rated current ≤ 16 A per phase and not subject to conditional connection
---------------------- Page: 8 ----------------------
oSIST prEN IEC 60669-2-1:2019
60669-2-1/Ed.5/CDV © IEC(E) 7 23B/1280/CDV
194 IEC 61000-4-2 Electromagnetic compatibility (EMC) − Part 4: Testing and measurement
195 techniques − Section 2: Electrostatic discharge immunity test 1)
196 IEC 61000-4-3 Electromagnetic compatibility (EMC) − Part 4-3: Testing and measurement
197 techniques − Radiated, radio-frequency, electromagnetic field immunity test
198 IEC 61000-4-4 Electromagnetic compatibility (EMC) − Part 4: Testing and measurement
199 techniques − Section 4: Electrical fast transient/burst immunity test
200 IEC 61000-4-5 Electromagnetic compatibility (EMC) − Part 4: Testing and measurement
201 techniques − Section 5: Surge immunity test 1)
202 IEC 61000-4-6 Electromagnetic compatibility (EMC) − Part 4: Testing and measurement
203 techniques − Section 6: Immunity to conducted disturbances, induced by radio-frequency fields
204 IEC 61000-4-8 Electromagnetic compatibility (EMC) – Part 4: Testing and measurement
205 techniques – Section 8: Power frequency magnetic field immunity test
206 IEC 61000-4-11 Electromagnetic compatibility (EMC) − Part 4: Testing and measurement
207 techniques − Section 11: Voltage dips, short interruptions and voltage variations immunity tests
208 IEC 61000-4-20:2010 Electromagnetic compatibility (EMC) – Part 4-20: Testing and
209 measurement techniques – Emission and immunity testing in transverse electromagnetic (TEM)
210 waveguides
211 IEC 61058-1:2016 Switches for appliances – Part 1: General requirements
212 IEC 61140:2016 Protection against electric shock – Common aspects for installation and
213 equipment
214 IEC 61558-2-6 Safety of transformers, reactors, power supply units and similar products for
215 supply voltages up to 1 100 V - Part 2-6: Particular requirements and tests for safety isolating
216 transformers and power supply units incorporating safety isolating transformers
217 IEC 61558-2-16 Safety of transformers, reactors, power supply units and similar products for
218 supply voltages up to 1 100 V - Part 2-16: Particular requirements and tests for switch mode
219 power supply units and transformers for switch mode power supply units
220 IEC 62756-1 Digital load side transmission lighting control – Part 1: Basic requirements
221 CISPR 14-1:2016 Electromagnetic compatibility – Requirements for household appliances,
222 electric tools and similar apparatus
223 CISPR 15:2018 Limits and methods of measurement of radio disturbance characteristics of
224 electrical lighting and similar equipment
225 CISPR 32:2015 Information technology equipment – Radio disturbance characteristics – Limits
226 and methods of measurement
227 ISO 306:2013 Plastics – Thermoplastic materials – Determination of Vicat softening temperature
228 (VST)
229 IEC 63044-3:2017 Home and Building Electronic Systems (HBES) and Building Automation and
230 Control Systems (BACS) - Part 3: Electrical safety requirements
231 3 Terms and definitions
232 This Clause of Part 1 applies except as follows.
233 Add the following definitions:
234 3.101
235 electronic switch
236 stand-alone device designed to make or break and/or control directly the current in one or more
237 electric circuits either through mechanical switching element(s) via an electronic control circuit,
238 or through an electronic switching element via a mechanical / electronic control circuit.
---------------------- Page: 9 ----------------------
oSIST prEN IEC 60669-2-1:2019
60669-2-1/Ed.5/CDV © IEC(E) 8 23B/1280/CDV
239 NOTE 1 to entry A stand-alone device can still be controlled remotely via RF, IR or a dedicated electronic extension
240 unit.
241 NOTE 2 to entry To make or break and/or to control directly means that an actuator makes or breaks the current
242 and/or controls the current.
243 3.102
244 HBES/BACS
245 combination of HBES/BACS products (including their separate connected/detachable devices)
246 linked together via one or more HBES/BACS networks
247 NOTE 1 to entry Other names used such as "home control network", "home control systems", "home and building
248 electronic systems", "building systems", "building automation system", etc. describe types of HBES/BACS system.
249 [SOURCE: IEC 63044-1: 2017, 3.1.3]
250 3.103
251 HBES/BACS switch
252 network operated electronic device intended to be used in an HBES/BACS, using two-way
253 communication and designed to make or break and/or to control directly the current in one or
254 more electric circuits
255 NOTE 1 to entry The communication can use different media e.g. Twisted Pair (TP), Power Line (PL), Infra-Red (IR)
256 and Radio Frequency (RF).
257 NOTE 2 to entry To make or break and/or to control directly means that an actuator makes or breaks the current
258 and/or controls the current.
259 3.104
260 electronic extension unit
261 a device connected to an electronic switch, a HBES/BACS switch, and lighting products used in
262 lighting systems in the building environment in order to remotely control and/or to monitor the
263 electronic switch, the HBES/BACS switch, and lighting products used in lighting systems in the
264 building environment
265 NOTE 1 to entry The electronic extension unit does not control directly the current in one or more circuits (e.g.
266 sensors, HBES/BACS push buttons, status display)
267 3.105
268 ELV
269 Extra-Low Voltage
270 nominal voltage in the electrical installation of buildings according to the voltage band I specified
271 in IEC 61140:2016
272 NOTE 1 to entry Voltage band I according to IEC 61140 is a voltage below or equal to 50 V a.c. or 120 V d.c.
273 [SOURCE: IEC 63044-3:2017, 3.1.7]
274 3.106
275 FELV
276 Functional Extra-Low Voltage
277 electrical circuit in which the nominal voltage cannot exceed ELV under normal conditions
278 NOTE 1 to entry FELV has simple separation from mains.
279 NOTE 2 to entry A FELV circuit is not safe to touch and may be connected to protective earth.
280 [SOURCE: IEC 63044-3:2017, 3.1.9]
281 3.107
282 SELV circuit
283 Safety Extra-Low-Voltage circuit
284 electrical circuit in which the nominal voltage cannot exceed ELV
285 – under normal conditions,
286 – under single-fault conditions, including earth fault in other circuits
287 NOTE 1 to entry SELV has simple separation from PELV and other SELV systems, and earth and protective separation
288 from all other circuits.
289 NOTE 2 to entry Under normal conditions and single-fault conditions in a dry location inside a building, a SELV circuit
290 with a voltage not higher than 25 V AC or 60 V DC is safe to touch.
291 [SOURCE: IEC 63044-3:2017, 3.1.10]
---------------------- Page: 10 ----------------------
oSIST prEN IEC 60669-2-1:2019
60669-2-1/Ed.5/CDV © IEC(E) 9 23B/1280/CDV
292 3.108
293 PELV circuit
294 Protected Extra-Low-Voltage circuit
295 electrical circuit in which the nominal voltage cannot exceed ELV
296 – under normal conditions,
297 – under single-fault conditions, except earth fault in other circuits
298 NOTE 1 to entry PELV has protective separation from all circuits other than PELV, SELV or earth.
299 NOTE 2 to entry PELV circuit is safe to touch within the same equipotential bonding area inside a building under the
300 following conditions: under normal and single-fault conditions in dry locations and with no large contact area with a
301 voltage not higher than 25 V AC or 60 V DC; otherwise not higher than 12 V AC or 30 V DC.
302 [SOURCE: IEC 63044-3:2017, 3.1.11]
303 3.109
304 simple separation
305 separation between circuits or between
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
