SIST EN 50428:2006/A2:2009

Switches for household and similar fixed electrical installations - Collateral standard - Switches and related accessories for use in home and building electronic systems (HBES)

D131/C051: NWI approved * 2008-06 decision: UAP

Schalter für Haushalt und ähnliche ortsfeste elektrische Installationen - Ergänzungsnorm - Schalter und ähnliches Installationsmaterial zur Verwendung in elektronischer Systemtechnik für Heim und Gebäude (ESHG)

Interrupteurs pour installations électriques fixes domestiques et analogues - Norme collatérale - Interrupteurs et appareils associés pour usage dans les systèmes électroniques des foyers domestiques et bâtiments (HBES)

Stikala za gospodinjstva in podobne nepremične električne inštalacije - Spremljevalni standard - Stikala in pripadajoči pribor za uporabo elektronskih sistemov doma in v stavbah

General Information

• Status: Withdrawn
• Publication Date: 16-Aug-2009
• Withdrawal Date: 03-Feb-2021
• ICS: 29.120.40 - Switches
• ICS: 97.120 - Automatic controls for household use
• Technical Committee: EPR - Electrical accessories
• Current Stage: 9900 - Withdrawal (Adopted Project)
• Start Date: 03-Feb-2021
• Due Date: 26-Feb-2021
• Completion Date: 04-Feb-2021
• Directive: 2004/108/EC - Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC
• Directive: 2004/108/EU - DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/30/EU - Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Directive: 89/336/EEC - Electromagnetic compatibility (EMC)
• Mandate: M/404 - Standardisation Mandate to CEN, CENELEC and ETSI for harmonized standard according to the Electro Magnetic Compatibility (EMC) Directive 2004/108/EC
• Ref Project: EN 50428:2005/A2:2009 - Switches for household and similar fixed electrical installations - Collateral standard - Switches and related accessories for use in home and building electronic systems (HBES)

Relations

• Replaced By: SIST EN IEC 60669-2-1:2023 - Switches for household and similar fixed electrical installations - Part 2-1: Particular requirements - Electronic control devices (IEC 60669-2-1:2021)
• Effective Date: 20-Sep-2022
• Replaced By: SIST EN 60669-2-5:2017 - Switches for household and similar fixed electrical installations - Part 2-5: Switches and related accessories for use in home and building electronic systems (HBES) (IEC 60669-2-5:2013 , modified)
• Effective Date: 13-May-2010
• Amends: SIST EN 50428:2006 - Switches for household and similar fixed electrical installations - Collateral standard - Switches and related accessories for use in home and building electronic systems (HBES)
• Effective Date: 21-Sep-2010

Overview

EN 50428:2005/A2:2009 (CENELEC) is an amendment to the European collateral standard EN 50428 for switches and related accessories used in home and building electronic systems (HBES). Approved 2009-06-01, the amendment updates test, insulation and EMC requirements specific to electronic switches intended for household and similar fixed electrical installations. It applies where HBES devices interface with building automation and residential control systems.

Key Topics and Requirements

• Scope: Collateral standard for switches for household and similar fixed electrical installations, focused on HBES components and accessories.
• Durability / Mechanical endurance: Electronic HBES switches are tested at rated voltage and loaded per Clause 17; for HBES switches designed for heating installations the manufacturer must declare a minimum of 200,000 operations and specify the load.
• Creepage, clearance and insulation:
  • Addresses clearances for basic, double and reinforced insulation between circuits.
  • Allows reduced clearance values (for impulse withstand voltage > 800 V) if parts are rigid/moulded, or distances cannot be reduced in normal use, provided minimum clearances from the standard (Table 204) are met and verification includes the impulse voltage dielectric test in accordance with EN 60664-1.
• EMC and surge immunity:
  • Adds EMC-related test set-ups (Annex CC) for HBES switches using TP‑Media.
  • Specifies surge immunity testing for 1.2/50 µs impulses with arrangements for line-to-earth testing; where no earth terminal exists, each load terminal is connected via a 3.3 nF capacitor to earth and the Equipment Under Test (EUT) is placed on a copper plane tied to generator earth.
• Test referencing and implementation:

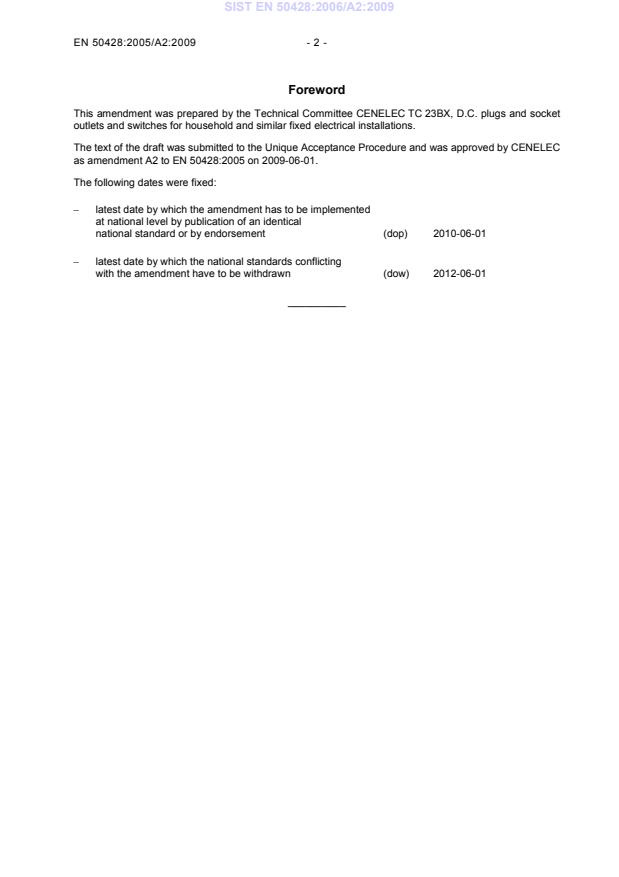

  • The amendment modifies clauses in Part 2-1 and defines national implementation dates (dop 2010-06-01, dow 2012-06-01).

Applications and Who Uses It

• Manufacturers of HBES switches and related accessories - to design products that meet European safety, insulation and EMC requirements.
• Test laboratories and certification bodies - to perform compliance testing (endurance, dielectric, surge immunity, EMC).
• Building automation designers, system integrators and installers - to select compliant switches for smart-home and building-control installations, including heating control.
• Regulatory and standards committees - to harmonize national standards with the CENELEC amendment.

Related Standards

• EN 50428:2005 (base standard) - Part 2-1 references and tests
• EN 60664-1 - impulse voltage dielectric testing and insulation coordination

Keywords: EN 50428:2005/A2:2009, HBES switches, home and building electronic systems, CENELEC, creepage distances, clearances, EMC, surge immunity, EN 60664-1.

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2009
6WLNDOD]DJRVSRGLQMVWYDLQSRGREQHQHSUHPLþQHHOHNWULþQHLQãWDODFLMH
6SUHPOMHYDOQLVWDQGDUG6WLNDODLQSULSDGDMRþLSULERU]DXSRUDERHOHNWURQVNLK
VLVWHPRYGRPDLQYVWDYEDK
Switches for household and similar fixed electrical installations - Collateral standard -
Switches and related accessories for use in home and building electronic systems
(HBES)
Schalter für Haushalt und ähnliche ortsfeste elektrische Installationen - Ergänzungsnorm
- Schalter und ähnliches Installationsmaterial zur Verwendung in elektronischer
Systemtechnik für Heim und Gebäude (ESHG)
Interrupteurs pour installations électriques fixes domestiques et analogues - Norme
collatérale - Interrupteurs et appareils associés pour usage dans les systèmes
électroniques des foyers domestiques et bâtiments (HBES)
Ta slovenski standard je istoveten z: EN 50428:2005/A2:2009
ICS:
29.120.40 Stikala Switches
97.120 Avtomatske krmilne naprave Automatic controls for
za dom household use
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 50428/A2
NORME EUROPÉENNE
June 2009
EUROPÄISCHE NORM
ICS 29.120.40; 97.120
English version
Switches for household and similar fixed electrical installations -
Collateral standard -
Switches and related accessories
for use in home and building electronic systems (HBES)

Interrupteurs pour installations électriques Schalter für Haushalt und ähnliche
fixes domestiques et analogues - ortsfeste elektrische Installationen -
Norme collatérale - Ergänzungsnorm -
Interrupteurs et appareils associés pour Schalter und ähnliches
usage dans les systèmes électroniques Installationsmaterial zur Verwendung
des foyers domestiques et bâtiments in elektronischer Systemtechnik
(HBES) für Heim und Gebäude (ESHG)

This amendment A2 modifies the European Standard EN 50428:2005; it was approved by CENELEC on
2009-06-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia,
Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normali
...
