SIST EN 15619:2014

Rubber or plastic coated fabrics - Safety of temporary structures (tents) - Specification for coated fabrics intended for tents and related structures

This European Standard specifies the characteristics, requirements and test methods for coated fabric intended for mobile, temporary installed tents (see 3.3) and related structures.
Plastic film and material other than coated fabrics are not covered by this European Standard.

Mit Kautschuk oder Kunststoff beschichtete Textilien - Sicherheit Fliegender Bauten (Zelte) - Spezifikation für beschichtete Textilien für Zelte und zugehörige Bauten

Diese Europäische Norm legt die Eigenschaften, Anforderungen und Prüfverfahren für beschichtete Textilien fest, die als wiederholt zu errichtende Fliegende Bauten in Form von Zelten (siehe 3.3) und zugehörige Bauwerke vorgesehen sind.
Kunststofffolien und andere Materialien als beschichtete Textilien sind fallen nicht Bestandteilin den Anwendungsbereich dieser vorliegenden Europäischen Norm.

Supports textiles revêtus de caoutchouc ou de plastique - Sécurité des structures temporaires (tentes) - Spécification des supports textiles revêtus destinés aux tentes et structures similaires

La présente Norme européenne spécifie les caractéristiques, les exigences et les méthodes d’essai relatives aux étoffes enduites destinées aux tentes mobiles installées temporairement (voir 3.3) et aux structures similaires.
Les films plastiques et les matériaux autres que les étoffes enduites ne sont pas couverts par la présente Norme européenne.

Gumirane ali plastificirane tekstilije - Varnost začasnih konstrukcij (šotori) - Specifikacija tekstilij, namenjenih za šotore in podobne konstrukcije

Standard EN 15619 določa lastnosti, zahteve in preskusne metode za gumirane ali plastificirane tekstilije za mobilne, začasno nameščene šotore in podobne strukture. Plastični filmi in drugi materiali, ki niso gumirane ali plastificirane tekstilije, niso zajeti v tem evropskem standardu.

General Information

• Status: Published
• Public Enquiry End Date: 24-Dec-2012
• Publication Date: 06-May-2014
• ICS: 59.080.40 - Coated fabrics
• ICS: 97.200.30 - Camping equipment and camp-sites
• Technical Committee: ITEK - Textile and textile products
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 16-Apr-2014
• Due Date: 21-Jun-2014
• Completion Date: 07-May-2014
• Ref Project: EN 15619:2014 - Rubber or plastic coated fabrics - Safety of temporary structures (tents) - Specification for coated fabrics intended for tents and related structures

Relations

• Replaces: SIST EN 15619:2009+A1:2011 - Rubber or plastic coated fabrics - Safety of temporary structures (tents) - Specification for coated fabrics intended for tents and related structures
• Effective Date: 01-Jun-2014

Overview

EN 15619:2014 - published by CEN - specifies the characteristics, requirements and test methods for rubber or plastic coated fabrics intended for mobile, temporary structures (tents) and related assemblies (marquees, hangars, tent-halls, booths). The standard covers material properties, performance levels and conformity recommendations relevant to design, manufacture, installation and maintenance of tent membranes. Plastic films and materials other than coated fabrics are excluded.

Key topics and technical requirements

• Material description and scope - coated fabrics (woven or warp‑knitted substrates with one or more coating/topcoat layers); intended for temporary, mobile tents (see clause 3.3).
• Performance characteristics addressed with specified test methods:
  • Mass per unit area (EN ISO 2286-2)
  • Tensile strength and elongation (EN ISO 1421)
  • Tear strength (EN 1875-3)
  • Coating adhesion (Annex B; EN ISO 2411 referenced)
  • Dimensional stability and residual deformation (EN 15977)
  • Colour fastness to weathering / light - artificial ageing procedure (Annex A) based on EN ISO 4892-3; 2 000 h exposure used for comparative assessment
  • Susceptibility to microorganisms (EN ISO 846)
  • Reaction to fire / ignitability (EN ISO 11925-2) and Euroclass options
  • Appearance and visual defects inspection criteria
• Product profiling system - the standard defines multiple performance levels (e.g., F1–F3 for mechanical characteristics, T1–T4 for fire behaviour) so specifiers can compose a tailored “product profile” for specific uses.
• Annexes: Annex A (artificial ageing), Annex B (coating adhesion), Annex D (assessment of conformity). Annex C has been replaced by reference to EN 15977 / EN 15977:2011 where applicable.

Applications and practical use

• Selecting and specifying coated fabric materials for temporary structures exposed to wind, snow, UV and moisture.
• Guiding designers and structural engineers on material input values for calculations and safety margins.
• Defining acceptance criteria and sampling/testing plans for manufacturers and testing laboratories.
• Supporting procurement specifications for event organizers, rental companies, and tent manufacturers to ensure longevity, fire performance and weather resistance.

Who uses this standard

• Coated fabric producers and material suppliers
• Tent manufacturers and membrane system designers
• Testing laboratories and conformity assessment bodies
• Specifiers, architects, engineers, event planners and procurement teams responsible for temporary structures

Related standards

• EN 15977 (elongation, residual deformation)
• EN ISO 1421 (tensile testing), EN 1875-3 (tear), EN ISO 2286-2 (mass), EN ISO 4892-3 (UV ageing), EN ISO 11925-2 (ignitability), EN ISO 846 (microorganisms)

Keywords: EN 15619:2014, coated fabrics, tents, temporary structures, CEN, test methods, tensile strength, tear strength, coating adhesion, colour fastness, dimensional stability, reaction to fire.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.FLMHMit Kautschuk oder Kunststoff beschichtete Textilien - Sicherheit Fliegender Bauten (Zelte) - Spezifikation für beschichtete Textilien für Zelte und zugehörige BautenSupports textiles revêtus de caoutchouc ou de plastique - Sécurité des structures temporaires (tentes) - Spécification des supports textiles revêtus destinés aux tentes et structures similairesRubber or plastic coated fabrics - Safety of temporary structures (tents) - Specification for coated fabrics intended for tents and related structures97.200.30Oprema za taborjenje in taboriCamping equipment and camp-sites59.080.40WHNVWLOLMHCoated fabricsICS:Ta slovenski standard je istoveten z:EN 15619:2014SIST EN 15619:2014en,fr,de01-junij-2014SIST EN 15619:2014SLOVENSKI
STANDARDSIST EN 15619:2009+A1:20111DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15619
March 2014 ICS 59.080.40; 97.200.30 Supersedes EN 15619:2008+A1:2010English Version
Rubber or plastic coated fabrics - Safety of temporary structures (tents) - Specification for coated fabrics intended for tents and related structures
Supports textiles revêtus de caoutchouc ou de plastique - Sécurité des structures temporaires (tentes) - Spécification des supports textiles revêtus destinés aux tentes et structures similaires
Mit Kautschuk oder Kunststoff beschichtete Textilien - Sicherheit Fliegender Bauten (Zelte) - Spezifikation für beschichtete Textilien für Zelte und zugehörige Bauten This European Standard was approved by CEN on 20 December 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15619:2014 ESIST EN 15619:2014

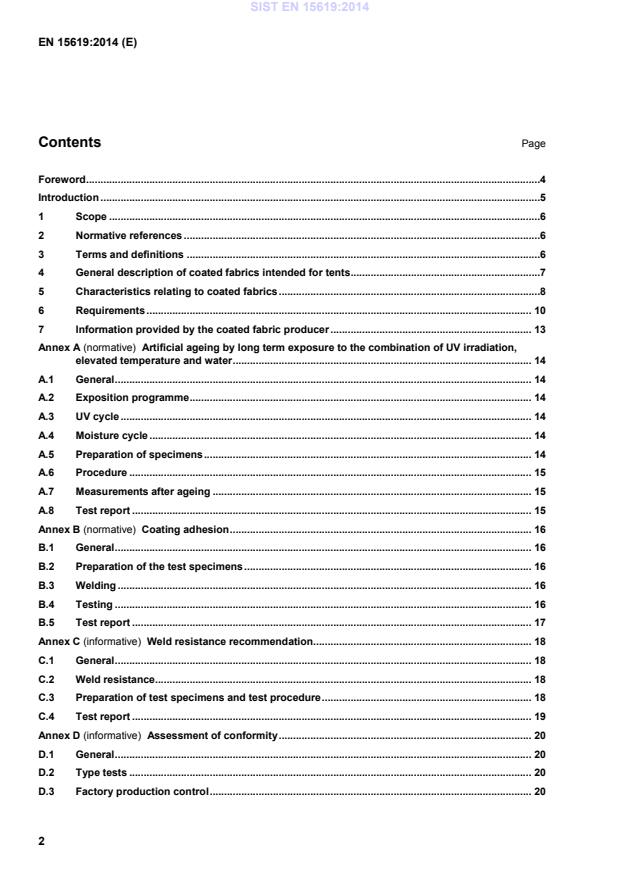

Artificial ageing by long term exposure to the combination of UV irradiation, elevated temperature and water . 14 A.1 General . 14 A.2 Exposition programme . 14 A.3 UV cycle . 14 A.4 Moisture cycle . 14 A.5 Preparation of specimens . 14 A.6 Procedure . 15 A.7 Measurements after ageing . 15 A.8 Test report . 15 Annex B (normative)
Coating adhesion . 16 B.1 General . 16 B.2 Preparation of the test specimens . 16 B.3 Welding . 16 B.4 Testing . 16 B.5 Test report . 17 Annex C (informative)
Weld resistance recommendation. 18 C.1 General . 18 C.2 Weld resistance. 18 C.3 Preparation of test specimens and test procedure . 18 C.4 Test report . 19 Annex D (informative)
Assessment of conformity . 20 D.1 General . 20 D.2 Type tests . 20 D.3 Factory production control . 20 SIST EN 15619:2014

used to determine the “Euroclasses”; — Clause 6 “Requirements” has been updated to include:
— explanation to determine the product profile; — separate tables introduced tables (one table per performance) to avoid confusion when determining the product profile; — a specific codification letter is used for each performance; — a fourth performance level has been added to Tables 4 and 8 (elongation), Tables 5 and 9 (residual deformation);
— creation of a new Clause 7, Information provided by the coated fabric producer; — addition of subclause A.8 “Test report”; — Annex C has been deleted and references to this annex replaced by reference to EN 15977. According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 15619:2014

Key 1 top coating 2 fabric 3 coating Figure 1 — Schema of a cross section of a woven fabric coated on both sides
1) In the cases of warp-knitted fabrics, the requirements of the Tables 1 to10 remain identical, "warp" meaning the warp direction and "weft" meaning the course direction. SIST EN 15619:2014
...
