Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-051: Particular requirements for laboratory equipment for mixing and stirring

1 Scope and object
This clause of Part 1 is applicable except as follows:
1.1.1 Equipment included in scope
Replacement:
Replace the text, except the first paragraph, with the following new text:
This part of IEC 61010 is applicable to electrically operated laboratory equipment and its
accessories for mechanical mixing and stirring, where mechanical energy influences the
shape or size or homogeneity of materials and their accessories. Such devices can contain
heating elements.
NOTE If all or part of the equipment falls within the scope of one or more other Part 2 standards of the IEC 61010
series as well as within the scope of this document, consideration is given to those other Part 2 standards. The
standard for equipment which contains heating devices is IEC 61010-2-010.

Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel- und Laborgeräte - Teil 2-051: Besondere Anforderungen an Laborgeräte zum Mischen und Rühren

Exigences de sécurité pour appareils électriques de mesurage, de régulation et de laboratoire - Partie 2-051 : Exigences particulières pour appareils de laboratoire utilisés pour mélanger et agiter

Varnostne zahteve za električno opremo za meritve, nadzor in laboratorijsko uporabo - 2-051. del: Posebne zahteve za laboratorijsko opremo za mešanje in premešavanje

General Information

Status
Published
Public Enquiry End Date
30-Jan-2021
Publication Date
27-Oct-2021
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
15-Sep-2021
Due Date
20-Nov-2021
Completion Date
28-Oct-2021

RELATIONS

Buy Standard

Amendment
SIST EN IEC 61010-2-051:2021/A11:2021
English language
9 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
oSIST prEN 61010-2-051:2018/oprAA:2021
English language
6 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN IEC 61010-2-051:2021/A11:2021
01-december-2021
Varnostne zahteve za električno opremo za meritve, nadzor in laboratorijsko
uporabo - 2-051. del: Posebne zahteve za laboratorijsko opremo za mešanje in
premešavanje

Safety requirements for electrical equipment for measurement, control and laboratory

use - Part 2-051: Particular requirements for laboratory equipment for mixing and stirring

Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel- und Laborgeräte - Teil 2

-051: Besondere Anforderungen an Laborgeräte zum Mischen und Rühren

Exigences de sécurité pour appareils électriques de mesurage, de régulation et de

laboratoire - Partie 2-051 : Exigences particulières pour appareils de laboratoire utilisés

pour mélanger et agiter
Ta slovenski standard je istoveten z: EN IEC 61010-2-051:2021/A11:2021
ICS:
19.080 Električno in elektronsko Electrical and electronic
preskušanje testing
71.040.10 Kemijski laboratoriji. Chemical laboratories.
Laboratorijska oprema Laboratory equipment
SIST EN IEC 61010-2-051:2021/A11:2021 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 61010-2-051:2021/A11:2021
---------------------- Page: 2 ----------------------
SIST EN IEC 61010-2-051:2021/A11:2021
EUROPEAN STANDARD EN IEC 61010-2-
051:2021/A11
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2021
ICS 19.080; 71.040.20
English Version
Safety requirements for electrical equipment for measurement,
control and laboratory use - Part 2-051: Particular requirements
for laboratory equipment for mixing and stirring

Exigences de sécurité pour appareils électriques de Sicherheitsbestimmungen für elektrische Mess-, Steuer-,

mesurage, de régulation et de laboratoire - Partie 2-051 : Regel- und Laborgeräte - Teil 2-051: Besondere

Exigences particulières pour appareils de laboratoire Anforderungen an Laborgeräte zum Mischen und Rühren

utilisés pour mélanger et agiter

This amendment A11 modifies the European Standard EN IEC 61010-2-051:2021; it was approved by CENELEC on 2021-08-02.

CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the

responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as

the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN IEC 61010-2-051:2021/A11:2021 E
---------------------- Page: 3 ----------------------
SIST EN IEC 61010-2-051:2021/A11:2021
EN IEC 61010-2-051:2021/A11:2021 (E)

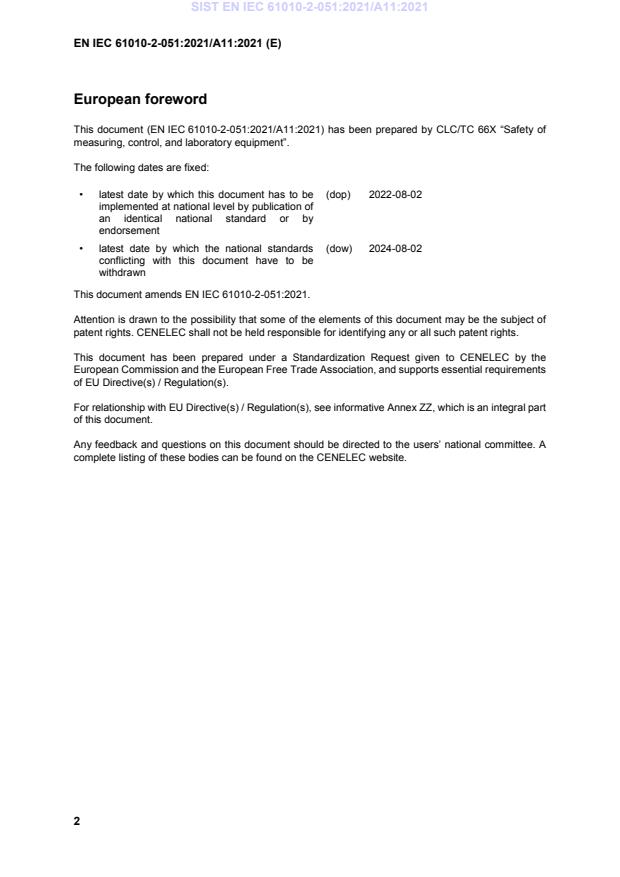

European foreword

This document (EN IEC 61010-2-051:2021/A11:2021) has been prepared by CLC/TC 66X “Safety of

measuring, control, and laboratory equipment”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2022-08-02
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2024-08-02
conflicting with this document have to be
withdrawn
This document amends EN IEC 61010-2-051:2021.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a Standardization Request given to CENELEC by the

European Commission and the European Free Trade Association, and supports essential requirements

of EU Directive(s) / Regulation(s).

For relationship with EU Directive(s) / Regulation(s), see informative Annex ZZ, which is an integral part

of this document.

Any feedback and questions on this document should be directed to the users’ national committee. A

complete listing of these bodies can be found on the CENELEC website.
---------------------- Page: 4 ----------------------
SIST EN IEC 61010-2-051:2021/A11:2021
EN IEC 61010-2-051:2021/A11:2021 (E)
1 Additions to Clause 2, “Normative references”
Add the following normative references to Clause 2:

EN IEC 60079-0:2018, Explosive atmospheres - Part 0: Equipment - General requirements (IEC 60079-

0:2017)

EN 60079-1:2014, Explosive atmospheres - Part 1: Equipment protection by flameproof enclosures "d"

(IEC 60079-1:2014)

EN 60079-2:2014, Explosive atmospheres - Part 2: Equipment protection by pressurized enclosure "p"

(IEC 60079-2:2014)

EN 60079-5:2015, Explosive atmospheres - Part 5: Equipment protection by powder filling "q"

(IEC 60079-5:2015)

EN 60079-7:2015 , Explosive atmospheres - Part 7: Equipment protection by increased safety “e”

(IEC 60079-7:2015)

EN 60079-11:2012, Explosive atmospheres - Part 11: Equipment protection by intrinsic safety "i"

(IEC 60079-11:2011)

EN IEC 60079-15:2019, Explosive atmospheres - Part 15: Equipment protection by type of protection

"n" (IEC 60079-15:2017)

EN 60079-18:2015, Explosive atmospheres - Part 18: Equipment protection by encapsulation “m”

(IEC 60079-18:2014)

IEC 62061, Safety of machinery — Functional safety of safety-related electrical, electronic and

programmable electronic control systems

ISO 13849-1, Safety of machinery — Safety-related parts of control systems — Part 1: General

principles for design

ISO 13849-2, Safety of machinery — Safety-related parts of control systems — Part 2: Validation

2 Modification to 7.3.101, “Speed controls”
Replace the second paragraph with:
“Conformity is checked by inspection and the following test:

The speed control is overridden to achieve the maximum speed the moving parts can achieve. The

equipment shall be observed for a duration as specified in 4.4.3 or until the power to the moving parts

is interrupted permanently. The conformity criteria of 4.4.4.1 to 4.4.4.3 shall be observed and the

requirements of 7.3.1 and 7.7 shall be met during the test.”
As impacted by EN 60079-7:2015/A1:2018.
As impacted by EN 60079-18:2015/A1:2017.
---------------------- Page: 5 ----------------------
SIST EN IEC 61010-2-051:2021/A11:2021
EN IEC 61010-2-051:2021/A11:2021 (E)
3 Modification to 7.3.104, “HAZARDS related to application”
Replace Example b) with the following:

b) Where a HAZARD could be caused by excessive torque applied to high-viscosity material, for

example through glass breakage, the safety device shall initiate an alarm signal if the torque rises

above a preset level.”
4 Modification to 7.7, “Expelled parts”
Add the following new paragraph before the note:
“Expelled parts include sample materials and fluids being mixed or stirred.”
5 Modification to 13.2.101, “Protection against explosion and explosives”

In the third line, replace “such as IEC 60079 series” by “including EN 60079 series”.

6 Modification to 15.1, “General”
Add to the conformity statement the following new paragraphs:
“If IEC 62061 or ISO 13849-1 is used to determine the requiremen
...

SLOVENSKI STANDARD
oSIST prEN 61010-2-051:2018/oprAA:2021
01-januar-2021
Varnostne zahteve za električno opremo za meritve, nadzor in laboratorijsko
uporabo - 2-051. del: Posebne zahteve za laboratorijsko opremo za mešanje in
premešavanje

Safety requirements for electrical equipment for measurement, control and laboratory

use - Part 2-051: Particular requirements for laboratory equipment for mixing and stirring

Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel- und Laborgeräte - Teil 2

-051: Besondere Anforderungen an Laborgeräte zum Mischen und Rühren

Exigences de sécurité pour appareils électriques de mesurage, de régulation et de

laboratoire - Partie 2-051 : Exigences particulières pour appareils de laboratoire utilisés

pour mélanger et agiter
Ta slovenski standard je istoveten z: prEN 61010-2-051:2017/prAA
ICS:
19.080 Električno in elektronsko Electrical and electronic
preskušanje testing
71.040.10 Kemijski laboratoriji. Chemical laboratories.
Laboratorijska oprema Laboratory equipment
oSIST prEN 61010-2- en,fr,de
051:2018/oprAA:2021

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 61010-2-051:2018/oprAA:2021
---------------------- Page: 2 ----------------------
oSIST prEN 61010-2-051:2018/oprAA:2021
EUROPEAN STANDARD DRAFT
prEN 61010-2-051:2017
NORME EUROPÉENNE
EUROPÄISCHE NORM
prAA
November 2020
ICS 19.080; 71.040.20
English Version
Safety requirements for electrical equipment for measurement,
control and laboratory use - Part 2-051: Particular requirements
for laboratory equipment for mixing and stirring

Exigences de sécurité pour appareils électriques de Sicherheitsbestimmungen für elektrische Mess-, Steuer-,

mesurage, de régulation et de laboratoire - Partie 2-051 : Regel- und Laborgeräte - Teil 2-051: Besondere

Exigences particulières pour appareils de laboratoire Anforderungen an Laborgeräte zum Mischen und Rühren

utilisés pour mélanger et agiter

This draft amendment prAA, if approved, will modify the European Standard prEN 61010-2-051:2017; it is submitted to CENELEC members

for enquiry.
Deadline for CENELEC: 2021-02-19.
It has been drawn up by CLC/TC 66X.

If this draft becomes an amendment, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which

stipulate the conditions for giving this amendment the status of a national standard without any alteration.

This draft amendment was established by CENELEC in three official versions (English, French, German).

A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to

the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to

provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and

shall not be referred to as a European Standard.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Project: 71509 Ref. No. prEN 61010-2-051:2017/prAA E
---------------------- Page: 3 ----------------------
oSIST prEN 61010-2-051:2018/oprAA:2021
prEN 61010-2-051:2017/prAA:2020 (E)
1 European foreword

2 This document (prEN 61010-2-051:2017/prAA:2020) has been prepared by CLC/TC 66X “Safety of

3 measuring, control, and laboratory equipment”.
4 This document is currently submitted to the Enquiry.
5 The following dates are proposed:
• latest date by which the existence of this (doa) dor + 6 months
document has to be announced at national
level
• latest date by which this document has to be (dop) dor + 12 months
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) dor + 36 months
conflicting with this document have to be (to be confirmed or
withdrawn modified when voting)
6 This document amends prEN 61010-2-051:2017.

7 This document has been prepared under a mandate given to CENELEC by the European Commission

8 and the European Free Trade Association, and supports essential requirements of EU Directive(s).

9 For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this

10 document.
---------------------- Page: 4 ----------------------
oSIST prEN 61010-2-051:2018/oprAA:2021
prEN 61010-2-051:2017/prAA:2020 (E)
11 1 Additions to Clause 2, "Normative references"
12 Add the following normative references to Clause 2:
13 "

14 EN IEC 60079-0:2018, Explosive atmospheres - Part 0: Equipment - General requirements

15 (IEC 60079-0:2017)

16 EN 60079-1:2014, Explosive atmospheres - Part 1: Equipment protection by flameproof enclosures "d"

17 (IEC 60079-1:2014)

18 EN 60079-2:2014, Explosive atmospheres - Part 2: Equipment protection by pressurized enclosure

19 "p"(IEC 60079-2:2014)

20 EN 60079-5:2015, Explosive atmospheres - Part 5: Equipment protection by powder filling "q"

21 (IEC 60079-5:2015)

22 EN 60079-7:2015, Explosive atmospheres - Part 7: Equipment protection by increased safety “e”

23 (IEC 60079-7:2015)

24 EN 60079-11:2012, Explosive atmospheres - Part 11: Equipment protection by intrinsic safety "i"

25 (IEC 60079-11:2011)

26 EN IEC 60079-15:2019, Explosive atmospheres - Part 15: Equipment protection by type of protection

27 "n" (IEC 60079-15:2017)

28 EN 60079-18:2015, Explosive atmospheres - Part 18: Equipment protection by encapsulation “m”

29 (IEC 60079-18:2014)"
30 2 Modification to 7.3.101, “Speed controls”
31 Replace the conformity clause with the following:
32 “Conformity is checked by inspection and the following test:

33 The speed control is overridden to achieve the maximum speed the moving parts can achieve. The

34 equipment shall be observed for a duration as specified in 4.4.3 or until the power to the moving parts

35 is interrupted permanently. The conformity criteria of 4.4.4.1 to 4.4.4.3 shall be observed and the

36 requirements of 7.3.1 and 7.7 shall be met during the test.”
37 3 Modification to 7.3.104, “HAZARDS related to application”
38 Replace Example b) with the following:

39 “b) Where a HAZARD could be caused by excessive torque applied to high-viscosity material, for

40 example through glass breakage, the safety device shall initiate an alarm signal if the torque rises

41 above a preset level.”
42 4 Modification to 7.7, “Expelled parts”
43 Add the following new paragraph before the note:
44 “Expelled parts
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
