General Information
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN ISO 18594:2007
01-julij-2007
7RþNRYQREUDGDYLþDVWRLQNROXWQRXSRURYQRYDUMHQMH±0HWRGDGRORþDQMD
SUHKRGQHXSRUQRVWLQDDOXPLQLMXLQMHNOX ,62
Resistance spot-, projection- and seam-welding - Method for determining the transition
resistance on aluminium and steel material (ISO 18594:2007)
Widerstandspunkt-, Buckel- und Rollennahtschweißen - Verfahren für das Bestimmen
des Übergangswiderstands von Aluminium- und Stahlwerkstoffen (ISO 18594:2007)
Soudage par résistance par points, par bossage et a la molette - Méthode pour la
détermination de la résistance de transition sur l'aluminium et sur l'acier (ISO
18594:2007)
Ta slovenski standard je istoveten z: EN ISO 18594:2007
ICS:
25.160.10 Varilni postopki in varjenje Welding processes
77.080.10 Železo Irons
77.120.10 Aluminij in aluminijeve zlitine Aluminium and aluminium
alloys
SIST EN ISO 18594:2007 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN ISO 18594:2007
---------------------- Page: 2 ----------------------
SIST EN ISO 18594:2007
EUROPEAN STANDARD
EN ISO 18594
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2007
ICS 25.160.10
English Version
Resistance spot-, projection- and seam-welding - Method for
determining the transition resistance on aluminium and steel
material (ISO 18594:2007)
Soudage par résistance par points, par bossage et à la Widerstandspunkt-, Buckel- und Rollennahtschweißen -
molette - Méthode pour la détermination de la résistance de Verfahren für das Bestimmen des Übergangswiderstands
transition sur l'aluminium et sur l'acier (ISO 18594:2007) von Aluminium- und Stahlwerkstoffen (ISO 18594:2007)
This European Standard was approved by CEN on 17 February 2007.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2007 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 18594:2007: E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN ISO 18594:2007
EN ISO 18594:2007 (E)

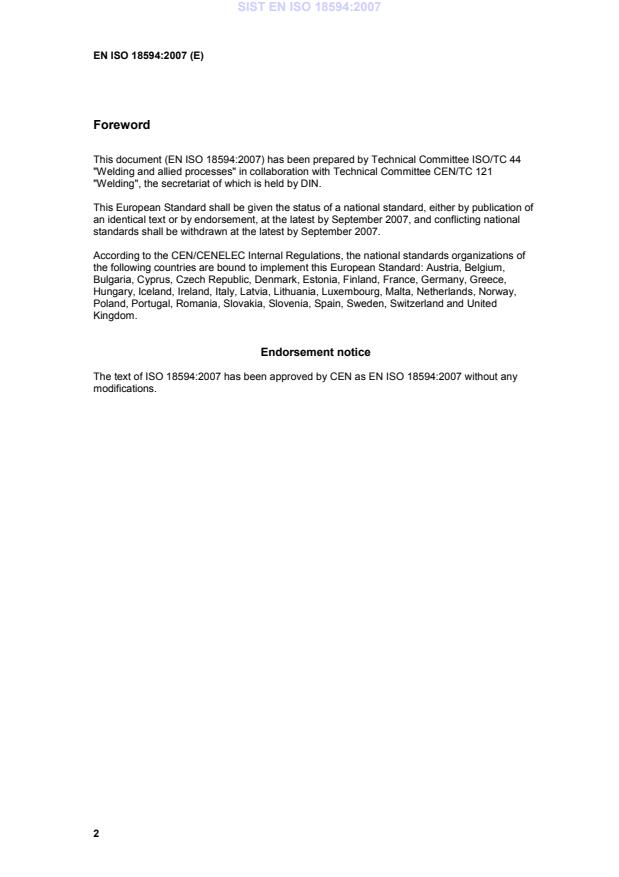

Foreword
This document (EN ISO 18594:2007) has been prepared by Technical Committee ISO/TC 44
"Welding and allied processes" in collaboration with Technical Committee CEN/TC 121
"Welding", the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by September 2007, and conflicting national
standards shall be withdrawn at the latest by September 2007.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United
Kingdom.
Endorsement notice
The text of ISO 18594:2007 has been approved by CEN as EN ISO 18594:2007 without any
modifications.
2
---------------------- Page: 4 ----------------------
SIST EN ISO 18594:2007
INTERNATIONAL ISO
STANDARD 18594
First edition
2007-03-01
Resistance spot-, projection- and seam-
welding — Method for determining the
transition resistance on aluminium and
steel material
Soudage par résistance par points, par bossages et à la molette —
Méthode pour la détermination de la résistance de transition sur
l'aluminium et sur l'acier
Reference number
ISO 18594:2007(E)
©
ISO 2007
---------------------- Page: 5 ----------------------
SIST EN ISO 18594:2007
ISO 18594:2007(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2007 – All rights reserved
---------------------- Page: 6 ----------------------
SIST EN ISO 18594:2007
ISO 18594:2007(E)
Contents Page
Foreword. iv
1 Scope . 1
2 Terms and definitions. 1
3 Basic principles . 2
4 Measurement. 2
4.1 Measuring set-up . 2
4.2 Measurement procedure . 5
5 Test equipment . 6
6 Formulae and abbreviations for calculating the transition resistance . 7
7 Test report . 8
Annex A (informative) Test report .9
Bibliography . 11
© ISO 2007 – All rights reserved iii
---------------------- Page: 7 ----------------------
SIST EN ISO 18594:2007
ISO 18594:2007(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 18594 was prepared by Technical Committee ISO/TC 44, Welding and allied processes, Subcommittee
SC 6, Resistance welding.
Requests for official interpretations of any aspect of this International Standard should be directed to the
Secretariat of ISO/TC 44/SC 6 via your national standards body. A complete listing of these bodies can be
found at www.iso.org.
iv © ISO 2007 – All rights reserved
---------------------- Page: 8 ----------------------
SIST EN ISO 18594:2007
INTERNATIONAL STANDARD ISO 18594:2007(E)
Resistance spot-, projection- and seam-welding — Method for
determining the transition resistance on aluminium and steel
material
1 Scope
This International Standard specifies the procedure and the experimental set-up for determining the transition
resistance of a single sheet or two overlapping sheets of aluminium or steel, with or without surface treatment,
and with or without surface coating.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
contact resistance
electric property of a contact area between two bodies which opposes and limits the passage through it of a
steady current
EXAMPLE The contacts between electrode/electrode, electrode/sheet and sheet/sheet.
2.2
bulk resistance
ohmic resistance of an electrical conductor
2.3
total resistance
R
electrical resistance as measured between the sensing clamps (includes both bulk and contact resistances)
See Figure 1 and Figure 2.
2.4
set-up resistance
R
s
resistance of the experimental set-up between the sensing clamps without metal sheet(s) between the
electrodes, the two electrodes being in direct contact
See Figure 2 b), (R +R +R ).
0 1 7
2.5
transition resistance
R
t
total resistance minus the set-up resistance
© ISO 2007 – All rights reserved 1
---------------------- Page: 9 ----------------------
SIST EN ISO 18594:2007
ISO 18594:2007(E)
3 Basic principles
Figure 1 shows schematically the resistances in the weld zone of the spot welding process. The contact
resistances are not directly accessible to measurement.
Key
F electrode force
E
1 bulk resistance of top electrode, R
1
2 contact
...
Questions, Comments and Discussion
