SIST EN IEC 61820-1:2019

Electrical installations for aeronautical ground lighting at aerodromes - Part 1: Fundamental principles (IEC 61820-1:2019)

IEC 61820-1:2019 covers principles of design and installation requirements for AGL systems including control, monitoring and transformation of energy, the cables and any electrical component utilized to produce the light intended to be used as a visual aid for air and ground navigation. This document defines in general the fundamental principles to provide safe, reliable and efficient operation of AGL systems independent of the particular system design. Where certain aspects of design are specific to a particular type of system (e.g. series-circuit), these are supplemented in the applicable part.

Elektrische Anlagen für Beleuchtung und Befeuerung von Flugplätzen – Teil 1: Allgemeine Grundsätze (IEC 61820-1:2019)

Installations électriques pour le balisage aéronautique au sol dans les aérodromes - Partie 1: Principes fondamentaux (IEC 61820-1:2019)

L'IEC 61820-1:2019 couvre des principes relatifs aux exigences de conception et d'installation pour des systèmes AGL incluant la commande, le contrôle et la transformation de l'énergie, les câbles et tous les composants électriques utilisés pour générer le rayonnement lumineux destiné à être utilisé comme une aide visuelle à la navigation aérienne et au sol. Le présent document définit de manière générale les principes fondamentaux nécessaires pour fournir un fonctionnement sûr, fiable et efficace des systèmes AGL quelle que soit la conception du système. Lorsque certains aspects de conception sont spécifiques à un type de système particulier (par exemple un circuit en série), ils sont ajoutés dans la partie applicable.

Električne inštalacije za letališko razsvetljavo na tleh letališč - 1. del: Temeljna načela (IEC 61820-1:2019)

Ta del standarda IEC 61820 zajema načela načrtovanja in namestitvene zahteve za sisteme talne letališke razsvetljave (AGL), vključno z nadzorom, spremljanjem ter pretvorbo energije, kablov in vseh električnih komponent, ki se uporabljajo za proizvodnjo svetlobe, namenjene vizualni pomoči za zračno in talno navigacijo.
Ta dokument v splošnem določa temeljna načela za zagotavljanje varnega, zanesljivega in učinkovitega delovanja sistemov AGL, neodvisno od zasnove posameznega sistema. Če so določeni vidiki zasnove specifični za določeno vrsto sistema (npr. serijsko vezje), je to dopolnjeno v ustreznem delu.
OPOMBA: Lokalni/nacionalni predpisi se lahko razlikujejo od določb tega dokumenta.

General Information

• Status: Published
• Publication Date: 19-Aug-2019
• ICS: 29.140.50 - Lighting installation systems
• ICS: 49.100 - Ground service and maintenance equipment
• ICS: 93.120 - Construction of airports
• Technical Committee: I09 - Imaginarni 09
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 25-Jul-2019
• Due Date: 29-Sep-2019
• Completion Date: 20-Aug-2019
• Ref Project: EN IEC 61820-1:2019 - Electrical installations for aeronautical ground lighting at aerodromes - Part 1: Fundamental principles

Overview

EN IEC 61820-1:2019 (IEC 61820-1:2019) defines the fundamental principles for electrical installations for aeronautical ground lighting (AGL) at aerodromes. The standard covers design and installation requirements for AGL systems including control, monitoring and transformation of energy, cables and electrical components used to produce lights that serve as visual aids for air and ground navigation. Published by CLC/CENELEC as the European adoption of the IEC document, this part of the IEC 61820 series focuses on safety, reliability and efficient operation independent of specific system types.

Key topics and technical requirements

EN IEC 61820-1:2019 addresses core technical areas that guide AGL system engineering:

• Scope and definitions for AGL systems, components and lifecycle stages (design, installation, commissioning, maintenance).
• Environmental classes (E10, E11, E20, E21) and environmental condition requirements for outdoor, below-surface and indoor installations.
• Installation location classes (e.g., secured vs publicly accessible locations) that influence protective measures.
• Voltage classes (including a class for systems up to and including 5 000 VAC) and implications for equipment selection.
• Fundamental design and safety requirements such as general design, equipment selection, separable connections and EMC considerations.
• Protective measures including automatic disconnection, protection against direct and indirect contact, insulation monitoring of main distribution lines, and protection against transient overvoltages (atmospheric origin).
• General installation requirements: labelling, cable installation practices, field circuit isolators and minimum cable burial guidance.
• Competence and documentation requirements for personnel, commissioning records and maintenance documentation.

Practical applications

This standard is applied to ensure AGL installations are:

• Safe for personnel and the public
• Resilient and fault-tolerant to support continuous airfield operations
• Designed to meet environmental and electromagnetic conditions at aerodromes Typical tasks where EN IEC 61820-1 is used:
• Design and specification of AGL electrical distribution and control systems
• Installation and commissioning checks for runway, taxiway and apron lighting
• Maintenance procedures, fault diagnosis and system modernization planning
• Airport regulatory compliance and safety audits

Who should use this standard

• Airport electrical engineers and AGL system designers
• Contractors and integrators installing AGL systems
• Maintenance teams and operations staff at aerodromes
• Regulators, certifiers and consultants involved in aerodrome lighting safety

Related standards

Normative and referenced documents include (but are not limited to):

• IEC 60364-4-41 (HD 60364-4-41) - protection against electric shock
• IEC 61000-6-2 / IEC 61000-6-4 - EMC immunity/emission for industrial environments
• IEC 62870 - safety secondary circuits in series-circuit AGL systems
• IEC 61821, IEC 61140, IEC 60529

Using EN IEC 61820-1:2019 helps align AGL electrical installations with internationally recognized safety and performance principles for aerodromes.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2019
Električne inštalacije za letališko razsvetljavo na tleh letališč - 1. del: Temeljna
načela (IEC 61820-1:2019)
Electrical installations for aeronautical ground lighting at aerodromes - Part 1:
Fundamental principles (IEC 61820-1:2019)
Elektrische Anlagen für Beleuchtung und Befeuerung von Flugplätzen – Teil 1:
Allgemeine Grundsätze (IEC 61820-1:2019)
Installations électriques pour le balisage aéronautique au sol dans les aérodromes -
Partie 1: Principes fondamentaux (IEC 61820-1:2019)
Ta slovenski standard je istoveten z: EN IEC 61820-1:2019
ICS:
29.140.50 Instalacijski sistemi za Lighting installation systems
razsvetljavo
49.100 Oprema za servis in Ground service and
vzdrževanje na tleh maintenance equipment
93.120 Gradnja letališč Construction of airports
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 61820-1

NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2019
ICS 29.140.50; 93.120
English Version
Electrical installations for aeronautical ground lighting at
aerodromes - Part 1: Fundamental principles
(IEC 61820-1:2019)
Installations électriques pour le balisage aéronautique au Elektrische Anlagen für Beleuchtung und Befeuerung von
sol dans les aérodromes - Partie 1: Principes fondamentaux Flugplätzen - Teil 1: Allgemeine Grundsätze
(IEC 61820-1:2019) (IEC 61820-1:2019)
This European Standard was approved by CENELEC on 2019-06-06. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61820-1:2019 E

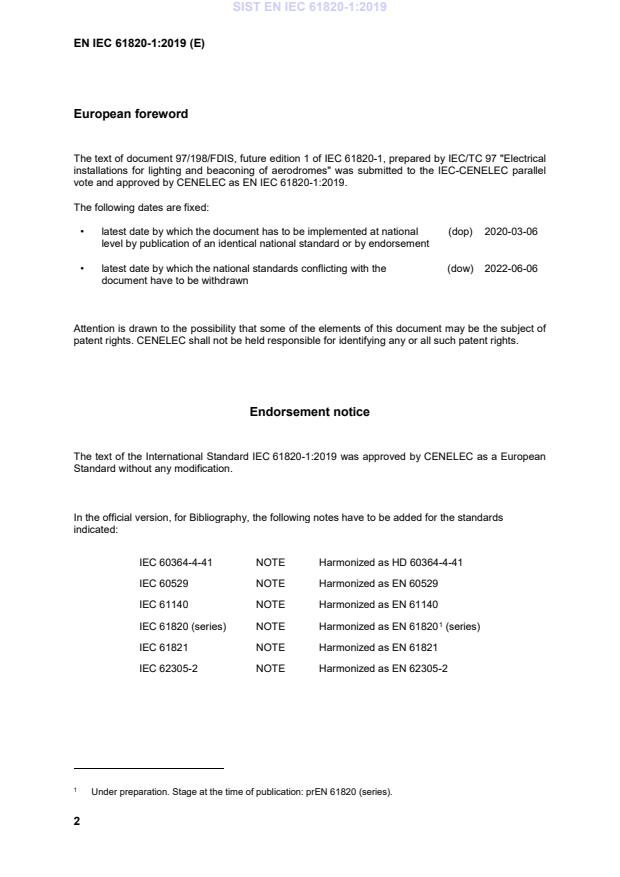

European foreword
The text of document 97/198/FDIS, future edition 1 of IEC 61820-1, prepared by IEC/TC 97 "Electrical
installations for lighting and beaconing of aerodromes" was submitted to the IEC-CENELEC parallel
vote and approved by CENELEC as EN IEC 61820-1:2019.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2020-03-06
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2022-06-06
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice
The text of the International Standard IEC 61820-1:2019 was approved by CENELEC as a European
Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60364-4-41 NOTE Harmonized as HD 60364-4-41
IEC 60529 NOTE Harmonized as EN 60529
IEC 61140 NOTE Harmonized as EN 61140
IEC 61820 (series) NOTE Harmonized as EN 61820 (series)
IEC 61821 NOTE Harmonized as EN 61821
IEC 62305-2 NOTE Harmonized as EN 62305-2

Under preparation. Stage at the time of publication: prEN 61820 (series).
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60364-4-41 -  Low-voltage electrical installations - Part 4-41: HD 60364-4-41 -
Protection for safety - Protection against electric
shock
IEC 60721-3-3 -  Classification of environmental conditions - Part 3- - -
3: Classification of groups of environmental
parameters and their severities - Stationary use at
weatherprotected locations
IEC 60721-3-4 -  Classification of environmental conditions - Part 3- - -
4: Classification of groups of environmental
parameters and their severities - Stationary use at
non-weatherprotected locations
IEC 61000-6-2 -  Electromagnetic compatibility (EMC) - Part 6-2: EN IEC 61000-6-2 -
Generic standards - Immunity standard for
industrial environments
IEC 61000-6-4 -  Electromagnetic compatibility (EMC) - Part 6-4: EN IEC 61000-6-4 -
Generic standards - Emission standard for
industrial environments
IEC 62870 -  Electrical installations for lighting and beaconing EN 62870 -
of aerodromes - Safety secondary circuits in
series circuits - General safety requirements

IEC 61820-1 ®
Edition 1.0 2019-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electrical installations for aeronautical ground lighting at aerodromes –

Part 1: Fundamental principles

Installations électriques pour le balisage aéronautique au sol

dans les aérodromes –
Partie 1: Principes fondamentaux

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.50; 93.120 ISBN 978-2-8322-6867-4

– 2 – IEC 61820-1:2019 © IEC 2019
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Environmental requirements . 9
4.1 Environmental classes . 9
4.1.1 General . 9
4.1.2 General environmental requirements . 9
4.1.3 E10: Outdoor installation at or above the surface . 9
4.1.4 E11: Outdoor installation below the surface . 10
4.1.5 E20: Indoor installation in moderate or controlled climatic environment . 10
4.1.6 E21: Indoor installation in harsh industrial or climatic environment . 10
4.2 Environmental conditions . 10
5 Installation location classes . 11
5.1 General . 11
5.2 L1: Secured location . 11
5.3 L2: Public accessible location . 11
6 Voltage classes . 11
6.1 General . 11
6.2 V1: nominal voltage in the ELV limits . 11
6.3 V2: nominal system voltage in low voltage limits . 12
6.4 V3: nominal system voltage up to and including 5 000 VAC . 12
7 Fundamental design and safety requirements . 12
7.1 Fundamental design requirements . 12
7.1.1 General design . 12
7.1.2 AGL system design . 12
7.1.3 Equipment selection . 12
7.1.4 Separable connections . 12
7.1.5 EMC requirements . 12
7.2 Fundamental protective measures . 12
7.2.1 Automatic disconnection . 12
7.2.2 Supply of the AGL loads . 13
7.2.3 General design of the AGL system . 13
7.2.4 Protection against electrical shock caused by direct contact . 13
7.2.5 Selection of electrical equipment . 13
7.2.6 Insulation monitoring of the main distribution line . 13
7.2.7 Protection against electrical shock caused by indirect contact . 13
7.2.8 Protection against transient overvoltages of atmospheric origin . 14
8 General installation requirements . 14
8.1 Labelling . 14
8.2 Cable installation . 14
8.3 Field circuit isolator . 14
9 Competence of persons . 14
10 Documentation . 15

IEC 61820-1:2019 © IEC 2019 – 3 –
Bibliography . 16

Table 1 – Environmental conditions for AGL systems . 10
Table 2 – Installation part requirements . 11
Table 3 – Minimum installation depth of AGL cable in the field . 14

– 4 – IEC 61820-1:2019 © IEC 2019
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRICAL INSTALLATIONS FOR AERONAUTICAL
GROUND LIGHTING AT AERODROMES –

Part 1: Fundamental principles

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61820-1 has been prepared by IEC technical committee 97:
Electrical installations for lighting and beaconing of aerodromes.
The text of this International Standard is based on the following documents:
FDIS Report on voting
97/198/FDIS 97/200/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

IEC 61820-1:2019 © IEC 2019 – 5 –
A list of all parts in the IEC 61820 series, published under the general title Electrical
installations for aeronautical ground lighting at aerodromes, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 61820-1:2019 © IEC 2019
INTRODUCTION
This document is part of IEC 61820, a series of standards that defines the requirements
throughout the lifecycle of an Aeronautical Ground Lighting (AGL) system including design,
installation, commissioning, maintenance, decommissioning and disposal.
This document contains fundamental design requirements for AGL systems.
According to ICAO or national standards, the AGL fixtures are subject to specific
requirements for photometric output and serviceability level.
The AGL system is provided to support airfield activities. Therefore, the focus of AGL system
design is to maintain the lighting against any possible failure. This document pertains to
personnel and operational safety.

IEC 61820-1:2019 © IEC 2019 – 7 –
ELECTRICAL INSTALLATIONS FOR AERONAUTICAL
GROUND LIGHTING AT AERODROMES –

Part 1: Fundamental principles

1 Scope
This part of IEC 61820 covers principles of design and installation requirements for AGL
sys
...
