kSIST-TS FprCEN/TS 12201-7:2024

Plastics piping systems for water supply, and for drains and sewers under pressure - Polyethylene (PE) - Part 7: Assessment of conformity

This document gives guidance and requirements for the assessment of conformity of compounds, products, joints and assemblies in accordance with the applicable part(s) of EN 12201 intended to be included in the manufacturer’s quality plan as part of the quality management system and for the establishment of certification procedures.
NOTE 1   A test matrix provides an overview of the testing scheme in Annex C, Table C.1.
NOTE 2   If certification is involved, the certification bodies and inspection bodies operating in accordance with EN ISO/IEC 17065 [6] and EN ISO/IEC 17020 [4] are considered to be competent.
Socket fusion fittings according to EN 12201 3:2024, Annex A, and mechanical fittings according to ISO 17885 are not covered in this document.
In conjunction with EN 12201 1, EN 12201 2, EN 12201 3, EN 12201 4 and EN 12201 5, this document is applicable to polyethylene (PE) pressure piping systems (mains and service pipes) for buried or above ground applications, intended for the conveyance of water for human consumption, raw water prior to treatment, drains and sewers under pressure, vacuum sewer systems, and water for other purposes, with the exception of industrial application. The intended use includes sea outfalls, laid in water and pipes suspended below bridges. It is applicable to PE pipes, fittings, and valves, their joints and joints with components of PE and other materials intended to be used under the following conditions:
a)   allowable operating pressure, PFA, up to 25 bar ;
b)   an operating temperature of 20 °C as a reference temperature.
NOTE 3   Industrial application is covered by EN ISO 15494 [3].
NOTE 4   For applications operating at constant temperature greater than 20 °C and up to and including 50 °C, see EN 12201 1:2024, Annex A.
NOTE 5   It is the responsibility of the purchaser or specifier to make the appropriate selections from these aspects, taking into account their particular requirements and any relevant national guidance or regulations and installation practices or codes.

Kunststoff-Rohrleitungssysteme für die Wasserversorgung und für Entwässerungs- und Abwasserdruckleitungen - Polyethylen (PE) - Teil 7: Beurteilung der Konformität

Dieser Teil der EN 12201 enthält Empfehlungen und Anforderungen für die Beurteilung der Konformität von Formmassen, Erzeugnissen, Verbindungen und Bauteilkombinationen entsprechend dem/den zutreffenden Teil(en) der EN 12201, die als Teil des Qualitätsmanagementsystems im Qualitätssicherungsplan des Herstellers und für die Einführung von Zertifizierungsverfahren vorgesehen sind.
ANMERKUNG 1   Anhang C, Tabelle C.1 enthält einen Überblick über das Prüfschema in Form einer Prüfmatrix.
ANMERKUNG 2   Bei Zertifizierung wird die in Übereinstimmung mit EN ISO/IEC 17065 [6] bzw. EN ISO/IEC 17020 [4] arbeitende Zertifizierungsstelle und Überwachungsstelle als kompetent angesehen.
Formstücke für Muffenschweißung nach EN 12201 3:2024, Anhang A, und Formstücke für mechanische Verbindungen nach ISO 17885 werden in diesem Dokument nicht behandelt.
Dieses Dokument gilt in Verbindung mit EN 12201 1, EN 12201 2, EN 12201 3, EN 12201 4 und EN 12201 5 für erdverlegte oder oberirdisch verlegte Druckrohrleitungssysteme (Haupt- und Anschlussleitungen) aus Polyethylen (PE), die für den Transport von Trinkwasser, von zur Aufbereitung vorgesehenem Rohwasser, für Entwässerungs- und Abwasserdruckleitungen, Unterdruckentwässerungssysteme sowie für den Transport von Brauchwasser vorgesehen sind, mit Ausnahme von industriellen Anwendungen. Die bestimmungsgemäße Verwendung umfasst die Entwässerung ins Meer (Siele), in Gewässern verlegte Rohre sowie Düker und Brückenleitungen. Es gilt für Rohre, Formstücke und Armaturen aus PE, deren Verbindungen sowie für Verbindungen mit Rohrleitungsteilen aus PE und anderen Werkstoffen, die für die Verwendung unter den folgenden Bedingungen vorgesehen sind:
a)   zulässiger Betriebsdruck PFA bis 25 bar ;
b)   Betriebstemperatur von 20 °C als Bezugstemperatur.
ANMERKUNG 3   Industrielle Anwendungen sind durch EN ISO 15494 [3] abgedeckt.
ANMERKUNG 4   Zu Anwendungen bei konstanter Betriebstemperatur oberhalb 20 °C und bis einschließlich 50 °C siehe EN 12201 1:2024, Anhang A.
ANMERKUNG 5   Die geeignete Auswahl aus diesen Aspekten unter Berücksichtigung der jeweiligen Anforderungen und aller nationalen Leitlinien oder Regelungen sowie Verfahren oder Vorschriften für die Verlegung liegt in der Verantwortung des Käufers oder Auftraggebers.

Systèmes de canalisations en plastique pour l'alimentation en eau et pour les branchements et les collecteurs d'assainissement avec pression - Polyéthylène (PE) - Partie 7 : Évaluation de la conformité

Cevni sistemi iz polimernih materialov za oskrbo z vodo in za odvodnjavanje in kanalizacijo pod tlakom - Polietilen (PE) - 7. del: Ugotavljanje skladnosti

General Information

• Status: Not Published
• Public Enquiry End Date: 30-Jul-2024
• ICS: 23.040.03 - Pipeline and its parts for external water conveyance systems
• ICS: 23.040.05 - Pipeline and its parts for external sewage systems
• ICS: 91.140.60 - Water supply systems
• ICS: 93.030 - External sewage systems
• Technical Committee: PCV - Plastic pipes, fittings and valves
• Current Stage: 5520 - Unique Acceptance Procedure (UAP) (Adopted Project)
• Start Date: 06-Jun-2024
• Due Date: 24-Oct-2024
• Completion Date: 05-Aug-2024
• Ref Project: CEN/TS 12201-7:2026 - Plastics piping systems for water supply, and for drains and sewers under pressure - Polyethylene (PE) - Part 7: Assessment of conformity

Relations

• Revises: SIST-TS CEN/TS 12201-7:2014 - Plastics piping systems for water supply, and for drainage and sewerage under pressure - Polyethylene (PE) - Part 7: Guidance for the assessment of conformity
• Effective Date: 22-Nov-2023

Overview

CEN/TS 12201-7:2026 - "Plastics piping systems for water supply, and for drains and sewers under pressure - Polyethylene (PE) - Part 7: Assessment of conformity" provides guidance and requirements for assessing conformity of PE compounds, pipes, fittings, joints and assemblies. It is intended to be included in a manufacturer’s quality plan and to support the establishment of certification procedures for PE pressure piping systems used for potable water, raw water, pressure sewers (including vacuum systems), sea outfalls and other non-industrial water applications.

Key topics and requirements

• Scope and applicability: Applies in conjunction with EN 12201‑1 to EN 12201‑5 for PE piping systems (mains and service pipes) used up to 25 bar and a reference temperature of 20 °C. PE100‑RC materials are explicitly included.
• Assessment of conformity (AoC) framework: Defines the organisation of AoC with or without third‑party certification and the roles of manufacturers, laboratories, certification bodies and inspection bodies.
• Testing regimes:
  • Type testing (TT) to demonstrate that materials/products/joints meet standard requirements.
  • Batch release testing (BRT) to permit release of production batches.
  • Process verification testing (PVT) for ongoing confirmation that type test performance is maintained.
  • Audit testing (AT) performed by or for certification bodies to verify continuing conformity.
• Grouping and sampling: Guidance on size groups, fitting groups and fitting types for efficient testing strategies.
• Documentation and records: Requirements for test records, technical files for certification and retention of type test results (valid while no material/product change occurs and PVT is maintained).
• Annexes:
  • Annex A - change of compound and re‑evaluation triggers.
  • Annex B - testing of fabricated fittings.
  • Annex C - informative test matrix (Table C.1) providing an overview of required tests.
• Competence and accreditation: Certification bodies operating to EN ISO/IEC 17065 and inspection bodies to EN ISO/IEC 17020 are considered competent; laboratories to EN ISO/IEC 17025 are referenced. Quality management systems are recommended to meet EN ISO 9001.

Practical applications

• Use this TS to prepare a manufacturer’s quality plan and internal testing schedule for PE water piping products.
• Establish or evaluate certification procedures and audit/testing scope for suppliers.
• Define acceptance criteria and sampling for product release and supplier qualification.
• Inform procurement specifications, compliance checks, and product approval for buried, above‑ground, and special installations (sea outfalls, suspended pipelines).

Who should use this standard

• PE pipe, fitting and valve manufacturers
• Quality and compliance engineers
• Certification and inspection bodies
• Test laboratories
• Asset owners, specifiers and procurers of water and sewer systems

Related standards

• EN 12201‑1 to EN 12201‑5 (system parts)
• EN ISO/IEC 17065, EN ISO/IEC 17020, EN ISO/IEC 17025 (conformity assessment/laboratory competence)
• ISO 17885 (mechanical fittings) - note: mechanical fittings per ISO 17885 and socket fusion fittings per EN 12201‑3 Annex A are excluded from this document.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2024
Cevni sistemi iz polimernih materialov za oskrbo z vodo in za odvodnjavanje in
kanalizacijo pod tlakom - Polietilen (PE) - 7. del: Ugotavljanje skladnosti
Plastics piping systems for water supply, and for drains and sewers under pressure -
Polyethylene (PE) - Part 7: Assessment of conformity
Kunststoff-Rohrleitungssysteme für die Wasserversorgung und für Entwässerungs- und
Abwasserdruckleitungen - Polyethylen (PE) - Teil 7: Beurteilung der Konformität
Systèmes de canalisations en plastique pour l'alimentation en eau et pour les
branchements et les collecteurs d'assainissement avec pression - Polyéthylène (PE) -
Partie 7 : Évaluation de la conformité
Ta slovenski standard je istoveten z: FprCEN/TS 12201-7
ICS:
23.040.05 Cevovodi za zunanje Pipeline and its parts for
sisteme za odpadno vodo in external sewage systems
njihovi deli
91.140.60 Sistemi za oskrbo z vodo Water supply systems
93.030 Zunanji sistemi za odpadno External sewage systems
vodo
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

FINAL DRAFT
TECHNICAL SPECIFICATION
FprCEN/TS 12201-7
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
May 2024
ICS 23.040.05; 91.140.60 Will supersede CEN/TS 12201-7:2014
English Version
Plastics piping systems for water supply, and for drains
and sewers under pressure - Polyethylene (PE) - Part 7:
Assessment of conformity
Systèmes de canalisations en plastique pour Kunststoff-Rohrleitungssysteme für die
l'alimentation en eau et pour les branchements et les Wasserversorgung und für Entwässerungs- und
collecteurs d'assainissement avec pression - Abwasserdruckleitungen - Polyethylen (PE) - Teil 7:
Polyéthylène (PE) - Partie 7 : Évaluation de la Beurteilung der Konformität
conformité
This draft Technical Specification is submitted to CEN members for Vote. It has been drawn up by the Technical Committee
CEN/TC 155.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a Technical Specification. It is distributed for review and comments. It is subject to change
without notice and shall not be referred to as a Technical Specification.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. FprCEN/TS 12201-7:2024 E
worldwide for CEN national Members.

FprCEN/TS 12201-7:2024 (E)

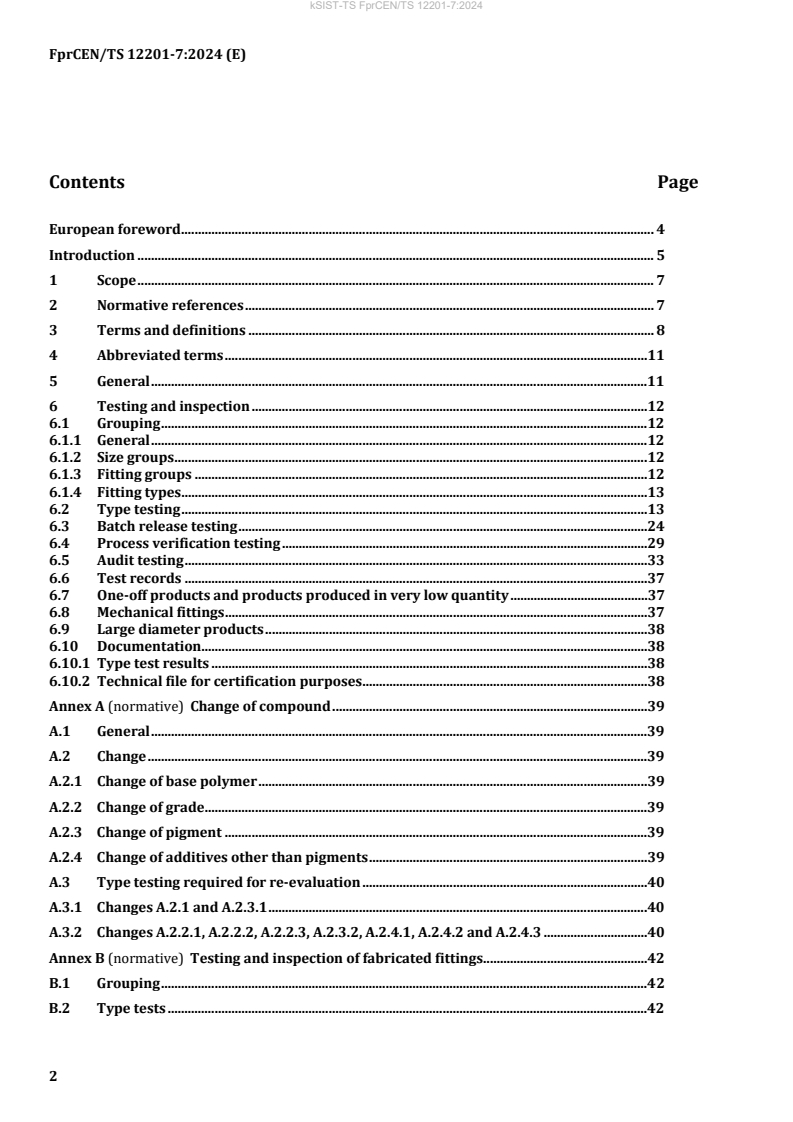

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 Abbreviated terms .11
5 General .11
6 Testing and inspection .12
6.1 Grouping .12
6.1.1 General .12
6.1.2 Size groups .12
6.1.3 Fitting groups .12
6.1.4 Fitting types .13
6.2 Type testing .13
6.3 Batch release testing .24
6.4 Process verification testing .29
6.5 Audit testing .33
6.6 Test records .37
6.7 One-off products and products produced in very low quantity .37
6.8 Mechanical fittings .37
6.9 Large diameter products .38
6.10 Documentation .38
6.10.1 Type test results .38
6.10.2 Technical file for certification purposes .38
Annex A (normative) Change of compound .39
A.1 General .39
A.2 Change .39
A.2.1 Change of base polymer .39
A.2.2 Change of grade .39
A.2.3 Change of pigment .39
A.2.4 Change of additives other than pigments .39
A.3 Type testing required for re-evaluation .40
A.3.1 Changes A.2.1 and A.2.3.1 .40
A.3.2 Changes A.2.2.1, A.2.2.2, A.2.2.3, A.2.3.2, A.2.4.1, A.2.4.2 and A.2.4.3 .40
Annex B (normative) Testing and inspection of fabricated fittings .42
B.1 Grouping .42
B.2 Type tests .42
FprCEN/TS 12201-7:2024 (E)
B.3 Batch release tests . 44
B.4 Process verification tests . 44
B.5 Audit tests . 45
Annex C (informative) Basic test matrix for PE water compounds and piping products . 46
Bibliography . 50

FprCEN/TS 12201-7:2024 (E)
European foreword
This document (FprCEN/TS 12201-7:2024) has been prepared by Technical Committee CEN/TC 155
“Plastics piping systems and ducting systems”, the secretariat of which is held by NEN.
This document is currently submitted to the Vote on TS.
This document will supersede CEN/TS 12201-7:2014.
This document includes the following significant technical changes with respect to EN 12201-1,
EN 12201-2, EN 12201-3, EN 12201-5 and EN 12201-4, published in 2024. Guidance for the assessment
of conformity given in this document has been revised to reflect the changes made to test methods and
requirements given in EN 12201-1, EN 12201-2, EN 12201-3, EN 12201-4 and EN 12201-5. PE 100-RC
type materials have been added.
EN 12201 consists of the following parts, under the general title “Plastics piping systems for water supply,
and for drains and sewers under pressure — Polyethylene (PE)”:
— EN 12201-1, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 1: General
— EN 12201-2, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 2: Pipes
— EN 12201-3, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 3: Fittings
— EN 12201-4, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 4: Valves
— EN 12201-5, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 5: Fitness for purpose of the system
— CEN/TS 12201-7, Plastics piping systems for water supply, and for drains and sewers under pressure
— Polyethylene (PE) — Part 7: Assessment of conformity

FprCEN/TS 12201-7:2024 (E)
Introduction
This document details the applicable characteristics to be assessed for type testing (TT), batch release
test (BRT), process verification test (PVT), and audit test (AT), as well as the frequency and sampling for
testing.
The concept of testing and organisation of those tests used for the AoC is shown, without or with
certification, in Figures 1 and 2.

Figure 1 — Typical scheme for the AoC by a manufacturer, without certification
FprCEN/TS 12201-7:2024 (E)
Figure 2 — Typical scheme for the AoC by a manufacturer, including certification
FprCEN/TS 12201-7:2024 (E)
1 Scope
This document gives guidance and requirements for the assessment of conformity of compounds,
products, joints and assemblies in accordance with the applicable part(s) of EN 12201 intended to be
included in the manufacturer’s quality plan as part of the quality management system and for the
establishment of certification procedures.
NOTE 1 A test matrix provides an overview of the testing scheme in Annex C, Table C.1.
NOTE 2 If certification is involved, the certification body operating in accordance with EN ISO/IEC 17065 [6] and
EN ISO/IEC 17020 [4] is considered to be competent.
In conjunction with EN 12201-1, EN 12201-2, EN 12201-3, EN 12201-4 and EN 12201-5, this document
is applicable to polyethylene (PE) pressure piping systems (mains and service pipes) for buried or above
ground applications, intended for the conveyance of water for human consumption, raw water prior to
treatment, drains and sewers under pressure, vacuum sewer systems, and water for other purposes, with
the exception of industrial application. The intended use includes sea outfalls, laid in water and pipes
suspended below bridges. It is applicable to PE pipes, fittings, and valves, their joints and joints with
components of PE and other materials intended to be used under the following conditions:
1)
a) allowable operating pressure, PFA, up to 25 bar ;
b) an operating temperature of 20 °C as a reference temperature.
NOTE 3 Industrial application is covered by EN ISO 15494 [3].
NOTE 4 For applications operating at constant temperature greater than 20 °C and up to and including 50 °C, see
EN 12201-1:2024, Annex A.
NOTE 5 It is the responsibility of the purchaser or specifier to make the appropriate selections from these
aspects, taking into account their particular requirements and any relevant national guidance or regulations and
installation practices or codes.
This document gives recommendations that the quality management system conforms to or is no less
stringent than the relevant requirements to EN ISO 9001 [2].
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 12201-1:2024, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 1: General
EN 12201-2:2024, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 2: Pipes
EN 12201-3:2024, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 3: Fittings

1 5 2
) 1 bar = 0,1 MPa = 10 Pa; 1 MPa = 1 N/mm
FprCEN/TS 12201-7:2024 (E)
EN 12201-4:2024, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 4: Valves for water supply systems
EN 12201-5:2024, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 5: Fitness for purpose of the system
ISO 17885, Plastics piping systems — Mechanical fittings for pressure piping systems — Specifications
ISO 21751, Plastics pipes and fittings — Decohesion test of electrofusion assemblies — Strip-bend test
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 12201-1, EN 12201-3 and
EN 12201-4 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
IEC Electropedia: available at https://www.electropedia.org/
ISO Online browsing platform: available at https://www.iso.org/obp
3.1
certification body
third-party conformity assessment body operating certification schemes
Note 1 to entry: A certification body can be non-governmental or governmental (with or without regulatory
authority).
[SOURCE: EN ISO/IEC 17065:2012 [6], definition 3.12]
3.2
inspection body
organization or part of an organization that performs inspection
Note 1 to entry: An inspection body is accredited to EN ISO/IEC 17020 [4].
3.3
laboratory
body that performs one or more of the following activities:
— testing;
— calibration;
— sampling, associated with subsequent testing or calibration
Note 1 to entry: In the context of this document, the materials and products can be subjected to type testing, batch
release testing, process verification testing, audit testing, and witness testing, as applicable.
[SOURCE: EN ISO/IEC 17025:2017 [5], definition 3.6, modified — Note 1 to entry is changed here]
3.4
quality management system
part of a management system with regard to quality
FprCEN/TS 12201-7:2024 (E)
Note 1 to entry: Requirements for quality management systems are given in EN ISO 9001 [2].
[SOURCE: EN ISO 9000:2015 [1], definition 3.5.4, modified — Note 1 to entry is added here]
3.5
quality plan
document setting out the specific quality practices, responsibilities, resources and sequence of activities
relevant to a particular product or range of products
3.6
type test
TT
test performed to prove that the material, product, joint or assembly is capable of conforming to the
requirement(s) given in the relevant standard or if applicable to determine the manufacturer’s declared
values
Note 1 to entry: The type test results remain valid until there is a change in the material or product or assembly
provided that the process verification tests are done regularly.
3.7
batch release test
BRT
test performed on a batch of compound or products, which has to be satisfactorily completed before the
batch can be released
Note 1 to entry: A batch release test can be performed by the manufacturer or outsourced on behalf of the
manufacturer.
3.8
process verification test
PVT
test performed by or on behalf of the manufacturer on compound or products or joints or assemblies at
specific intervals to confirm that type tests originally performed continue to be valid
Note 1 to entry: Process verification tests can be performed by the manufacturer or outsourced on behalf of the
manufacturer.
Note 2 to entry: Such tests are carried out as a measure of process control and are not related to release batches
of compound or products.
3.9
audit test
AT
test performed on behalf of a certification
Note 1 to entry: Audit tests are generally required to confirm that the compound, product, joint or assembly
continues to conform to the requirements given in the relevant standard and to provide information to assess the
effectiveness of the quality management system.
3.10
indirect test
batch release test performed which differs from that specified test for that particular characteristic,
having previously verified its correlation with the specified test
FprCEN/TS 12201-7:2024 (E)
Note 1 to entry: Indirect tests can be performed by the manufacturer or outsourced on behalf of the
manufacturer.
3.11
witness test
type test or audit test which is performed in the presence of a representative of the certification body
3.12
material
generic term for compounds grouped by families, expressed by generic names
Note 1 to entry: Examples of generic names are PE, PVC-U, polypropylene and EPDM.
3.13
material batch
quantity of a given homogeneous compound manufactured continuously under uniform conditions
defined and identified by the compound manufacturer
3.14
product
item as defined in the scope of the standard, e.g. pipe, fitting or valve
3.15
product batch
clearly identified collection of products, manufactured consecutively or continuously under the same
conditions, using the same compound conforming to the same specification
Note 1 to entry: The product batch is defined and identified by the product manufacturer.
3.16
lot
identified sub-division of a batch for inspection purposes
3.17
sample
one or more components or products drawn from the same production batch or a lot, selected at random
without regard to their quality
Note 1 to entry: The number of products in the sample is the sample size.
Note 2 to entry: The number of test pieces required for each test are taken from the sample. This information is
given in this document, in the product standard or in the relevant test method standard.
3.18
sampling group
defined collection of similar products from which samples are selected for testing purposes
3.19
component
item manufactured or supplied as part of a product or as a spare part for that product
Note 1 to entry: Depending on the context, components can be considered as products and be individually
approved (e.g. o-ring, gaskets) or they are tested as integral part of a finished product (e.g. in a valve).
FprCEN/TS 12201-7:2024 (E)
3.20
joint
connection between two products
3.21
assembled product
product comprising two or more components
3.22
assembly
set of components that forms a product or a test piece
3.23
product type
generic description of a product
EXAMPLE A pipe or fitting or valve or their main parts, of the same design.
3.24
body type
generic description of a body
EXAMPLE A valve body of a particular design, which can have different end connections.
3.25
cavity
space within a mould to be filled to form the moulded product
EXAMPLE That part of an injection mould which gives the form to the injection-moulded product.
4 Abbreviated terms
To avoid misunderstanding, the abbreviations in this clause are defined as being the same in each
language. For the same reason, the terms are given in the three languages, English, French and German.
EN FR DE
AoC assessment of conformity évaluation de la conformité Beurteilung der Konformität
AT audit test essai d’audit Überwachungsprüfung
BRT batch release test essai de libération de Freigabeprüfung einer Charge
campagne de fabrication
PVT process verification test essai de verification du Prozessüberprüfung
procédé de fabrication
TT type test essai de type Typprüfung

5 General
Materials, products and fitness for purpose shall conform to the requirements given in EN 12201-1,
EN 12201-2, EN 12201-3, EN 12201-4, and EN 12201-5.
FprCEN/TS 12201-7:2024 (E)
Socket fusion fittings according to EN 12201-3:2024, Annex A, and mechanical fittings according to
ISO 17885 are not covered in this document. Assessment of conformity may be agreed between the
manufacturer and the end user.
Materials and products shall be produced by the manufacturer under a quality management system,
which includes a quality plan.
6 Testing and inspection
6.1 Grouping
6.1.1 General
For the purposes of this document, the sampling groups and types specified in 6.1.2, 6.1.3 and 6.1.4
applies.
6.1.2 Size groups
Five size groups are defined for pipes and fittings, as given in Table 1. For testing purposes, one individual
nominal diameter, d , shall be selected from each group.
n
Table 1 — Size groups
Nominal diameter, d
n
Size group
mm
1 d < 75
n
2 75 ≤ d < 250
n
3 250 ≤ d < 710
n
4 710 ≤ d < 1 800
n
5 1 800 ≤ d ≤ 3 000
n
6.1.3 Fitting groups
Four groups of fittings each having a similar design are defined, as given in Table 2. For testing purposes,
one individual fitting shall be selected from each group.
FprCEN/TS 12201-7:2024 (E)
Table 2 — Fitting groups
Fitting groups
(A) Electrofusion socket fitting
(B) Electrofusion saddle fitting
(C) Spigot end fitting
(D) Fabricated fitting
6.1.4 Fitting types
Fitting groups are divided in fitting types.
Fitting group (A) includes the following fitting types: Electrofusion couplers, electrofusion 45° elbows,
electrofusion 90° elbows, electrofusion tees, electrofusion reducers, electrofusion end caps, etc.
Fitting group (B) includes the following fitting types: Electrofusion tapping saddles, electrofusion branch
saddles, etc.
Fitting group (C) includes the following fitting types: 45° elbows, 90° elbows, tees, reducers, end caps,
etc.
Fitting group (D) includes the following fitting types: Swept bends, segmented bends, segmented tees,
etc.
6.2 Type testing
Type testing shall be performed as described in Tables 3 to 6, as applicable, whenever there is:
a) a new system or product (N);
b) a change in design (D);
c) a change of compound (M), see Annex A;
d) a change in production processing method (P), other than routine in-process adjustments;
e) an extension of the product range (E), except the products already covered by the scheme of sampling
procedure.
When a change of production site occurs, the manufacturer shall determine which type tests need to be
revalidated. If certification is involved the scheme should be agreed between the parties concerned.
Unless any of the conditions a) to e) above occurs, the type test results remain valid.
A type test may be performed by the manufacturer or outsourced on behalf of the manufacturer.
A type test can be performed as a witness test if accepted by the certification body.
In case of a change in compound as defined in A.2, relevant type testing requirements as defined in A.3,
and in Tables 3 to 6 as applicable, shall apply.
Effect on water quality shall only be considered for compounds and products intended for the conveyance
of water for human consumption.
For the purposes of a change in design, the following characteristics are relevant:
FprCEN/TS 12201-7:2024 (E)
— dimensions and geometry (see column D1 of Tables 5 and 6), as: change of visual and functional
optimisations, change of overall dimensions, change of a non-PE part;
— joint affected part (see column D2 of Tables 5 and 6), as: change of the dimensions of the fusion zone
(e.g. wire pitch, wire depth), the electrical characteristics (e.g. wire, resistance), the fusion
parameters (e.g. time, voltage).
For the extension of the production range, the relevant characteristics given in Tables 4 to 6, column E,
as applicable, shall be retested. If certification is involved, retesting shall be agreed between the
certification body and the manufacturer.
For fabricated fittings, guidance for type testing is given in Annex B.
Table 3 — Characteristics of compounds that require type testing (TT) by the compound
manufacturer
Reference to part,
Characteristic clause or subclause of Sampling procedure
EN 12201
Compound density -1:2024, 5.2.3.1 Once/compound
Oxidation induction time -1:2024, 5.2.3.1 Once/compound
(OIT)
(thermal stability)
Melt mass-flow rate (MFR) -1:2024, 5.2.3.1 Once/compound
Volatile content -1:2024, 5.2.3.1 Once/compound
a -1:2024, 5.2.3.1 Once/compound
Water content
b -1:2024, 5.2.3.1 Once/compound
Carbon black content
b -1:2024, 5.2.3.1 Once/compound
Carbon black dispersion
c -1:2024, 5.2.3.1 Once/compound
Pigment dispersion
c -1:2024, 5.2.3.2 d
Resistance to weathering Once/compound
Resistance to weathering of -2:2024, 5.2 d
Once/compound
the stripe compound
Resistance to rapid crack -1:2024, 5.2.3.2 e
Once/compound
propagation (critical
pressure, p ))
c
Resistance to SCG for PE 40, -1:2024, 5.2.3.2 e
Once/compound
PE 80 and PE 100
Notched Pipe Test (NPT)
Resistance to SCG for -1:2024, 5.2.3.1 e
Once/compound
PE 100-RC
Strain hardening test (SHT)
Resistance to SCG for -1:2024, 5.2.3.1 e
Once/compound
PE 100-RC
Cracked round bar test
(CRB)
FprCEN/TS 12201-7:2024 (E)
Reference to part,
Characteristic clause or subclause of Sampling procedure
EN 12201
Resistance to SCG for -1:2024, 5.2.3.1 e
Once/compound
PE 100-RC
Accelerated FNCT (AFNCT)
Resistance to SCG for -1:2024, 5.2.3.2 e
Once/compound
PE 100-RC
Accelerated notched pipe
test (ANPT)
alternatively:
≥ 8 760 h notch pipes test -1:2024, 5.2.3.2 Table 2,
(NPT) footnote i
Determination of the failure -1:2024, 5.3.1 Once/compound
mode in a tensile test on a
-1:2024, 5.3.2 Once/compound
butt fusion weld
(d : 110 mm SDR 11)
n
Classification -1:2024, 5.4 Once/compound
Effect on water quality -1:2024, 6 National regulation apply
a
Volatile or water content shall be measured. In case of dispute, the requirement for water content
shall apply.
b
Only applicable for black compound.
c
Only applicable for non-black compound.
d
Three pieces for elongation at break/ Three pieces for hydrostatic strength / One sample for
decohesion of an electrofusion joint.
e
Resistance to RCP and slow crack growth shall be measured on compound or pipe made from the
same compound batch.
Table 4 — Characteristics of pipes, including coextruded pipes and peelable layer pipes that
require type testing (TT)
Reference Conditions
to part, requiring
Sampling procedure
clause or a
test
g
Characteristic
subclause
M
of
b b c
N D E
Manufacturer Certification body
m
EN 12201
Appearance -2:2024, 6.1 + + + + Each diameter One diameter/ size group
Colour -2:2024, 6.2 + + + + Each diameter One diameter/ size group
Effect on water quality -2:2024, 6.3 + - + - National regulation apply
Geometrical characteristics -2:2024, 7 + - + + Each diameter One diameter/ size group
Hydrostatic strength -2:2024, 8.2 + - + One diameter/ size group One diameter/ size group
(20 °C, 100 h) 1, 2 and 3 1, 2 and 3
FprCEN/TS 12201-7:2024 (E)
Reference Conditions
to part, requiring
Sampling procedure
clause or a
test
g
Characteristic
subclause
M
of
b b c
N D E
Manufacturer Certification body
m
EN 12201
e One diameter/ size group By checking the test
+
4 and 5 or by agreement results of the
l
with the end-user or manufacturer
i
purchaser
Hydrostatic strength -2:2024, 8.2 + - e + One diameter/ size group One diameter/ size group
+
(80 °C, 1 000 h) 1, 2 and 3 1, 2 and 3
l
One diameter/ size group By checking the test
4 and 5 or by agreement results of the
with the end-user or manufacturer
i
purchaser
Elongation at break -2:2024, 8.2 + - e + One diameter/ size group One sample/ size group
+
l
Resistance to SCG for PE 80 -2:2024, 8.2 + - l + One diameter/ size group One diameter/ size group
+
and PE 100
Notched Pipe Test (NPT)
(e > 5 mm)
Resistance to SCG for PE 100- -2:2024, 8.2 + - l + One diameter/ size group One diameter/ size group
+
RC 1 1
Strain hardening test (SHT)
(regrind from pipe)
Resistance to SCG for PE 100- -2:2024, 8.2 + - l + d 110 mm SDR 11 / size d 110 mm SDR 11 / size
+ n n
RC
group 2 group 2
Accelerated notched pipe
test (ANPT)
(d : 110 mm SDR 11)
n
Resistance to SCG for PE 100- -2:2024, 8.2 + - l + One diameter/ size group One diameter from either
+
RC 3, 4 and 5 size group 3, 4 or 5
Cracked round bar test (CRB)
Oxidation induction time -2:2024, 9.2 + - + - One diameter/ size group One diameter/ size group
f
(OIT) (thermal stability)
f -2:2024, 9.2 + - + - One diameter/ size group One diameter/ size group
Melt mass-flow rate (MFR)
d -2:2024, 9.2 + - + + One diameter/ size group One diameter/ size group
Longitudinal reversion
Circumferential reversion -2:2024, 9.3 + - l + One diameter/ size group One diameter/ size group
+
3 and 4 3 or 4
Marking -2:2024, + - + - Each diameter By checking the test
12.2 result of the
manufacturer
FprCEN/TS 12201-7:2024 (E)
Reference Conditions
to part, requiring
Sampling procedure
clause or a
test
g
Characteristic
subclause
M
of
b b c
N D E
Manufacturer Certification body
m
EN 12201
Tensile strength for butt -5:2024, + - + - One diameter/ size group By checking the test
fusion 5.2.2.1 2 results of the
manufacturer
-5:2024, One diameter / size By checking the test
+ - + -
5.2.2.2 group 2 results of the
manufacturer
j
Additional tests for coextruded pipes
Integrity of the structure -2:2024, B.8 + - + + Each diameter One diameter/ size group
after deflection
Resistance to SCG for PE 100- -2:2024, B.4 + - l + One diameter/size group One diameter/ size group
+
RC
Strain hardening test (SHT)
(regrind from each of the
layers)
Additional tests for peelable layer pipes
Resistance to weathering -2:2024, C.3 + + + - One diameter/ peelable One diameter/ peelable
layer formulation layer formulation
a
N: new system;
D: only applicable for change of thickness of peelable layer, and change of material type or adhesive (if used) for the peelable
layer;
M: change of compound;
E: extension of the product range, except the products already covered by the scheme of sampling procedure;
+: test to be carried out;
-: test not to be carried out.
b
Successful testing will validate pipe with the same d and a higher SDR, i.e. thinner wall thickness. Where a manufacturer
n
extends his production beyond his approval, additional relevant type testing shall be carried out.
c
Recommended sampling procedure for a testing laboratory working on behalf of a certification body. Testing undertaken in
manufacturer’s laboratory shall be taken into account, by prior agreement with the certification body.
d
Longitudinal reversion is applicable to wall thickness ≤ 16 mm.
e
For change of compound of the same MRS, one diameter from the manufacturer’s range.
f
Applicable for each layer of coextruded pipe.
g
All characteristics except marking are applicable for the base pipe of peelable layer pipe without the layer. Appearance, colour,
resistance to weathering, and marking are also applicable to peelable layer pipes including the layer.
i
Indirect testing subject to study (namely plain-strain grooved tensile test, PSGT, in accordance with ISO 23228 [8]).
j
For coextruded pipes, RCP properties are covered by the use of compounds in conformance with EN 12201–1.
l
Sampling procedure of one diameter.
m
A change of the supplier does not necessarily constitute a change in compound.
FprCEN/TS 12201-7:2024 (E)
Table 5 — Characteristics of fittings that require type testing (TT)
Reference Conditions requiring
Sampling procedure
to part, a
test
clause or
c
Characteristic
subclause
M
b
N D1 D2 E Manufacturer
of Certification body
q
EN 12201
Appearance -3:2024, 6.1 + − − + + 5 fittings/ size/ fitting 5 fittings of one diameter/
g size group/ fitting group
type
1 fitting/ size/ fitting 1 fitting of one diameter/
j j
type size group/ fitting group
Colour -3:2024, 6.3 + − − + + 5 fittings/ size/fitting 5 fittings of one diameter/
g size group/ fitting group
type
1 fitting / size/ fitting 1 fitting of one diameter/
j j
type size group/ fitting group
Electrical
-3:2024, 6.4 + − + - + 5 fittings/ size/fitting 5 fittings of one diameter/
characteristics g size group/ fitting group
type
(A) (B)
1 fitting / size/ fitting 1 fitting of one diameter/
j j
type size group/ fitting group
Geometrical -3:2024, 7 + + + + + 5 fittings/ size/fitting 5 fittings of one diameter/
characteristics g size group/ fitting group
type
1 fitting / size/ fitting 1 fitting of one diameter/
j j
type size group/ fitting type
Hydrostatic -3:2024, 8.2 + − − f + 3 fittings/ size/ fitting 3 fittings of one diameter/
+
strength g i m i
type  size group/ fitting group
(20 °C, 100 h)
1 fitting / size group/ By checking the test results
j l m n j
fitting type   of the manufacturer
Hydrostatic -5:2024, 5.4 + − + + − 1 fitting / size group/ By checking the test results
strength fitting type of the manufacturer
h
(80 °C, 165 h) (C)
Hydrostatic -3:2024, 8.2 + − + f + 3 fittings/ size/ fitting 3 fittings of one diameter/
+
strength g i m i
type  size group/ fitting group
(80 °C, 1 000 h)
1 fitting / size group/ By checking the test results
j l m n j
fitting type   of the manufacturer
Resistance to SCG -3:2024, 8.2 + - - + - 1 fitting from the 1 fitting from the product
for PE 100-RC product range range
Strain hardening
test (SHT)
(regrind from
fitting)
FprCEN/TS 12201-7:2024 (E)
Reference Conditions requiring
Sampling procedure
to part, a
test
clause or
c
Characteristic
subclause
M
b
N D1 D2 E Manufacturer
of Certification body
q
EN 12201
Decohesive -3:2024, 8.2 + − + f + 1 fitting / size/ fitting 1 fitting of one
+
resistance g diameter/size group/
type/ condition
-5:2024,
(A) fitting group / condition
5.2.3.1
1 fitting / size/ fitting By checking the test results
j k j
type  of the manufacturer
-5:2024, + − + f + 1 fitting / size/ fitting 1 fitting of one
+
5.2.3.2 g diameter/size group/
type/ condition
fitting group / condition
1 fitting / size group/ By checking the test results
fitting type/ j
of the manufacturer
j k l
condition
Evaluation of -3:2024, 8.2 + − + f + 1 fitting / size/ fitting 1 fitting of one
+
ductility of fusion g o diameter/size group/
type/ condition
-5:2024,
joint interface o
fitting group / condition
5.2.3.1
(B)
1 fitting / size/ fitting By checking the test results
j k o j
type  of the manufacturer
-5:2024, + − + f + 1 fitting / size/ fitting 1 fitting of one
+
5.2.3.2 g o diameter/size group/
type/ condition
o
fitting group / condition
1 fitting / size group/ By checking the test results
fitting type/ j
of the manufacturer
j k l o
condition
Tensile strength -3:2024, 8.2 + − − + + 1 fitting / size group / By checking the test results
h fitting group/
of the manufacturer
for butt fusion
-5:2024,
condition
(C)
5.2.2.1
-5:2024, + − − − − 1 fitting / size group / By checking the test results
5.2.2.2 fitting group/ of the manufacturer
condition
Impact resistance -3:2024, 8.2 + − + f + 1 fitting / size/ fitting 1 fitting / size group/ fitting
+
(B) p p
type group
Short-term -3:2024, 8.3 + − + f + 3 fittings / size/ 3 fittings of one diameter/
+
internal pressure g l p l p
fitting type  size group/ fitting group
resistance
d
(A)
Resistance to -3:2024, 8.3 + − + f + 3 fittings / size/ 3 fittings of one diameter/
+
tensile load g l p l p
fitting type  size group/ fitting group
d
(A)
Oxidation -3:2024, 9.2 + − − + − 1 fitting / size group/ 1 fitting / fitting group
induction time fitting type
(OIT)
FprCEN/TS 12201-7:2024 (E)
Reference Conditions requiring
Sampling procedure
to part, a
test
clause or
c
Characteristic
subclause
M
b
N D1 D2 E Manufacturer
of Certification body
q
EN 12201
(thermal
e
stability)
Melt mass-flow -3:2024, 9.2 + − − + − 1 fitting / size group/ 1 fitting / fitting group
rate fitting type
(MFR)
Effect on water -3:2024, 9.2 + − − + − National regulation apply
quality
Marking -3:2024, + − − + + 1 fitting / size/ fitting 1 fitting of one diameter/
13.2 g size group/ fitting group
type
Fusion system -3:2024, + − + − + 1 fitting / size/ fitting
recognition 13.4 type −
(A) (B)
a
N: new system;
D1: change of dimensions and geometry as: change of visual and functional optimization, change of overall dimensions,
change of a non-PE part;
D2: change of joint affected part as: change of the dimension of the fusion zone (e.g. wire pitch, wire depth), the electrical
characteristics (e.g. wire, resistance), the fusion parameters (e.g. time, voltage);
M: change of compound of the same MRS. In case of change of the MRS, type tests according column (N) shall apply;
E: extension of the fitting range;
+: test to be carried out;
-: test not to be carried out.
b
Recommended sampling procedure for a testing laboratory working on behalf of a certification body. Testing undertaken in a
manufacturer laboratory shall be taken into account, provided prior acceptance by the certification body.
c
(A): Electrofusion socket fitting;
(B): Electrofusion saddle fitting;
(C): Spigot end fitting.
For fabricated fittings (D), guidance for type testing is given in Annex B.
d
Only applicable if EN 12201–3:2024, 7.2.2 b) applies.
e
Test pieces should be taken from surfaces, especially those forming part of a fusion joint.
f
Manufacturer sampling procedure is “2 dimensions/size group/fitting type” for size group 1, 2 and 3 instead of “size/fitting
type”.
g
Shall contain fittings from each cavity. The minimum number of samples shall be at least one from each cavity.
h
Only applicable to size group 2 and 3.
i
One test piece for size group 3.
j
Only applicable to size group 4 and 5.
k
Test sample may be mechanically reduced in wall thickness for testing purpose.
l
Largest dimension produced by the fitting manufacturer. Correlation to smaller dimensions to be confirmed e.g. by
theoretical calculation or correlation testing.
m
Alternatively, for d > 450 mm, the test may be carried out water-in-air. In case of dispute, the water-in-water test shall be
n
used.
FprCEN/TS 12201-7:2024 (E)
Reference Conditions requiring
Sampling procedure
to part, a
test
clause or
c
Characteristic
subclause
M
b
N D1 D2 E Manufacturer
of Certification body
q
EN 12201
n
For fitting type (B) d > 450 mm, alternative testing is allowed (e.g. pressurization through saddle outlet).
n
o
For size group 3, 4 and 5 to be checked by the strip-bend test according to ISO 21751.
p
Test not applicable to size group 4 and 5.
q
A change of the supplier does not necessarily constitute a change in compound.
Table 6 — Characteristics of valves that require type testing (TT)
Reference a
Sampling procedure
Conditions requiring test
to part,
clause or
Characteristic
subclause
j b
N D1 D2 E Manufacturer
M Certification body
of
EN 12201
Appearance -4:2024, + + − + + 5 valves / size/ 5 valves of one diameter/
6.1 c g size group/ product type
product type
1/ 1/2/
g
2/ 6
Colour -4:2024, + + − + + 5 valves / size/ 5 valves of one diameter/
6.2 c g size group/ product type
product type
1/ 1/2
g
Effect on water -4:2024, + − − + − National regulation apply
quality 6.4
Geometrical -4:2024, 7 + + + + + 5 valves / size/ 5 valves of one diameter/
characteristics c g size group/ product type
product type
2/ 2/6 2/6
g
Hydrostatic strength -4:2024, + - + + + 3 valves / size/ 3 valves of one diameter/
(20 °C, 100 h) 8.2 c g size group 1 and 2/
product type
1/2 1/2
product type
For size group 3, by
checking the test results
of the manufacturer
Hydrostatic strength -4:2024, + − + + + 3 valves / size/ 3 valves of one diameter/
(80 °C, 1 000 h) 8.2 c g size group/ product type
product type
1/2/ 1/2/
4 4
For size group 3, by
checking the test results
of the manufacturer
FprCEN/TS 12201-7:2024 (E)
Reference a
Sampling procedure
Conditions requiring test
to part,
clause or
Characteristic
subclause
j b
N D1 D2 E Manufacturer
M Certification body
of
EN 12201
Resistance to SCG -4:2024, + - - + - 1 valve from 1 valve from product
for PE 100-RC 8.2 product range range
1/ i
1/2
Strain hardening 2
test (SHT)
(regrind from valve
body/out
...
