(Main)Safety of machinery - Integral lighting of machines
Safety of machinery - Integral lighting of machines
This document specifies the parameters of integral lighting systems designed to provide illumination in and/or at both stationary and mobile machines to enable the safe use of the machine and the efficient performance of the visual task within and/or at the machine to be carried out by the operator.
This document does not specify lighting systems mounted on the machine to specifically illuminate visual tasks outside the machine. The function and requirements of these systems are specified in the European Standard dealing with the lighting of work places, see EN 12464-1 and EN 12464-2 for further information.
This document does not specify additional requirements for the operation of lighting systems:
- in severe conditions (extreme environmental conditions such as freezer applications, high temperatures, etc.);
- subject to special rules (e.g. explosive atmospheres);
- where the transmittance is reduced by environmental conditions, such as smoke, splashing, etc.
Sicherheit von Maschinen - Maschinenintegrierte Beleuchtung
Dieses Dokument legt die Parameter für integrierte Beleuchtungssysteme fest, die für die Beleuchtung in und/oder an sowohl stationären als auch mobilen Maschinen entworfen sind, um den sicheren Gebrauch der Maschine und die effiziente Durchführung der Sehaufgabe in und/oder an der Maschine durch das Bedienungspersonal zu ermöglichen.
Dieses Dokument spezifiziert keine Beleuchtungssysteme, die an der Maschine montiert sind, um insbesondere Sehaufgaben außerhalb der Maschine zu beleuchten. Die Funktion und die Anforderungen dieser Systeme sind in der Europäischen Norm für die Arbeitsstättenbeleuchtung festgelegt, siehe EN 12464-1 und EN 12464-2 für weitere Informationen.
Dieses Dokument legt keine zusätzlichen Anforderungen für den Betrieb der Beleuchtungssysteme fest:
- unter schwierigen Bedingungen (extreme Umgebungseinflüsse, wie Anwendungen in Kühlaggregaten, bei hohen Temperaturen, usw.);
- bei bestehenden speziellen Vorschriften (z. B. in explosionsgefährdeten Bereichen);
- wenn der Transmissionsgrad durch Umgebungseinflüsse, wie durch Rauch, Spritzer, usw., beeinträchtigt wird.
Sécurité des machines - Éclairage intégré aux machines
Le présent document spécifie les paramètres des systèmes d'éclairage intégré conçus pour fournir l'éclairage dans et/ou sur les machines fixes et mobiles en assurant la sécurité d'utilisation et la bonne exécution de la tâche visuelle dans et/ou sur la machine à effectuer par l’opérateur.
Le présent document ne spécifie pas les systèmes d'éclairage disposés sur les machines, pour éclairer spécifiquement des zones extérieures à la machine où s'effectuent des tâches visuelles. La fonction et les exigences de ces systèmes sont indiquées dans la norme européenne traitant de l'éclairage des lieux de travail, voir l’EN 12464-1 ainsi que dans l’EN 12464-2 pour plus de plus amples informations.
Le présent document ne spécifie pas d'exigences supplémentaires pour le fonctionnement des systèmes d'éclairage :
- dans des conditions difficiles (dans des conditions environnantes extrêmes, telles que des applications pour congélateurs, des températures élevées, etc.) ;
- lorsqu'il est soumis à des règles spécifiques (par exemple des atmosphères explosives) ;
- lorsque le facteur de transmission est réduit par des conditions environnantes telles que la fumée, des éclaboussures, etc.
Varnost strojev - Integralna razsvetljava strojev
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 1837:2021
01-maj-2021
Nadomešča:
SIST EN 1837:1999+A1:2009
Varnost strojev - Integralna razsvetljava strojev
Safety of machinery - Integral lighting of machines
Sicherheit von Maschinen - Maschinenintegrierte Beleuchtung
Sécurité des machines - Éclairage intégré aux machines
Ta slovenski standard je istoveten z: EN 1837:2020
ICS:
13.110 Varnost strojev Safety of machinery
91.160.10 Notranja razsvetljava Interior lighting
SIST EN 1837:2021 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 1837:2021
---------------------- Page: 2 ----------------------
SIST EN 1837:2021
EN 1837
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2020
EUROPÄISCHE NORM
ICS 13.110; 91.160.10 Supersedes EN 1837:1999+A1:2009
English Version
Safety of machinery - Integral lighting of machines
Sécurité des machines - Éclairage intégré aux machines Sicherheit von Maschinen - Maschinenintegrierte
Beleuchtung
This European Standard was approved by CEN on 18 October 2020.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1837:2020 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 1837:2021
EN 1837:2020 (E)

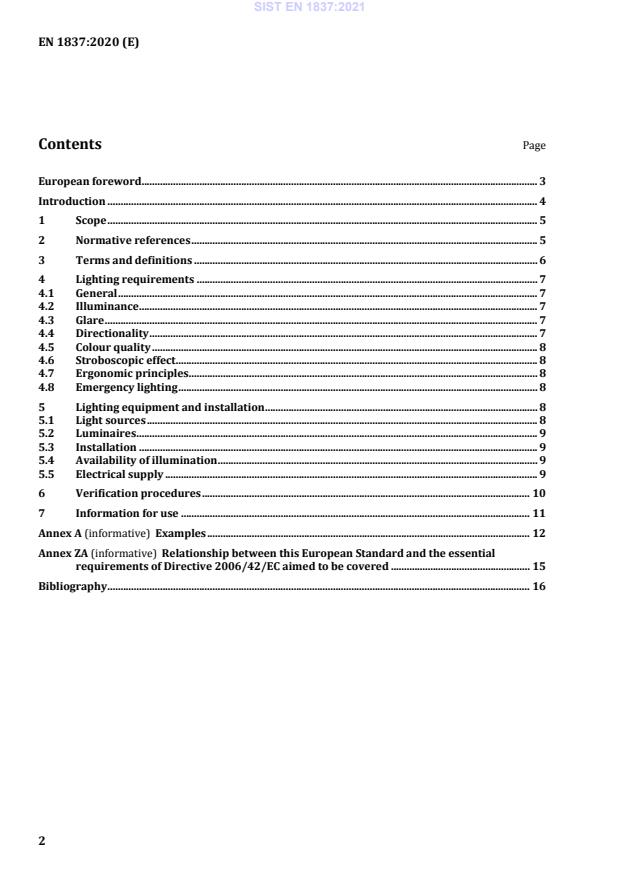

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Lighting requirements . 7
4.1 General . 7
4.2 Illuminance . 7
4.3 Glare . 7
4.4 Directionality . 7
4.5 Colour quality . 8
4.6 Stroboscopic effect . 8
4.7 Ergonomic principles . 8
4.8 Emergency lighting . 8
5 Lighting equipment and installation . 8
5.1 Light sources . 8
5.2 Luminaires . 9
5.3 Installation . 9
5.4 Availability of illumination . 9
5.5 Electrical supply . 9
6 Verification procedures . 10
7 Information for use . 11
Annex A (informative) Examples . 12
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2006/42/EC aimed to be covered . 15
Bibliography . 16
2
---------------------- Page: 4 ----------------------
SIST EN 1837:2021
EN 1837:2020 (E)
European foreword
This document (EN 1837:2020) has been prepared by Technical Committee CEN/TC 169 “Light and
lighting”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2021, and conflicting national standards shall be
withdrawn at the latest by June 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 1837:1999+A1:2009.
In comparison with EN 1837:1999+A1:2009, the following technical modifications have been made:
— reference to EN ISO 12100 added and all local definitions removed to prevent duplication with
source terminology standards;
— adding of environmental requirements to Clause 5 Lighting equipment and installation;
— updating of Clause 6 Verification procedures;
— updating of Clause 7 Information for use;
— Annex ZA has been adapted to Directive 2006/42/EC and Annex ZB has been deleted.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
This document is a type-B standard as stated in EN ISO 12100. The machinery concerned and the extent
to which hazards are covered are indicated in the scope of this document.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
3
---------------------- Page: 5 ----------------------
SIST EN 1837:2021
EN 1837:2020 (E)
Introduction
To illuminate visual tasks within and/or at machines integral lighting systems (built in or at machines)
can be required. These integral lighting systems require special characteristics that allow both safe use
and efficient performance of the visual task by the operator during operation and service.
This document is a type-B standard as stated in EN ISO 12100.
This document is of relevance, in particular, for the following stakeholder groups representing the
market players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);
— health and safety bodies (regulators, accident prevention organizations, market surveillance etc.).
Others can be affected by the level of machinery safety achieved with the means of the document by the
above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);
— machine users/employees (e.g. trade unions, organizations for people with special needs);
— service providers, e.g. for maintenance (small, medium and large enterprises);
— consumers (in case of machinery intended for use by consumers).
The above-mentioned stakeholder groups have been given the possibility to participate at the drafting
process of this document.
In addition, this document is intended for standardization bodies elaborating type-C standards.
The requirements of this document can be supplemented or modified by a type-C standard.
For machines that are covered by the scope of a type-C standard and have been designed and built
according to the requirements of that standard, the requirements of that type-C standard take
precedence.
4
---------------------- Page: 6 ----------------------
SIST EN 1837:2021
EN 1837:2020 (E)
1 Scope
This document specifies the parameters of integral lighting systems designed to provide illumination in
and/or at both stationary and mobile machines to enable the safe use of the machine and the efficient
performance of the visual task within and/or at the machine to be carried out by the operator.
This document does not specify lighting systems mounted on the machine to specifically illuminate
visual tasks outside the machine. The function and requirements of these systems are specified in the
European standard dealing with the lighting of work places, see EN 12464-1 and EN 12464-2 for further
information.
This document does not specify additional requirements for the operation of lighting systems:
— in severe conditions (extreme environmental conditions such as freezer applications, high
temperatures, etc.);
— subject to special rules (e.g. explosive atmospheres);
— where the transmittance is reduced by environmental conditions, such as smoke, splashing, etc.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 12464-1:2011, Light and lighting — Lighting of work places — Part 1: Indoor work places
EN 12464-2:2014, Light and lighting — Lighting of work places — Part 2: Outdoor work places
EN 12665:2018, Light and lighting — Basic terms and criteria for specifying lighting requirements
EN ISO 13732-1:2008, Ergonomics of the thermal environment — Methods for the assessment of human
responses to contact with surfaces — Part 1: Hot surfaces (ISO 13732-1:2006)
EN 1838:2013, Lighting applications — Emergency lighting
EN 60204-1:2018, Safety of machinery — Electrical equipment of machines — Part 1: General
requirements (IEC 60204-1:2016, modified)
EN 60204-31:2013, Safety of machinery — Electrical equipment of machines — Part 31: Particular safety
and EMC requirements for sewing machines, units and systems (IEC 60204-31:2013)
EN 60204-32:2008, Safety of machinery — Electrical equipment of machines — Part 32: Requirements for
hoisting machines (IEC 60204-32:2008)
EN 60204-33:2011, Safety of machinery — Electrical equipment of machines — Part 33: Requirements for
semiconductor fabrication equipment (IEC 60204-33:2009, modified)
1
EN 60529:1991, Degrees of protection provided by enclosures (IP Code) (IEC 60529:1989)
1
As impacted by EN 60529:1991/corrigendum May 1993 and EN 60529:1991/AC:2016-12.
5
---------------------- Page: 7 ----------------------
SIST EN 1837:2021
EN 1837:2020 (E)
EN 60529:1991/A1:2000, Degrees of protection provided by enclosures (IP Code)
(IEC 60529:1989/A1:1999)
2
EN 60529:1991/A2:2013, Degrees of protection provided by enclosures (IP Code)
(IEC 60529:1989/A2:2013)
3
EN 60598-1:2015, Luminaires — Part 1: General requirements and tests (IEC 60598-1:2014, modified)
EN 60598-1:2015/A1:2018, Luminaires — Part 1: General requirements and tests
(IEC 60598-1:2014/A1:2017)
EN 62262:2002, Degrees of protection provided by enclosures for electrical equipment against external
mechanical impacts (IK code) (IEC 62262:2002)
EN ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk
reduction (ISO 12100:2010)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 12100, EN 12464-1 and
EN 12665 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
2
As impacted by EN 60529:1991/A2:2013/AC:2019-02.
3
As impacted by EN 60598-1:2015/AC:2015, EN 60598-1:2015/AC:2016 and EN 60598-1:2015/AC:2017-05.
6
---------------------- Page: 8 ----------------------
SIST EN 1837:2021
EN 1837:2020 (E)
4 Lighting requirements
4.1 General
Machinery shall be supplied with integral lighting suitable for the operations concerned where the
absence of the integral lighting is likely to cause a risk despite ambient lighting of normal intensity.
When arranging the li
...
SLOVENSKI STANDARD
oSIST prEN 1837:2019
01-marec-2019
Varnost strojev - Integralna razsvetljava strojev
Safety of machinery - Integral lighting of machines
Sicherheit von Maschinen - Maschinenintegrierte Beleuchtung
Sécurité des machines - Éclairage intégré aux machines
Ta slovenski standard je istoveten z: prEN 1837
ICS:
13.110 Varnost strojev Safety of machinery
91.160.10 Notranja razsvetljava Interior lighting
oSIST prEN 1837:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 1837:2019
---------------------- Page: 2 ----------------------
oSIST prEN 1837:2019
DRAFT
EUROPEAN STANDARD
prEN 1837
NORME EUROPÉENNE
EUROPÄISCHE NORM
January 2019
ICS 13.110; 91.160.10 Will supersede EN 1837:1999+A1:2009
English Version
Safety of machinery - Integral lighting of machines
Sécurité des machines - Éclairage intégré aux machines Sicherheit von Maschinen - Maschinenintegrierte
Beleuchtung
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 169.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 1837:2019 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 1837:2019
prEN 1837:2019 (E)
Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Lighting requirements . 6
5 Lighting equipment and installation . 7
6 Verification procedures . 8
7 Information for use . 9
Annex A (informative) Examples . 10
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2006/42/EC aimed to be covered . 13
Bibliography . 14
2
---------------------- Page: 4 ----------------------
oSIST prEN 1837:2019
prEN 1837:2019 (E)
European foreword
This document (prEN 1837:2019) has been prepared by Technical Committee CEN/TC 169 "Light and
lighting", the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 1837:1999+A1:2009.
In comparison with the previous edition, the following technical modifications have been made:
— restructuring and adding of terms of EN 12464-2 to Clause 3 Terms and definitions;
— adding of environmental requirements to Clause 5 Lighting equipment and installation;
— addition of subclause 5.6 Service and maintenance;
— updating of Clause 6 Verification procedures;
— deletion of Annex ZA as Directive 98/37/EC is no longer in force and repealed by Directive
2006/42/EC.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
This document is a type B standard as stated in EN ISO 12100. The machinery concerned and the extent
to which hazards are covered are indicated in the scope of this document.
3
---------------------- Page: 5 ----------------------
oSIST prEN 1837:2019
prEN 1837:2019 (E)
Introduction
To illuminate visual tasks within and/or at machines integral lighting systems (built in or at machines)
can be required. These integral lighting systems require special characteristics that allow both safe use
and efficient performance of the visual task by the operator during operation and service.
4
---------------------- Page: 6 ----------------------
oSIST prEN 1837:2019
prEN 1837:2019 (E)
1 Scope
This document specifies the parameters of integral lighting systems designed to provide illumination in
and/or at both stationary and mobile machines to enable the safe use of the machine and the efficient
performance of the visual task within and/or at the machine to be carried out by the operator.
This document does not specify lighting systems mounted on the machine to specifically illuminate
visual tasks outside the machine. The function and requirements of these systems are specified in the
European Standard dealing with the lighting of work places, see EN 12464-1 and EN 12464-2 for
further information.
This document does not specify additional requirements for the operation of lighting systems:
— in severe conditions (extreme environmental conditions such as freezer applications, high
temperatures, etc.);
— subject to special rules (e.g. explosive atmospheres);
— where the transmittance is reduced by environmental conditions, such as smoke, splashing, etc.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 12464-1, Light and lighting — Lighting of work places — Part 1: Indoor work places
EN 12464-2, Light and lighting — Lighting of work places — Part 2: Outdoor work places
EN 12665, Light and lighting — Basic terms and criteria for specifying lighting requirements
EN 60529, Degrees of protection provided by enclosures (IP Code) (IEC 60529)
EN 60598-1, Luminaires — Part 1: General requirements and tests (IEC 60598 1)
EN 62262, Degrees of protection provided by enclosures for electrical equipment against external
mechanical impacts (IK code) (IEC 62262)
EN ISO 12100, Safety of machinery — General principles for design — Risk assessment and risk reduction
(ISO 12100:2010)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 12464-1, EN 12464-2 and
EN 12665 and the following apply
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
5
---------------------- Page: 7 ----------------------
oSIST prEN 1837:2019
prEN 1837:2019 (E)
3.1
intended use of a machine
use of a machine in accordance with the information provided in the user information
4 Lighting requirements
4.1 General
When arranging the lighting for machines, ergonomic and lighting-engineering principles shall be taken
into account.
The visual tasks to be carried out in and/or at the machine vary in size, contrast, position and speed of
movement. Thus for adequate vision, the exact lighting condition required shall be determined from
detailed task analysis.
The lighting requirements specified in this document are based on average difficulty of visual tasks,
found in the work space during intended use of the machine (normal operation, abnormal operation,
servicing).
For specific tasks, reference shall be made to the relevant standards on work place lighting (EN 12464-1
and EN 12464-2).
4.2 Illuminance
The required illuminance depends upon the visual task and shall be sufficiently high and uniform as to
enable a safe and comfortable perception of the details of the visual task.
In general a maintained illuminance of at least 500 lx with a minimum uniformity of 0,7 on the task area
shall be provided. If there is more than one task area in or at a machine (e.g. in or at large machines),
each task area shall be considered separately. The immediate surrounding areas shall have a
maintained illuminance of at least 300 lx with a uniformity of at least 0,3.
Where a visual aid or protective visor is required for use with the machine,
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
