EN ISO 13585:2012

Brazing - Qualification test of brazers and brazing operators (ISO 13585:2012)

ISO 13585:2012 specifies basic requirements for the qualification testing of brazers and brazing operators providing conditions for brazing, testing, examination, acceptance criteria and range of qualification for certificates.

Hartlöten - Prüfung von Hartlötern und Bedienern von Hartlöteinrichtungen (ISO 13585:2012)

Diese Internationale Norm legt die grundlegenden Anforderungen für die Qualifikationsprüfung von Hartlötern und Bedienern von Hartlöteinrichtungen fest, welche die Bedingungen für das Hartlöten, die Prüfung, die Untersuchung, die Bewertungskriterien und den Geltungsbereich der Prüfungsbescheinigung bestimmen.
ANMERKUNG 1   Anhang D schließt informative Anleitungen zu allgemeinen Qualitätsanforderungen für das Hartlöten ein.
ANMERKUNG 2   Diese Internationale Norm gilt nicht für Hartlöten im Luft- und Raumfahrzeugbau nach ISO 11745 [2].

Brasage fort - Essais de qualification des braseurs et des opérateurs braseurs en brasage fort (ISO 13585:2012)

L'ISO 13585:2012 définit les exigences de base relatives aux essais de qualification des braseurs et des opérateurs braseurs en brasage fort, et indique les conditions applicables pour le brasage fort, les essais, les contrôles, les critères d'acceptation et le domaine de validité des certificats.
Des lignes directrices sur les exigences générales de qualité relatives au brasage fort sont données dans une annexe, à titre indicatif.

Trdo spajkanje - Certificiranje spajkalcev in upravljavcev (ISO 13585:2012)

Ta mednarodni standard določa osnovne zahteve za certificiranje spajkalcev in upravljavcev ter pogoje za spajkanje, preskušanje in preiskave ter prevzemna merila in razpon kvalifikacije za certifikate.

General Information

• Status: Withdrawn
• Publication Date: 14-Jun-2012
• Withdrawal Date: 13-Apr-2025
• ICS: 03.100.30 - Management of human resources
• ICS: 25.160.01 - Welding, brazing and soldering in general
• ICS: 25.160.50 - Brazing and soldering
• Technical Committee: CEN/TC 121 - Welding
• Drafting Committee: CEN/TC 121/WG 20 - Brazing
• Current Stage: 9960 - Withdrawal effective - Withdrawal
• Start Date: 24-Jul-2024
• Completion Date: 14-Apr-2025
• Directive: 2014/68/EU - Directive 2014/68/EU of the European Parliament and of the Council of 15 May 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of pressure equipment
• Directive: 97/23/EC - Directive 97/23/EC of the European Parliament and of the Council of 29 May 1997 on the approximation of the laws of the Member States concerning pressure equipment
• Mandate: M/071 - Mandate to CEN for standardization in the field of Pressure equipment
• Ref Project: SIST EN ISO 13585:2012 - Brazing - Qualification test of brazers and brazing operators (ISO 13585:2012)

Relations

• Replaces: EN 13133:2000 - Brazing - Brazer approval
• Effective Date: 27-Jun-2012
• Replaced By: EN ISO 13585:2024 - Brazing - Qualification testing of brazers and brazing operators (ISO 13585:2021)
• Effective Date: 28-Jan-2023
• Revised: prEN ISO 13585 - Brazing - Qualification test of brazers and brazing operators (ISO/DIS 13585:2020)
• Effective Date: 18-Jan-2023

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2012
1DGRPHãþD
SIST EN 13133:2001
Trdo spajkanje - Certificiranje spajkalcev in upravljavcev (ISO 13585:2012)
Brazing - Qualification test of brazers and brazing operators (ISO 13585:2012)
Hartlöten - Prüfung von Hartlötern und Bedienern von Hartlöteinrichtungen (ISO
13585:2012)
Brasage fort - Essais de qualification des braseurs et des opérateurs braseurs en
brasage fort (ISO 13585:2012)
Ta slovenski standard je istoveten z: EN ISO 13585:2012
ICS:
03.100.30 Vodenje ljudi Management of human
resources
25.160.50 Trdo in mehko lotanje Brazing and soldering
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 13585
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2012
ICS 25.160.01 Supersedes EN 13133:2000
English Version
Brazing - Qualification test of brazers and brazing operators
(ISO 13585:2012)
Brasage fort - Essais de qualification des braseurs et des Hartlöten - Prüfung von Hartlötern und Bedienern von
opérateurs braseurs en brasage fort (ISO 13585:2012) Hartlöteinrichtungen (ISO 13585:2012)
This European Standard was approved by CEN on 24 May 2012.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 13585:2012: E
worldwide for CEN national Members.

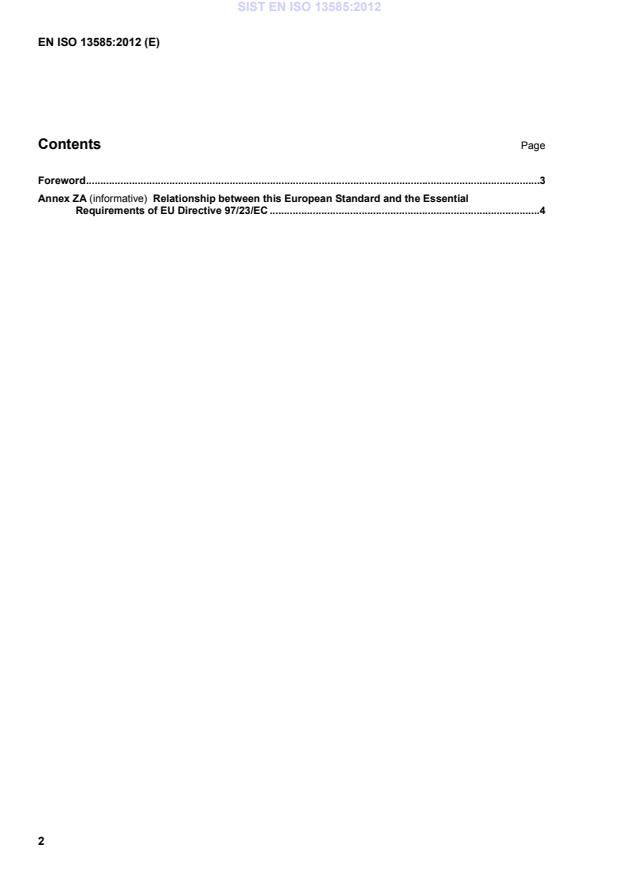

Contents Page
Foreword .3
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 97/23/EC .4

Foreword
This document (EN ISO 13585:2012) has been prepared by Technical Committee CEN/TC 121 “Welding", the
secretariat of which is held by DIN, in collaboration with Technical Committee ISO/TC 44 "Welding and allied
processes".
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by December 2012, and conflicting national standards shall be withdrawn
at the latest by December 2012.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13133:2000.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive.
For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland, Turkey and the United Kingdom.
Annex ZA
(informative)
Relationship between this European Standard and the Essential
Requirements of EU Directive 97/23/EC
This European Standard has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association to provide a means of conforming to Essential Requirements of the
New Approach Directive 97/23/EC, Pressure equipment.
Once this standard is cited in the Official Journal of the European Union under that Directive and has been
implemented as a national standard in at least one Member State, compliance with the normative clauses of
this standard confers, within the limits of the scope of this standard, a presumption of conformity with the
corresponding Essential Requirements of that Directive and associated EFTA regulations.
Table ZA.1 — Correspondence between this European standard and the Directive 97/23/EC
Clauses/Paragraphs of this Essential requirement of the Comments/Notes
European standard Directive 97/23/EEC
All normative clauses Annex I, 3.1.2 Permanent joining

WARNING — Other requirements and other EU Directives may be applicable to the products falling
within the scope of this standard.

INTERNATIONAL ISO
STANDARD 13585
First edition
2012-06-15
Brazing — Qualification test of brazers
and brazing operators
Brasage fort — Essais de qualification des braseurs et des opérateurs
braseurs en brasage fort
Reference number
ISO 13585:2012(E)
©
ISO 2012
ISO 13585:2012(E)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO’s
member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved

ISO 13585:2012(E)
Contents  Page
Foreword .iv
Introduction . v
1  Scope . 1
2  Normative references . 1
3  Terms and definitions . 1
4  Symbols, definitions and reference numbers . 3
4.1  General . 3
4.2  Symbols . 3
4.3  Reference numbers . 3
5  Essential variables and range of qualification . 3
5.1  General . 3
5.2  Brazing process . 3
5.3  Product type . 4
5.4  Type of joint . 4
5.5  Parent material group(s) . 4
5.6  Filler metals and brazing filler application . 5
5.7  Dimensions . 5
5.8  Filler metal flow direction . 6
5.9  Degree of mechanization . 6
6  Examination and testing . 7
6.1  Supervision . 7
6.2  Brazing conditions . 7
6.3  Test piece . 7
6.4  Assessment of work pieces . 7
6.5  Extent of testing . 7
6.6  Visual testing . 7
6.7  Non-destructive testing . 8
6.8  Destructive testing . 8
6.9  Additional examination and testing. 8
7  Acceptance requirements for test pieces . 8
8  Re-tests . 8
9  Period of validity . 8
9.1  Initial qualification . 8
9.2  Prolongation . 9
10  Certificate . 9
11  Designation . 9
Annex A (informative) Brazer qualification test certificate . 11
Annex B (informative) Brazer operator qualification test certificate .12
Annex C (informative) Examples of test pieces.13
Annex D (informative) Quality requirements for brazing .15
Annex E (informative) Other non-essential variables .16
Bibliography .17
ISO 13585:2012(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International
Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 13585 was prepared by the European Committee for Standardization (CEN) Technical Committee
CEN/TC 121, Welding, in collaboration with Technical Committee ISO/TC 44, Welding and allied processes, in
accordance with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
Requests for official interpretations of any aspect of this International Standard should be directed to the Secretariat
of ISO/TC 44 via your national standards body. A complete listing of these bodies can be found at www.iso.org.
iv © ISO 2012 – All rights reserved

ISO 13585:2012(E)
Introduction
The purpose of this International Standard is to provide a general set of rules for qualification, independent of
product or application.
INTERNATIONAL STANDARD ISO 13585:2012(E)
Brazing — Qualification test of brazers and brazing operators
1  Scope
This International Standard specifies basic requirements for the qualification testing of brazers and brazing
operators providing conditions for brazing, testing, examination, acceptance criteria and range of qualification
for certificates.
NOTE 1 Annex D gives guidelines on general quality requirements for brazing.
[2]
NOTE 2 This International Standard does not apply to brazing for aerospace applications covered by ISO 11745 .
2  Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced document
(including any amendments) applies.
ISO 857-2, Welding and allied processes — Vocabulary — Part 2: Soldering and brazing processes and
related terms
ISO 17672, Brazing — Filler metals
ISO 18279, Brazing — Imperfections in brazed joints
ISO/TR 25901, Welding and related processes — Vocabulary
EN 12797, Brazing — Destructive tests of brazed joints
EN 12799, Brazing — Non-destructive examination of brazed joints
EN 13134, Brazing — Procedure approval
3  Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 857-2, ISO/TR 25901 and the
following apply.
3.1
brazer
person who holds and manipulates the device for heating the brazing area by hand
3.2
brazing operator
person who prepares the joint and sets up brazing equipment and thereby has direct influence on the brazed
joint quality
NOTE Examples of brazing equipment are mechanized torch holders, furnaces, salt baths, and induction equipment.
3.3
brazing
joining process in which a molten filler material is used that has a liquidus temperature above 450 °C but lower
than the solidus temperature of the parent material(s)
NOTE Adapted from ISO 857-2:2005, 3.1.2.
ISO 13585:2012(E)
3.4
brazing procedure specification
BPS
document that has been qualified and provides the required variables of the brazing procedure to ensure
repeatability during production brazing
3.5
preliminary brazing procedure specification
pBPS
document containing the required variables of the brazing procedure which is not yet qualified
3.6
manufacturer
workshop or site (or both) which is (are) under the same technical and quality management
3.7
examiner
person appointed to verify compliance with the applicable standard
NOTE In certain cases, an external independent examiner can be required.
[ISO/TR 25901:2007, 2.119]
3.8
examining body
organization appointed to verify compliance with the applicable standard
NOTE In certain cases, an external independent examining body can be required.
[ISO/TR 25901:2007, 2.120]
3.9
filler metal
filler metals
added metal required for soldered or brazed joints, which can be in the form of wire, inserts, powder, pastes, etc.
NOTE Adapted from ISO 857-2:2005, 3.2.1.
3.10
flux
non-metallic material which, when molten, promotes wetting by removing existing oxide or other detrimental
films from the surfaces to be joined and prevents their re-formation during the joining operation
[ISO 857-2:2005, 3.2.2]
3.11
test piece
brazed assembly which is used for testing purposes
NOTE Adapted from ISO/TR 25901:2007, 2.373.
3.12
test specimen
part or portion cut from the test piece in order to perform a specified destructive test
[ISO/TR 25901:2007, 2.374]
2 © ISO 2012 – All rights reserved

ISO 13585:2012(E)
4  Symbols, definitions and reference numbers
4.1  General
Where the full wording is not used, the symbols in 4.2 and reference numbers in 4.3 shall be used when
completing the qualification test certificate (see Annexes A and B).
4.2  Symbols
t material thickness of the work piece
L overlap length
D outside pipe diameter
4.3  Reference numbers
For applicable brazing process reference numbers, see 5.2.
5  Essential variables and range of qualification
5.1  General
The qualification of brazers and brazing operators is based on essential variables. For each essential variable,
a range of qualification is defined and brazing outside that range of qualificat
...
