SIST EN ISO 6909:2026
(Main)Machine tools - Safety - Press brakes (ISO 6909:2026)
- Abstract
This document specifies technical safety requirements and measures to be adopted by persons undertaking the design, manufacture and supply of press brakes which are intended to work cold metal or material partly of cold metal but which can be used in the same way to work other sheet materials (e.g. cardboard, plastic, rubber, leather) and also referred to as machines.
NOTE 1 The design of a machine includes the study of the machine itself, taking into account all phases of the “life” of the machine mentioned in ISO 12100:2010, 5.4, and the drafting of the instructions related to all the above phases.
This document covers the following types of machines (see Annex J):
hydraulic press brakes;
hydraulic servo-drive press brakes;
screw servo-drive press brakes;
belt-spring servo-drive press brakes.
The requirements in this document take account of intended use, as defined in ISO 12100:2010, 3.23, as well as reasonably foreseeable misuse, as defined in ISO 12100:2010, 3.24. This document presumes access to the press brake from all directions, deals with all significant hazards during the various phases of the life of the machine described in Clause 4, and specifies the safety measures for both the operator and other exposed persons.
NOTE 2 All significant hazards means those identified or associated with press brakes at the time of the publication of this document.
This document can also be used as a guide for the design of press brakes which are intended to be integrated in a manufacturing system.
This document deals with all significant hazards, hazardous situations or hazardous events relevant to press brakes and ancillary devices (see Clause 4) when it is used as intended and under conditions of misuse which are reasonably foreseeable by the manufacturer. This document specifies the safety requirements for press brakes defined in Clause 3.
This document does not cover press brakes which transmit energy to impart beam motion by using pneumatic means or mechanical clutch or press brakes that use combination of technologies (e.g. combined hydraulic and screw servo-drive press brake or combined hydraulic servo-drive and screw servo-drive press brake).
This document does not cover machines whose principal designed purpose is:
sheet folding by rotary action;
tube and pipe bending by rotary action;
roll bending.
This document does not cover hazards related to the use of press brakes in explosive atmospheres.
This document is not applicable to press brakes which are manufactured before the date of its publication.
This document does not cover the safety aspect of equipment for automatic workpiece loading and unloading where provided. Guidance on how to take into account additional automatic loading and unloading equipment can be found in ISO 11161:2007.
- Status
- Published
- Public Enquiry End Date
- 30-Jan-2024
- Publication Date
- 06-Oct-2026
- Technical Committee
- VSN - Safety of machinery
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 24-Jun-2026
- Due Date
- 29-Aug-2026
- Completion Date
- 07-Oct-2026
SIST EN ISO 6909:2026 is the Slovenian adoption of EN ISO 6909:2026, published by SIST and identical to the European text. It specifies technical safety requirements for press brakes used to work cold metal and similar sheet materials, for the people who design, manufacture, supply and integrate these machines.
What does SIST EN ISO 6909:2026 specify?
SIST EN ISO 6909:2026 specifies how to design and equip press brakes so that significant hazards are reduced for operators and other exposed persons. It applies to intended use and reasonably foreseeable misuse, and it also treats the machine as a life-cycle product, from design through instructions.
The scope covers these machine types:
- hydraulic press brakes
- hydraulic servo-drive press brakes
- screw servo-drive press brakes
- belt-spring servo-drive press brakes
It excludes press brakes with pneumatic beam motion, mechanical clutch machines, and combined technologies such as mixed hydraulic and screw servo-drive designs. It also excludes machines whose main purpose is sheet folding by rotary action, tube and pipe bending by rotary action, roll bending, use in explosive atmospheres, and loading/unloading safety for automatic workpiece handling equipment.
Annex structure at a glance
| Annex | What it covers |
|---|---|
| Annex A | Significant hazards, hazardous situations and protective measures |
| Annex B | Calculation of separation distances |
| Annex C | Overall system response time of the press brake stopping performance |
| Annex D | Example of redundant and monitored hydraulic control circuits |
| Annex E | Noise test code for press brakes |
| Annex F | Side safeguarding for press brakes with manually loaded and/or unloaded |
| Annex G | Markings |
| Annex H | Laser actuated AOPD system tests |
| Annex I | Bending speed |
| Annex J | Press brakes technologies |
| Annex ZA | Relationship to Directive 2006/42/EC |
| Annex ZB | Relationship to Regulation (EU) 2023/1230 |
What are the key requirements of SIST EN ISO 6909:2026?
SIST EN ISO 6909:2026 requires a risk-based safety design around the tool area, the beam, the controls and the ancillary devices. The document is practical: it does not stop at general principles, but ties the required safeguard to the operating mode, the machine technology and the stopping performance.
Clause 4 identifies the main hazard groups and danger zones, with emphasis on crushing and shearing between moving parts, entanglement, ejection of components and release of hydraulic fluids. In practice, this tells the designer what must be controlled first in a risk assessment, especially around the tool area, workpiece handling devices, and drive machinery.
Clause 5.2 sets the rules for safeguarding access to moving parts. It covers guards, interlocking guards, ESPE using AOPD, laser actuated AOPD, hold-to-run control, scanner systems, and front, side and rear protection. Annex B gives the separation-distance calculation, Annex C gives the stopping-performance response time, and Annex H gives the tests for laser actuated AOPD. For a designer, this means the position and type of safeguard must match the real stopping time and the direction from which a person can reach the hazard.
Clause 5.2.1.5 is especially important for laser actuated AOPD use. It sets the detection-capability and operating conditions for progressive blanking, muting, special box-bending modes, indicator requirements, lockable setting and the 10 mm/s limitation used in certain conditions. In practice, this is the part that governs whether a laser-based safeguard can be used for front access during bending without exposing fingers to the punch-die area.
Clause 5.3 requires the control system to perform the safety functions needed for starting, stopping, emergency stop, reset, restart, mode selection, single stroke and monitoring. The document uses safety-related parts of control systems, with performance levels and categories linked to the required safety function. For the reader, this means the control architecture is not left to general engineering judgement - it has to meet the safety function tables.
Clause 5.3.7 covers the use of electronic components, including programmable electronic systems (PES) for safety functions. It also addresses access to the NC program. In practice, designers and integrators must ensure that software-based control does not weaken the safety function and that the safety-related logic is validated.
Clause 5.4 separates setting mode from production modes, and then distinguishes single cycle with manual load and/or unload from automatic cycle with automatic load and unload. This matters because the permitted safeguards and operator actions change with the operating mode, so the mode selector and related protections must be controlled and clearly understood.
Clause 5.5 covers the basic mechanical hazards that are not just about access guarding, including unintended gravity fall of the beam, stability, break-up during operation, tool holder and tool design, access to raised platforms, slips, trips and falls, release of trapped persons, and safeguarding of drives, transmission machinery and ancillary devices. In practice, this is where the machine structure and the moving parts must be made safe, not only the control system.
Clause 5.6 covers non-mechanical hazards such as noise, electrical hazards, ergonomics, hydraulic and pneumatic systems, thermal hazards, materials and substances, lasers, high-pressure fluid ejection, isolation and energy dissipation, maintenance and errors of fitting. Annex E gives the noise test code, and Annex G gives the residual-risk markings. This means the machine must be safe to use, maintain and mark, not only safe during the main bending stroke.
Clause 6 links the requirements to verification methods. Table 4 shows where visual inspection, performance checks, measurement and drawings/calculations are used for type testing. For buyers and quality managers, this is useful because it tells them which safety features can be checked by documents, which need tests, and which need measured values.
Clause 7 requires marking and an instruction handbook. Annex G supplies the residual-risk warnings, and Annex E specifies the noise declaration content. In practice, the machine must tell the user what risks remain and how to operate it safely.
What terms does SIST EN ISO 6909:2026 define?
SIST EN ISO 6909:2026 relies on ISO 12100 for terms and definitions, and it also defines machine-specific terms used throughout the safety requirements.
- Press brake - a machine intended to transmit energy to the moving part of the tool mainly for bending along straight lines.
- Tool area - the area between the moving and stationary tools, such as the space between the punch and die.
- Ancillary device - a device used with the press brake or integrated with it, such as a backgauge or adjustable front sheet support.
- Electro-sensitive protective equipment (ESPE) - a protective sensing system made up of sensing, monitoring, output switching and data-interface elements.
- Active opto-electronic protective device (AOPD) - a light-based protective device that detects interruption of emitted optical radiation by an opaque object.
- Active opto-electronic protective device responsive to diffuse reflection (AOPDDR) - a device that detects diffuse reflection from an object in a defined detection zone.
- Safety-related part of a control system (SRP/CS) - the part of the control system that performs a safety function from safety input to safety output.
- Backgauge - the mechanism that moves the backgauge fingers used to position the workpiece before bending.
Who uses SIST EN ISO 6909:2026?
SIST EN ISO 6909:2026 is used by machine manufacturers, safety engineers, integrators, maintenance providers, inspectors, regulators and market-surveillance bodies. It is also relevant to buyers and quality managers who need to check whether a press brake design, safety package or conformity file matches the expected safety approach.
In practice, manufacturers use it for design and type testing, users use it for safe operation and instruction review, and authorities use it for assessment of machine safety claims. It is also useful when a press brake is intended to be integrated into a manufacturing system.
What changed in SIST EN ISO 6909:2026 from the previous edition?
SIST EN ISO 6909:2026 replaces SIST EN 12622:2010+A1:2014. At European level, it supersedes EN 12622:2009+A1:2013.
Which standards are used with SIST EN ISO 6909:2026?
Clause 2 names the standards that provide the technical basis for the safety requirements. The most important ones are:
- ISO 12100 - the general risk-assessment and risk-reduction framework used throughout the document
- ISO 13849-1 / ISO 13849-2 and IEC 62061 - design and validation of safety-related control systems
- IEC 60204-1 - electrical equipment of machines
- IEC 61496-1 / IEC 61496-2 / IEC 61496-3 and IEC 60825-1 - ESPE and laser safety
- ISO 13850, ISO 13851, ISO 13855, ISO 13857, ISO 14118, ISO 14119, ISO 14120 - emergency stop, two-hand control, safeguard positioning, safety distances, prevention of unexpected start-up, interlocking devices and guards
- ISO 3744, ISO 3746, ISO 4871, ISO 11202 - noise measurement, declaration and verification
- ISO 4413 and ISO 4414 - hydraulic and pneumatic systems
- ISO 14122-1 / -2 / -3 and ISO 14738 - access means and workstation dimensions
- ISO 7010 and EN 1837 - safety signs and integral lighting
- ISO 11161 - guidance for integration in manufacturing systems
What does the SIST EN ISO 6909:2026 document contain?
SIST EN ISO 6909:2026 contains a hazard list, detailed safeguarding rules, safety-function tables, verification methods, marking requirements and instruction-content requirements. It also includes formula-based annexes for separation distances and response time, plus test procedures for laser actuated AOPD and a noise test code with reporting requirements.
The annexes add practical material for design and testing: Annex B gives the separation-distance calculation, Annex C gives the stopping-performance measurement approach, Annex E defines the noise test conditions and declaration format, and Annex H sets the laser AOPD tests. Annex J is a useful technology map because it shows how the main safety functions are implemented in hydraulic, hydraulic servo-drive, screw servo-drive and belt-spring servo-drive press brakes.
Relations
- Effective Date
- 06-Aug-2026
- Effective Date
- 01-Jul-2026
- Effective Date
- 01-Jul-2026
- Effective Date
- 01-Jul-2026
- Effective Date
- 01-Jul-2026
- Effective Date
- 01-Jul-2026
- Effective Date
- 01-Jul-2026
- Effective Date
- 01-Jul-2026
- Effective Date
- 06-Mar-2024
Get Certified
Connect with accredited certification bodies for this standard
DVS-ZERT GmbH
German welding certification society.
CARES (UK Certification Authority for Reinforcing Steels)
UK certification for reinforcing steels and construction.
CIS Institut d.o.o.
Personal Protective Equipment (PPE) certification body. Notified Body NB-2890 for EU Regulation 2016/425 PPE.
Sponsored listings
Frequently Asked Questions
SIST EN ISO 6909:2026 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Machine tools - Safety - Press brakes (ISO 6909:2026)". This standard covers: This document specifies technical safety requirements and measures to be adopted by persons undertaking the design, manufacture and supply of press brakes which are intended to work cold metal or material partly of cold metal but which can be used in the same way to work other sheet materials (e.g. cardboard, plastic, rubber, leather) and also referred to as machines. NOTE 1 The design of a machine includes the study of the machine itself, taking into account all phases of the “life” of the machine mentioned in ISO 12100:2010, 5.4, and the drafting of the instructions related to all the above phases. This document covers the following types of machines (see Annex J): hydraulic press brakes; hydraulic servo-drive press brakes; screw servo-drive press brakes; belt-spring servo-drive press brakes. The requirements in this document take account of intended use, as defined in ISO 12100:2010, 3.23, as well as reasonably foreseeable misuse, as defined in ISO 12100:2010, 3.24. This document presumes access to the press brake from all directions, deals with all significant hazards during the various phases of the life of the machine described in Clause 4, and specifies the safety measures for both the operator and other exposed persons. NOTE 2 All significant hazards means those identified or associated with press brakes at the time of the publication of this document. This document can also be used as a guide for the design of press brakes which are intended to be integrated in a manufacturing system. This document deals with all significant hazards, hazardous situations or hazardous events relevant to press brakes and ancillary devices (see Clause 4) when it is used as intended and under conditions of misuse which are reasonably foreseeable by the manufacturer. This document specifies the safety requirements for press brakes defined in Clause 3. This document does not cover press brakes which transmit energy to impart beam motion by using pneumatic means or mechanical clutch or press brakes that use combination of technologies (e.g. combined hydraulic and screw servo-drive press brake or combined hydraulic servo-drive and screw servo-drive press brake). This document does not cover machines whose principal designed purpose is: sheet folding by rotary action; tube and pipe bending by rotary action; roll bending. This document does not cover hazards related to the use of press brakes in explosive atmospheres. This document is not applicable to press brakes which are manufactured before the date of its publication. This document does not cover the safety aspect of equipment for automatic workpiece loading and unloading where provided. Guidance on how to take into account additional automatic loading and unloading equipment can be found in ISO 11161:2007.
This document specifies technical safety requirements and measures to be adopted by persons undertaking the design, manufacture and supply of press brakes which are intended to work cold metal or material partly of cold metal but which can be used in the same way to work other sheet materials (e.g. cardboard, plastic, rubber, leather) and also referred to as machines. NOTE 1 The design of a machine includes the study of the machine itself, taking into account all phases of the “life” of the machine mentioned in ISO 12100:2010, 5.4, and the drafting of the instructions related to all the above phases. This document covers the following types of machines (see Annex J): hydraulic press brakes; hydraulic servo-drive press brakes; screw servo-drive press brakes; belt-spring servo-drive press brakes. The requirements in this document take account of intended use, as defined in ISO 12100:2010, 3.23, as well as reasonably foreseeable misuse, as defined in ISO 12100:2010, 3.24. This document presumes access to the press brake from all directions, deals with all significant hazards during the various phases of the life of the machine described in Clause 4, and specifies the safety measures for both the operator and other exposed persons. NOTE 2 All significant hazards means those identified or associated with press brakes at the time of the publication of this document. This document can also be used as a guide for the design of press brakes which are intended to be integrated in a manufacturing system. This document deals with all significant hazards, hazardous situations or hazardous events relevant to press brakes and ancillary devices (see Clause 4) when it is used as intended and under conditions of misuse which are reasonably foreseeable by the manufacturer. This document specifies the safety requirements for press brakes defined in Clause 3. This document does not cover press brakes which transmit energy to impart beam motion by using pneumatic means or mechanical clutch or press brakes that use combination of technologies (e.g. combined hydraulic and screw servo-drive press brake or combined hydraulic servo-drive and screw servo-drive press brake). This document does not cover machines whose principal designed purpose is: sheet folding by rotary action; tube and pipe bending by rotary action; roll bending. This document does not cover hazards related to the use of press brakes in explosive atmospheres. This document is not applicable to press brakes which are manufactured before the date of its publication. This document does not cover the safety aspect of equipment for automatic workpiece loading and unloading where provided. Guidance on how to take into account additional automatic loading and unloading equipment can be found in ISO 11161:2007.
SIST EN ISO 6909:2026 is classified under the following ICS (International Classification for Standards) categories: 13.110 - Safety of machinery; 25.080.01 - Machine tools in general; 25.120.10 - Forging equipment. Presses. Shears. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN ISO 6909:2026 has the following relationships with other standards: It is inter standard links to SIST EN 12622:2010+A1:2014, SIST EN 1005-2:2003+A1:2008, SIST EN 50370-1:2007, SIST EN 50370-2:2003, SIST EN 1837:2021, SIST EN 1005-4:2005+A1:2008, SIST EN 1005-3:2002+A1:2008, SIST EN 1005-1:2002+A1:2008, SIST EN 12622:2010+A1:2014. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN ISO 6909:2026 is associated with the following European legislation: EU Directives/Regulations: 2006/42/EC, 2023/1230; Standardization Mandates: M/396, M/605. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
SIST EN ISO 6909:2026 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

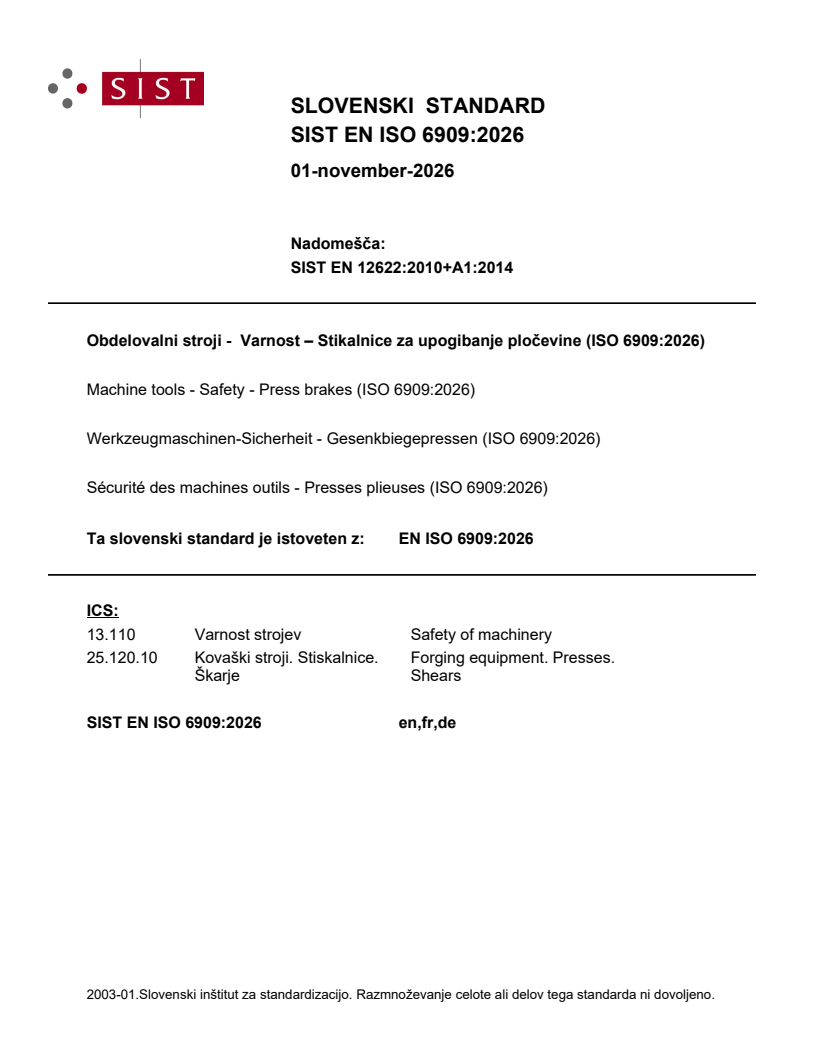

SLOVENSKI STANDARD
01-november-2026
Nadomešča:
SIST EN 12622:2010+A1:2014
Obdelovalni stroji - Varnost – Stikalnice za upogibanje pločevine (ISO 6909:2026)
Machine tools - Safety - Press brakes (ISO 6909:2026)
Werkzeugmaschinen-Sicherheit - Gesenkbiegepressen (ISO 6909:2026)
Sécurité des machines outils - Presses plieuses (ISO 6909:2026)
Ta slovenski standard je istoveten z: EN ISO 6909:2026
ICS:
13.110 Varnost strojev Safety of machinery
25.120.10 Kovaški stroji. Stiskalnice. Forging equipment. Presses.
Škarje Shears
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

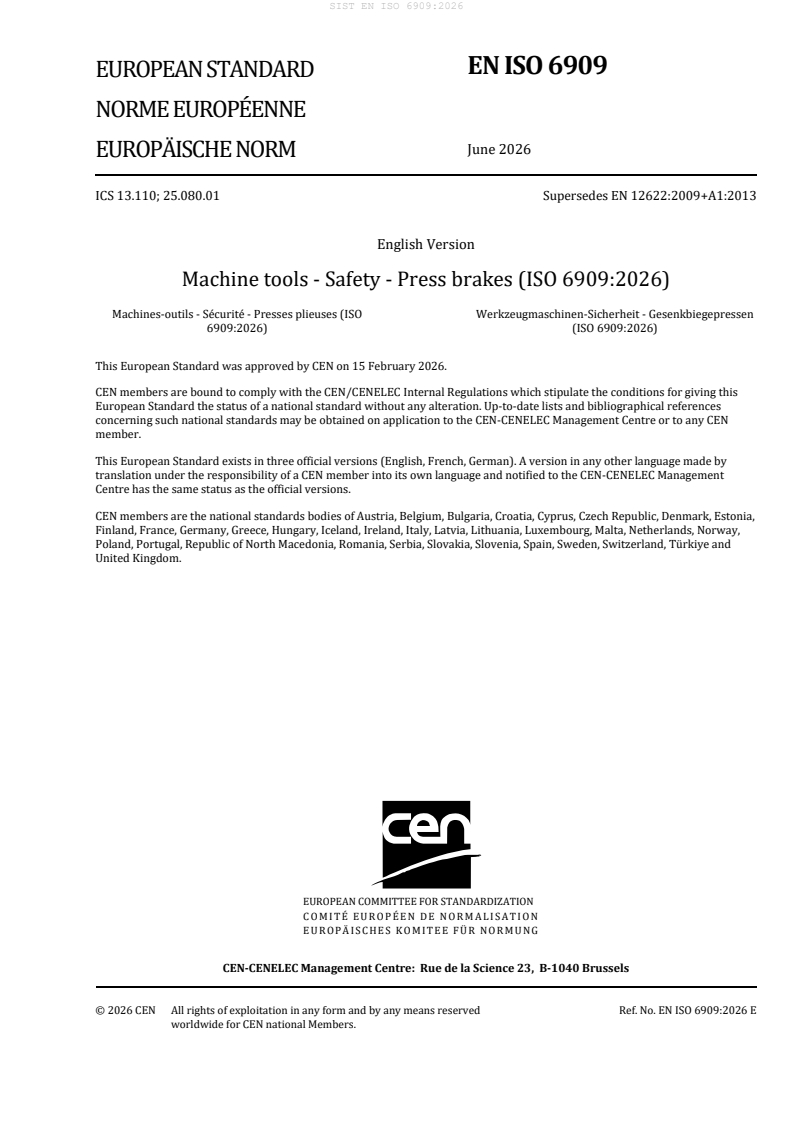

EN ISO 6909
EUROPEAN STANDARD
NORME EUROPÉENNE
June 2026
EUROPÄISCHE NORM
ICS 13.110; 25.080.01 Supersedes EN 12622:2009+A1:2013
English Version
Machine tools - Safety - Press brakes (ISO 6909:2026)
Machines-outils - Sécurité - Presses plieuses (ISO Werkzeugmaschinen-Sicherheit - Gesenkbiegepressen
6909:2026) (ISO 6909:2026)
This European Standard was approved by CEN on 15 February 2026.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 6909:2026 E
worldwide for CEN national Members.

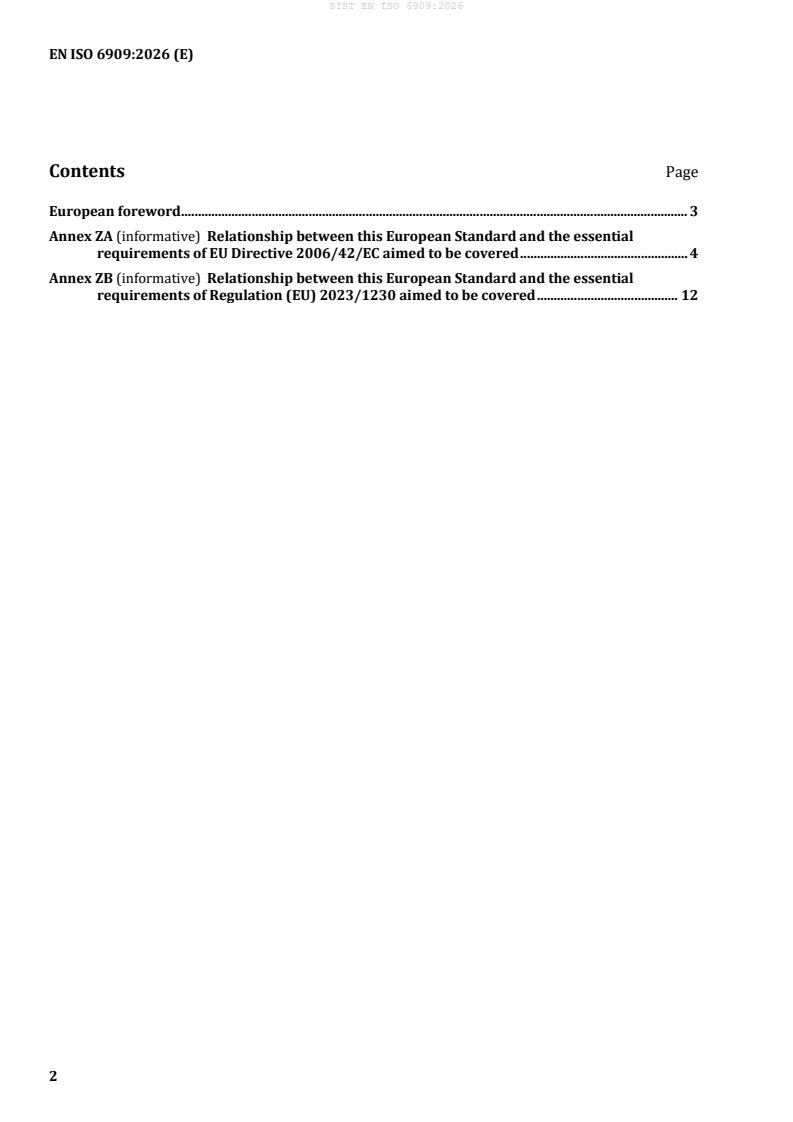

Contents Page
European foreword . 3
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of EU Directive 2006/42/EC aimed to be covered . 4
Annex ZB (informative) Relationship between this European Standard and the essential
requirements of Regulation (EU) 2023/1230 aimed to be covered . 12
European foreword
This document (EN ISO 6909:2026) has been prepared by Technical Committee ISO/TC 39 "Machine
tools" in collaboration with Technical Committee CEN/TC 143 “Machine tools - Safety” the secretariat of
which is held by SNV.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by December 2026, and conflicting national standards
shall be withdrawn at the latest by December 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12622:2009+A1:2013.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA or ZB, which is an integral part of
this document.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 6909:2026 has been approved by CEN as EN ISO 6909:2026 without any modification.
Annex ZA
(informative)
Relationship between this European Standard and the essential
requirements of EU Directive 2006/42/EC aimed to be covered
This European Standard has been prepared under a Commission’s standardization request “M/396
Mandate to CEN and CENELEC for Standardisation in the field of machinery” to provide one voluntary
means of conforming to essential requirements of Directive 2006/42/EC of the European Parliament
and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast).
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZA.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding essential requirements
of that Directive, and associated EFTA regulations.
Table ZA.1 — Correspondence between this European Standard and Annex I of Directive
2006/42/EC
The relevant Essential
Requirements of Directive Clause(s)/subclause(s) of this EN Remarks/Notes
2006/42/EC
1.1.1 - Definitions
5.2.1.1
Partially covered
1.1.2 - Principles of safety integration 5.4.1 (only 1.1.2 a) and
c) are applicable)
7.2.2 e), o)
1.1.3 - Materials and products 5.6.6
1.1.4 - Lighting 5.6.3
1.1.5 - Design of machinery to facilitate 5.6.3
its handling
1.1.6 - Ergonomics 5.6.3
1.1.7 - Operating positions Not applicable
1.1.8 - Seating Not applicable
5.1/5.2.1.4.1/5.3.1/5.3.4/5.3.5.1/5.3.5.2
/
5.3.5.4/5.3.5.11/5.3.5.12/5.3.5.13/
1.2.1 - Safety and reliability of control
5.3.5.14/5.3.5.15/5.3.5.16/5.3.5.19/
systems
5.3.5.20/5.3.5.21/5.3.5.22/5.3.5.23/5.3.
5/
5.3.6.5/5.3.7
1.2.2 - Control devices 5.3.2/5.3.6.3/5.4.2/5.4.3/5.6.3
5.3.5.2/5.3.5.23/5.3.6/5.3.6.1/5.3.6.2/
1.2.3 - Starting
5.3.6.3/5.4.2/5.4.3
The relevant Essential
Requirements of Directive Clause(s)/subclause(s) of this EN Remarks/Notes
2006/42/EC
5.3.5.3/5.3.5.5/5.3.5.6/5.3.5.7/
1.2.4.1 - Normal stop 5.3.5.8/5.3.5.9/5.3.5.10/5.3.5.11/
5.3.5.12/5.3.5.17/5.3.6/5.3.6.4/5.3.6.5
5.3.5.6/5.3.5.7/5.3.5.8/5.3.5.11/
1.2.4.2 - Operational stop
5.3.5.12/5.3.6
1.2.4.3 - Emergency stop 5.3.5.3/5.3.5.10/5.3.5.11/5.3.5.12
1.2.4.4 - Assembly of machinery Not applicable
1.2.5 - Selection of control or operating
5.1/5.3.5.18/5.3.5.22/5.4
modes
1.2.6 - Failure of the power supply 5.3.3
1.3.1 - Risk of loss of stability 5.5.1/5.5.2/5.5.3/5.5.4
1.3.2 - Risk of break-up during 5.6.4/5.6.8
operation
1.3.3 - Risks due to falling or ejected 5.2.2.1.2/5.5.4
objects
1.3.4 - Risks due to surfaces, edges or
Not covered
angles
1.3.5 - Risks related to combined
Not applicable
machinery
1.3.6 - Risks related to variations in
5.3.5.18
operating conditions
5.1/5.2.1.1/5.2.2.1.2/5.3.5.17.2/
1.3.7 - Risks related to moving parts
5.3.5.18/5.3.5.19/5.3.5.20/5.3.5.21
5.1/5.2.1.1/5.2.1.2/5.2.1.3/5.2.2.1.1/
5.2.2.2/5.2.2.3/5.3.5.18/5.2.1.1/5.2.1.2/
1.3.8 – Choice of protection against
5.2.1.3/5.2.1.4.1/
risks arising from moving parts
5.2.2.1.1/5.2.2.1.2/5.2.2.2/5.2.2.3/
5.3.5.18/5.3.5.20/5.3.5.21/Annex B
5.1/5.2.1.1/5.2.1.2/5.2.1.3/5.2.2.1.1/
1.3.8.1 - Moving transmission parts
5.2.2.2/5.2.2.3/5.3.5.18
5.1/5.2.1.1/5.2.1.2/5.2.1.3/5.2.1.4.1/
1.3.8.2 - Moving parts involved in the
5.2.2.1.1/5.2.2.1.2/5.2.2.2/5.2.2.3/
process
5.3.5.18/5.3.5.20/5.3.5.21
5.3.5.4/5.3.5.5/5.3.5.6/5.3.5.7/
1.3.9 - Risks of uncontrolled
5.3.5.8/5.3.5.9/5.3.5.10/5.3.5.15/
movements
5.3.5.16/5.3.5.18
1.4.1 - General requirements 5.2.1.2/5.2.1.3/5.2.1.4.1/5.2.1.4.2/
The relevant Essential
Requirements of Directive Clause(s)/subclause(s) of this EN Remarks/Notes
2006/42/EC
5.2.1.5/5.2.1.6/5.2.1.7/5.2.1.8/5.2.2.2/
5.2.2.3/5.3.5.18/5.3.5.20/5.3.5.21/
5.3.6.5/Annex B/Annex C/Annex H
1.4.2.1 - Fixed guards 5.2.1.2/5.2.2.2/5.2.2.3
1.4.2.2 - Interlocking movable guards 5.2.1.3/5.2.2.2/5.2.2.3
1.4.2.3 - Adjustable guards restricting
Not applicable
access
1.4.3 - Special requirements for 5.2.1.4.1/5.2.1.4.3/5.2.1.5/5.2.1.6/
protective devices
1.5.1 - Electricity supply 5.2.1.7/5.2.1.8/5.2.2.2/5.2.2.3/5.3.5.20
5.3.5.21/5.3.6.5/Annex B/Annex C/Anne
1.5.2 - Static electricity
x H
1.5.3 - Energy supply other than 5.6.2
electricity
1.5.4 - Errors of fitting 5.3.4/5.6.2
1.5.5 - Extreme temperatures 5.6.4
1.5.6 - Fire 5.6.11
1.5.7 - Explosion Not applicable
1.5.8 - Noise 5.1/5.6.1
1.5.9 - Vibrations Not applicable
1.5.10 - Radiation 5.2.1.4
1.5.11 - External radiation 5.3.4
1.5.12 - Laser radiation 5.2.1.5/5.2.1.7/5.6.7
1.5.13 - Emissions of hazardous 5.6.6/5.6.10.2
materials and substances
1.5.14 - Risk of being trapped in a 5.2.2.3/5.5.7/5.5.8
machine
1.5.15 - Risk of slipping, tripping or 5.5.5/5.5.6/5.6.10.2
falling
1.5.16 - Lightning Not applicable
1.6.1 - Machinery maintenance 5.4.1/5.4.2/5.6.10
1.6.2 - Access to operating positions 5.5.6/5.6.10.2
and servicing points
1.6.3 - Isolation of energy sources 5.6.9
1.6.4 - Operator intervention 5.6.10
1.6.5 - Cleaning of internal parts Not applicable
The relevant Essential
Requirements of Directive Clause(s)/subclause(s) of this EN Remarks/Notes
2006/42/EC
1.7.1 - Information and warnings on 7.1.2/Annex G
the machinery
1.7.1.1 - Information and information 7.1.2
devices
1.7.1.2 - Warning devices Not applicable
1.7.2 - Warning of residual risks 7.1.2.2 d)/Annex G
1.7.3 - Marking of machinery 7.1
1.7.4 - Instructions 7.2/5.6.1/7.2.2/Annex E
1.7.4.1 - General principles for the 7.2
drafting of instructions
1.7.4.2 - Contents of the instructions 5.6.1/7.2.2/Annex E
1.7.4.3 - Sales literature Annex E
Table ZA.2 — Normative references from Clause 2 of this document and their corresponding
European publications
Column 1 Column 2 Column 3 Column 4
Reference in International Title Corresponding
Clause 2. Standard Edition European Standard
Edition
IEC 60204- IEC 60204- Safety of machinery — Electrical EN 60204-
1:2016+AMD1:20 1:2016+AMD1:202 equipment of machines — Part 1: 1:2016/A1:2025
21 1 General requirements
IEC 60529:1989 IEC 60529:1989 Degrees of protection provided by EN 60529:1991
enclosures (IP Code)
IEC 60825-1:2014 IEC 60825-1:2014 Safety of laser products — Part 1: EN 60825-1:2014
Equipment classification and
requirements
IEC 60947-5- IEC 60947-5- Low-voltage switchgear and EN IEC 60947-5-1:2025
1:2025 1:2025 controlgear - Part 5-1: Control
circuit devices and switching
elements - Electromechanical
control circuit devices
IEC 61310-2:2007 IEC 61310-2:2007 Safety of machinery — Indication, EN 61310-2:2008
marking and actuation — Part 2:
Requirements for marking
IEC 61310-3:2007 IEC 61310-3:2007 Safety of machinery — Indication, EN 61310-3:2008
marking and actuation — Part 3:
Requirements for the location and
operation of actuators
IEC 61496-1:2020 IEC 61496-1:2020 Safety of machinery — Electro- EN IEC 61496-1:2020
sensitive protective equipment —
Part 1: General requirements and
test
IEC 61496-2:2020 IEC 61496-2:2020 Safety of machinery — Electro- EN IEC 61496-2:2020
sensitive protective equipment —
Part 2: Particular requirements
for equipment using active opto-
electronic protective devices
(AOPDs)
IEC 61496-3:2018 IEC 61496-3:2018 Safety of machinery — Electro- EN IEC 61496-3:2019
sensitive protective equipment —
Part 3: Particular requirements
for Active Opto-electronic
Protective Devices responsive to
Diffuse Reflection (AOPDDR)
IEC 61508-1:2010 IEC 61508-1:2010 Functional safety of EN 61508-1:2010
electrical/electronic/programma
ble electronic safety-related
systems — Part 1: General
Column 1 Column 2 Column 3 Column 4
Reference in International Title Corresponding
Clause 2. Standard Edition European Standard
Edition
requirements
IEC 61508-2:2010 IEC 61508-2:2010 Functional safety of EN 61508-2:2010
electrical/electronic/programma
ble electronic safety-related
systems — Part 2: Requirements
for
electrical/electronic/programma
ble electronic safety-related
systems
IEC 61508-3:2010 IEC 61508-3:2010 Functional safety of EN 61508-3:2010
electrical/electronic/programma
ble electronic safety-related
systems — Part 3: Software
requirements
IEC 61800-5- IEC 61800-5- Adjustable speed electrical power EN 61800-5-2:2017
2:2016 2:2016 drive systems — Part 5-2: Safety
requirements — Functional
IEC 62061:2021 IEC 62061:2021 Safety of machinery — Functional EN IEC 62061:2021
safety of safety-related control
systems
ISO 3744:2010 ISO 3744:2010 Acoustics — Determination of EN ISO 3744:2010
sound power levels and sound
energy levels of noise sources
using sound pressure —
Engineering methods for an
essentially free field over a
reflecting plane
ISO 3746:2010 ISO 3746:2010 Acoustics — Determination of EN ISO 3746:2010
sound power levels and sound
energy levels of noise sources
using sound pressure — Survey
method using an enveloping
measurement surface over a
reflecting plane
ISO 4413:2010 ISO 4413:2010 Hydraulic fluid power — General EN ISO 4413:2010
rules and safety requirements for
systems and their components
ISO 4414:2010 ISO 4414:2010 Pneumatic fluid power — General EN ISO 4414:2010
rules and safety requirements for
systems and their components
ISO 4871:1996 ISO 4871:1996 Acoustics — Declaration and EN ISO 4871:2009
verification of noise emission
values of machinery and
Column 1 Column 2 Column 3 Column 4
Reference in International Title Corresponding
Clause 2. Standard Edition European Standard
Edition
equipment
ISO 7010:2019 ISO 7010:2019 Graphical symbols - Safety colours EN ISO 7010:2020
and safety signs - Registered
safety signs
ISO 11202:2010 ISO 11202:2010 Acoustics — Noise emitted by EN ISO 11202:2010
machinery and equipment —
Determination of emission sound
pressure levels at a work station
and at other specified positions
applying approximate
environmental corrections
ISO 12100:2010 ISO 12100:2010 Safety of machinery — General EN ISO 12100:2010
principles for design — Risk
assessment and risk reduction
ISO 13732-1:2006 ISO 13732-1:2006 Ergonomics of the thermal EN ISO 13732-1:2008
environment - Methods for the
assessment of human responses to
contact with surfaces - Part 1: Hot
surfaces
ISO 13849-1:2023 ISO 13849-1:2023 Safety of machinery — Safety- EN ISO 13849-1:2023
related parts of control systems —
Part 1: General principles for
design
ISO 13849-2:2012 ISO 13849-2:2012 Safety of machinery — Safety- EN ISO 13849-2:2012
related parts of control systems —
Part 2: Validation
ISO 13850:2015 ISO 13850:2015 Safety of machinery — Emergency EN ISO 13850:2015
stop function — Principles for
design
ISO 13851:2019 ISO 13851:2019 Safety of machinery — Two-hand EN ISO 13851:2019
control devices — Principles for
design and selection
ISO 13855:2024 ISO 13855:2024 Safety of machinery — EN ISO 13855:2024
Positioning of safeguards with
respect to the approach of the
human body
ISO 13857:2019 ISO 13857:2019 Safety of machinery — Safety EN ISO 13857:2019
distances to prevent hazard zones
being reached by upper and lower
limbs
ISO 14118:2017 ISO 14118:2017 Safety of machinery — Prevention EN ISO 14118:2018
of unexpected start-up
Column 1 Column 2 Column 3 Column 4
Reference in International Title Corresponding
Clause 2. Standard Edition European Standard
Edition
ISO 14119:2024 ISO 14119:2024 Safety of machinery — EN ISO 14119:2025
Interlocking devices associated
with guards — Principles for
design and selection
ISO 14120:2015 ISO 14120:2015 Safety of machinery — Guards — EN ISO 14120:2015
General requirements for the
design and construction of fixed
and movable guards
ISO 14122-1:2016 ISO 14122-1:2016 Safety of machinery — Permanent EN ISO 14122-1:2016
means of access to machinery —
Part 1: Choice of fixed means and
general requirements of access
ISO 14122-2:2016 ISO 14122-2:2016 Safety of machinery — Permanent EN ISO 14122-2:2016
means of access to machinery —
Part 2: Working platforms and
walkways
ISO 14122-3:2016 ISO 14122-3:2016 Safety of machinery — Permanent EN ISO 14122-3:2016
means of access to machinery —
Part 3: Stairs, stepladders and
guard-rails
ISO 14738:2002 ISO 14738:2002 Safety of machinery — EN ISO 14738:2008
Anthropometric requirements for
the design of workstations at
machinery
The documents listed in the Column 1 of Table ZA.2, in whole or in part, are normatively referenced in
this document, i.e. are indispensable for its application. The achievement of the presumption of
conformity is subject to the application of the edition of Standards as listed in Column 4 or, if no
European Standard Edition exists, the International Standard Edition given in Column 2 of Table ZA.2.
WARNING 1 Presumption of conformity stays valid only as long as a reference to this European
Standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2 Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
Annex ZB
(informative)
Relationship between this European Standard and the essential
requirements of Regulation (EU) 2023/1230 aimed to be covered
This European Standard has been prepared under a Commission’s standardization request C(2025)129
final Commission Implementing Decision of 20 January 2025 to the European Committee for
Standardization and to the European Committee for Electrotechnical Standardization as regards
machinery in support of Regulation (EU) 2023/1230 of the European Parliament and of the Council
(M/605) to provide one voluntary means of conforming to essential requirements of Regulation (EU)
2023/1230 of the European Parliament and of the Council of 14 June 2023 on machinery (OJ L 165,
29.6.2023).
Once this standard is cited in the Official Journal of the European Union under that Regulation,
compliance with the normative clauses of this standard given in Table ZB.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding essential requirements
of that Regulation, and associated EFTA regulations.
Table ZB.1— Correspondence between this European Standard and Annex III of Regulation (EU)
2023/1230
The relevant Essential Clause(s)/subclause(s) of this Remarks/Notes
Requirements of Regulation (EU) EN
2023/1230
Annex III - Part A Definitions
5.1 Partially covered (only
1.1.2 a) and c) are
5.2.1.1
1.1.2 - Principles of safety integration
applicable)
5.4.1
7.2.2 e) o)
1.1.3 - Materials and products 5.6.6
1.1.4 - Lighting 5.6.3
1.1.5 - Design of machinery or a related 5.6.3
product to facilitate its handling
1.1.6 - Ergonomics 5.6.3 1.1.6 g): not applicable
1.1.7 – Operating positions Not applicable
1.1.8 – Seating Not applicable
1.1.9 Protection against corruption Not covered
5.2.1.4.1/5.3.1/5.3.4/5.3.5/5.3.5.1 I) f) not covered
1.2.1 - Safety and reliability of control
9/5.3.5.2/
II) and III) not
systems
applicable
5.3.5.4/5.3.5.11/5.3.5.12/5.3.5.13
1.2.2 - Control devices
/
1.2.3 - Starting 5.3.5.14/5.3.5.15/5.3.5.16/5.3.5.1
The relevant Essential Clause(s)/subclause(s) of this Remarks/Notes
Requirements of Regulation (EU) EN
2023/1230
/5.3.5.20/5.3.5.21/5.3.5.22/5.3.5.
23/5.3.6.5/5.3.7
1.2.4.1 - Normal stop 5.3.2/5.3.6.3/5.4.2/5.4.3/5.6.3
1.2.4.2 - Operational stop 5.3.5.2/5.3.5.23/5.3.6.1/5.3.6.2/
1.2.4.3 - Emergency stop 5.3.6.3/5.4.2/5.4.3/5.3.6
1.2.4.4 - Assembly of machinery or Not applicable
related products
1.2.5 - Selection of control or operating 5.3.5.18/5.3.5.22/5.4
modes
1.2.6 - Failure of the power supply or 5.3.3
communication network connection
1.3.1 - Risk of loss of stability 5.5.1/5.5.2/5.5.3/5.5.4
1.3.2 - Risk of break-up during 5.6.4/5.6.8
operation
1.3.3 - Risks due to falling or ejected 5.2.2.1.2/5.5.4
objects
1.3.4 - Risks due to surfaces, edges or Not covered
angles
1.3.5 – Risks related to a combined Not applicable
machinery or related product
1.3.6 - Risks related to variations in 5.3.5.18
operating conditions
1.3.7 - Risks related to moving parts 5.2.1.1/5.2.2.1.2/5.3.5.17.2/ a) and b) not applicable
1.3.8 - 1.3.8 – Choice of protection 5.2.1.1/5.2.1.2/5.2.1.3/5.2.2.1.1/
against risks arising from moving parts
5.2.2.2/5.2.2.3/5.3.5.18/5.2.1.1/5.
1.3.8.1 - Moving transmission parts
2.1.2/5.2.1.3/5.2.1.4.1/
1.3.8.2 - Moving parts involved in the 5.2.2.1.1/5.2.2.1.2/5.2.2.2/5.2.2.3/
process
1.3.9 - Risks of uncontrolled 5.3.5.18/5.3.5.20/5.3.5.21/Annex
movements B
1.4.1 - General requirements 5.2.1.1/5.2.1.2/5.2.1.3/5.2.2.1.1/
1.4.2.1 - Fixed guards 5.2.2.2/5.2.2.3/5.3.5.18
1.4.2.2 - Interlocking movable guards 5.2.1.1/5.2.1.2/5.2.1.3/5.2.1.4.1/
1.4.2.3 – Adjustable guards restricting Not applicable
access
1.4.3 - Special requirements for 5.2.1.4.1/5.2.1.4.3/5.2.1.5/5.2.1.6/
protective devices
5.2.1.7/5.2.1.8/5.2.2.2/5.2.2.3/5.3.
The relevant Essential Clause(s)/subclause(s) of this Remarks/Notes
Requirements of Regulation (EU) EN
2023/1230
5.20
5.3.5.21/5.3.6.5/Annex B/Annex C
/Annex H
1.5.1 – Electricity supply 5.6.2
1.5.2 - Static electricity 5.3.4/5.6.2
1.5.3 - Energy supply other than 5.6.4
electricity
1.5.4 - Errors of fitting 5.6.11
1.5.5 - Extreme temperatures 5.6.5
1.5.6 - Fire 5.6.2
1.5.7 - Explosion Not applicable
1.5.8 - Noise 5.6.1
1.5.9 - Vibrations Not applicable
1.5.10 - Radiation 5.2.1.4
1.5.11 - External radiation 5.3.4
1.5.12 - Laser radiation 5.2.1.5/5.2.1.7/5.6.7
1.5.13 - Emissions of hazardous 5.6.6
materials and substances
1.5.14 - Risk of being trapped in a 5.2.2.3/5.5.7/5.5.8
machine
1.5.15 - Risk of slipping, tripping or 5.5.5/5.5.6/5.6.10.2
falling
1.5.16 - Lightning Not relevant
1.6.1 - Machinery or related product 5.4.1/5.4.2/5.6.10
maintenance
1.6.2 - Access to operating positions 5.5.6/5.6.10.2
and servicing points
1.6.3 - Isolation of energy sources 5.6.9
1.6.4 - Operator intervention 5.6.10
1.6.5 – Cleaning of internal parts Not applicable
1.7.1 - Information and warnings on
7.1.2/Annex G
the machinery or related product
1.7.1.1 - Information and information
7.1.2
devices
1.7.1.2 – Warning devices Not applicable
1.7.2 - Warning of residual risks 7.1.2.2 d)/Annex G
The relevant Essential Clause(s)/subclause(s) of this Remarks/Notes
Requirements of Regulation (EU) EN
2023/1230
1.7.3 - Marking of machinery or related
7.1
products
1.7.4.1 - General principles for the
7.2
drafting of instructions for use
1.7.4.2 - Contents of the instructions for
5.6.1/7.2.2/Annex E
use
1.7.5 - Sales literature Annex E
WARNING 1 Presumption of conformity stays valid only as long as a reference to this European
Standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2 Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
International
Standard
ISO 6909
First edition
Machine tools — Safety — Press
2026-05
brakes
Machines-outils — Sécurité — Presses plieuses
Reference number
ISO 6909:2026(en) © ISO 2026
ISO 6909:2026(en)
© ISO 2026
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 6909:2026(en)
Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 4
4 List of significant hazards . 14
5 Safety requirements and/or protective measures .15
5.1 General . 15
5.2 Protection of mechanical hazards . 15
5.2.1 Description of the safeguarding of access to moving parts . 15
5.2.2 Location of the safeguarding of access to moving parts . .27
5.3 Control systems . 29
5.3.1 General . 29
5.3.2 Manual control devices . 29
5.3.3 Failure of power supply . 29
5.3.4 Protection against external influences . 30
5.3.5 Safety functions . 30
5.3.6 Other functions . 53
5.3.7 Use of electronic components . 54
5.4 Mode of operation . 54
5.4.1 Description of the various modes of operation . 54
5.4.2 Setting mode . 55
5.4.3 Production modes . 55
5.5 Consideration of basic design and other mechanical hazards . 56
5.5.1 Prevention of unintended gravity fall of the beam (down-stroking press brakes) . 56
5.5.2 Stability of the press brake . 56
5.5.3 Risk of break up during operation . 56
5.5.4 Tool holder and tool design . 56
5.5.5 Access to raised work stations or platforms .57
5.5.6 Slips, trips and falls .57
5.5.7 Release of trapped persons .57
5.5.8 Safeguarding of drives, transmission machinery and ancillary devices .57
5.6 Protection against non-mechanical hazard . 58
5.6.1 Noise . 58
5.6.2 Electrical hazards. 58
5.6.3 Ergonomics . 58
5.6.4 Hydraulic and pneumatic systems .59
5.6.5 Thermal hazards . 60
5.6.6 Hazards generated by materials and substances. 60
5.6.7 Hazards generated by lasers. 60
5.6.8 High pressure fluid ejection hazards . 60
5.6.9 Isolation and energy dissipation . 60
5.6.10 Maintenance . 60
5.6.11 Errors of fitting .61
6 Verification of the safety requirements and/or protective measures . 61
7 Information for use .65
7.1 Marking . 65
7.1.1 General . 65
7.1.2 Content . 65
7.2 Instruction handbook. 65
7.2.1 General . 65
7.2.2 Content . 65
iii
ISO 6909:2026(en)
Annex A (informative) Significant hazards, hazardous situations and protective measures .68
Annex B (normative) Calculation of separation distances .72
Annex C (normative) Overall system response time of the press brake stopping performance .75
Annex D (informative) Example of redundant and monitored hydraulic control circuits for a
down-stroking press brake . 76
Annex E (normative) Noise test code for press brakes .77
Annex F (informative) Side safeguarding for press brakes with manually loaded and/or
unloaded .82
Annex G (normative) Markings .83
Annex H (normative) Laser actuated AOPD system tests .84
Annex I (informative) Bending speed .86
Annex J (informative) Press brakes technologies .88
Bibliography .89
iv
ISO 6909:2026(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 39, Machine tools, Subcommittee SC 10, Safety,
in collaboration with the European Committee for Standardization (CEN) Technical Committee CEN/TC 143,
Machine tools - Safety, in accordance with the Agreement on technical cooperation between ISO and CEN
(Vienna Agreement).
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
v
ISO 6909:2026(en)
Introduction
This document is a type C standard as stated in ISO 12100:2010.
This document is of relevance, in particular, for the following stakeholder groups representing the market
players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);
— health and safety bodies (regulators, accident prevention organizations, market surveillance etc.).
Others can be affected by the level of machinery safety achieved with the means of the document by the
above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);
— machine users/employees (e.g. trade unions, organizations for people with special needs);
— service providers, for example, for maintenance (small, medium and large enterprises);
— consumers (in the case of machinery intended for use by consumers).
The above-mentioned stakeholder groups have been given the possibility to participate at the drafting
process of this document.
The machinery concerned and the extent to which hazards, hazardous situations or hazardous events are
covered are indicated in the Scope of this document.
When requirements of this type-C standard are different from those which are stated in type-A or type-B
standards, the requirements of this type-C standard take precedence over the requirements of the other
standards for machines that have been designed and built according to the requirements of this type-C
standard.
vi
International Standard ISO 6909:2026(en)
Machine tools — Safety — Press brakes
1 Scope
This document specifies technical safety requirements and measures to be adopted by persons undertaking
the design, manufacture and supply of press brakes which are intended to work cold metal or material partly
of cold metal but which can be used in the same way to work other sheet materials (e.g. cardboard, plastic,
rubber, leather) and also referred to as machines.
NOTE 1 The design of a machine includes the study of the machine itself, taking into account all phases of the “life”
of the machine mentioned in ISO 12100:2010, 5.4, and the drafting of the instructions related to all the above phases.
This document covers the following types of machines (see Annex J):
— hydraulic press brakes;
— hydraulic servo-drive press brakes;
— screw servo-drive press brakes;
— belt-spring servo-drive press brakes.
The requirements in this document take account of intended use, as defined in ISO 12100:2010, 3.23, as
...
