prEN 15191

Precast concrete products - Classification of glassfibre reinforced concrete performances

This European standard deals with the classification of glassfibre reinforced concrete. This classification conforms to the needs of the design process of glassfibre reinforced concrete components. This European standard applies only if the standard EN 1169 is followed.
This standard does not include the design methods.

Betonfertigteile - Klassifizierung der Leistungseigenschaften von Glasfaserbeton

Diese Europäische Norm behandelt die Klassifizierung von Glasfaserbeton. Die Klassifizierung entspricht den Erfordernissen der Bemessung von Bauteilen aus Glasfaserbeton. Diese Europäische Norm gilt nur bei Einhaltung der Norm EN 1169.
Diese Norm enthält keine Bemessungsverfahren.

Produits préfabriqués en béton - Classification des performances des composites ciment-verre

La présente Norme européenne traite de la classification des composites ciment-verre. Cette classification répond aux besoins du processus de conception des éléments de composites ciment-verre. La présente Norme européenne s'applique uniquement si la norme EN 1169 est respectée.
La présente norme ne traite pas de méthodes de calcul.

Montažni betonski izdelki – Klasifikacija obnašanja betona, armiranega s steklenimi vlakni

General Information

• Status: Not Published
• Technical Committee: CEN/TC 229 - Precast concrete products
• Drafting Committee: CEN/TC 229/WG 3 - Products for which the stability requirements is not dominant
• Current Stage: 4598 - Decision to abandon - Finalization for Vote
• Start Date: 21-Sep-2007
• Completion Date: 21-Sep-2007
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/EXP - Expected mandates in CPD field.
• Ref Project: oSIST prEN 15191:2005 - Precast concrete products - Classification of glassfibre reinforced concrete performances

Standards Content (Sample)

SLOVENSKI oSIST prEN 15191:2005

PREDSTANDARD
maj 2005
Montažni betonski izdelki – Klasifikacija obnašanja betona, armiranega s
steklenimi vlakni
Precast concrete products - Classification of glassfibre reinforced concrete
performances
ICS 91.100.30 Referenčna številka
oSIST prEN 15191:2005(en)
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

---------------------- Page: 1 ----------------------
EUROPEAN STANDARD
DRAFT
prEN 15191
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2005
ICS
English version
Precast concrete products - Classification of glassfibre
reinforced concrete performances
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 229.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
: This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
Warning
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 15191:2005: E
worldwide for CEN national Members.

---------------------- Page: 2 ----------------------
prEN 15191:2005 (E)

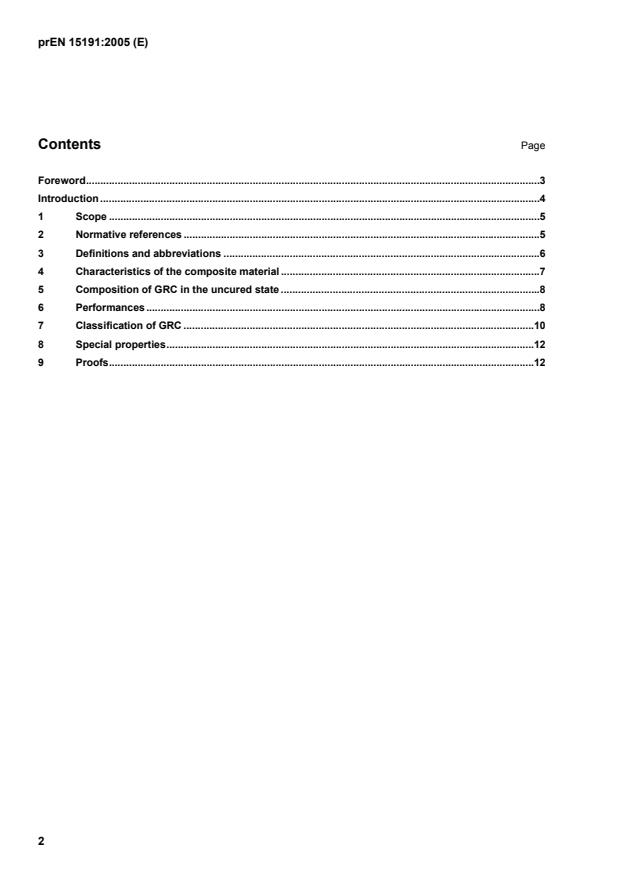

Contents Page
Foreword.3
Introduction .4
1 Scope .5
2 Normative references .5
3 Definitions and abbreviations .6
4 Characteristics of the composite material .7
5 Composition of GRC in the uncured state .8
6 Performances.8
7 Classification of GRC .10
8 Special properties.12
9 Proofs.12

2

---------------------- Page: 3 ----------------------
prEN 15191:2005 (E)
Foreword
This document (prEN 15191:2005) has been prepared by Technical Committee CEN/TC 229 “Precast
concrete products”, the secretariat of which is held by AFNOR.
This document is currently submitted to the CEN Enquiry.
3

---------------------- Page: 4 ----------------------
prEN 15191:2005 (E)
Introduction
This standard deals with the properties of GRC depending on the constituent materials, the composition of
glassfibre reinforced concrete and the production processes. The glassfibre reinforced concrete (GRC) can be
manufactured using different combination of materials to meet the required properties. Mix composition, type
of cement, and the proportion, length and orientation of glassfibres may all be varied to produce a specific
product. A polymer dispersion may be used for curing purposes.
The classification is based on the material properties to be achieved.
4

---------------------- Page: 5 ----------------------
prEN 15191:2005 (E)
1 Scope
This European standard deals with the classification of glassfibre reinforced concrete. This classification
conforms to the needs of the design process of glassfibre reinforced concrete components. This European
standard applies only if the standard EN 1169 is followed.
This standard does not include the design methods.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 1169, Precast concrete products — General rules for factory production control of glassfibre reinforced
cement.
EN 1170-1, Precast concrete products — Test method for glassfibre reinforced cement — Part 1: Measuring
the consistency of the matrix – “Slump test” method.
EN 1170-2, Precast concrete products – Test method for glassfibre reinforced cement — Part 2: Measuring
the fibre content in fresh GRC — “Wash out test”.
EN 1170-3, Precast concrete products — Test method for glassfibre reinforced cement — Part 3: Measuring
the fibre content of sprayed GRC.
EN 1170-4, Precast concrete products — Test method for glassfibre reinforced cement — Part 4: Measuring
bending strength — “Simplified bending test” method.
EN 1170-5, Precast concrete products — Test method for glassfibre reinforced cement — Part 5: Measuring
bending strength — “Complete bending test” method.
EN 1170-6, Precast concrete products — Test method for glassfibre reinforced cement — Part 6:
Determination of the absorption of water by immersion and determination of the dry density.
EN 1170-7, Precast concrete products — Test method for glassfibre reinforced cement — Part 7:
Measurement of extremes dimensional variations due to moisture content.
ENV 1170-8, Test method for glassfibre reinforced cement — Part 8: Cyclic weathering type test.
prEN 14649, Precast concrete products — Test method for strength retention of glassfibre in cement and
concrete (SIC TEST).
prEN XXXXX, Specification for the Alkali Resistance of glassfibres for the reinforcement of concrete (or
cement).
ISO 12491:1997, Statistical methods for quality control of building materials and components.
5

---------------------- Page: 6 ----------------------
prEN 15191:2005 (E)
3 Definitions and abbreviations
3.1 Terms and definitions
For the purposes of this standard, the following definitions apply:
3.1.1
additive
product that may be added by volume to the matrix composition to improve some properties. It can be reactive
(e.g. silica fumes) or inert, mineral or organic (e.g. polymer dispersions)
3.1.2
admixture
product added in quantity less than 5% by volume (or the mass of cement), before or during mixing and giving
expected modifications to the initial properties (e.g. plasticiser, air entraining agents)
3.1.3
AR glassfibre
a glassfibre product with a proven resistance (prEN XXXX) to the alkaline environment of matrices made from
hydraulic cement
3.1.4
basic strand
glassfibre obtained by stranding a number of filaments (typically 100 to 200) having a defined individual
diameter (typically 10 µm to 30 µm)
3.1.5
roving
a number of parallel strands wound together on a mandrel to form uniform cylindrical package size
3.1.6
glassfibre reinforced concrete
GRC
composite material consisting of a matrix of hydraulic binder reinforced with glassfibres, these materials being
compatible
3.1.7
matrix
composition of the glassfibre reinforced concrete without the fibres. It is made of the mixture of sand, cement,
water an any additives and admixtures
3.1.8
spray processes
processes whereby continuous glassfibre are cut into set lengths and sprayed together with the matrix. The
processes are designed to give a glassfibre reinforced concrete in which the fibres are oriented parallel to the
mould surface
3.1.9
premix processes
processes whereby chopped strands of glassfibres are blended with the matrix to make a glassfibre reinforced
concrete ready for processing. The processes may be: “casting and vibration”, wet or dry spraying,
...
