EUROPEAN STANDARD
EN 61547
NORME EUROPÉENNE
August 2009
EUROPÄISCHE NORM
ICS 29.020; 29.140; 33.100.10 Supersedes EN 61547:1995 + A1:2000
English version
Equipment for general lighting purposes -
EMC immunity requirements
(IEC 61547:2009)
Equipements pour l'éclairage Einrichtungen für allgemeine
à usage général - Beleuchtungszwecke -
Exigences concernant l'immunité CEM EMV-Störfestigkeitsanforderungen
(CEI 61547:2009) (IEC 61547:2009)
This European Standard was approved by CENELEC on 2009-07-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: Avenue Marnix 17, B - 1000 Brussels
© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61547:2009 E
---------------------- Page: 3 ----------------------
SIST EN 61547:2009
EN 61547:2009 - 2 -

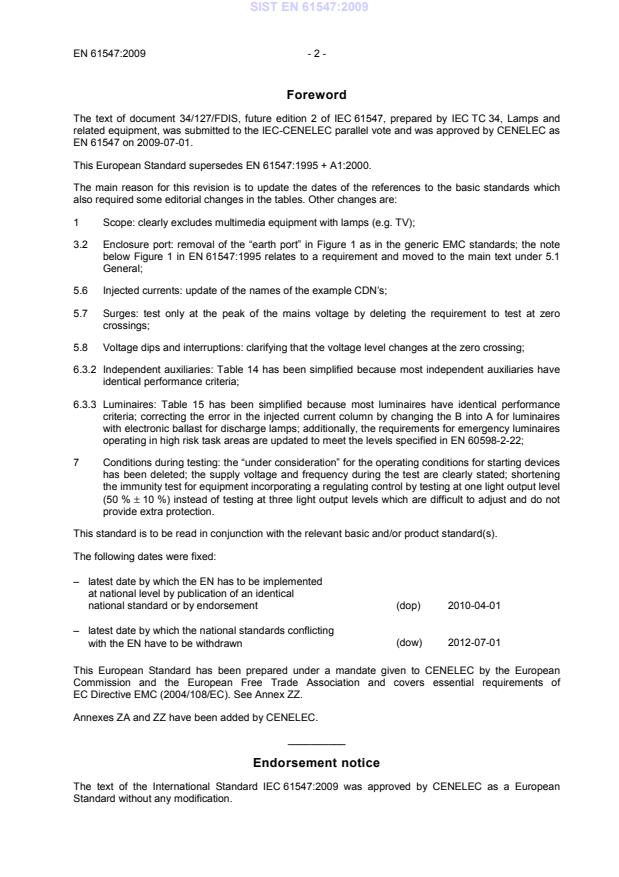

Foreword
The text of document 34/127/FDIS, future edition 2 of IEC 61547, prepared by IEC TC 34, Lamps and
related equipment, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
EN 61547 on 2009-07-01.
This European Standard supersedes EN 61547:1995 + A1:2000.
The main reason for this revision is to update the dates of the references to the basic standards which
also required some editorial changes in the tables. Other changes are:
1 Scope: clearly excludes multimedia equipment with lamps (e.g. TV);
3.2 Enclosure port: removal of the “earth port” in Figure 1 as in the generic EMC standards; the note
below Figure 1 in EN 61547:1995 relates to a requirement and moved to the main text under 5.1
General;
5.6 Injected currents: update of the names of the example CDN’s;
5.7 Surges: test only at the peak of the mains voltage by deleting the requirement to test at zero
crossings;
5.8 Voltage dips and interruptions: clarifying that the voltage level changes at the zero crossing;
6.3.2 Independent auxiliaries: Table 14 has been simplified because most independent auxiliaries have
identical performance criteria;
6.3.3 Luminaires: Table 15 has been simplified because most luminaires have identical performance
criteria; correcting the error in the injected current column by changing the B into A for luminaires
with electronic ballast for discharge lamps; additionally, the requirements for emergency luminaires
operating in high risk task areas are updated to meet the levels specified in EN 60598-2-22;
7 Conditions during testing: the “under consideration” for the operating conditions for starting devices
has been deleted; the supply voltage and frequency during the test are clearly stated; shortening
the immunity test for equipment incorporating a regulating control by testing at one light output level
(50 % ± 10 %) instead of testing at three light output levels which are difficult to adjust and do not
provide extra protection.
This standard is to be read in conjunction with the relevant basic and/or product standard(s).
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2010-04-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2012-07-01
This European Standard has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and covers essential requirements of
EC Directive EMC (2004/108/EC). See Annex ZZ.
Annexes ZA and ZZ have been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61547:2009 was approved by CENELEC as a European
Standard without any modification.
---------------------- Page: 4 ----------------------
SIST EN 61547:2009
- 3 - EN 61547:2009
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year
1)
IEC 60050-161 - International Electrotechnical Vocabulary - -
(IEV) -
Chapter 161: Electromagnetic compatibility
1)
IEC 60050-845 - International Electrotechnical Vocabulary - -
(IEV) -
Chapter 845: Lighting
IEC 60598-1 (mod) 2008 Luminaires - EN 60598-1 2008
Part 1: General requirements and tests A11 2009
1) 2)
IEC 60598-2-22 - Luminaires - EN 60598-2-22 1998
(mod) Part 2-22: Particular requirements - + corr. October 2007
Luminaires for emergency lighting
IEC 61000-4-2 2008 Electromagnetic compatibility (EMC) - EN 61000-4-2 2009
Part 4-2: Testing and measurement
techniques - Electrostatic discharge immunity
test
IEC 61000-4-3 2006 Electromagnetic compatibility (EMC) - EN 61000-4-3 2006
A1 2007 Part 4-3: Testing and measurement A1 2008
techniques - Radiated, radio-frequency, IS1 2009
electromagnetic field immunity test
IEC 61000-4-4 2004 Electromagnetic compatibility (EMC) - EN 61000-4-4 2004
Part 4-4: Testing and measurement
techniques - Electrical fast transient/burst
immunity test
IEC 61000-4-5 2005 Electromagnetic compatibility (EMC) - EN 61000-4-5 2006
Part 4-5: Testing and measurement
techniques - Surge immunity test
IEC 61000-4-6 2008 Electromagnetic compatibility (EMC) - EN 61000-4-6 2009
Part 4-6: Testing and measurement
techniques - Immunity to conducted
disturbances, induced by radio-frequency
fields
IEC 61000-4-8 1993 Electromagnetic compatibility (EMC) - EN 61000-4-8 1993
A1 2000 Part 4-8: Testing and measurement A1 2001
techniques - Power frequency magnetic field
immunity test
1)
Undated reference.
2)
Valid edition at date of issue.
---------------------- Page: 5 ----------------------
SIST EN 61547:2009
EN 61547:2009 - 4 -
Publication Year Title EN/HD Year
IEC 61000-4-11 2004 Electromagnetic compatibility (EMC) - EN 61000-4-11 2004
Part 4-11: Testing and measurement
techniques - Voltage dips, short interruptions
and voltage variations immunity tests
IEC 61000-6-1 2005 Electromagnetic compatibility (EMC) - EN 61000-6-1 2007
Part 6-1: Generic standards - Immunity for
residential, commercial and light-industrial
environments
__________
---------------------- Page: 6 ----------------------
SIST EN 61547:2009
- 5 - EN 61547:2009
Annex ZZ
(informative)
Coverage of Essential Requirements of EC Directives
This European Standard has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and within its scope the standard covers all
relevant essential requirements as given in Annex I of the EC Directive 2004/108/EC.
Compliance with this standard provides one means of conformity with the specified essential
requirements of the Directive concerned.
WARNING: Other requirements and other EC Directives may be applicable to the products falling within
the scope of this standard.
__________
---------------------- Page: 7 ----------------------
SIST EN 61547:2009
---------------------- Page: 8 ----------------------
SIST EN 61547:2009
IEC 61547
®
Edition 2.0 2009-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Equipment for general lighting purposes – EMC immunity requirements
Équipements pour l'éclairage à usage général – Exigences concernant
l’immunité CEM
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
P
CODE PRIX
ICS 29.020; 29.140; 33.100.10 ISBN 2-8318-1047-7
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 9 ----------------------
SIST EN 61547:2009
– 2 – 61547 © IEC:2009
CONTENTS
FOREWORD.4
1 Scope.6
2 Normative references .6
3 Terms and definitions .7
4 Performance criteria .8
5 Test specifications.9
5.1 General .9
5.2 Electrostatic discharges .9
5.3 Radio-frequency electromagnetic fields .10
5.4 Power frequency magnetic fields .10
5.5 Fast transients .10
5.6 Injected currents (radio-frequency common mode) .11
5.7 Surges .12
5.8 Voltage dips and short interruptions .12
5.9 Voltage fluctuations.13
6 Application of test specifications.13
6.1 General .13
6.2 Non-electronic lighting equipment.13
6.3 Electronic lighting equipment.13
6.3.1 General .13
6.3.2 Self-ballasted lamps .13
6.3.3 Independent auxiliaries.14
6.3.4 Luminaires.14
7 Conditions during testing .14
8 Assessment of conformity.15
Figure 1 – Examples of ports .8
Table 1 – Electrostatic discharges – Test levels at enclosure port.10
Table 2 – Radio-frequency electromagnetic fields – Test levels at enclosure port .10
Table 3 – Power frequency magnetic fields – Test levels at enclosure port .10
Table 4 – Fast transients – Test levels at ports for signal and control lines .10
Table 5 – Fast transients – Test levels at input and output d.c. power ports.11
Table 6 – Fast transients – Test levels at input and output a.c. power ports.11
Table 7 – Radio-frequency common mode – Test levels at ports for signal and control
lines.11
Table 8 – Radio-frequency common mode – Test levels at input and output d.c. power
ports .11
Table 9 – Radio-frequency common mode – Test levels at input and output a.c. power
ports .12
Table 10 – Surges – Test levels at input a.c. power ports .12
Table 11 – Voltage dips – Test levels at input a.c. power ports .12
Table 12 – Voltage short interruptions – Test levels at input a.c. power ports .13
Table 13 – Application of tests for self-ballasted lamps.13
---------------------- Page: 10 ----------------------
SIST EN 61547:2009
61547 © IEC:2009 – 3 –
Table 14 – Application of tests for independent auxiliaries .14
Table 15 – Application of tests for luminaires.14
---------------------- Page: 11 ----------------------
SIST EN 61547:2009
– 4 – 61547 © IEC:2009
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
EQUIPMENT FOR GENERAL LIGHTING PURPOSES –
EMC IMMUNITY REQUIREMENTS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61547 has been prepared by IEC technical committee 34: Lamps
and related equipment.
This second edition cancels and replaces the first edition, published in 1995, and its
Amendment 1 (2000). It constitutes a technical revision
The main reason for this revision is to update the dates of the references to the basic
standards which also required some editorial changes in the tables. Other changes are:
1 Scope: clearly excludes multimedia equipment with lamps (e.g. TV);
3.2 Enclosure port: removal of the ”earth port” in Figure 1 as in the generic EMC
standards; the note below Figure 1 in the first edition relates to a requirement and
moved to the main text under 5.1 General;
5.6 Injected currents: update of the names of the example CDN’s;
5.7 Surges: test only at the peak of the mains voltage by deleting the requirement to test
at zero crossings;
5.8 Voltage dips and interruptions: clarifying that the voltage level changes at the zero
crossing;
---------------------- Page: 12 ----------------------
SIST EN 61547:2009
61547 © IEC:2009 – 5 –
6.3.2 Independent auxiliaries: Table 14 has been simplified because most independent
auxiliaries have identical performance criteria;
6.3.3 Luminaires: Table 15 has been simplified because most luminaires have identical
performance criteria; correcting the error in the injected current column by changing
the B into A for luminaires with electronic ballast for discharge lamps; additionally, the
requirements for emergency luminaires operating in high risk task areas are updated
to meet the levels specified in IEC 60598-2-22;
7 Conditions during testing: the ”under consideration” for the operating conditions for
starting devices has been deleted; the supply voltage and frequency during the test
are clearly st
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
