EN 1493:2022

Vehicle lifts

This document is applicable to stationary and mobile vehicle lifts, which are not intended to lift persons but which are designed to raise vehicles totally, for the purpose of examining and working on or under the vehicles whilst in a raised position. The vehicle lift may consist of one or more lifting units.
Power supply to the vehicle lift by internal combustion engines is not considered.
The floor or ground supporting the vehicle lift in use is assumed to be horizontal.
This document does not exclude a person from entering a lifted vehicle on wheel supporting lifts, e.g. for special works or for periodical technical inspection, and vehicle lifts for rail-bound vehicles.
This document does not contain requirements for hazards which may arise on vehicle lifts where the carrying device can be tilted.
NOTE Noise does not play a role in vehicle lifts in the majority of cases and is therefore not considered in this document.
This document does not apply to:
- vehicle lifts movable when loaded;
- equipment for power driven parking of motor vehicles (see EN 14010:2003+A1:2009).
This document is applicable to vehicle lifts which are manufactured six months after the date of its publication as a European Standard.

Fahrzeug-Hebebühnen

Dieses Dokument ist anzuwenden für stationäre, fahrbare und ortsveränderliche Fahrzeug-Hebebühnen, die bestimmungsgemäß nicht für das Heben von Personen, sondern zum vollständigen Anheben von Fahrzeugen vorgesehen sind, um die angehobenen Fahrzeuge zu untersuchen und an oder unter ihnen in aufrechter Position zu arbeiten. Fahrzeug-Hebebühnen können aus einer oder mehreren Hubeinheiten bestehen.
Ein Antrieb der Fahrzeug-Hebebühne durch Verbrennungsmotoren wird nicht betrachtet.
Es wird vorausgesetzt, dass der Boden, auf dem die Fahrzeug-Hebebühne benutzt wird, horizontal ist.
Dieses Dokument schließt nicht aus, dass eine Person bei Hebebühnen, die das Fahrzeug an den Rädern aufnehmen, in ein angehobenes Fahrzeug einsteigen kann, z. B. für besondere Arbeiten oder für die periodische technische Inspektion, sowie bei Fahrzeug-Hebebühnen für schienengebundene Fahrzeuge.
Dieses Dokument enthält keine Anforderungen für Gefahren, die bei Fahrzeug-Hebebühnen auftreten können, bei denen das Tragmittel gekippt werden kann.
ANMERKUNG   Lärm spielt bei Fahrzeug-Hebebühnen in den meisten Fällen keine Rolle und wird daher in diesem Dokument nicht behandelt.
Dieses Dokument ist nicht anzuwenden für:
—   in beladenem Zustand verfahrbare Fahrzeug-Hebebühnen;
—   kraftbetriebene Parkeinrichtungen für Kraftfahrzeuge (siehe EN 14010:2003+A1:2009).
Dieses Dokument ist anwendbar für Fahrzeug-Hebebühnen, die sechs Monate nach der Veröffentlichung als Europäische Norm hergestellt wurden.

Élévateurs de véhicules

Le présent document est applicable aux élévateurs de véhicules fixes et mobiles, qui ne sont pas prévus pour le levage de personnes, mais qui sont conçus pour élever des véhicules en totalité, afin de permettre les travaux de vérification, d'entretien et de réparation sur ou sous le véhicule lorsqu'il est en position levée. L'élévateur de véhicule peut consister en une ou plusieurs unités de levage.
L'alimentation en énergie de l'élévateur de véhicule par des moteurs à combustion interne n'a pas été envisagée.
Le plancher ou le sol supportant l'élévateur de véhicule lors du fonctionnement est supposé être horizontal.
Ce document n'exclut pas une personne entrant dans un véhicule levé sur des élévateurs à prise sous roues, p. ex. pour des travaux particuliers ou une inspection technique périodique et des élévateurs de véhicule pour des véhicules guidés sur rails.
Ce document ne contient pas d'exigences relatives aux dangers pouvant survenir sur des élévateurs de véhicule dans lesquels le dispositif support peut être incliné.
NOTE Le bruit ne joue pas de rôle dans les élévateurs de véhicules dans la majorité des cas, et n'est donc pas pris en compte dans le présent document.
Ce document ne s'applique pas :
- aux élévateurs de véhicules déplaçables, lorsqu'ils sont chargés ;
- aux équipements pour le stationnement motorisé de véhicules à moteur (voir EN 14010:2003+A1:2009).
Ce document est applicable aux élévateurs de véhicule qui sont fabriqués six mois après sa date de publication en norme européenne.

Dvigala za servisiranje vozil

Ta dokument se navezuje na stacionarna, mobilna in premična dvigala za servisiranje vozil, ki niso namenjena dvigovanju oseb, ampak so zasnovana za dvig celotnih vozil, za pregledovanje in delo na dvignjenih vozilih ali pod njimi. Dvigala za servisiranje vozil so lahko sestavljena iz ene ali več dvižnih enot.
Napajanje dvigal za servisiranje vozil z motorji z notranjim zgorevanjem ni obravnavano.
Predpostavlja se, da so tla na mestu uporabe dvigala za servisiranje vozil vodoravna.
Dokument ne izključuje morebitnega vstopa osebe v dvignjeno vozilo na dvigalu s podporo kolesih (npr. za posebna dela ali občasne tehnične preglede) in dvigalu za tirna vozila.
Dokument ne vsebuje zahtev za preprečevanje nevarnosti, ki se lahko pojavijo pri uporabi dvigal za servisiranje vozil, ko je nosilna naprava nagnjena.
Dokument se ne uporablja za naprave za električno parkiranje motornih vozil (glej EN 14010). Dokument se uporablja za dvigala za servisiranje vozil, izdelana šest mesecev po datumu njegove objave kot standarda EN.

General Information

• Status: Published
• Publication Date: 08-Nov-2022
• ICS: 43.180 - Diagnostic, maintenance and test equipment
• ICS: 53.020.99 - Other lifting equipment
• Technical Committee: CEN/TC 98 - Lifting platforms
• Drafting Committee: CEN/TC 98/WG 3 - Vehicle lifting devices
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 09-Nov-2022
• Due Date: 25-Jan-2022
• Completion Date: 09-Nov-2022
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Mandate: M/BC/CEN/91/1 - Standardization request to CEN/CENELEC concerning machines presenting hazards due to mobility or load lifting
• Ref Project: SIST EN 1493:2023 - Vehicle lifts

Relations

• Replaces: EN 1493:2010 - Vehicle lifts
• Effective Date: 16-Nov-2022
• Revised: prEN 1493 - Vehicle lifts
• Effective Date: 28-Jan-2023

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2023
Nadomešča:
SIST EN 1493:2010
Dvigala za servisiranje vozil
Vehicle lifts
Fahrzeug-Hebebühnen
Élévateurs de véhicules
Ta slovenski standard je istoveten z: EN 1493:2022
ICS:
43.180 Diagnostična, vdrževalna in Diagnostic, maintenance and
preskusna oprema test equipment
53.020.99 Druga dvigalna oprema Other lifting equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 1493
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2022
EUROPÄISCHE NORM
ICS 43.180; 53.020.99 Supersedes EN 1493:2010
English Version
Vehicle lifts
Élévateurs de véhicules Fahrzeug-Hebebühnen
This European Standard was approved by CEN on 12 September 2022.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1493:2022 E
worldwide for CEN national Members.

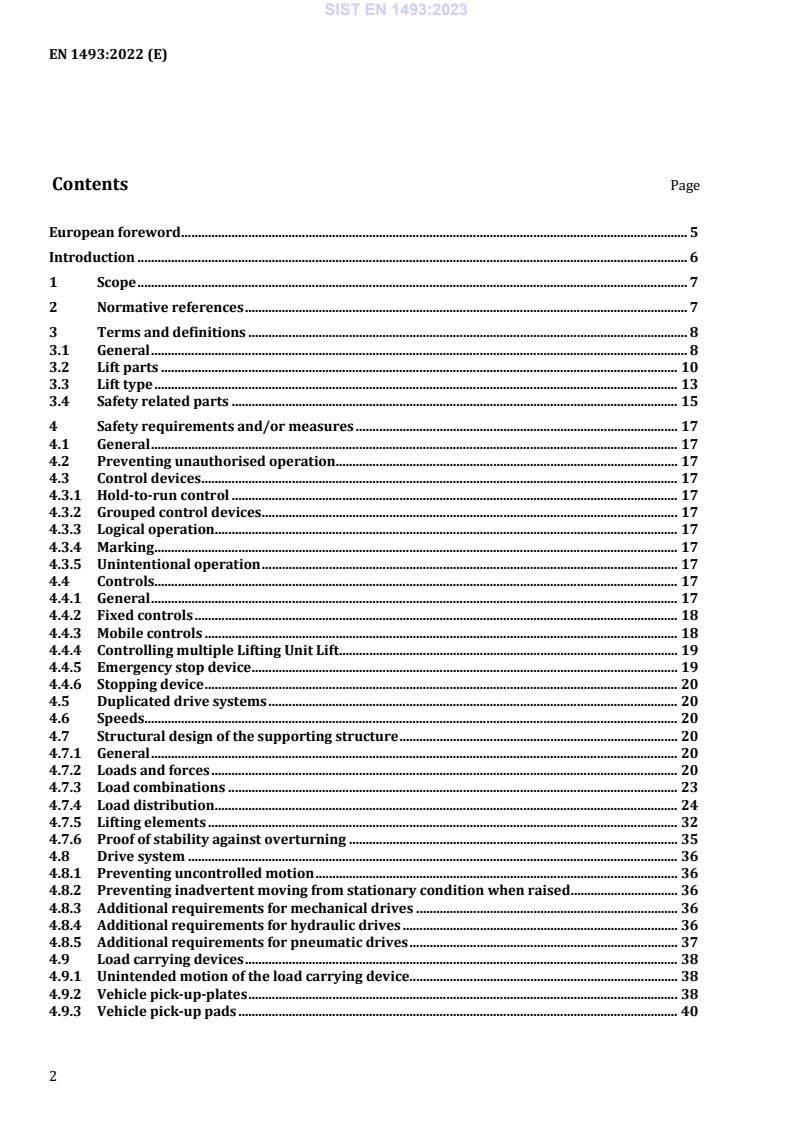

Contents Page
European foreword . 5
Introduction . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
3.1 General . 8
3.2 Lift parts . 10
3.3 Lift type . 13
3.4 Safety related parts . 15
4 Safety requirements and/or measures . 17
4.1 General . 17
4.2 Preventing unauthorised operation. 17
4.3 Control devices . 17
4.3.1 Hold-to-run control . 17
4.3.2 Grouped control devices . 17
4.3.3 Logical operation . 17
4.3.4 Marking . 17
4.3.5 Unintentional operation . 17
4.4 Controls . 17
4.4.1 General . 17
4.4.2 Fixed controls . 18
4.4.3 Mobile controls . 18
4.4.4 Controlling multiple Lifting Unit Lift . 19
4.4.5 Emergency stop device . 19
4.4.6 Stopping device . 20
4.5 Duplicated drive systems . 20
4.6 Speeds. 20
4.7 Structural design of the supporting structure . 20
4.7.1 General . 20
4.7.2 Loads and forces . 20
4.7.3 Load combinations . 23
4.7.4 Load distribution . 24
4.7.5 Lifting elements . 32
4.7.6 Proof of stability against overturning . 35
4.8 Drive system . 36
4.8.1 Preventing uncontrolled motion . 36
4.8.2 Preventing inadvertent moving from stationary condition when raised . 36
4.8.3 Additional requirements for mechanical drives . 36
4.8.4 Additional requirements for hydraulic drives . 36
4.8.5 Additional requirements for pneumatic drives . 37
4.9 Load carrying devices . 38
4.9.1 Unintended motion of the load carrying device. 38
4.9.2 Vehicle pick-up-plates . 38
4.9.3 Vehicle pick-up pads . 40
4.9.4 Locking systems of carrying arms . 40
4.9.5 Prevention of rolling off . 41
4.10 Additional requirements for lifts with balconies . 42
4.11 Limiting the travel of the load carrying device . 42
4.12 Unintended blocking of the load carrying device . 43
4.13 Safety against rupture of mechanical lifting elements. 43
4.14 Safety against leakage . 44
4.14.1 Limiting the lowering speed . 44
4.14.2 Protection against leakage . 44
4.15 Additional requirements for lifts with more than one lifting units . 44
4.16 Additional requirements for mobile lifts . 45
4.16.1 Safety against unintended motion . 45
4.16.2 Service brakes for vehicle lifts using powered mobility . 45
4.16.3 Devices for moving manually mobile lifts . 45
4.16.4 Derailment protection . 45
4.16.5 Forces . 45
4.16.6 Visibility . 45
4.17 Protection against pinching and shearing . 45
4.17.1 General . 45
4.17.2 Safety distances . 46
4.17.3 Other safety measures . 46
4.18 Safety devices . 47
4.18.1 General . 47
4.18.2 Arrangement . 47
4.18.3 Function of mechanical safety devices . 47
4.18.4 Safety switches . 47
4.18.5 Springs in safety devices . 47
4.19 Protection against damage . 48
4.19.1 Wearing parts . 48
4.19.2 Lead screws . 48
4.19.3 Installation of hoses, pipes and electrical equipment . 48
4.20 Manually driven vehicle lifts . 48
4.21 Electrical equipment . 48
4.21.1 General . 48
4.21.2 IP-code .
...
